Product Description

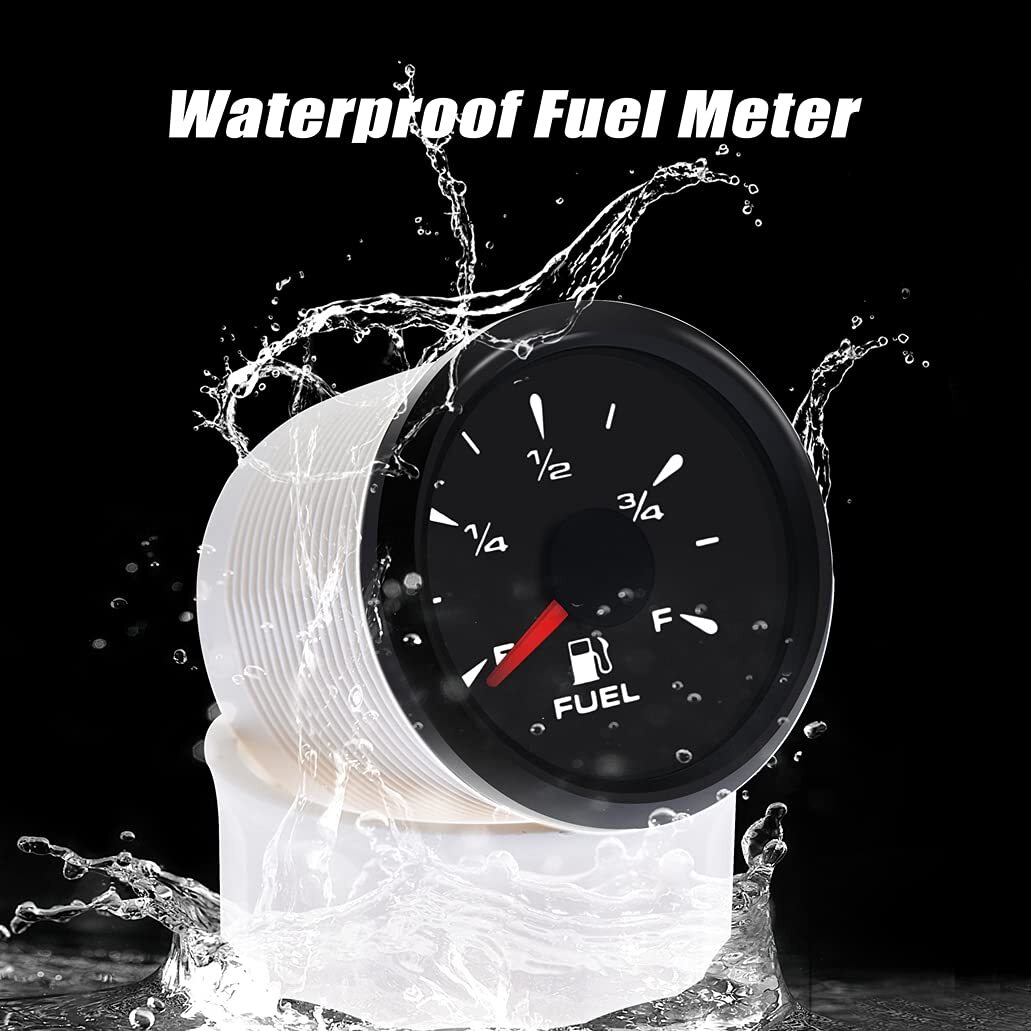

2'' 52mm 12V Car Fuel Level Gauge Meter 7 Colors LED E-1/2-F Pointer Indicator

Electric Fuel Level Gauge 52mm Universal Fuel Meter Signal Adjustable 7 Color Backlight 9~32 V Car Boat Indicator with 0~190 ohm/ 240~33ohm



Feature:

[1] Gauges front cover use stainless steel 316L for long-term use even in acid-base and humid environment

[2] IP67 waterproof and dustproof grade

[3] Stepper motors used for full range of stepping gauges,great feature with its less power consumption,longer life,higher precision etc.

[4] With curved glass (with anti-fog function)

[5] With ultra-wide working voltage design (long-term operating voltage:9-32v,maximum up to:36v)

[6] Gauges have many kinds backlight color (red、yellow、orange、green、blue、purple、white),customers can adjust any color that you like

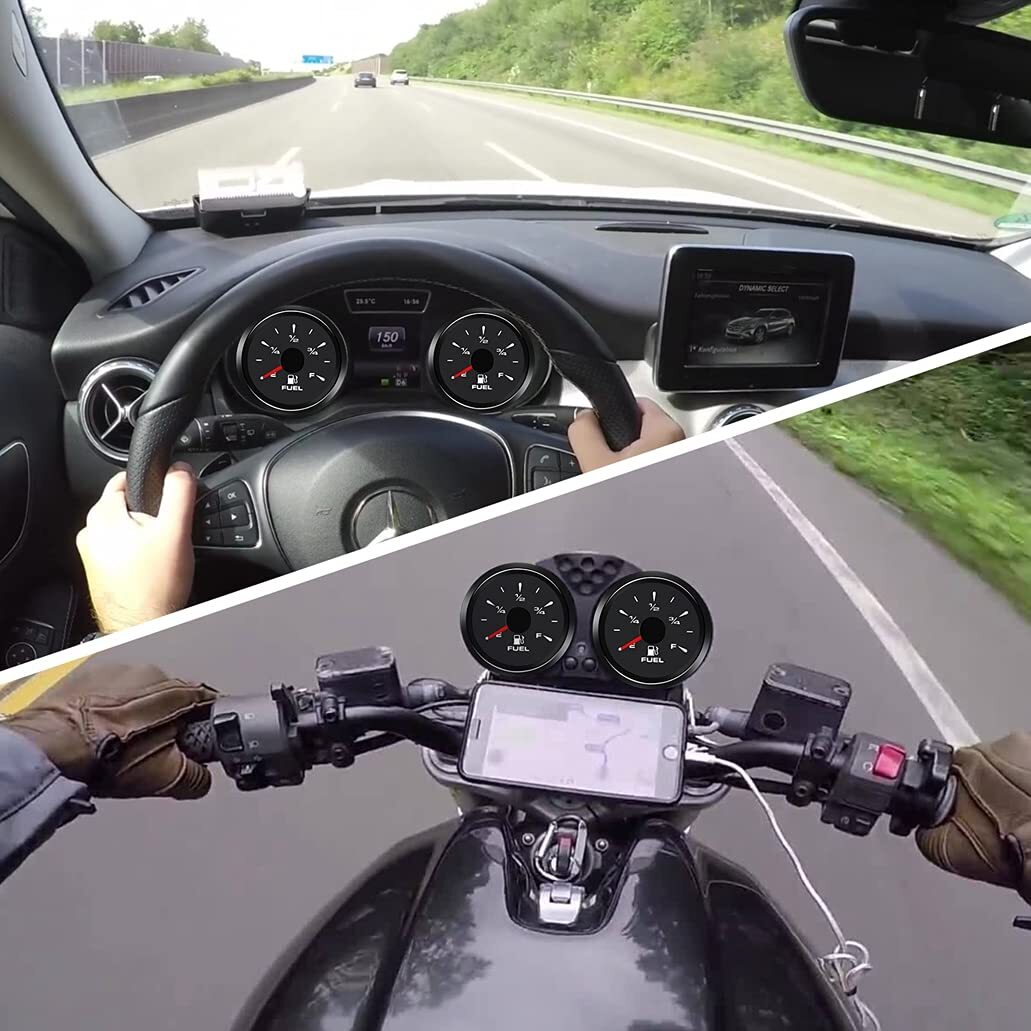

[7] There is a snap together with the harness connector,for best and firmly connected,in order that the gauges could work even in strong viberation,products can be used for the engines/generating units,ships,construction machinery,agricultural machinery,automotive modification etc.



Technical Data:

- Material:stainless steel 316L+anti-fog glass

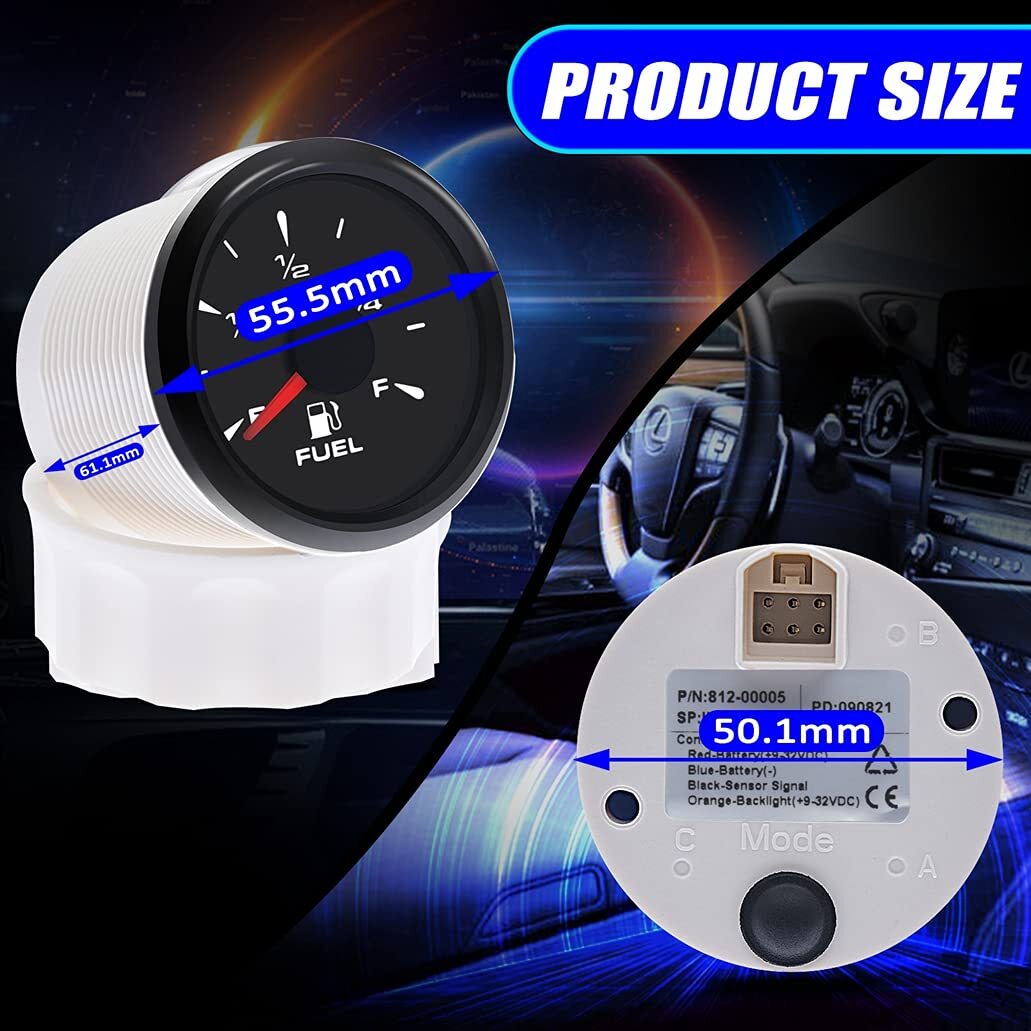

- Install diameter:Φ52mm or 2-1/16"

- Indication range:E~F

- Connection method:row insert

- Backlight color:red、green、blue、white、yellow、orange、purple,totally 7 kinds different backlight color,it will change automatically every 1 minute,or you can fix only one color that you like through press the gauge back "set" button

- Working voltage:9~32vdc

- Input signal:0~190ohm、0~180ohm、10~180ohm、240~33ohm、240~30ohm

- Users can select the input resistance by themselves as below:press the back "Mode"button for 3 seconds to enter the setting mode,back light flickering for a while.the needle point at the "E"position,and you could select the corresponding parameter via press the button



Specification:

* Working current::≤60mA

* Operating temperature:-30℃~+75℃

* Storage temperature:-40℃~+85℃

* Grade of protection:IP67

* Item color:Black

* Item condition:new

* Package method:neutral box

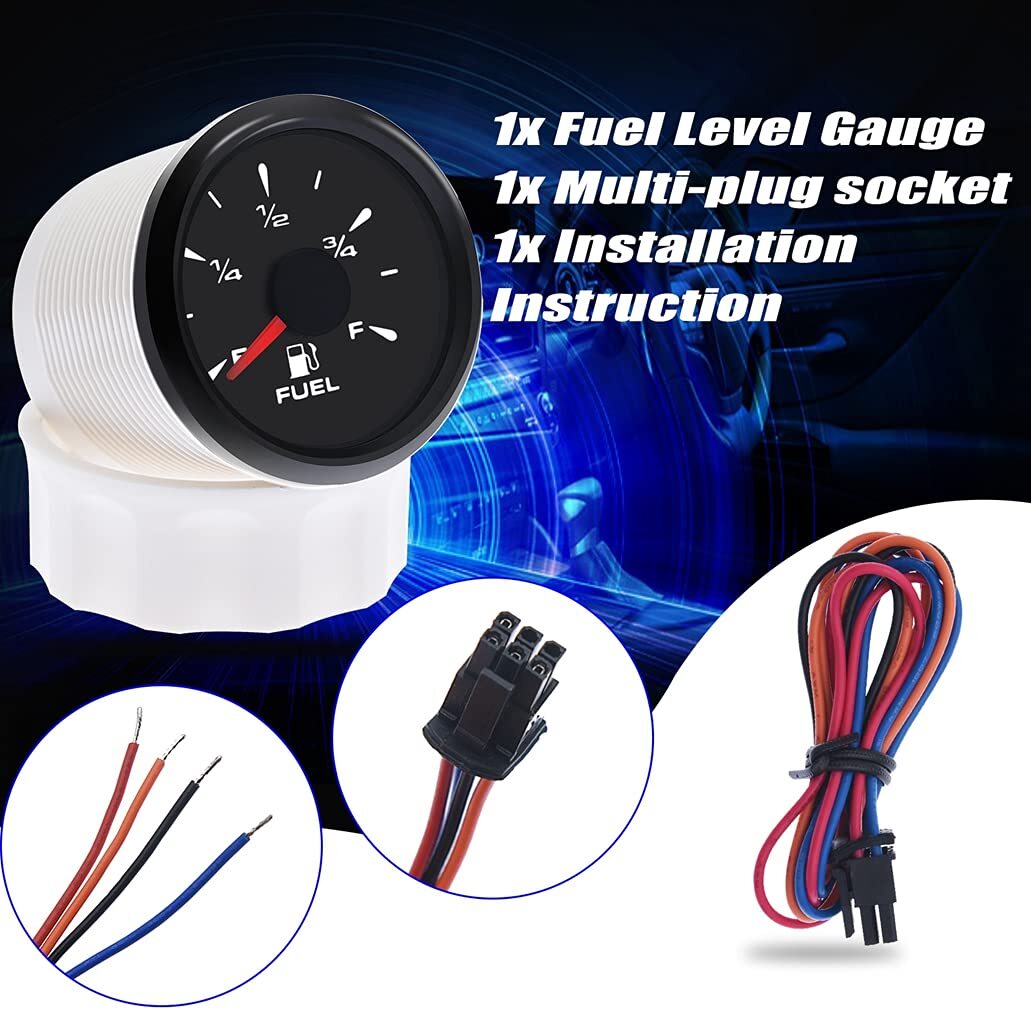

Package Includes:

1x Fuel Level Gauge
1x Wiring harness
1x Installation Instruction
