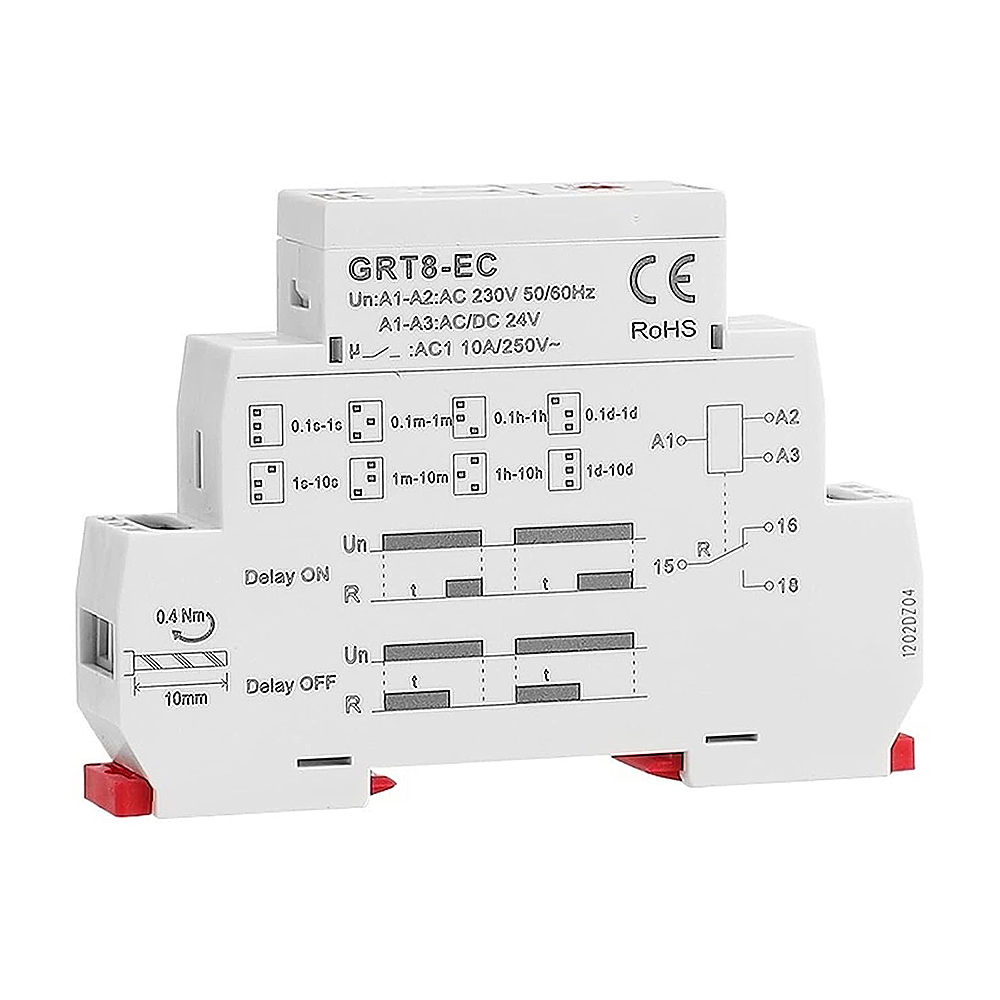

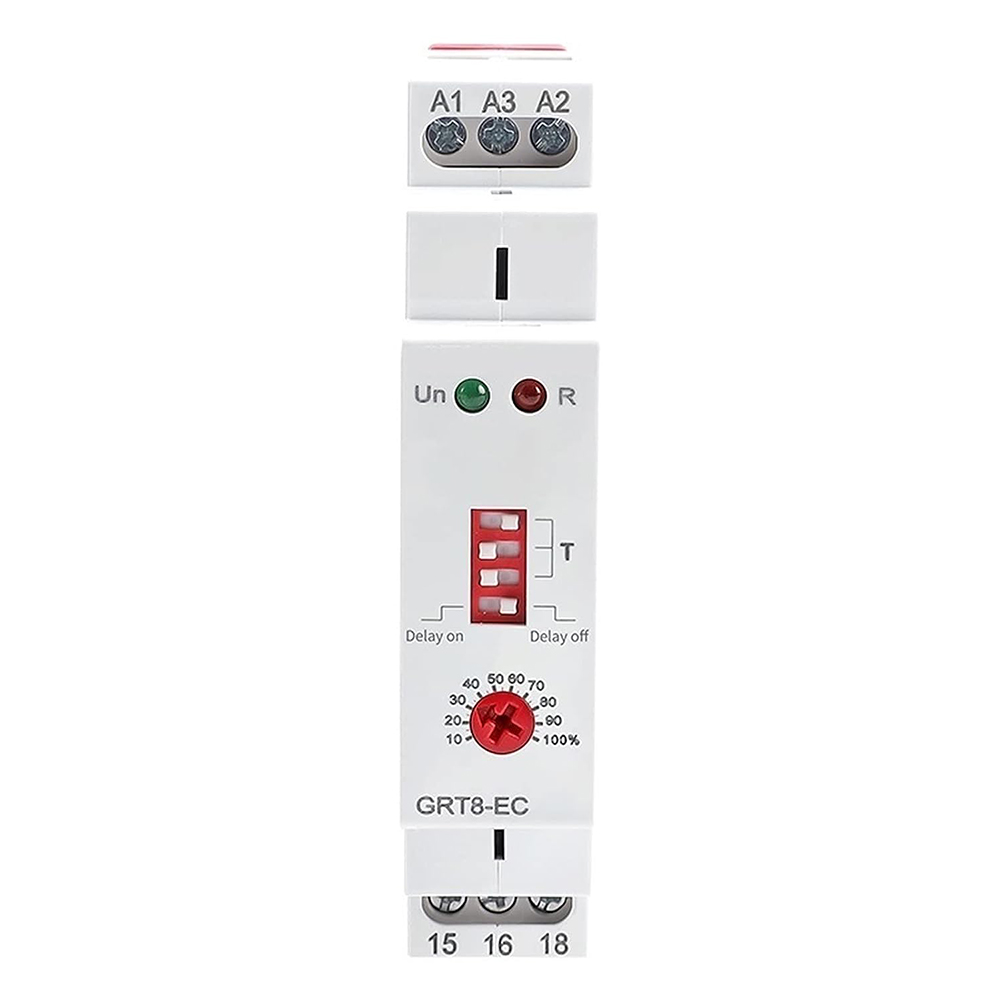

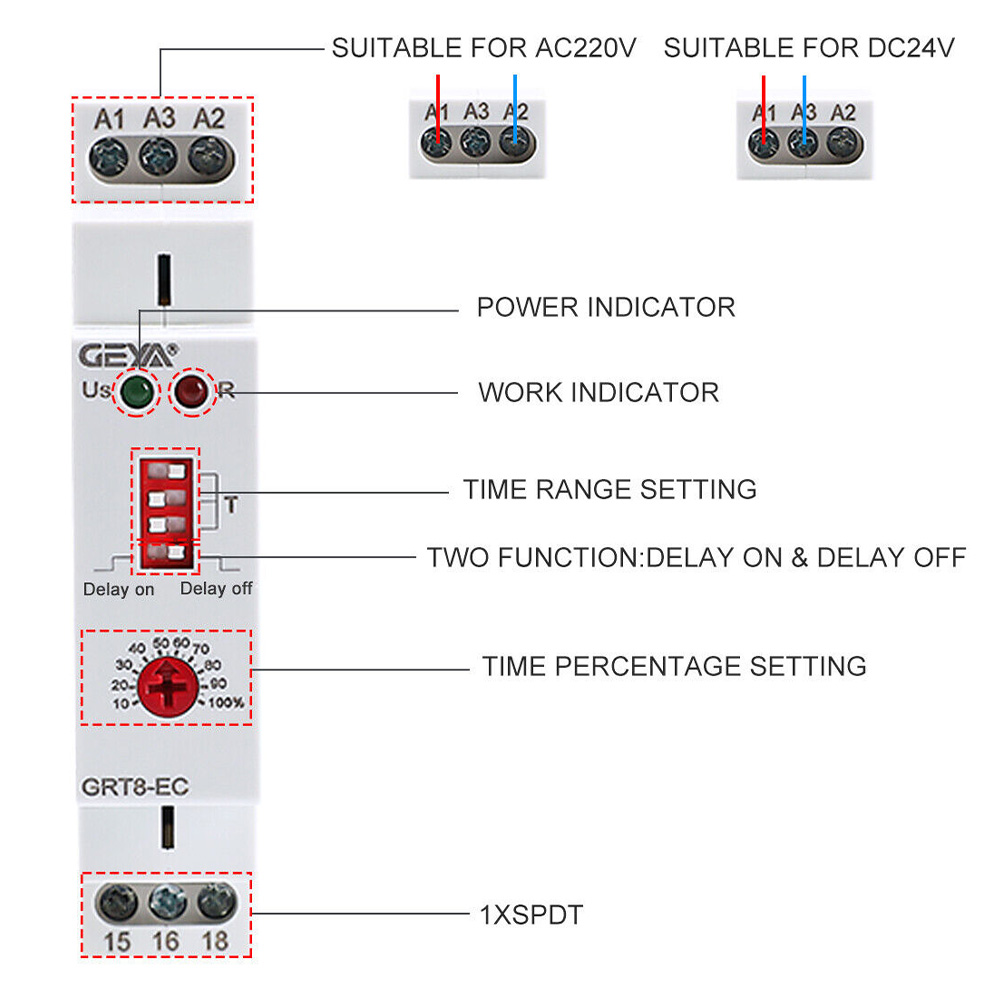

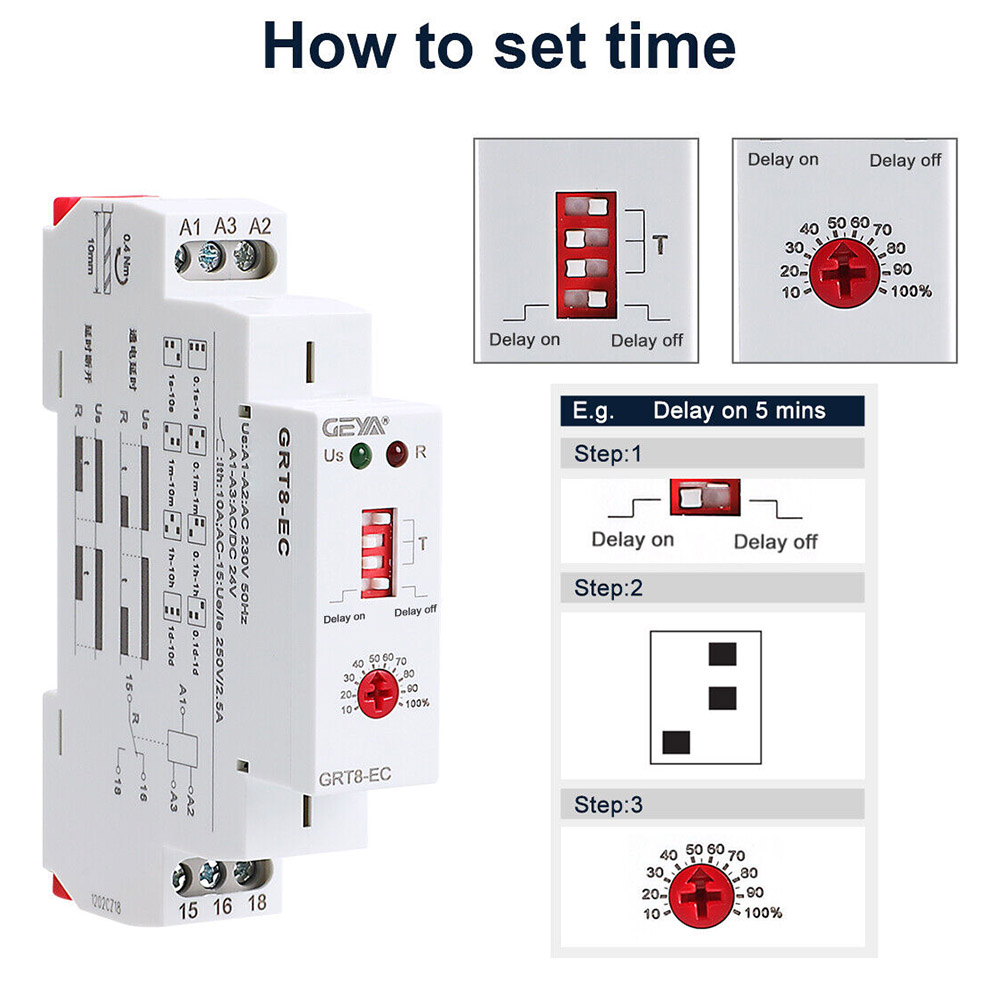

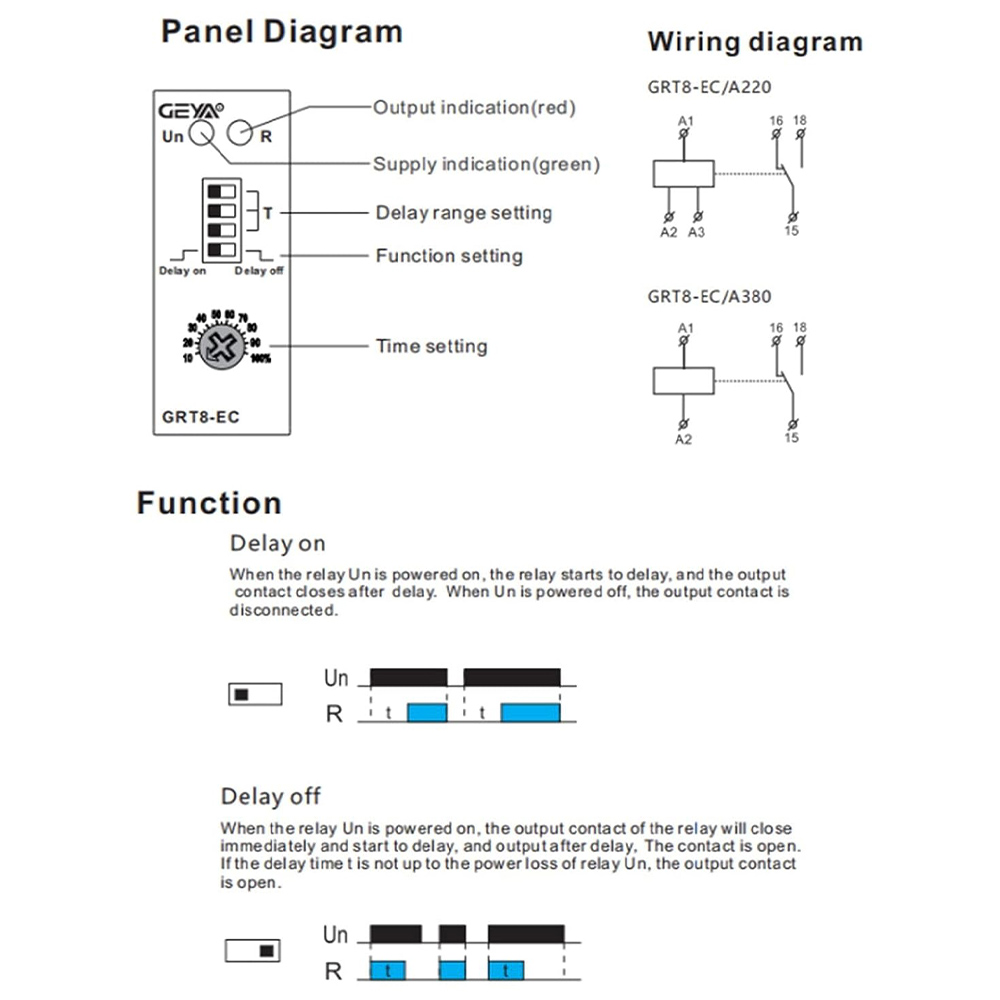

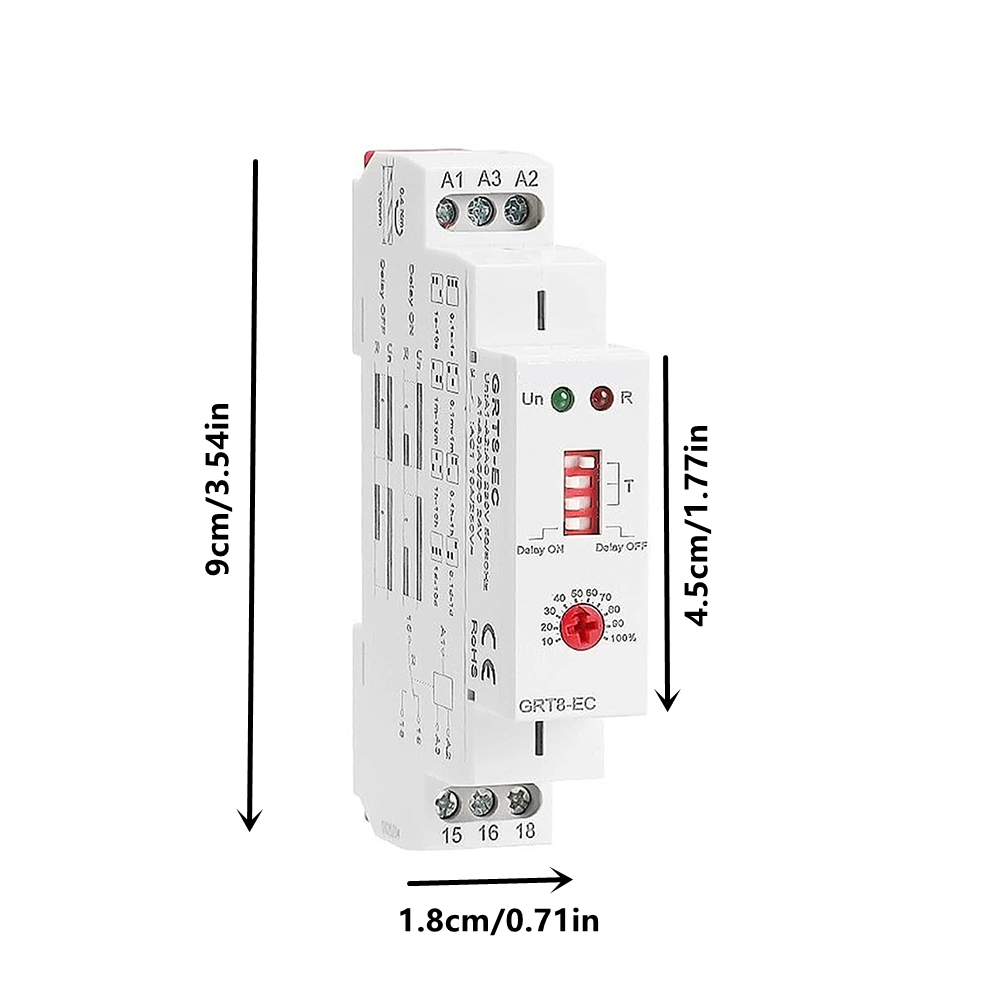

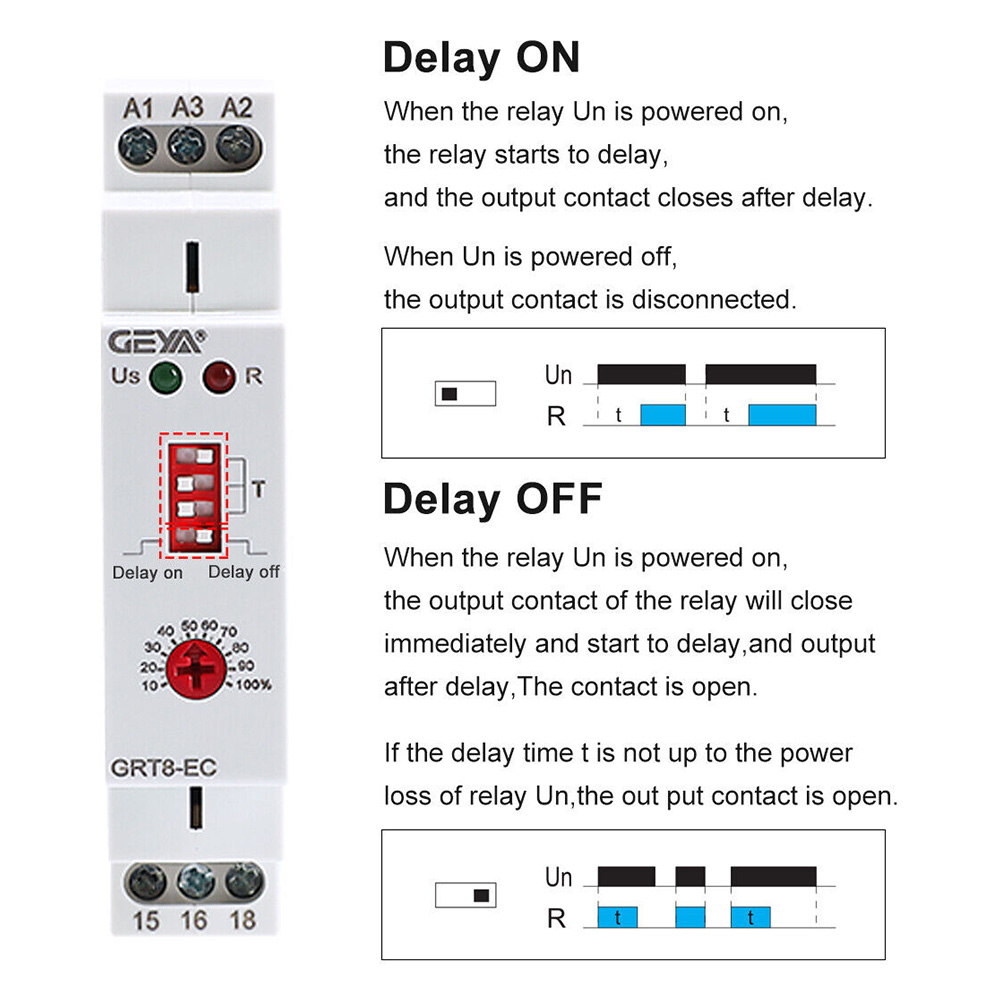

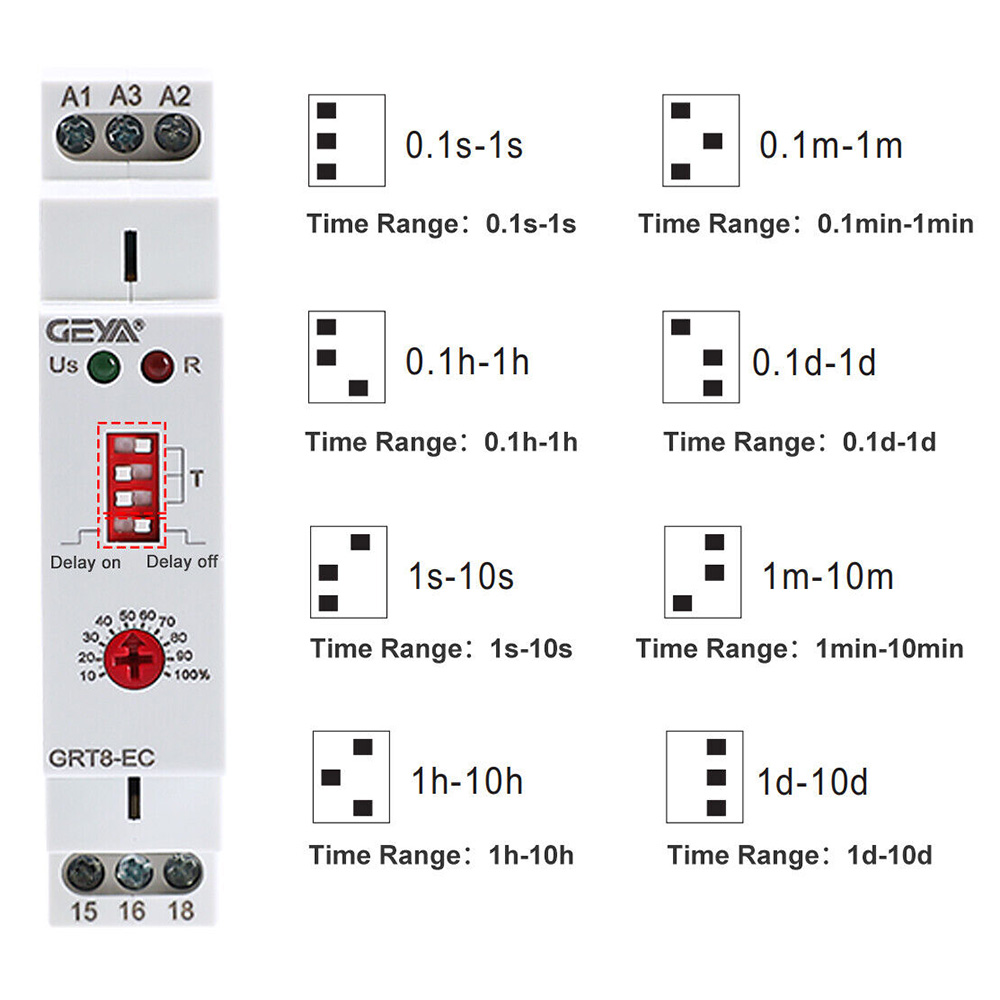

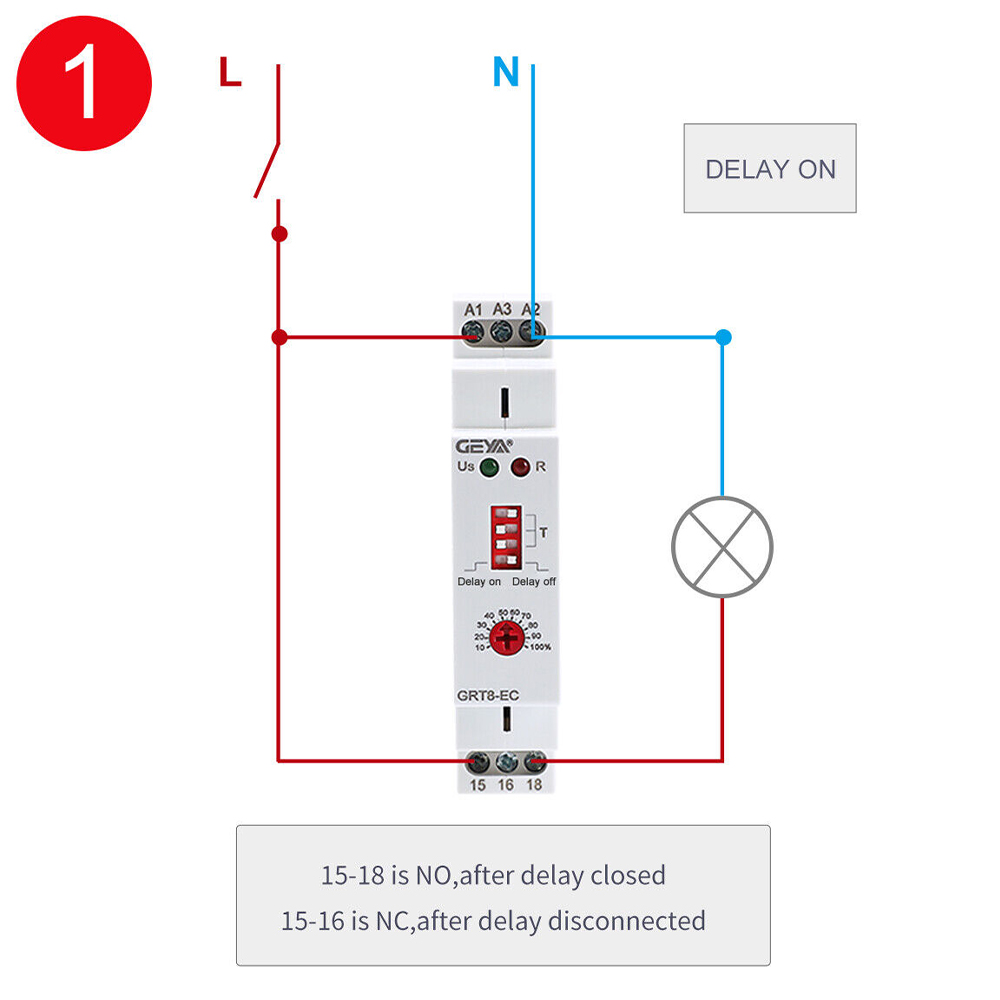

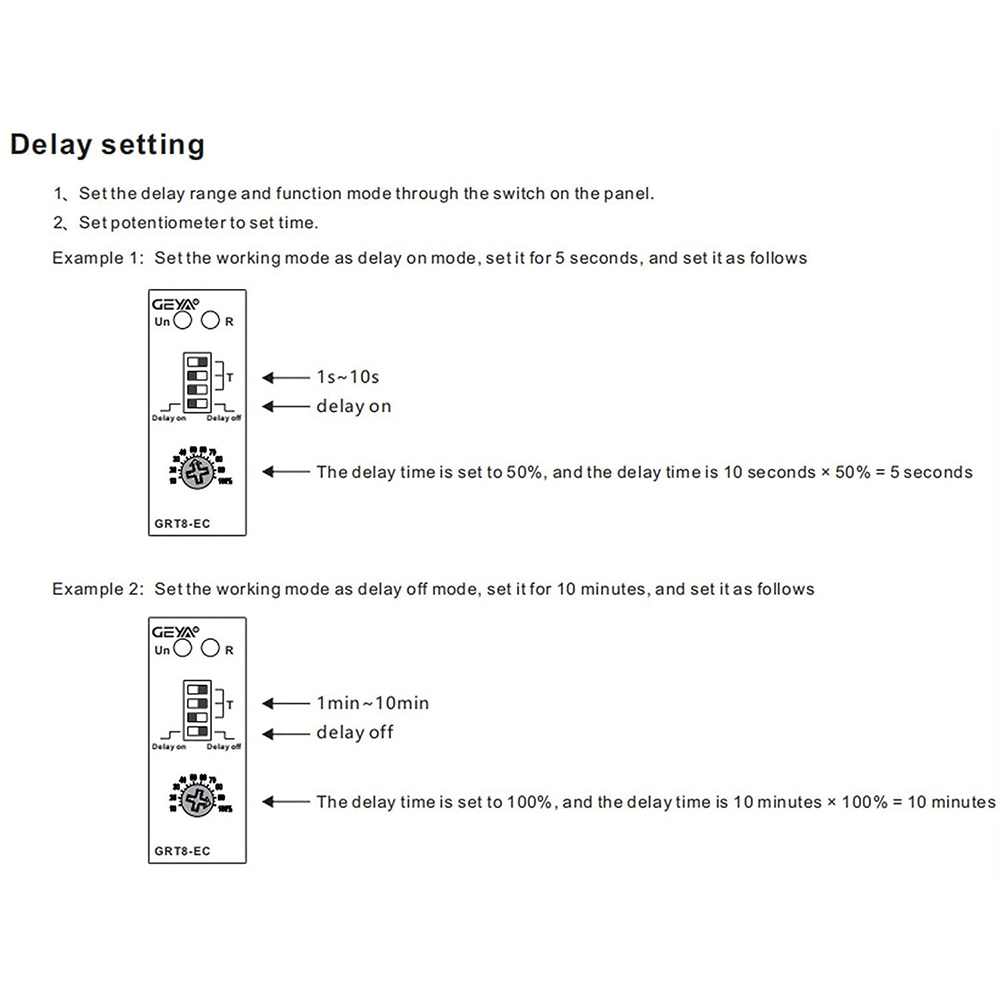

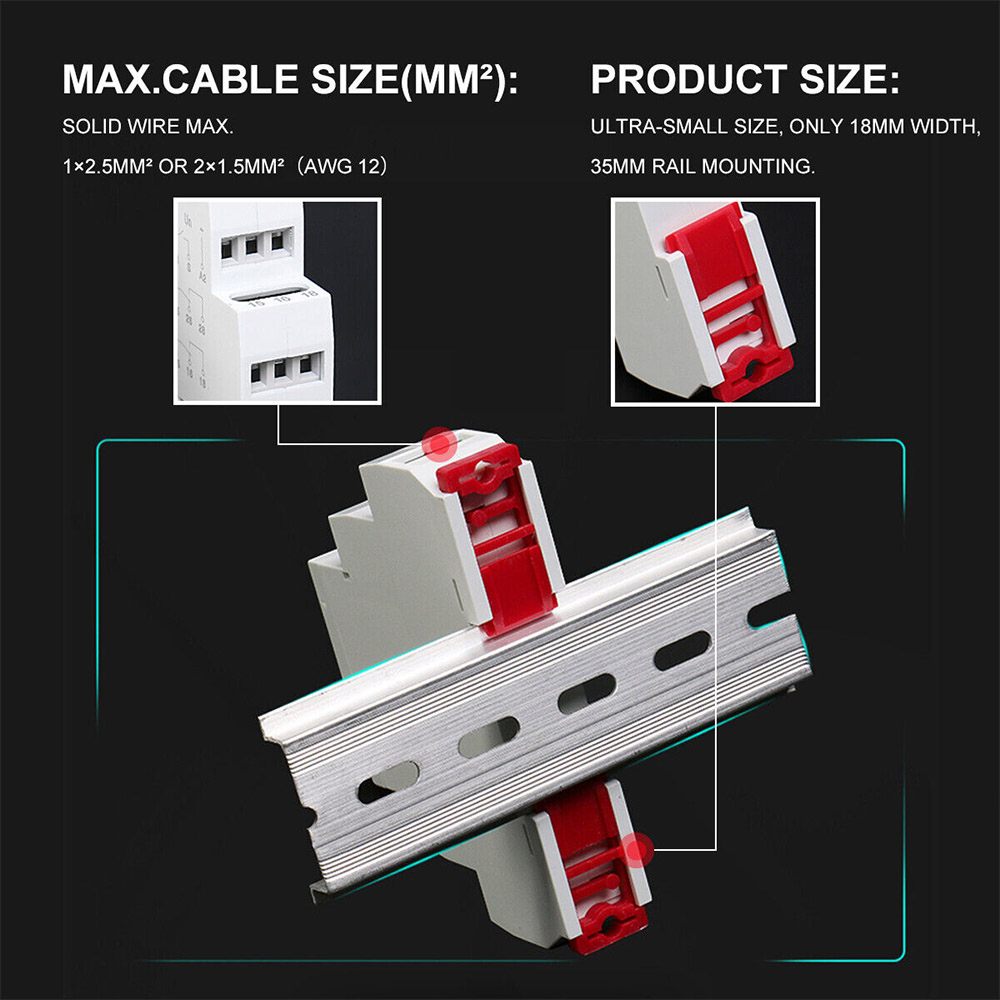

Applications Dual function time relay can be used for industrial equipment, lighting control, heating element control, motor and fan control, with two delay modes, and the delay range covers 0.1 seconds to 10 days. Feature -Two delay modes can be set. -Supports AC220V, DC 24V two kinds of working voltage. -Ultra-wide delay range,0.1 seconds-10 days can be set... -The working state of the relay is indicated by the LED indicator. -Ultra-small size, only 18mm width,35mm rail installation. Technical parameters Package Includes: 1 pcs of relay & manualGRT8-EC Function ON delay, Delay off Supply terminals A1-A2(AC220V),A1-A3(DC24V) Voltage range AC 220V(50-60Hz), DC 24V Supply voltage tolerance -15%；+10% Supply indication green LED Time ranges 0.1s-10day Time setting DIP+knob setting Time deviation ≤10% Repeat accuracy 0.2%-set value stability Temperature coefficient 0.05%/℃,at=20℃(0.05%℉,at=68℉) Output 1XSPDT Min.breaking capacity DC 500mW Output indication red LED Mechanical life 10000000 Electrical life(AC1) 100000 Reset time max.200ms Operating temperature -20℃ to +55℃(-4℉ to 131℉) Storage temperature -35℃ to +75℃(-22℉ to 158℉) Operating method 35mm rail installation Operating position any Pollution degree 2 Max.cable size(mm²) solid wire max.1X2.5 or 2X1.5/with sleeve max.1X2.5(AWG 12) Dimensions 90X18X64mm Weight 52g Standards EN 61812-1, IEC60947-5-1
