Bigtreetech Manta E3EZ V1.0 & 5x EZ2209 For Ender 3

The BIGTREETECH MANTA E3EZ V1.0 motherboard for Ender 3 integrates a CM4 style core board and EZ2209 drivers, enabling a streamlined Klipper upgrade. It reduces wiring complexity and saves space by directly connecting components, enhancing printer performance efficiently. What is Included: Kit Include: [Depending on your selection] 1x Manta E3EZ Control Board5x TMC2209 EZKit Include: [Depending on your selection] 1x Manta E3EZ Control Board5x TMC2209 EZ1x CB1CB1/CM4 is not included in option 1, you can source CB1 or Source CM4 from official raspberry pi distributor (Support Klipper only). Note 1: Please ensure you have enough clearance for the CB1/CM4 sd card when closing up case, for Ender 3 Pro you will be break the one the support tab. Please refer to more information/video overview. Note 2: CM4/CB1 are mounted using M2 bolt (not the M2.5 included in heat sink for CB1). (M2x10) Documentation: [ Contact Us] Features: 32bit 64MHz ARM Cortex-M0+ series STM32G0B1RE MCU.TPS5450-5A power supply chip supports DC12/24V power input, current output rated at 5A max continuous and 6A max instantaneous, sufficient power supply for Raspberry Pi.The thermistor circuit is protected to prevent MCU damage from shorted heated bed and heater cartridge connections.MCU firmware can be upgraded via SD card, or use DFU via Klipper’s make flash command.BTB connectors are adopted between the motherboard and core board, allowing the choice of other core board solutions in addition to CM4.Onboard SPI and UART mode of EZ driver, which can be used directly without a jumper.Onboard DIAG pin, easily configurable with jumpers.Support power loss recovery, filament runout sensor, auto power-off, BLTouch, RGB, etc.High-efficiency MOSFET for less heat generation.Replaceable fuse for easy maintenance.Onboard SPI interface for connecting acceleration sensor to enable Klipper’s input shaping.The temperature sensor interface adopts a high-precision pull-up resistor.Each motor driver module can select the corresponding motor voltage by jumper capsThe motor power supply supports up to 56V, and for the larger voltage when using EZ5160, an isolation chip is used to protect the main control from shorts

Bigtreetech Manta E3EZ V1.0 & 5x EZ2209 For Ender 3

All Prices include GST. Message us if require a tax invoice.

What is Included:

Kit Include: [Depending on your selection]

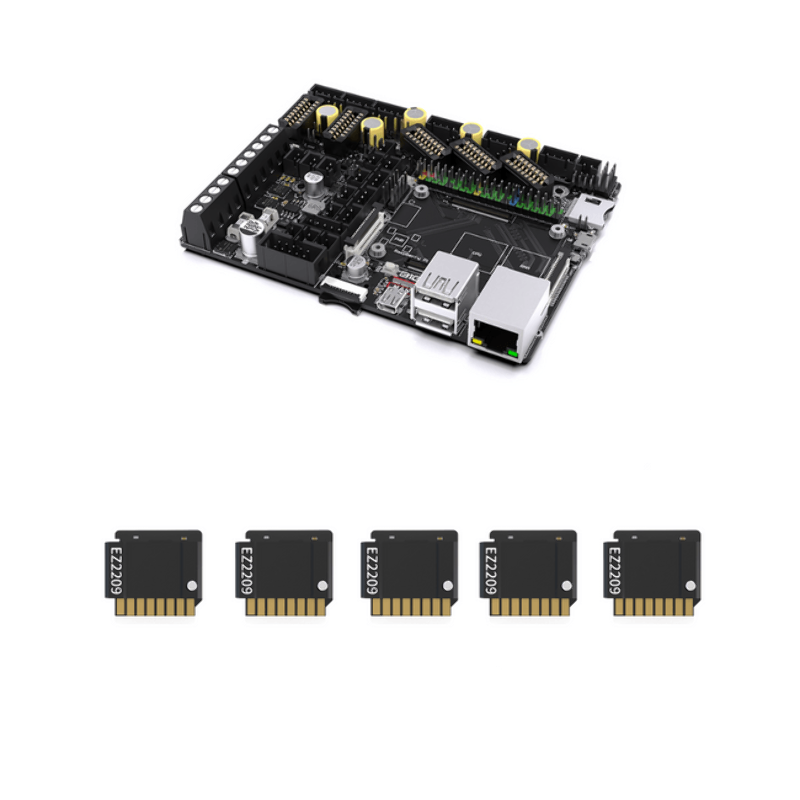

1x Manta E3EZ Control Board
5x TMC2209 EZ

Kit Include: [Depending on your selection]

1x Manta E3EZ Control Board
5x TMC2209 EZ
1x CB1

CB1/CM4 is not included in option 1, you can source CB1 or Source CM4 from official raspberry pi distributor (Support Klipper only).

Note 1: Please ensure you have enough clearance for the CB1/CM4 sd card when closing up case, for Ender 3 Pro you will be break the one the support tab. Please refer to more information/video overview.

Note 2: CM4/CB1 are mounted using M2 bolt (not the M2.5 included in heat sink for CB1). (M2x10)

Documentation:

[ Contact Us]

Features:

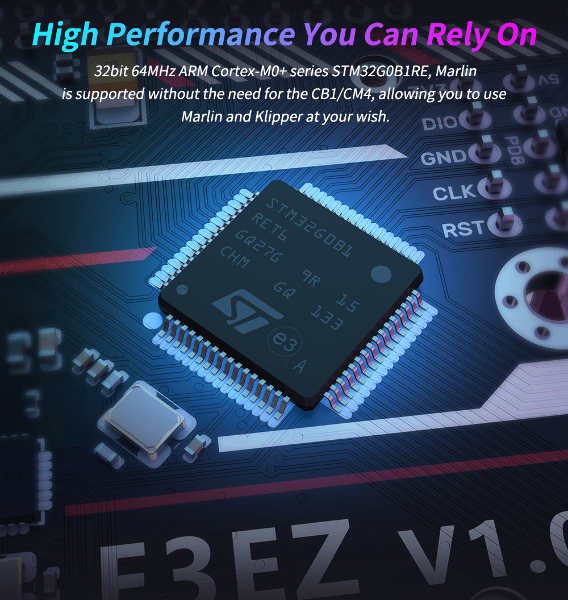

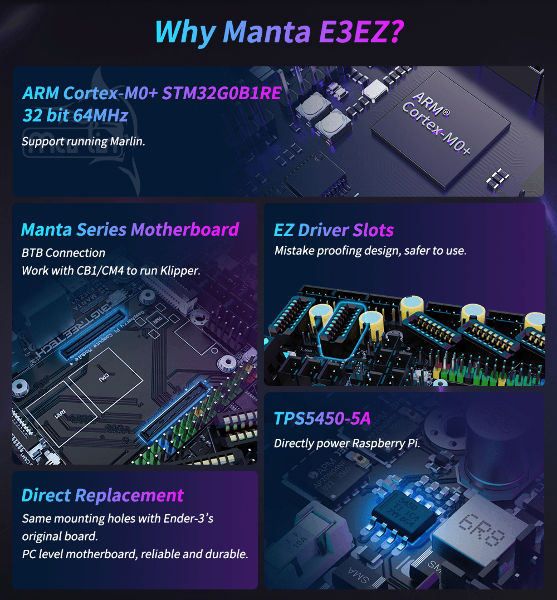

32bit 64MHz ARM Cortex-M0+ series STM32G0B1RE MCU.
TPS5450-5A power supply chip supports DC12/24V power input, current output rated at 5A max continuous and 6A max instantaneous, sufficient power supply for Raspberry Pi.
The thermistor circuit is protected to prevent MCU damage from shorted heated bed and heater cartridge connections.
MCU firmware can be upgraded via SD card, or use DFU via Klipper’s make flash command.
BTB connectors are adopted between the motherboard and core board, allowing the choice of other core board solutions in addition to CM4.
Onboard SPI and UART mode of EZ driver, which can be uséd directly without a jumper.
Onboard DIAG pin, easily configurable with jumpers.
Support power loss recovery, filament runout sensor, auto power-off, BLTouch, RGB, etc.
High-efficiency MOSFET for less heat generation.
Replaceable fuse for easy maintenance.
Onboard SPI interface for connecting acceleration sensor to enable Klipper’s input shaping.
The temperature sensor interface adopts a high-precision pull-up resistor.
Each motor driver module can select the corresponding motor voltage by jumper caps
The motor power supply supports up to 56V, and for the larger voltage when using EZ5160, an isolation chip is uséd to protect the main control from shorts
