• 【4-SPEED ADJUSTABLE】The rv ceiling fan has 4-speed adjustable with 1000 CFM in both air-in and air-out mode,you can simply operate it by the keypad button.This RV exhaust fan allows you to keep your RV cool providing comfort when traveling in hot weather.
  • 【EASY TO INSTALL】The rv vent fan fits all 14" x 14" roof openings.The fan is designed for a minimum roof thickness of 1 inches to a maximum of 6 1/2 inches.If your roof thickness is less than 1 inches, build additional thickness at the ceiling opening using wood or other suitable material.
  • 【LOWER NOISE】12V DC motor,ultra quiet work,below 70 decibels,effective ventilation above 60Pa,the trailer vent fan provides quiet and comfortable indoor space, and conforming to the requirements of environmental protection.
  • 【UV PROTECTION】The trailer roof vent is UV resistant, 3+ years, and it has CSA certification.Bi-directional ventilation, single-ended suspension construction, manually adjustable top switch.
  • 【MULTIPLE APPLICATIONS】The air ventilation ceiling fan keeps your camper fresh and bright with transparent fan blades that bring sunlight in.It can be used for bathroom,living room,bedroom,kitchen in RV,camper,travel trailer.

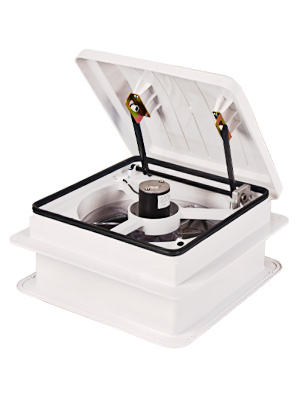

4 SPEED REVERSIBLE RV ROOF VENT FAN 14"

4 Speed Reversible

UV Protection

Bidirectional Reversible Airflow

Quieter working with low noise

High Quality Brushless Motor

Install roof thickness:1 inch to 6-1/2 inch.

Opening size: 14 inch x 14 inch



Package Include:
  • 1x RV Roof Vent

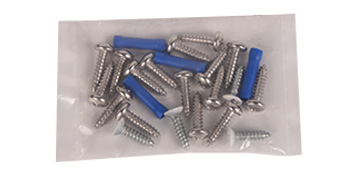

  • Some screw parts,
  • 1 x Instruction



LOWER NOISE

12V DC motor,ultra quiet work,below 70 decibels,effective ventilation above 60Pa,the trailer vent fan provides quiet and comfortable indoor space.



UV PROTECTION

The RV fan is UV resistant, 3+ years, protects against UV rays while transmitting light.



4 SPEED ADJUSTABLE

Bidirectional ventilation, single-end suspension structure, using DC motor + deceleration mechanism + transmission system, wind speed infinitely adjustable speed control, adjust the size or direction of the air volume, so that people feel more comfortable environment.



Fan Blade: 10
CFM: 1000
Power: 30W
Voltage: DC 9-16V
Speeds: 4



Mounting Type: Ceiling Mount
Noise: below 70dB
Lid Opening: Manual
Control: Keypad
Install roof thickness: 1 inch to 6-1/2 inch.



INSTALLATION STEPS:

Step1: please remove the old existing roof vent and all old roof sealant for a minimum of 2"entirely around the roof opening.

Step2: Prior to installing the fan into the roof opening,apply a continuous strip of BUTYL tape or equivalent to the underside of the flange,making sure to cover the screw holes.

Step3: Using the insulated 16 gauge electrical connectors provided, connect the vehicle's 12volt power to the two fan power wires located on the driver side of the fan.

Step4: Insert the fan into the opening with the lid hinge facing the front of the vehicle and centering the fan in the opening. Make sure the power wires

slide to the interior and do not become entangled.

Step5: After the fan has been installed, remove the excess BUTYL caulk that may have squeezed out. Using a sealer apply a daub over every exposed screw head.

Step6: The interior Garnish Trim Ring must be trimmed to fit your particular RV roof thickness.

Step7: Complete the installation by placing any excess wiring to the inside of the roof opening and sliding the Garnish Ring into position.



FAST SHIPPING



We only ship to US mainland 48 states and worldwide via ebay international shipping program. We don't offer direct international shipping. And we don't ship to any APO/FPO/PO BOX address. We offer FedEx Ground or Home delivery in optional which can make it faster, charge additional shipping fee.

Delivery is any day from 1-5 business days (Monday through Friday, excluding weekends and holidays)


EASY RETURNS



We understand that sometimes you need to make a return or an exchange. All we ask is you send it back in the same condition it was received - new and un-used.

If the product you receive is not the one you ordered, please take photos of any visible of visual reference and contact us directly; photos must be CLEAR and VISIBLE. Logistical claims must be filed within 30 days of received the product; exchanges in these cases will be handled promptly and no cost to the customer.

In order to process a return or exchange, please call us or send us a message through eBay and we will be happy to assist you immediately.

However，any return that is NOT defective or NOT received in error, is the responsibility of the customer. We DO NOT cover any shipping costs and/or additional fees associated with the transaction.


ABOUT US



We are professional seller major in Electrical Tools/ MRO/ Outdoor Products. Your item will be carefully packed and dispatched within 24 hours. We are committed to providing each customer with the highest standard of customer service.

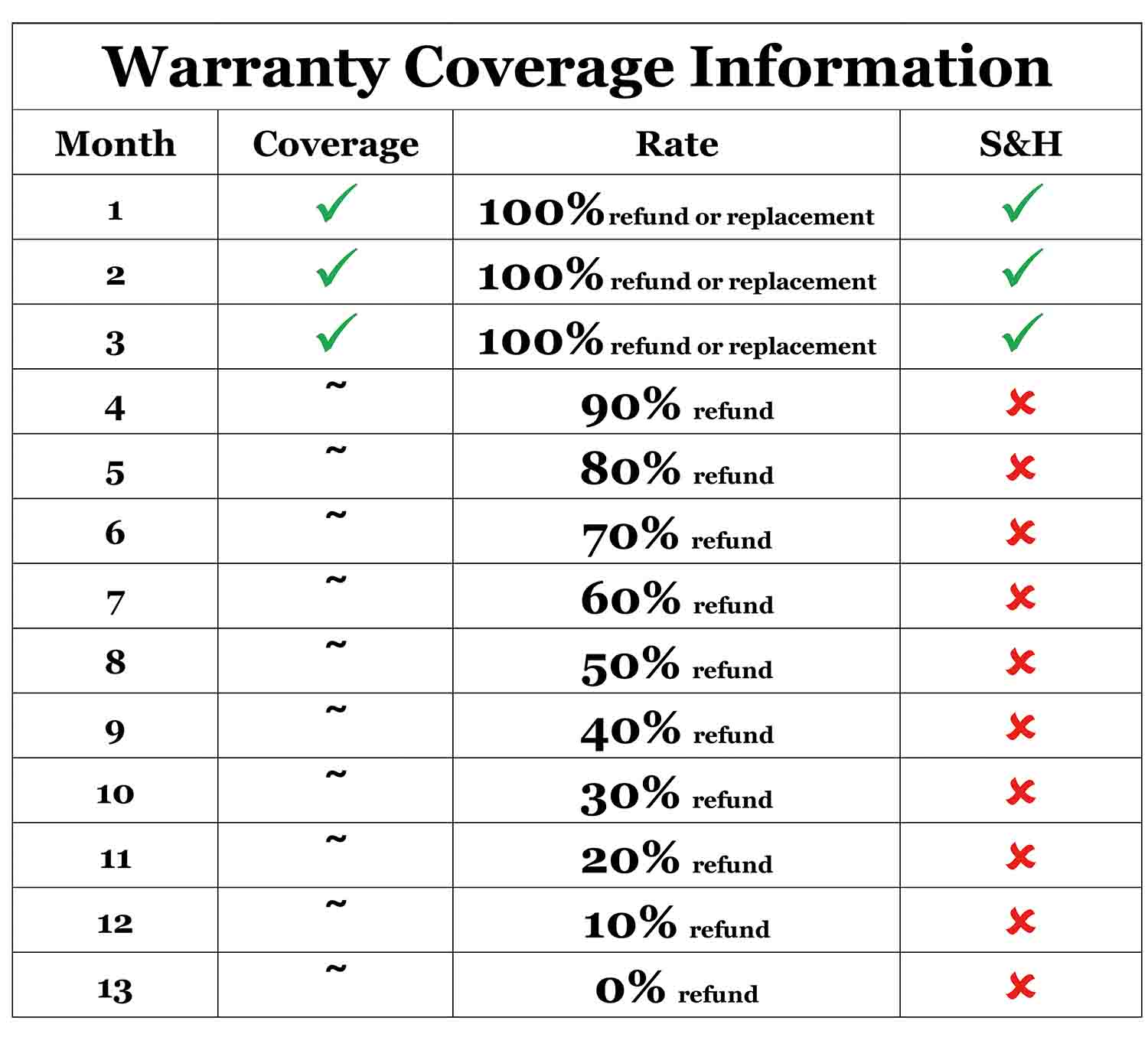

WARRANTY
