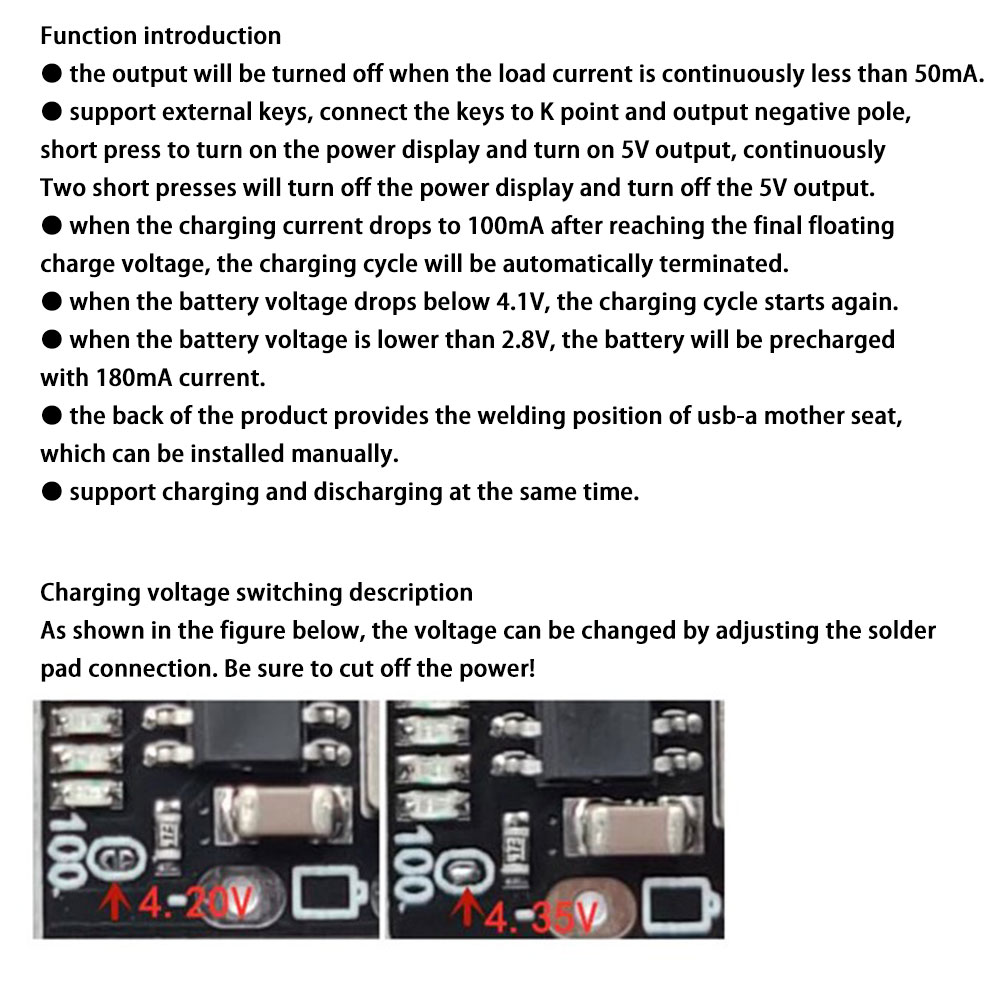

Product feature:
1. When the load current is continuously less than 50mA, the output will be turned off.

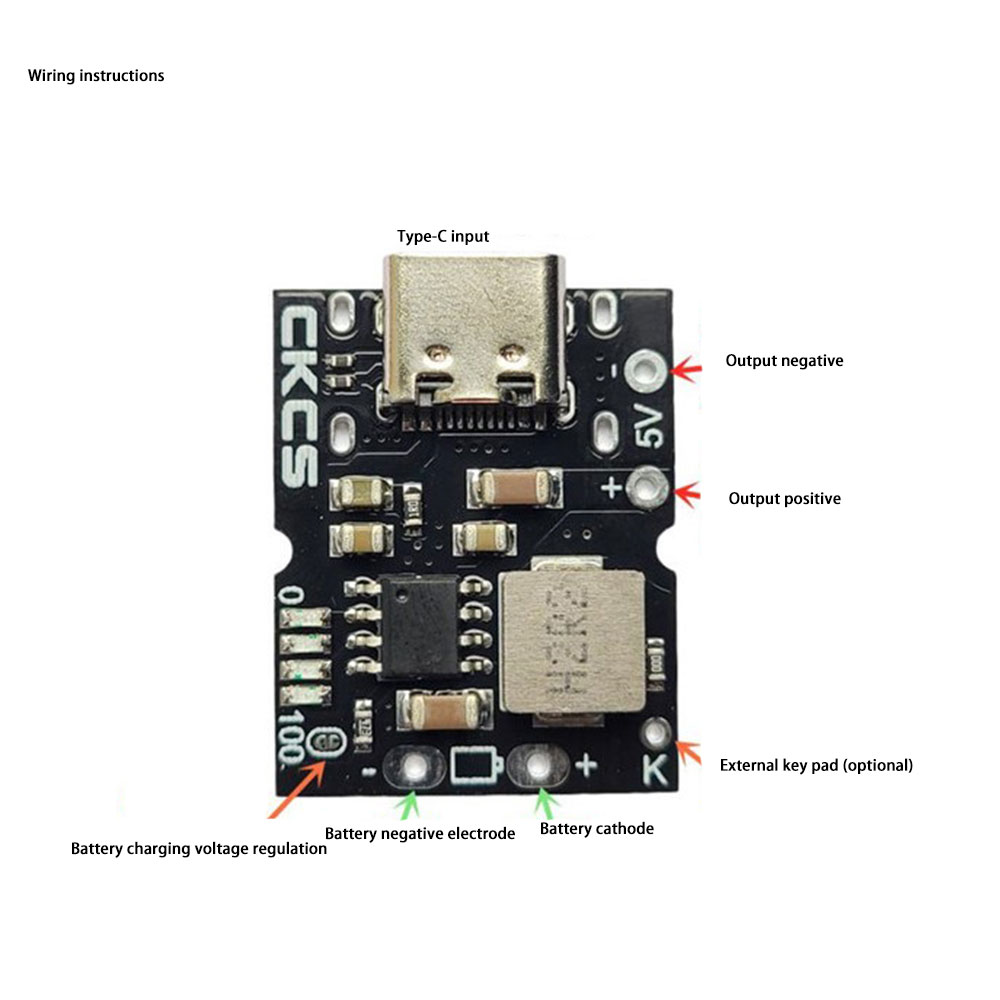

2. Support external buttons, connect the button to point K and the negative output, short press to turn on the power display and turn on the 5V output, two short presses in a row will turn off the power display and turn off the 5V output.
3. When the charging current drops to 100mA after reaching the final float voltage, the charging cycle will be automatically terminated.
4. When the battery voltage is lower than 2.8V, the battery will be precharged with a current of 180mA.

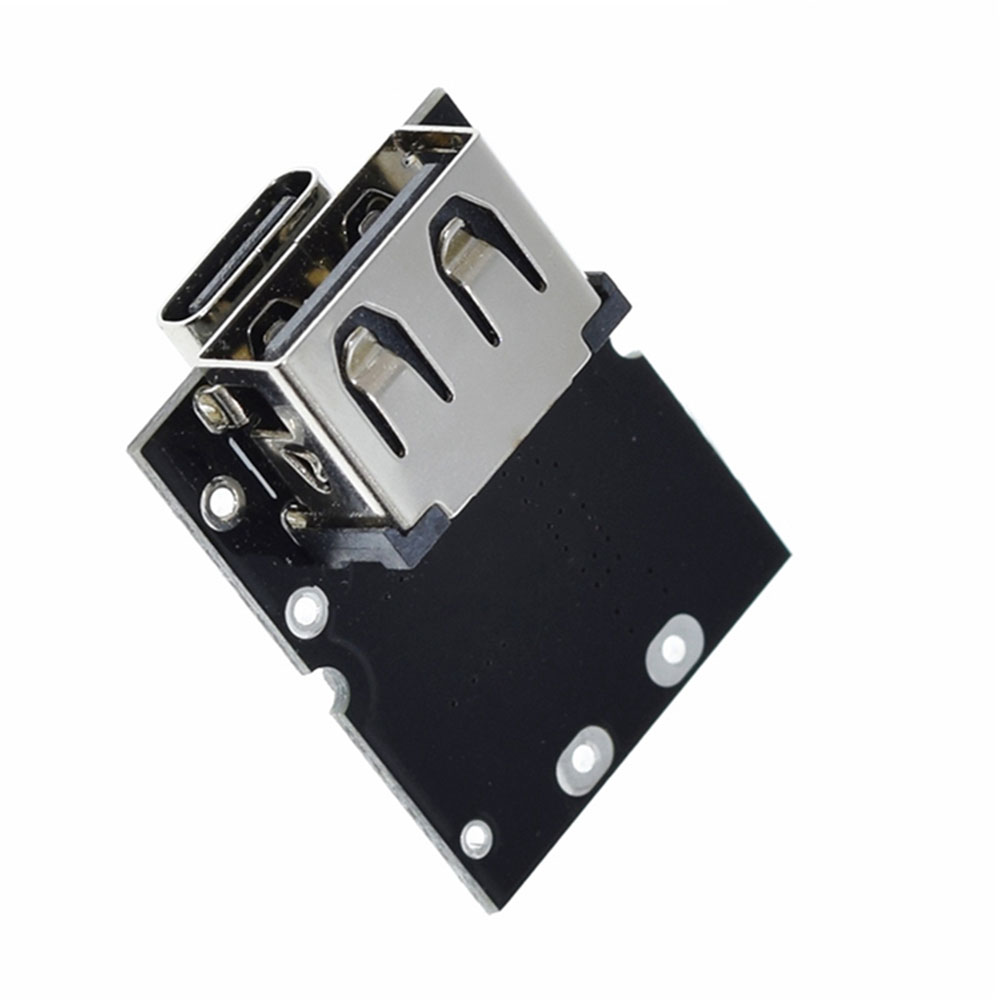

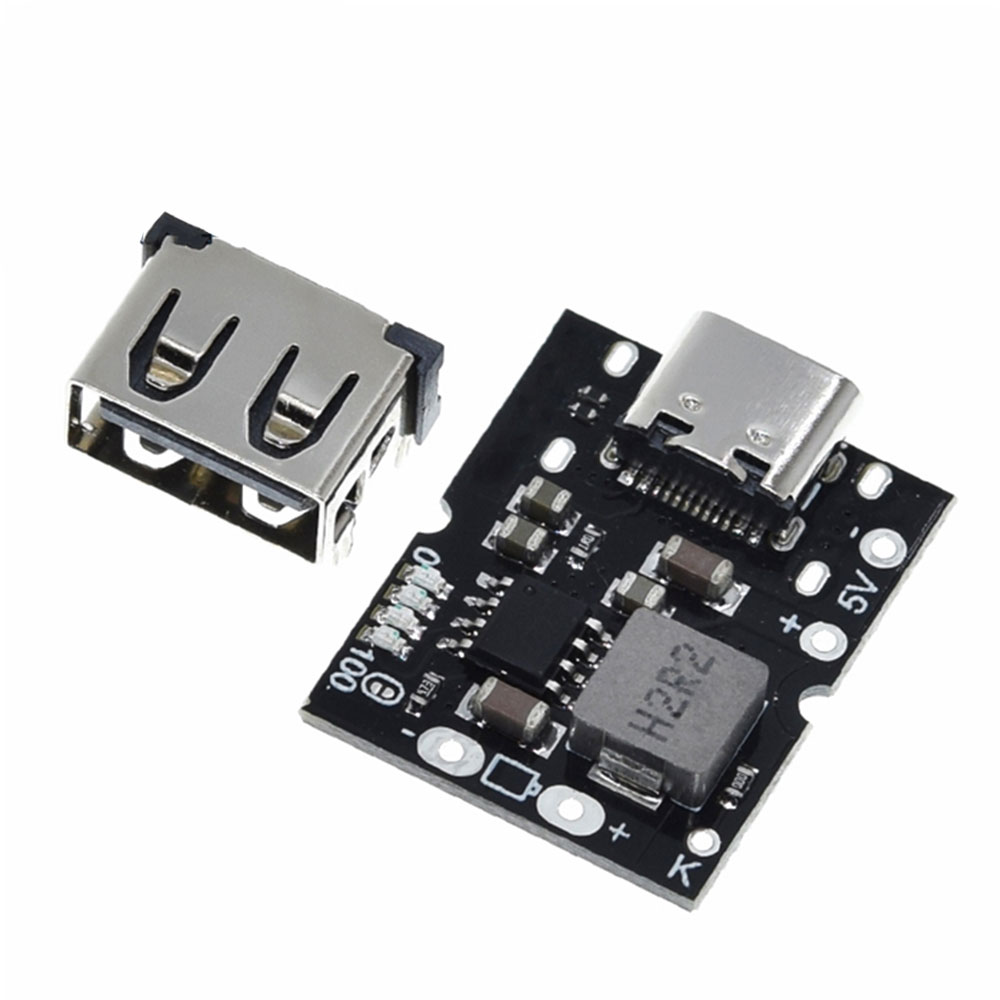

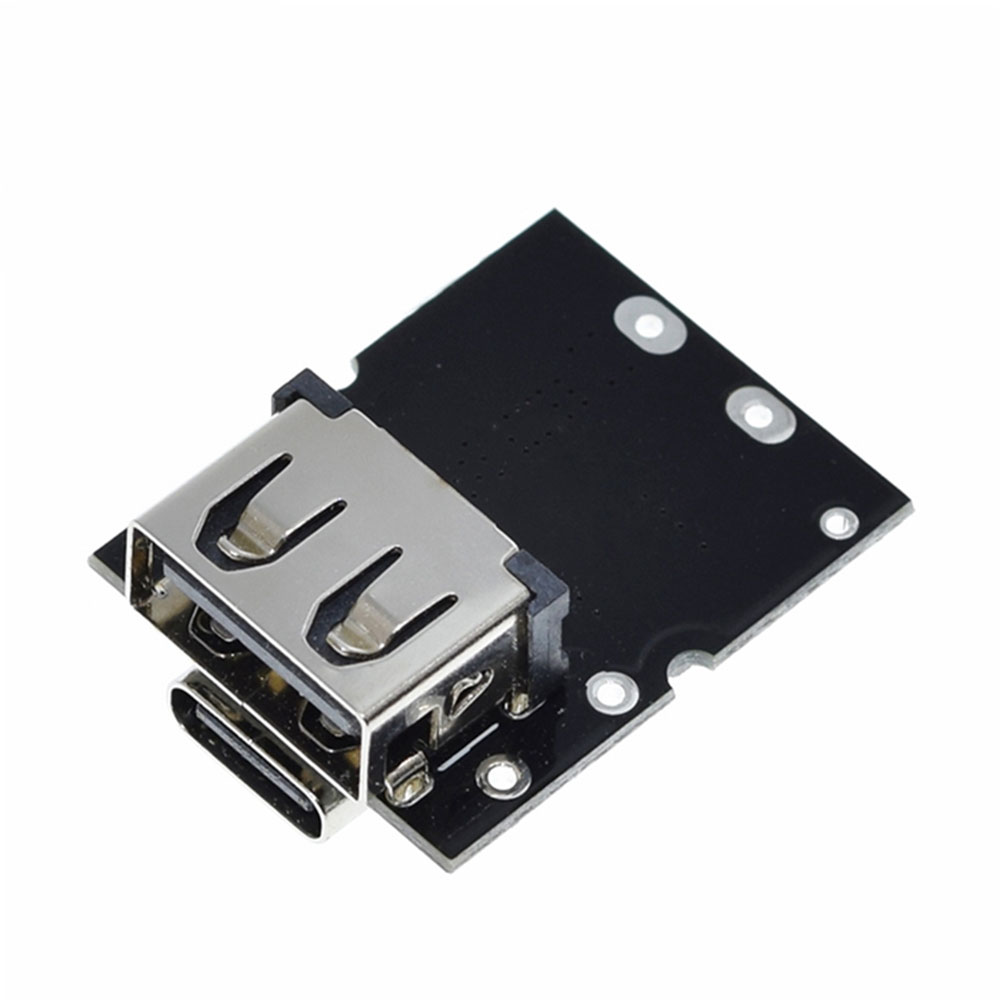

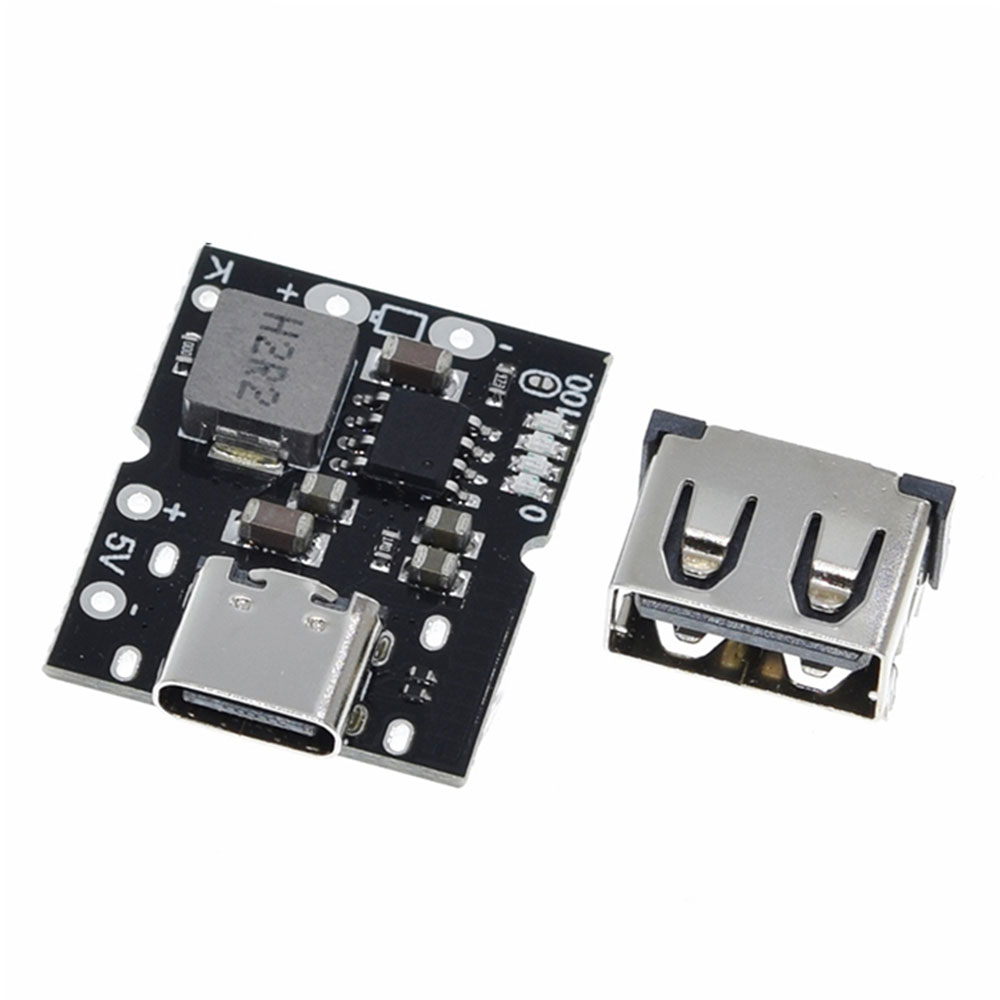

5. The USB-A female socket welding position is provided on the back of the product, and the female socket can be manually installed.
6. Support charging and discharging.
7. When the battery voltage drops below 4.1V, the charging cycle restarts.

Specification:

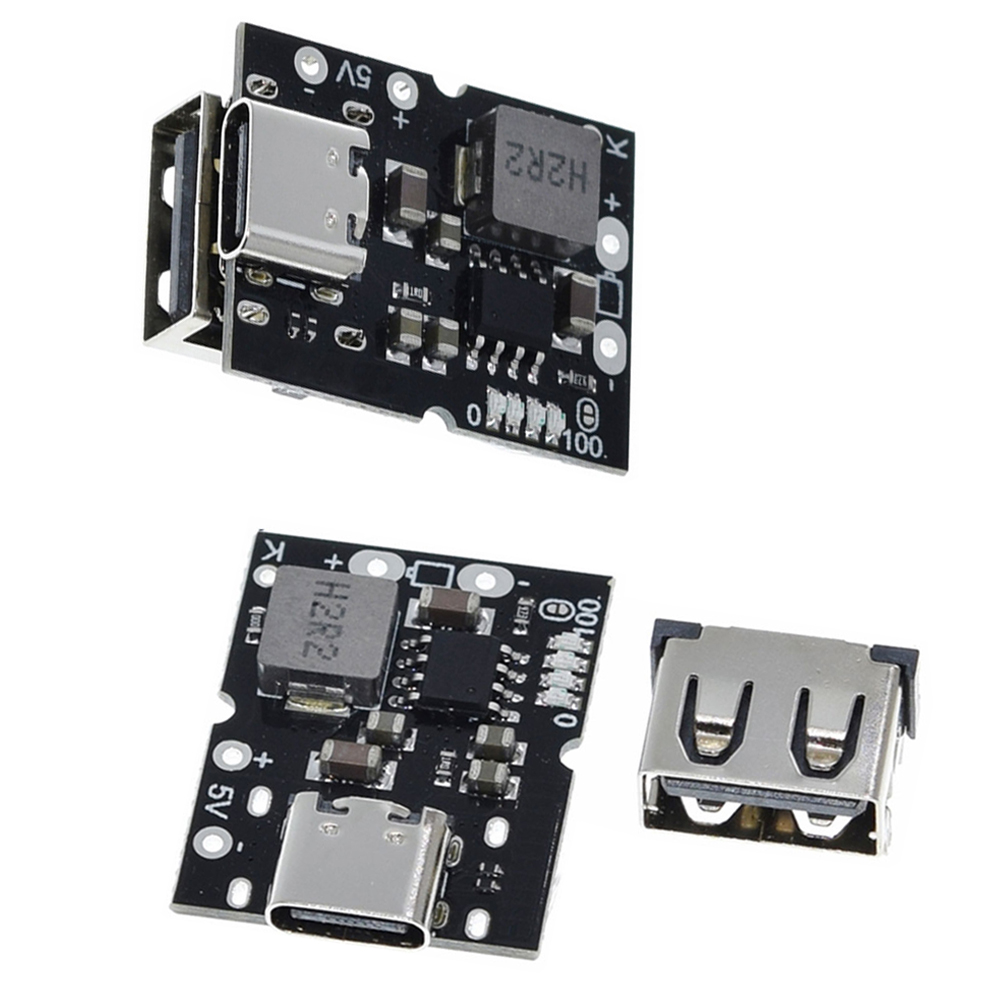

Optional specifications: welding version / no welding version
Input voltage range: 5~5.5V
Charging cut-off voltage: (4.2V/4.35V) ± 0.5% Charging current: 2.4A ± 5%
Boost output voltage: 5V~5.15V (wire loss compensation) Boost output voltage ripple: 100mV
Boost output current: 2A

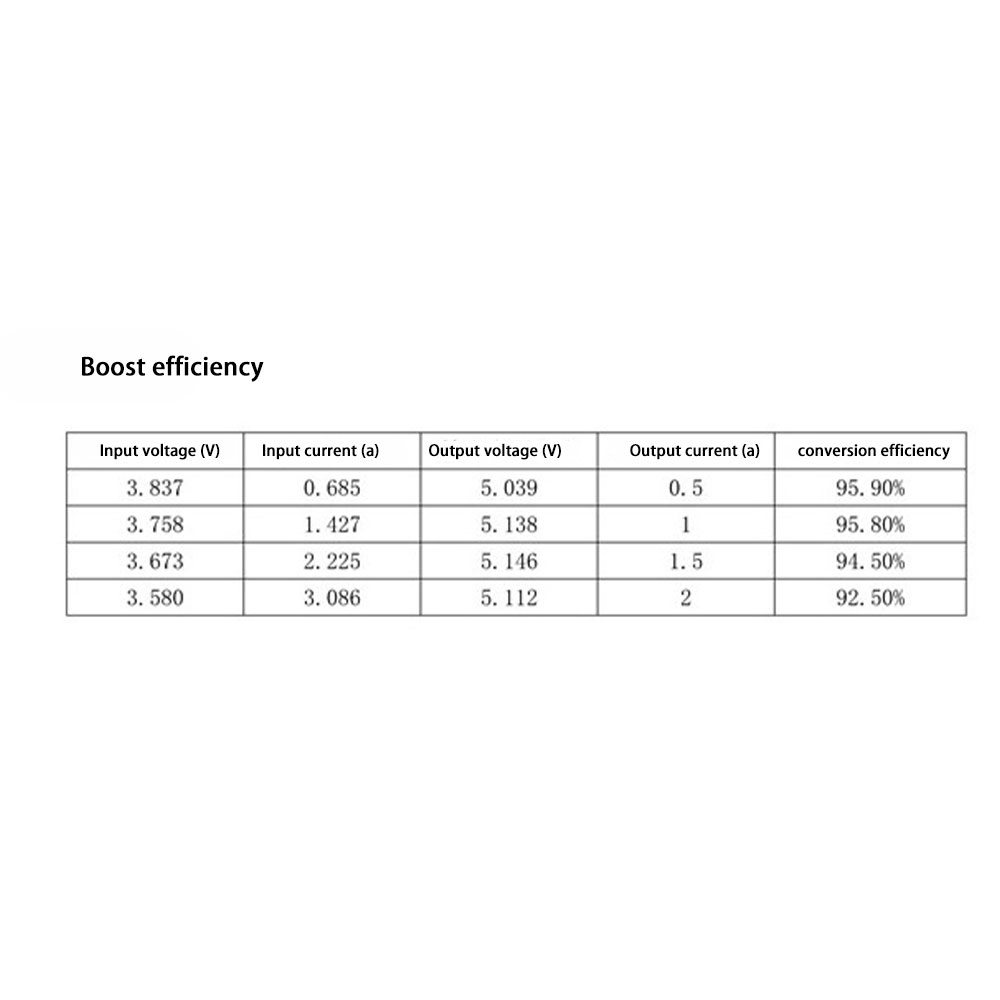

Boost conversion efficiency: 92.5% (3.6V input, 5V2A output)
Battery end quiescent current: <30uA

Package List:
1x Single Li-ion Battery Charge and Discharge Module
