• 【Strong Compatibility】: 15T hydraulic puller can be operated horizontally or vertically without site restrictions. It has 2" / 50mm axis travel with 3.93" / 100mm max. reach and 11.81" / 300mm max. spread.
  • 【Adjustable jaws】: You can install two or three jaws and adjust the height as required. In addition, the pump head of the hydraulic bearing puller can rotate 360 degrees, which is convenient for you to operate and use tools.
  • 【Durable Material】: The hydraulic gear puller is made of heavy-duty forged alloy steel, featuring superior strength and no oil leakage. It's very sturdy and possesses 15T / 33069 lbs maximum capacity and a long service time.
  • 【High Safety】：Safety overflow valve to avoid overload, including centralized positioning device.
  • 【Widely used】: It has a wide range of applications, and is suitable for railway vehicle maintenance, mechanical installation, mine maintenance, construction engineering support, etc. It can also dismantle round workpieces such as pulleys, gears and bearings in various mechanical equipment.





The hydraulic gear puller has a wide range of applications, and is suitable for railway vehicle maintenance, mechanical installation, mine maintenance, construction engineering support, etc. It can also dismantle round work pieces such as pulleys, gears and bearings in various mechanical equipment.

  • 1 x Hydraulic Puller
  • 1 x Handle
  • 1 x 2/3 Leg Puller Yoke
  • 3 x Jaws
  • 6 x Link Plates & Screw Sets
  • 1 x Plastic Box
  • Seal Ring & Screw Sets

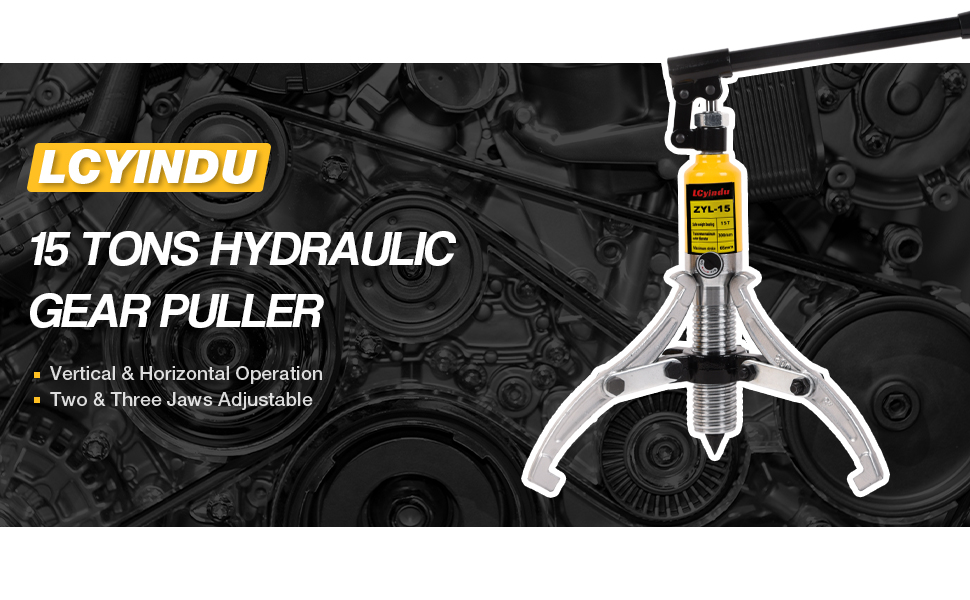

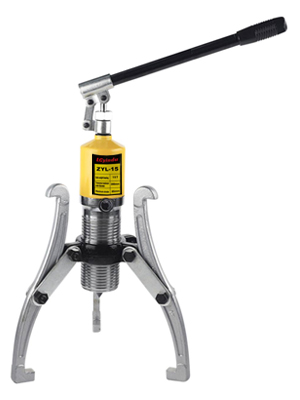

LCyindu 15 Ton Hydraulic Gear Puller

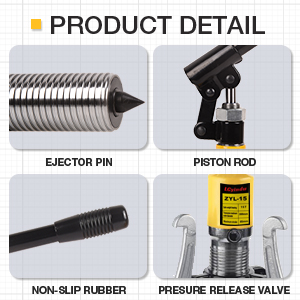

Specification：



  • 2/3 of the claw shared, suitable for use in different places.
  • Detachable handle with 360 pressure dispersion design, easy to use in restricted space.
  • Flexible thimble design for accurate center positioning.
  • High alloy steel forging, not easy to deformation.

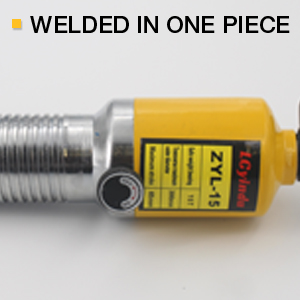

  • Hydraulic cylinder is made of solid steel, high safety factor.
  • Quick positioning adjustment nut design, save time and effort.



  • Max. Capacity: 15 ton / 33069 lbs
  • Safe Capacity: 10 ton / 22046 lbs
  • Min/Max. Reach(Vertical Operation):0-7.08" / 0-180mm
  • Min/Max. Spread(Horizontal Operation): 3.93"-11.81" / 100-300 mm
  • Ram Stroke(Thimble stroke): 2" / 50mm
  • Jaws: 2 or 3 Changeable
  • Axis Travel: 2" / 50mm

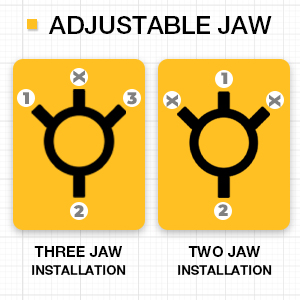

ADJUSTABLE JAWS

The two or three jaws of the puller can be changed freely to suit different working conditions. And it can also be adjusted from high point to low point as needed with a 360 degree rotating pump head.

Strong Compatibility

15T hydraulic puller can be operated horizontally or vertically without site restrictions. It has 2" / 50mm axis travel with 3.93" / 100mm max. reach and 11.81" / 300mm max. spread.

DURABLE MATERIAL

The hydraulic gear puller is made of heavy-duty forged alloy steel, featuring superior strength and no oil leakage. It's very sturdy and possesses 15T maximum capacity and a long service time.
