The surface of the product is covered with a film to prevent scratches and damage.


      Please remove the film before installing the product on the guitar.


Product Introduction:

Place of Origin ：China Factory OEM

Material：HSH Alnico Pickups

DC Resistance (approx.): N 7.75 K ; M 9.18 K; B 14.55 K

Hole distance : N:50mm M:50mm B:52mm

Scope of use ：Suitable for most FD guitars

Difficulty Of Use：Installation Is Very Simple

Weight ：700g / set

Accessories: 11 screws

Package include:

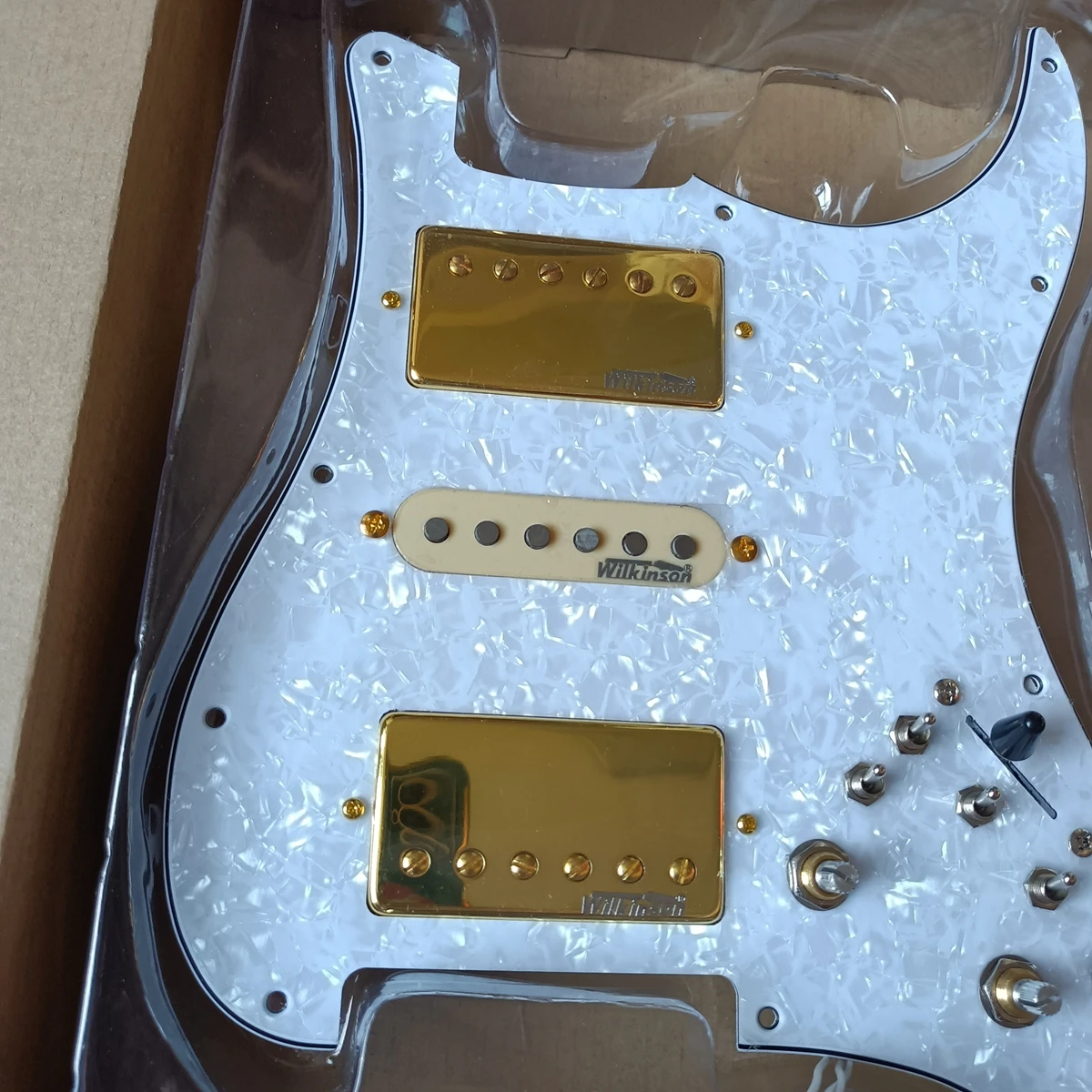

      1X 3-ply Guitar Pickguard

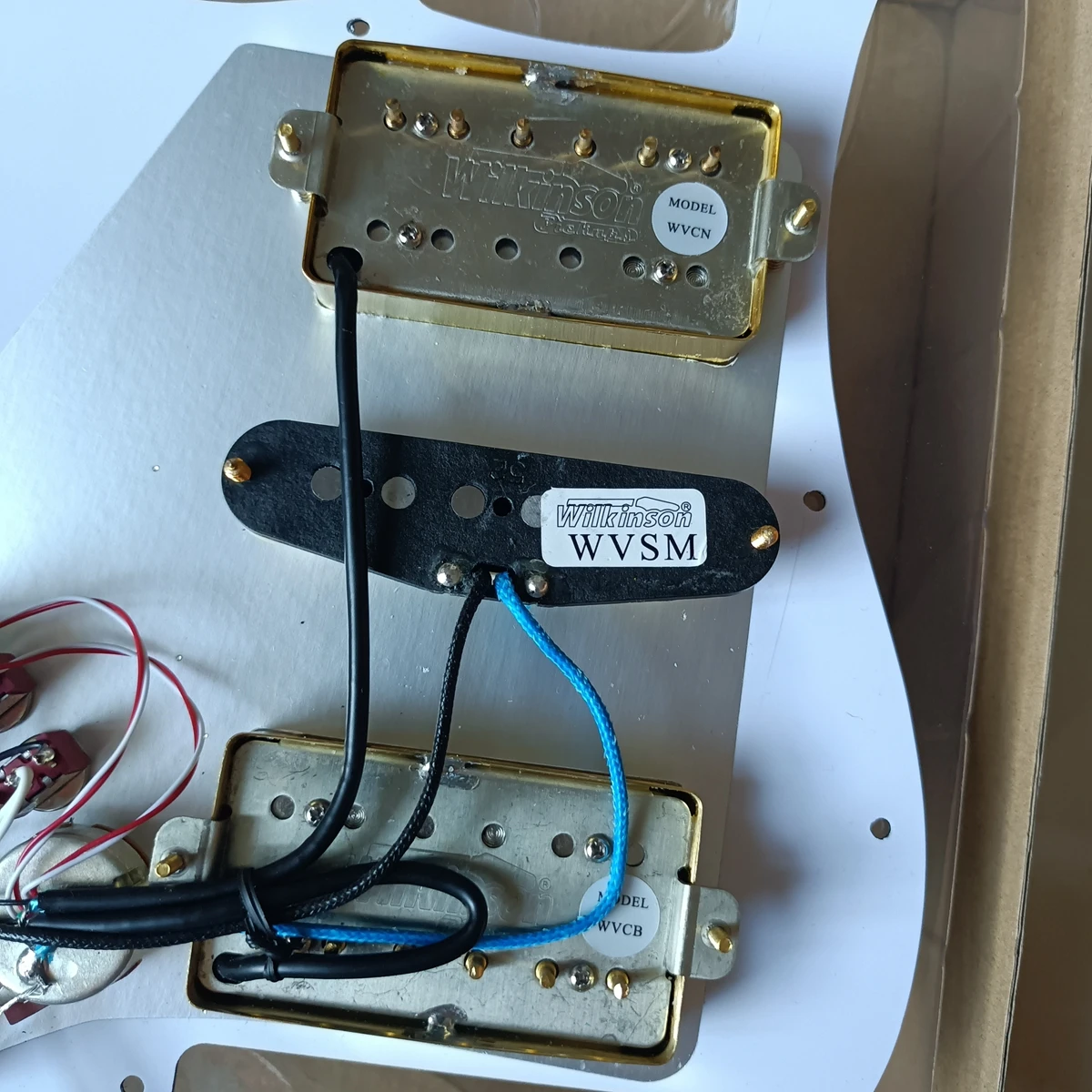

      1X Single coil pickups



      2X WK Gold alnico v humbucker pickups

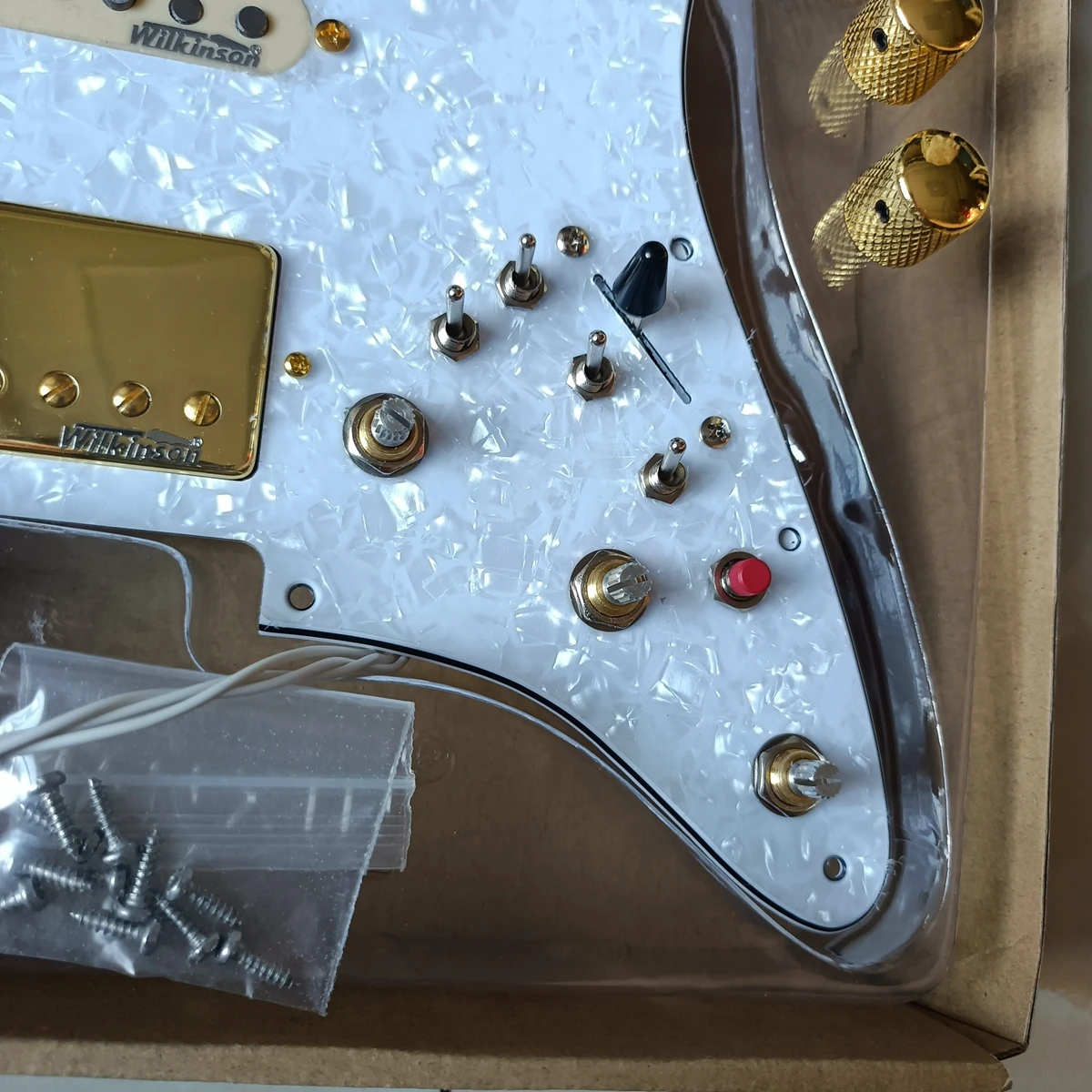

      1X 5-way switch



      1X enhanced switch

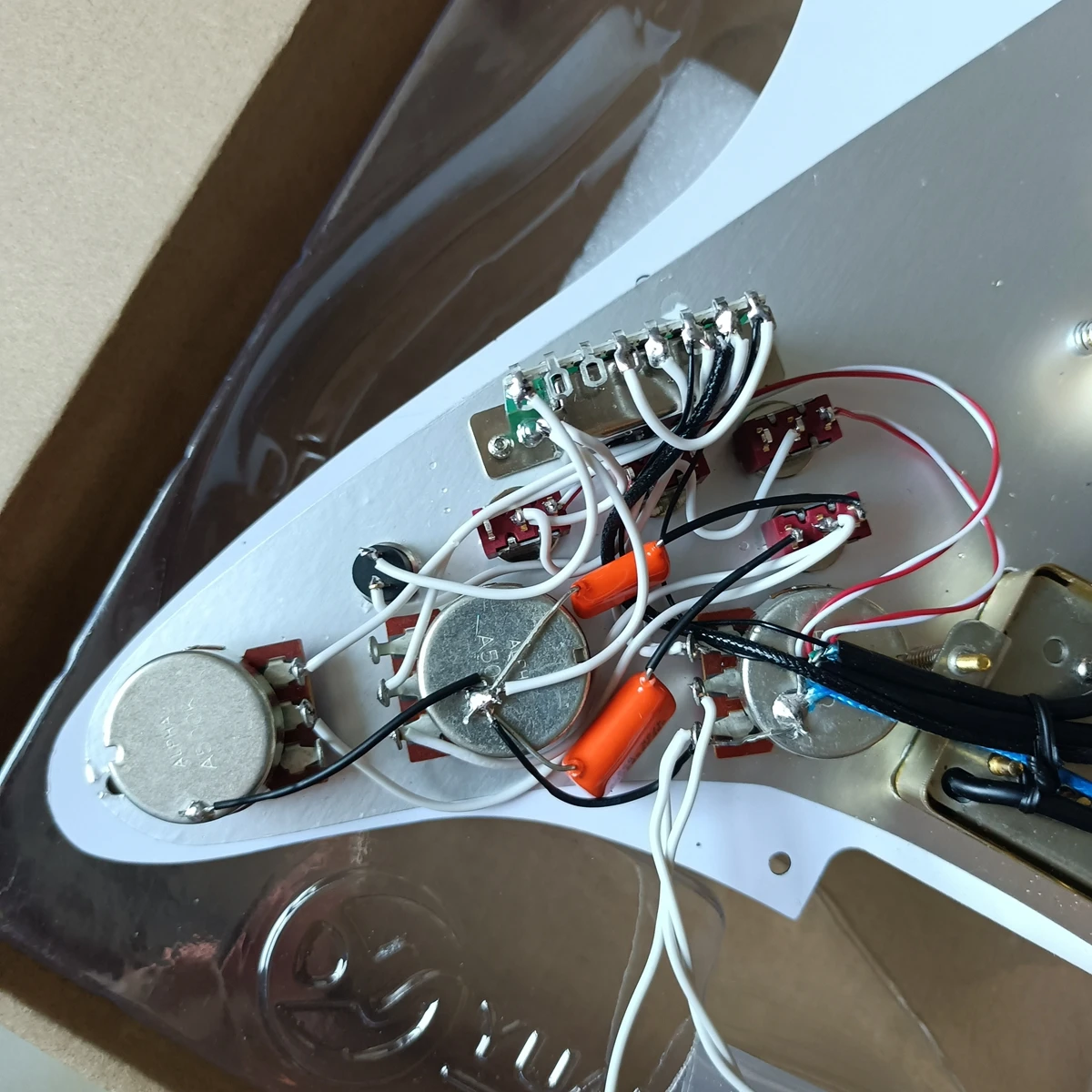

      3X potentiometer 1V2T (Copper Shaft)



      4X Cut Single Toggle



      1X CDE Orange 473 400V/200V Caps



      1X Output Jack



      11x Screws

Important Tips:

1.When the 5-speed switch is placed in the first position, the neck pickups work. After pressing the enhanced switch at this time, neck + bridge pickups will work at the same time.

2.When the 5- speed switch is in the second position, the neck + middle pickups work together, pressing the enhanced function switch at this time, neck + middle + bridge pickups will work at the same time.

3.Each pickup has an independent single-cut (Push-Pull) switch. After turning on the single-cut switch, If the sound of single cut is not good, it will be better to use compensation switch.

4.This item including 3pcs high quality Alnico5 pickups composition, can give you a wonderful sound, which apply to the majority of music lovers and got good feedback.

📏 Size & Fitment 🎨 Color

Musical instrument parts may vary slightly across different models, years, and manufacturers.“Universal fit” is for reference only and does not guarantee full compatibility.

Please carefully check all measurements and compare with your original part before purchase.

Minor dimensional variations may occur due to manufacturing processes and manual measurement.

These tolerances are normal for precision-made components and do not affect function or installation.

Product images are taken from actual items, but slight color variations may occur due to lighting, camera settings, and display differences.

Actual product shall prevail.
