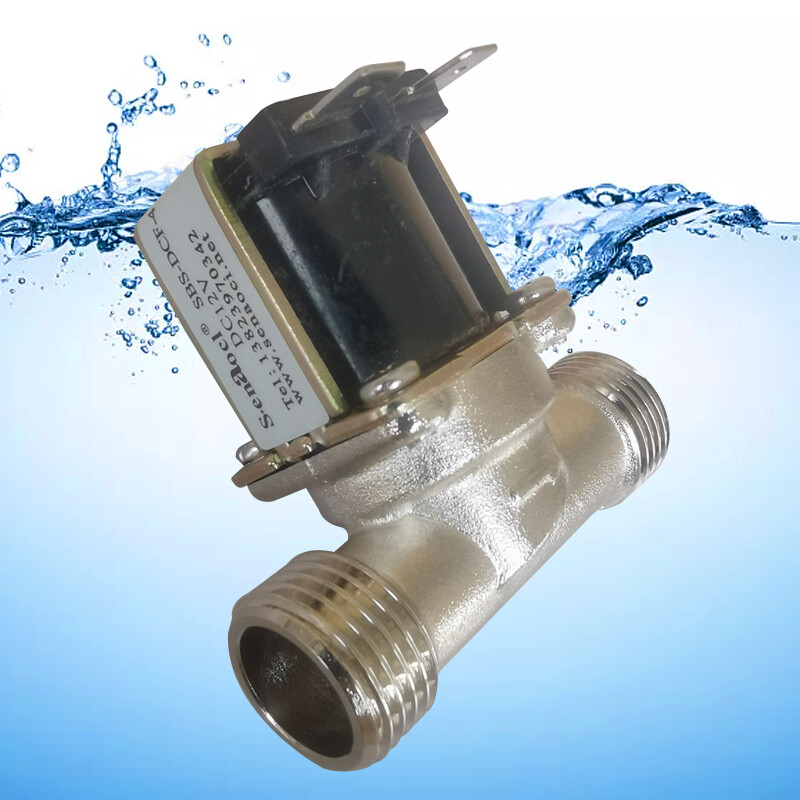

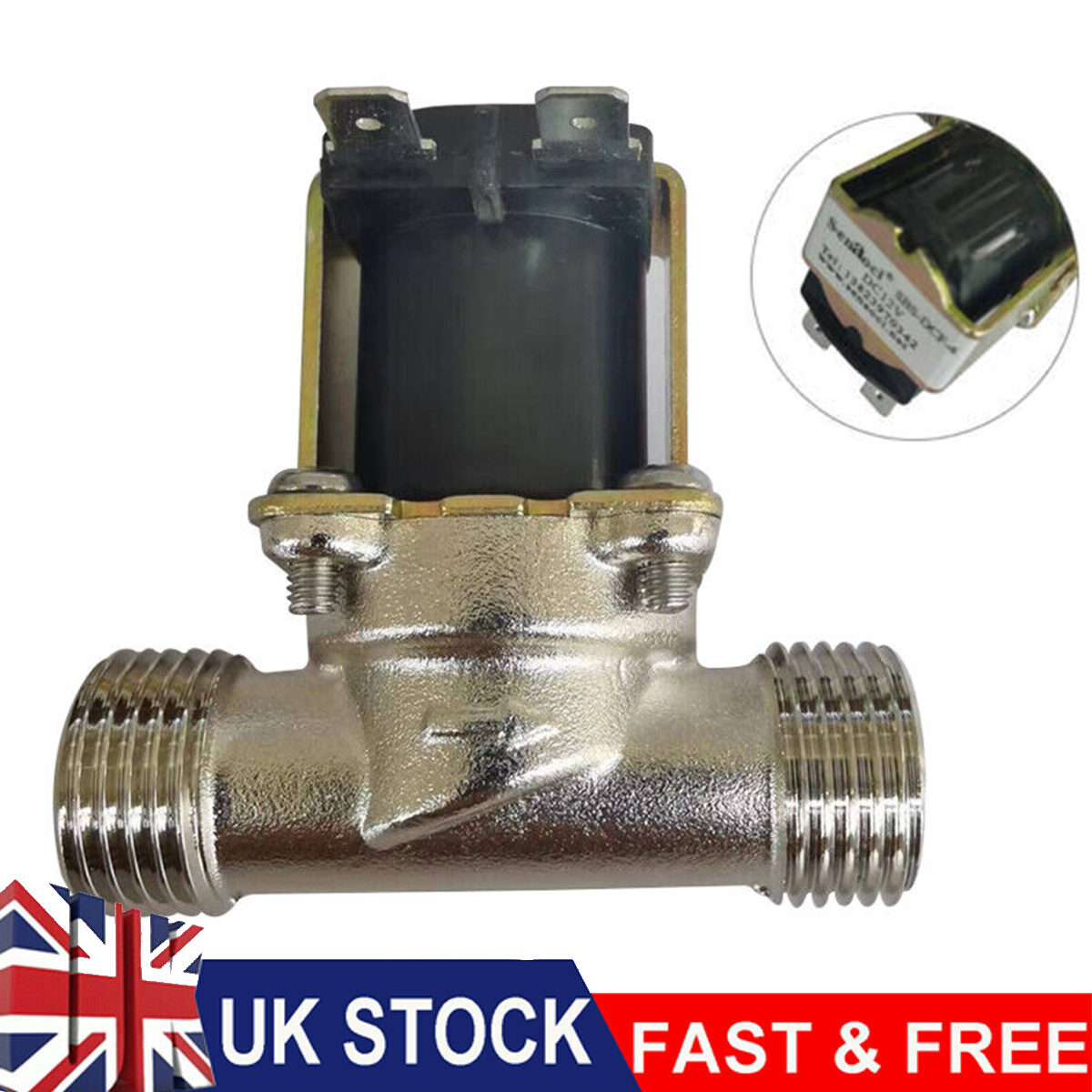

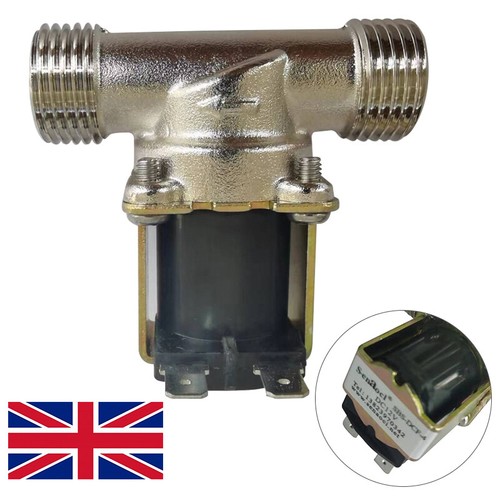

12V 1/2"Brass Electric Solenoid Valve Switch Water Gas Air DC Normally Closed UK

Description:

This is a normally closed electric solenoid valve that is energized to open and closed to close.

Connect to DC 12V voltage and rated current is 300mA to ensure stable performance.

The high quality brass valve body would hold pressure up to 0.8Mpa.

Suitable for use with piping in water application, and water temperature is 0℃~55℃.

There is an arrow sign on the valve for the direction of flow. Please follow the instruction to connect the piping.


Specification:

Voltage: DC 12V

Nominal Diameter:1/2"

Colour:Golden

Connection format: female thread / screw thread

Material:cast copper

Flow range: 3L/min-25L/min

Male Thread Diameter: G1/2

Coil Resistance: 26 Ω (DC12V)

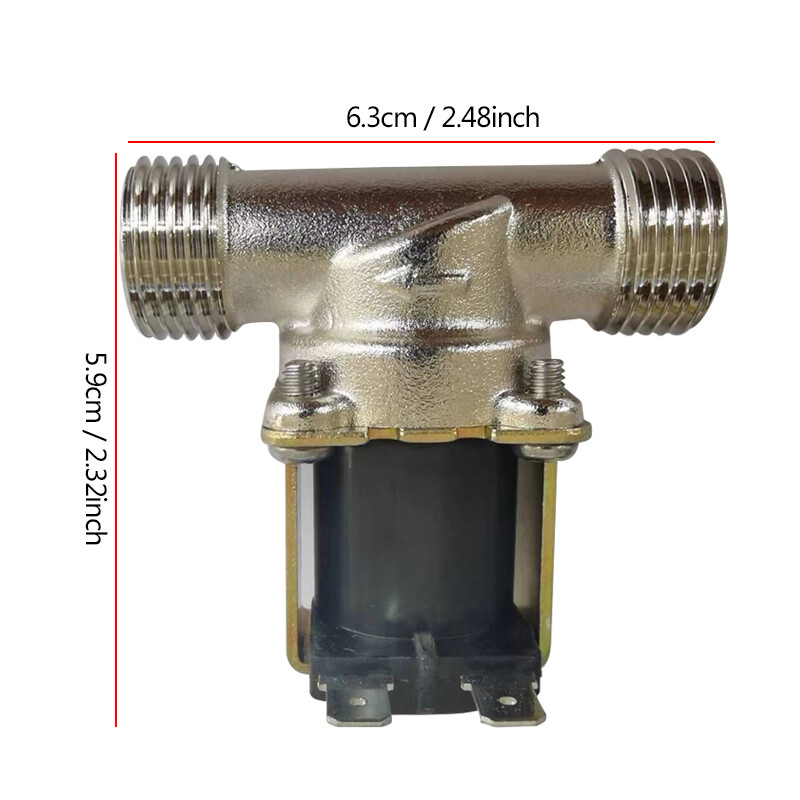

Size: Approx. 6.8 x 6 cm

Type: Normal temperature normally closed, two-way solenoid valve

Liquid temperature: No more than 80 degrees

Operating voltage: DC12VMaximum current: 0.46A -10mA

Working water pressure range: 0.02-0.8 Mpa

Maximum water pressure: 1.75MPa

Flow range: 3L/min-25L/min

Coil resistance: 26 omega (DC12V)

Insulation resistance: Should be more than 100MOmega

Lifespan: More than 300, 0000 times

Lifetime: > 100,000 times

Operating Temperature: 0℃~40℃

Operating humidity: <95% (at 25 °C)

Altitude: ≤2500m


Package Included:

1xG1/2 DC 12V Solenoid Valve Electric Water Valve N/C Water Valve Brass
