Welcome to JINGLER Store

Product Introduction:


    The surface of the product is covered with a film to prevent scratches and damage. Please remove the film before installing the product on the
  guitar.

Features:

【 Prewire set】Prewire electric guitar pickguard set with three pickups, three potentiometers, one 5-way switch, four single-cut toggle and one inhanced switch installed. Fits for standard U.S./Mexican Fender Start or Squier starts, perfect replacement for upgrading any common guitars configuration.

【Multifunctional Design】The 7-way Switch Push Pull Potentiometer makes it easy to adjust the sound to your preference, giving you the flexibility to switch between different tones.

【High Output 】The DC resistance of neck pup - 7.5 KΩ, middle pickup - 9.18 KΩ, bridge pick up - 15 KΩ,delivering full, powerful sound that's perfect for Rock musical style.

【Easy to install】Everything above is already installed, including the output jack, just solder the ground wire to spring claw after receiving it.Please be ready to enjoy the perfect sounds.

【Customized package】 Mounting screws are included in package for free, and all the above are packed into a inserter and sturdy box with protective foam inside.


     Specifications:



    Material:
     Metal, plastic, copper, magnets


    Color:
    White/Black/White pearl,can be customized


    Resistance:
     N/M/B: 7.5Kohm/9.18Kohm/ 15Kohm


    (K resistance is for reference only, which will change as the temperature changes)

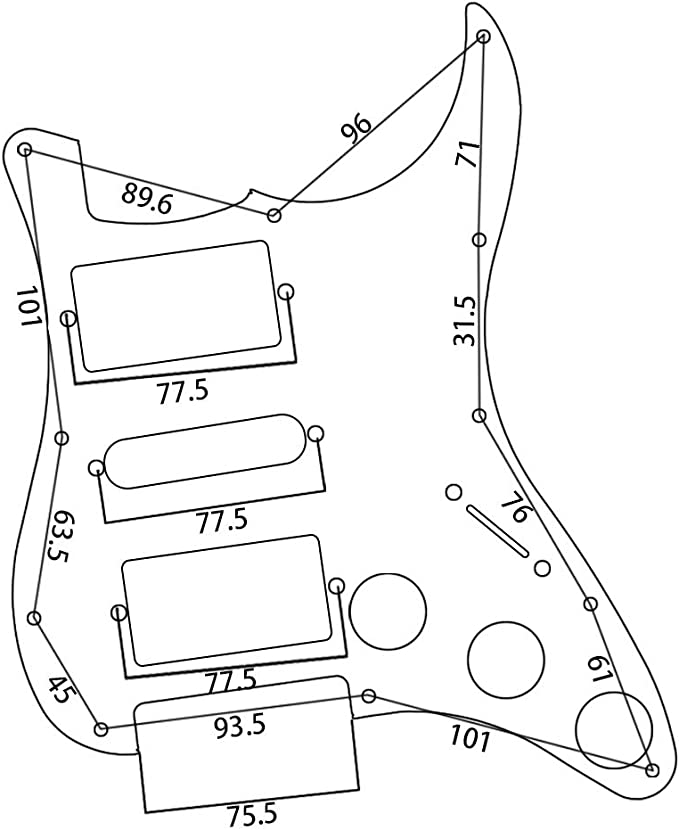

    Hole Distance:
    N/M/B: 50mm/50mm/52mm


    Brand name:
    Angels


    Hand:
    Right-hand


    Size:
    285x220x60MM/11.22x8.7x2.4Inch ( L x W x T)


    Weight:
    700g/1.54lb


    Package include:



    1X 3-ply Guitar Pickguard



    1X Mini humbucker pickups



      2X Humbucker pickups



    1X 5-way switch



    1X enhanced switch



    3X Potentiometer 1V2T



    4X Cut Single Toggle



    1X 473J 400V CDE Caps (Made in USA)



    1X 473J 100V CDE Caps (Made in USA)



    1X Output Jack



    11x Screws


If you want more pictures, please contact us~


    Important Tips

    In addition to the original function,the four single-cut toggle and one enhanced switch bring new functions, as follows:

 1.When the 5-speed switch is placed in the first position, the neck pickups work. After pressing the enhanced switch at this time, neck


     + bridge pickups will work at the same time.

 2.When the 5- speed switch is in the second position, the neck + middle pickups work together, pressing the enhanced function switch


     at this time, neck + middle + bridge pickups will work at the same time.

 3.Each pickup has an independent single-cut (Push-Pull) switch. After turning on the single-cut switch, If the sound of single cut is not


     good, it will be better to use compensation switch.


📏 Size & Fitment 🎨 Color

Musical instrument parts may vary slightly across different models, years, and manufacturers.“Universal fit” is for reference only and does not guarantee full compatibility.

Please carefully check all measurements and compare with your original part before purchase.

Minor dimensional variations may occur due to manufacturing processes and manual measurement.

These tolerances are normal for precision-made components and do not affect function or installation.

Product images are taken from actual items, but slight color variations may occur due to lighting, camera settings, and display differences.

Actual product shall prevail.
