Spray Dryer is mainly suitable for the laboratory for changing liquid material directly into micro powder, without filtration, concentration, and smash before drying, the supplies for all solutions is a broad applicability， such as emulsion, suspending liquid.
1.The spray dryer is mainly for food, biology, beverage, chemical, medicine, etc for lab-use; widely used for all kinds of solutions such as emulsion and suspension liquids; and also suitable for drying heat-sensitive materials such as biological products, bio-pesticides, enzymes, etc.
2.Can be used to dry spices and pigments, polymer and resins, milk and egg products, plant and vegetable extracts, oxide, pharmaceutical synthesis, thermal plastic material, bone and tooth powder, aromatic agent, fragrances, blood products, biochemical products, dyes, soap and detergents, food adhesive,etc. 3.Applicable to these fields: colleges and universities, research institutes and micro-enterprise about laboratories development and production of micro-particles powder in food, biology, beverage, chemical, materials, pharmaceutical and other aspects.
Features

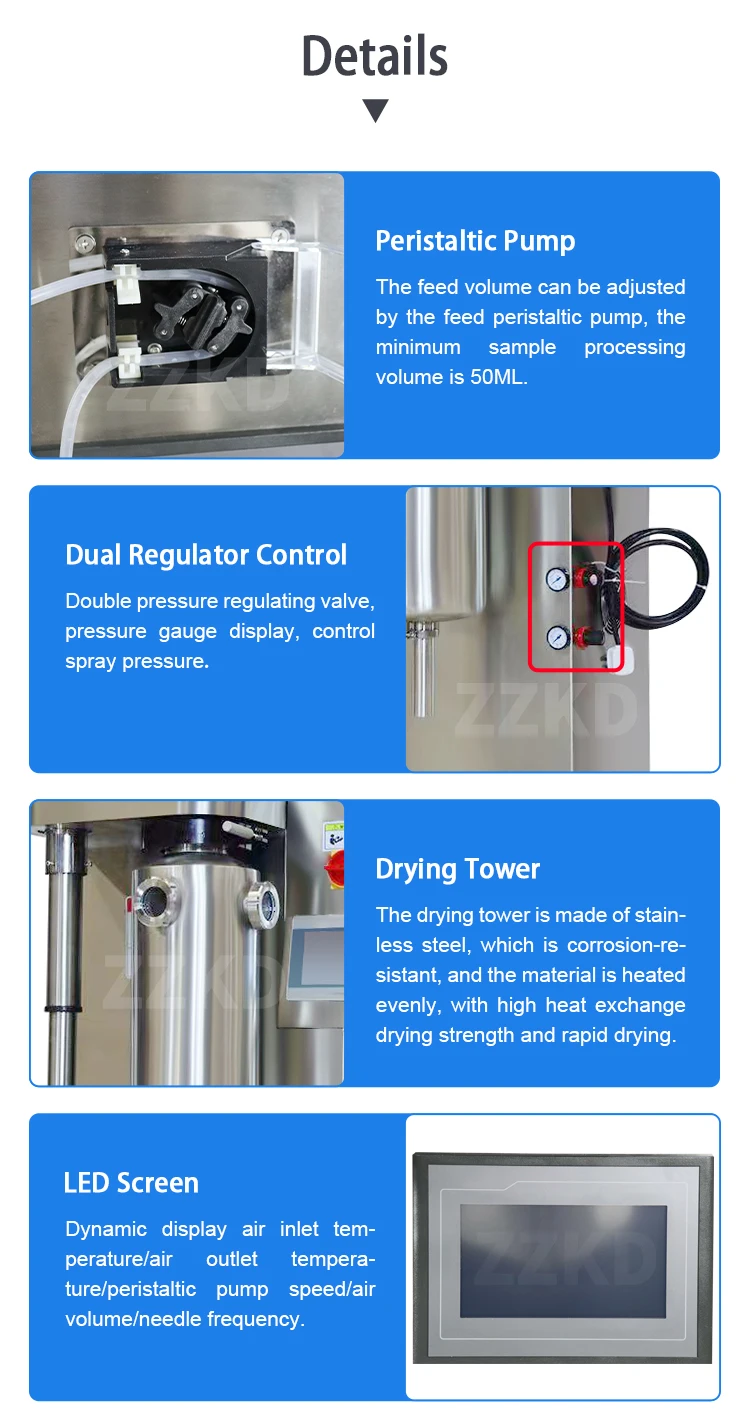

- Use the screen of touch to display operations, control temperature, air volume, air pressure, pump speed and de-blocking frequency. The inlet and outlet temperatures are precisely controlled by PID.
- High borosilicate glass, convenient and intuitive to monitor the process status.And easy to clean, very easy to assemble and disassemble.
- The air compressor is oil-free and does not pollute the compressed air. The sound is lower than 60db, and follow the GMP standard.
- The spray chamber, cyclone separator and receiving box are all made of borosilicate glass, which can resist strong acid/alkali and high temperature. It can work in a pollution-free and stable environment.
- Automatic blocking device can prevent nozzle blockage and carry out variable control.
- The two-fluid spray atomization structure is made of high-quality 304 stainless steel with uniform atomization.
- Fully automatic manual dual-mode, PLC control, color touch screen display, Chinese and English operation interface, all parameters have an LCD display.
KDSD has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant and vegetable extracts, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.
