3000mW RGB-RGB color laser
Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.
Technical Parameter
| Light source parameters | |
| Laser wavelength: | R-640nm, G-520nm, B-450nm |
| Laser power: | 500mW x 6pcs |
| Spot size (laser spot) | 5.5mm |
| Laser Class | Class IV |
| Imaging system | |
| Projector distance | ＜200M The best distance is 10~30M |
| Pan movement | 100° |
| Tilt movement | 180° |
| Fail-safe system | |
| Safety standards | Follow the IEC60825 standard |
| Security project | Over current and voltage protection |
| Class of protection | IP20 |
| Operating temperature | -15℃~45℃ |

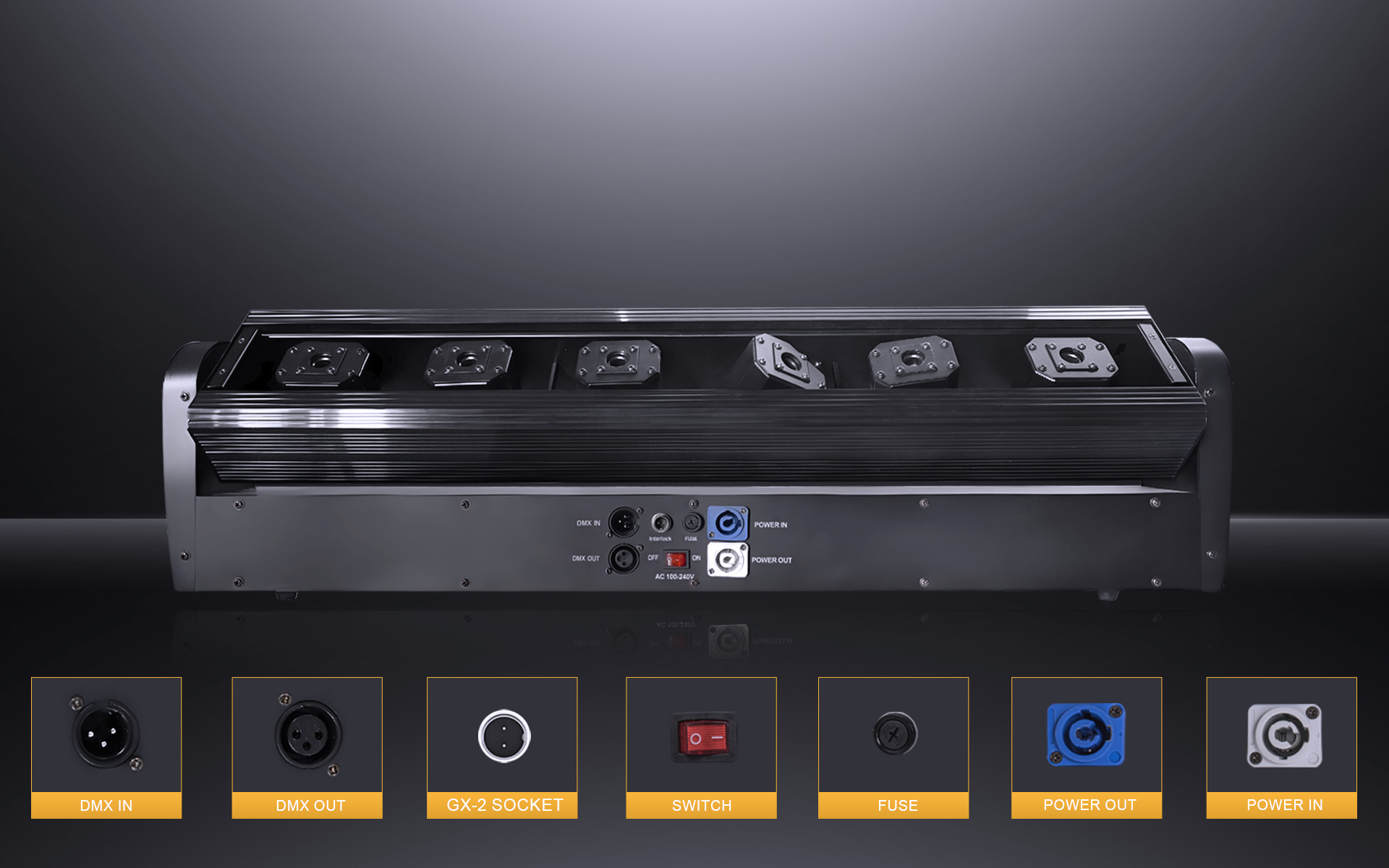

| Interface and control systems | |
| Control interface | DMX In/Out |
| DMX channel | 11/19/24CH |
| Power supply interface | PowerCon |
| Power Consumption | |
| Power of operation | 100~240V AC 50/60HZ |
| Power supply | Max 150W |
| Physical parameter | |

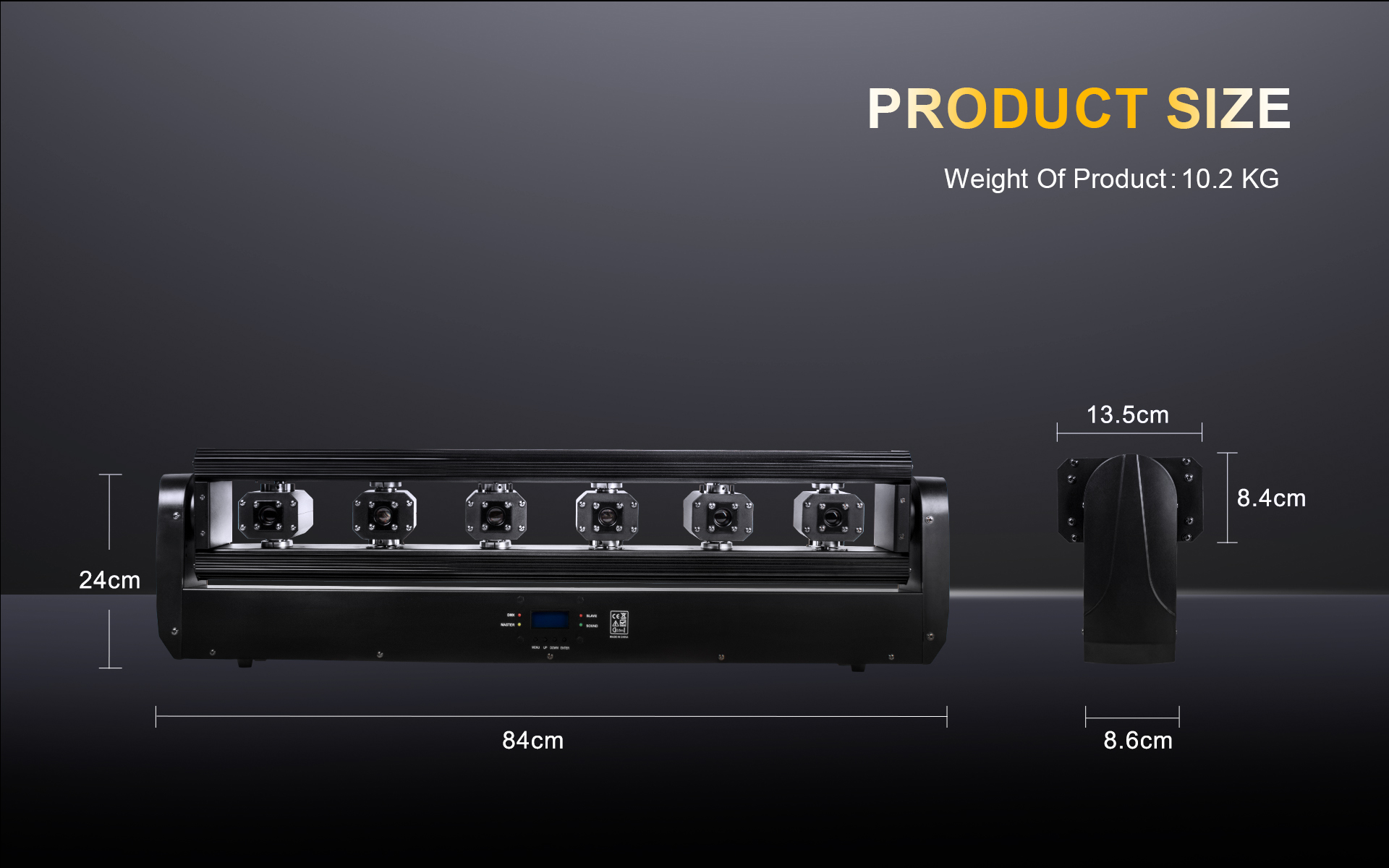

| Dimensions of products | 84X24X13.5 cm |
| Weight of product | 10.2 kg |
| Dimensions of package | 99X22X27cm |
Conctrol Mode
Supports DMX controller and adjustment menu panel, supports sound mode and automatic mode,
It can freely change according to music and environment, bringing more prominent effects to stage performances.

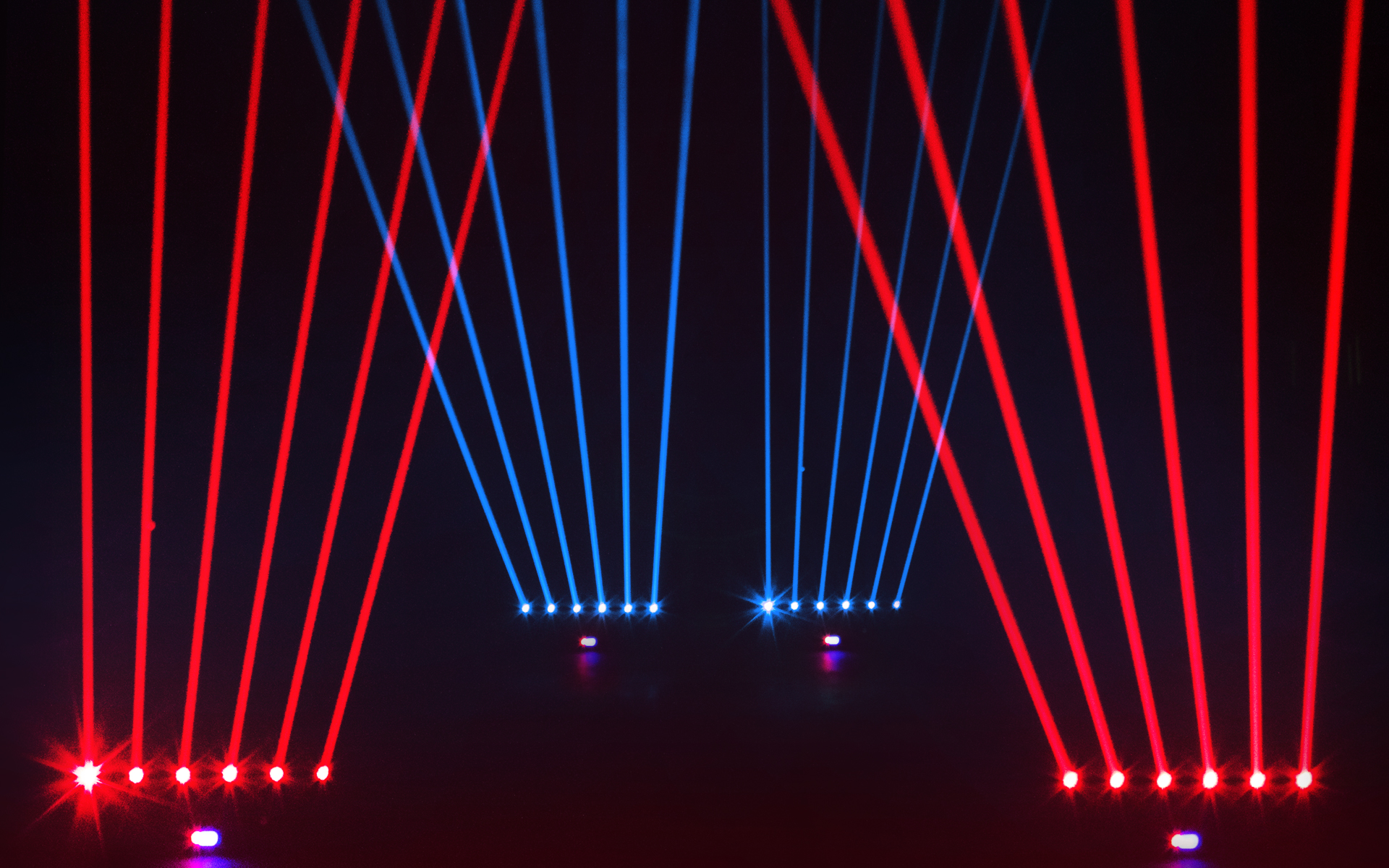

Laser Effect
Full color laser matrix beam, by adjusting the emission angle and beam shape of the laser,
6 lasers can be combined to project various simple patterns, such as triangles, rectangles, diamonds, etc

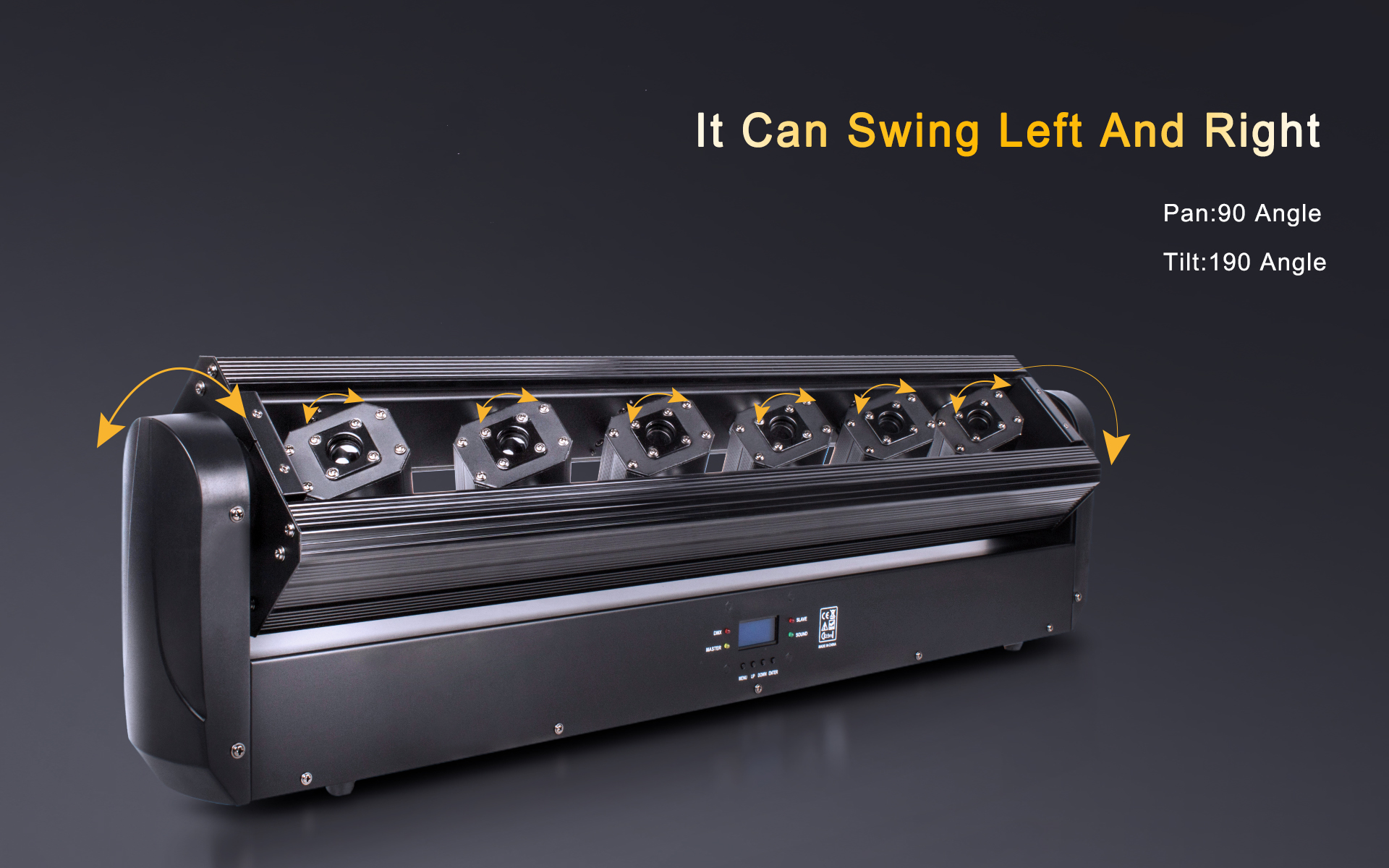

Moving Head Angle
The 180 degree vertical and 90 degree horizontal shaking angles provide more possibilities for the movement of the laser.
Laser can simulate various dynamic effects, such as wave like oscillation, spiral rise or fall, circle drawing, etc.

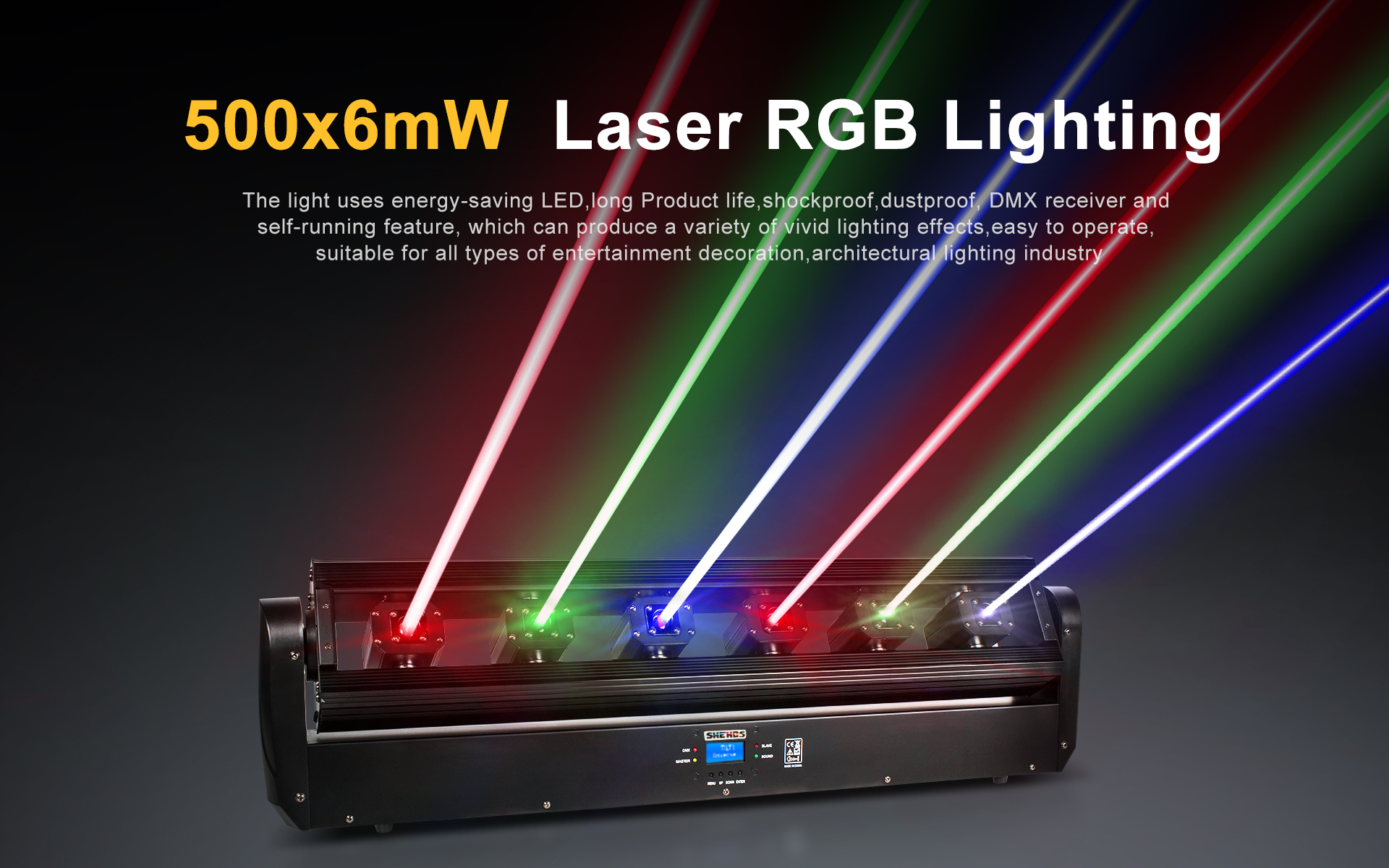

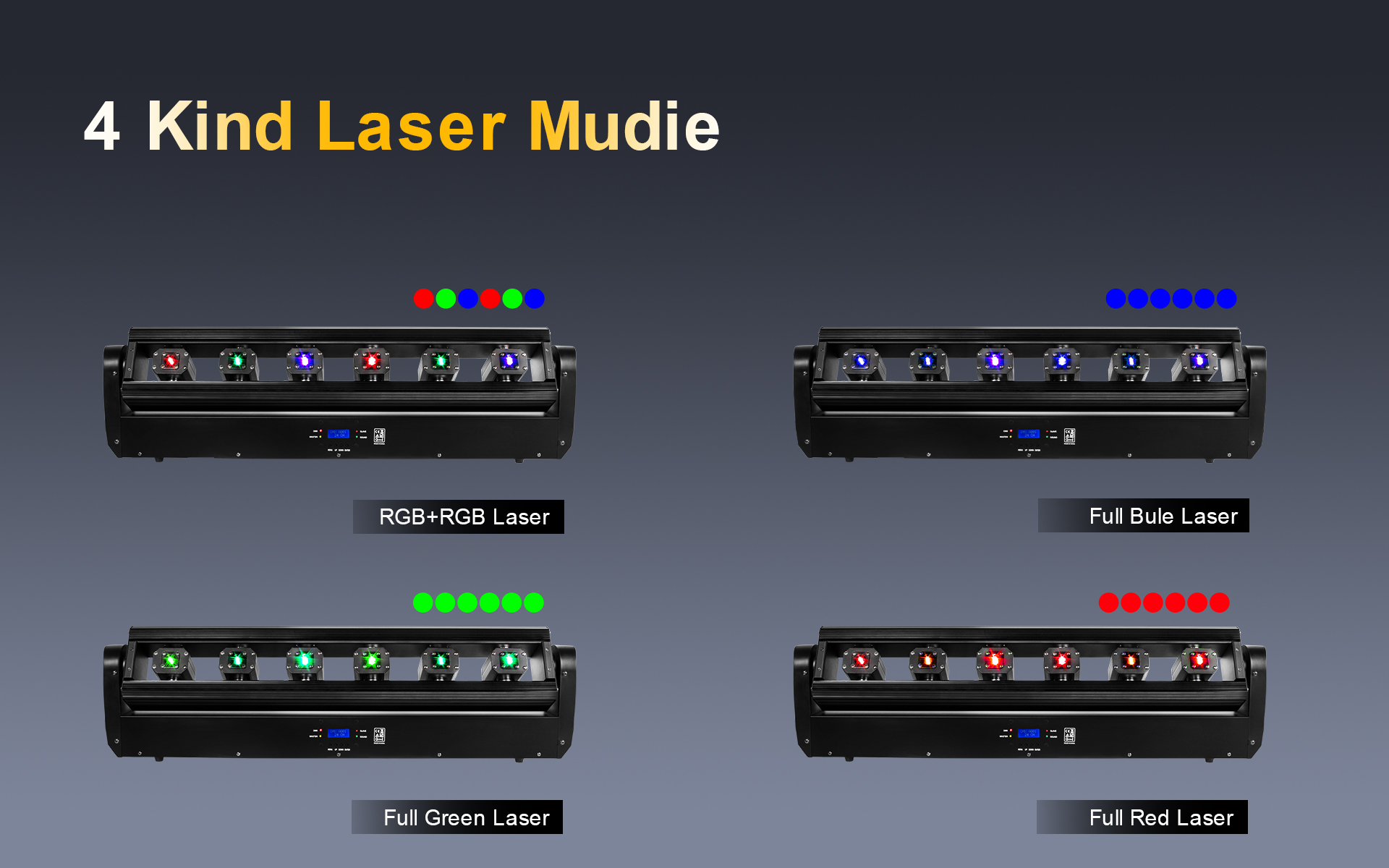

RGB&RGB Laser Source
Single color laser light source arranged in RGB-RGB format, with purer colors

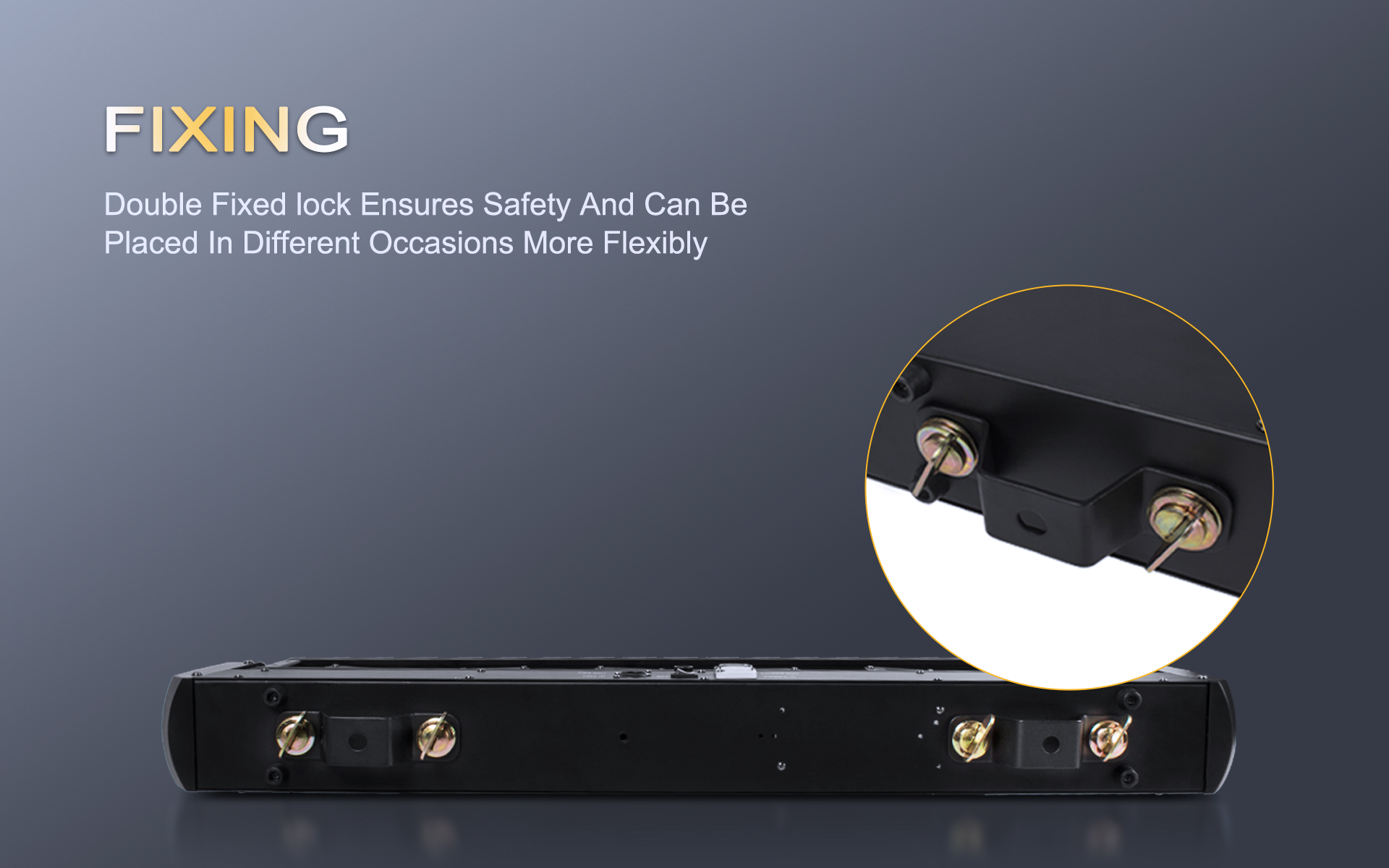

Buckle suspension structure
Suspension installation usually uses simple snap fasteners, greatly reducing installation and disassembly time.
By adjusting the suspension angle of the laser equipment on the truss,
the laser beam can scan through the stage and audience area in a unique way,
creating a distinctive visual impact and adding a unique artistic atmosphere to the performance.

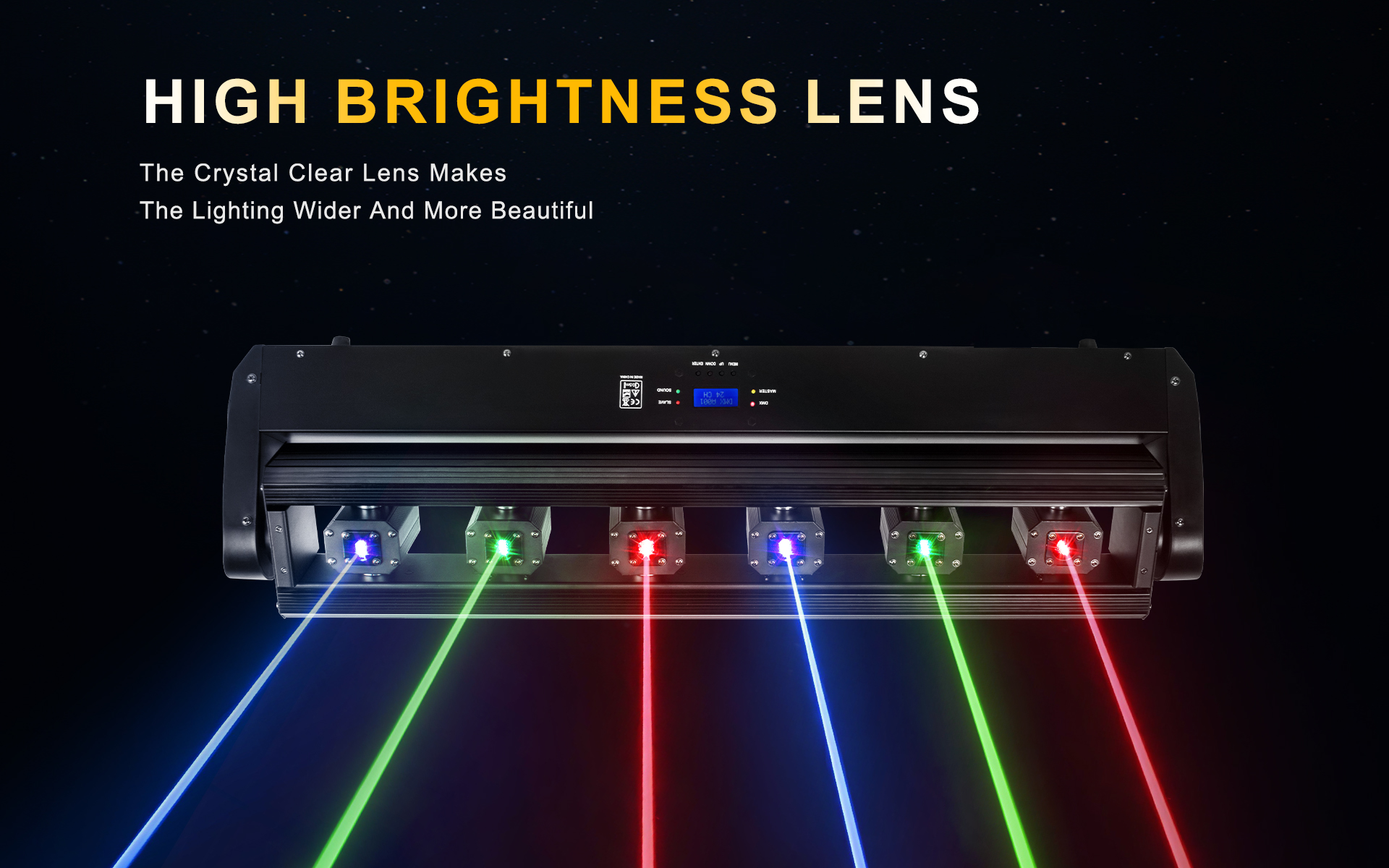

Optical spherical lens
The use of non spherical lenses can effectively correct spherical aberration and maintain better collimation of the beam during propagation.
The beam emitted by each laser is more straight and concentrated. Maintain a clear and bright spot effect at a distance.

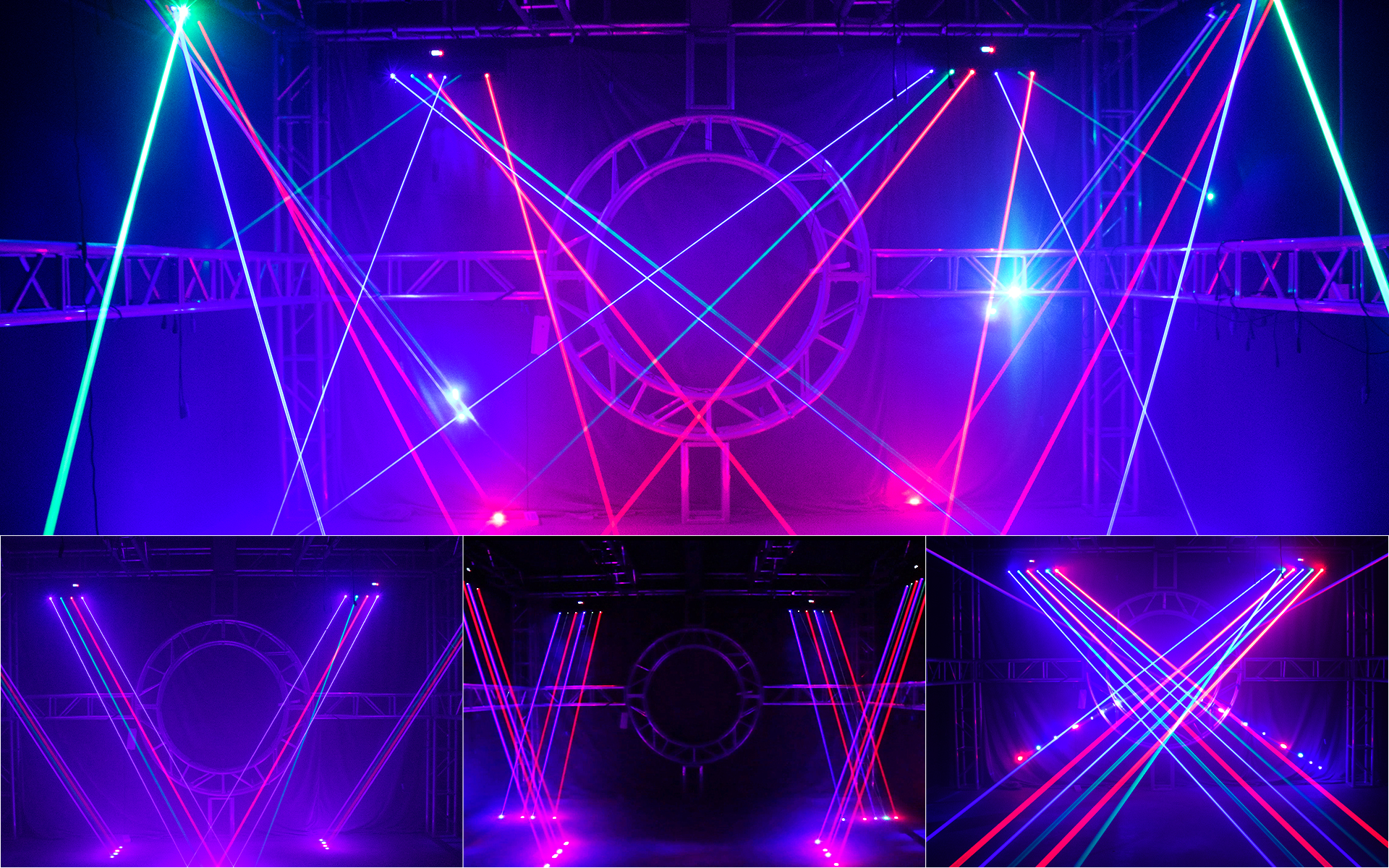

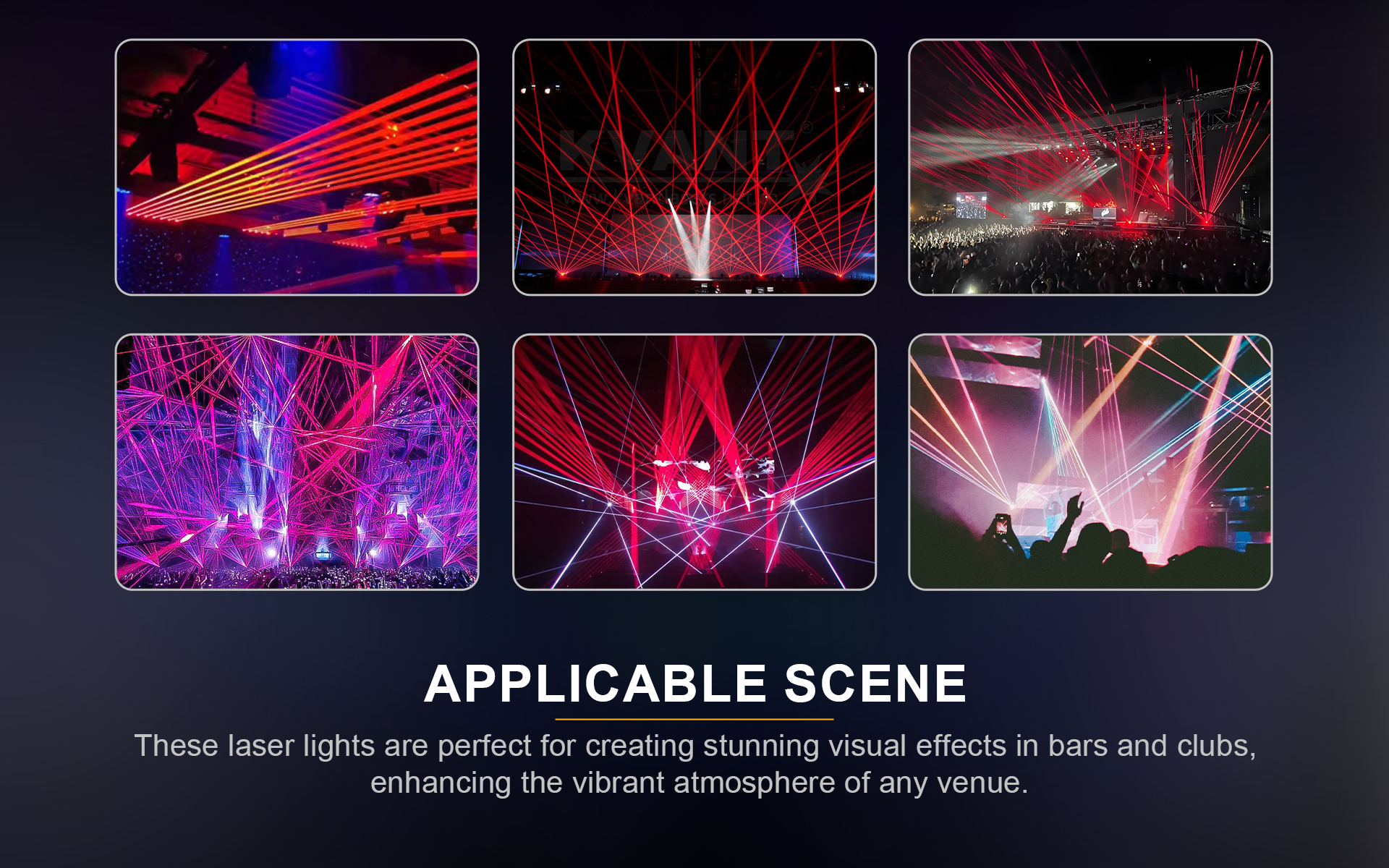

Applicable Scene
Concerts, music festivals, theatrical plays, dance acrobatics, etc.
use dazzling light and shadow to create an atmosphere and enhance the infectious power of performances.
SAFETY TIPS
During the use of a laser source,
Do not look directly at the light source.
The effect of stage laser lights is formed by high-speed scanning of the laser
beam through high-speed galvanometers or low-speed stepper motors.
The harm to the human body is mainly reflected in the harm to the eyes,
and prolonged exposure can lead to blindness.

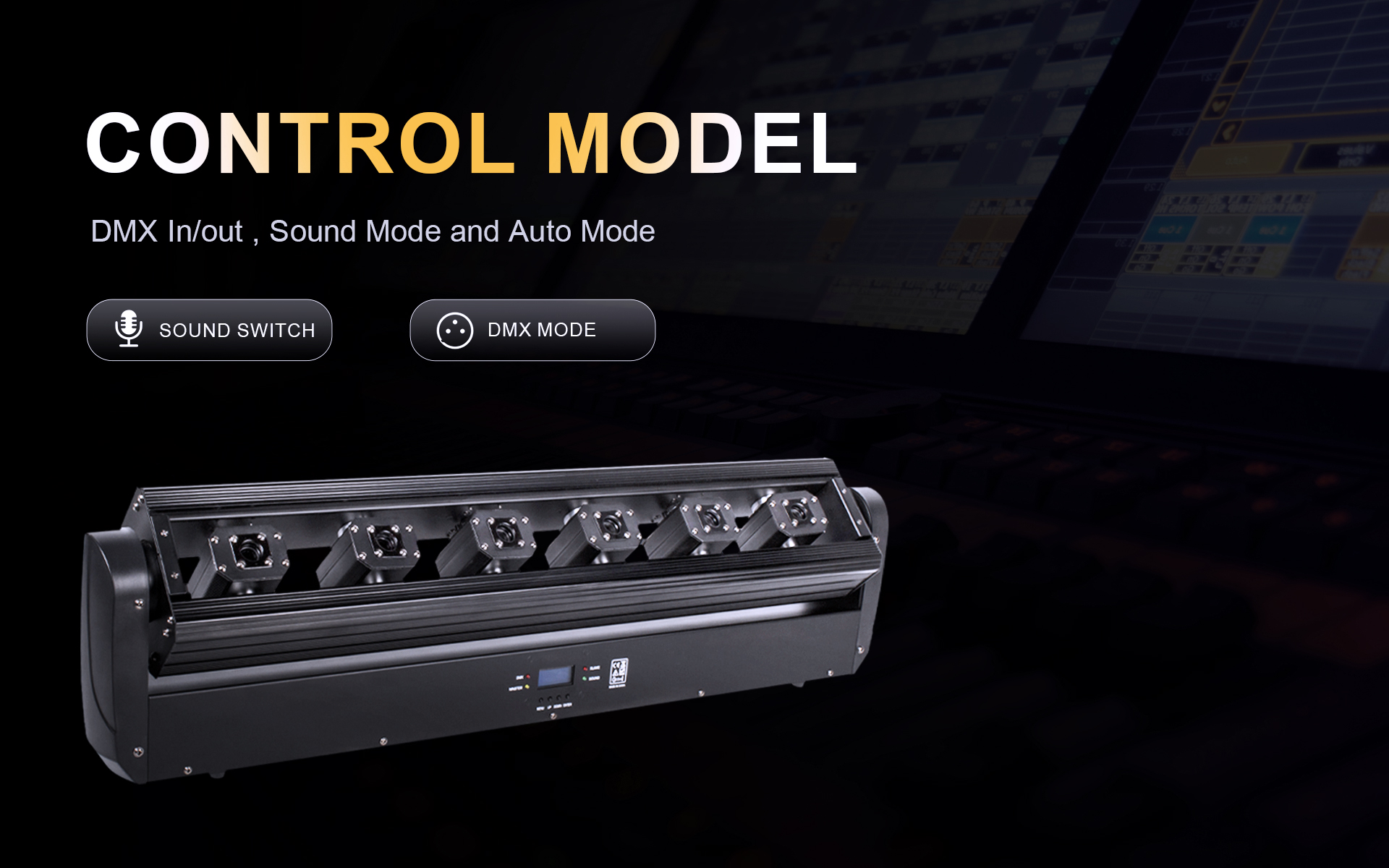

Control Model
Built in with a rich variety of patterns and animation effects, from dazzling rainbows and twinkling stars to dynamic waves and cool geometric shapes,
each effect has been carefully designed to meet the needs of different scenes and atmospheres. Whether it's a romantic proposal scene,
a passionate music festival, or a peaceful night stroll, our laser equipment can create an unforgettable world of light and shadow.

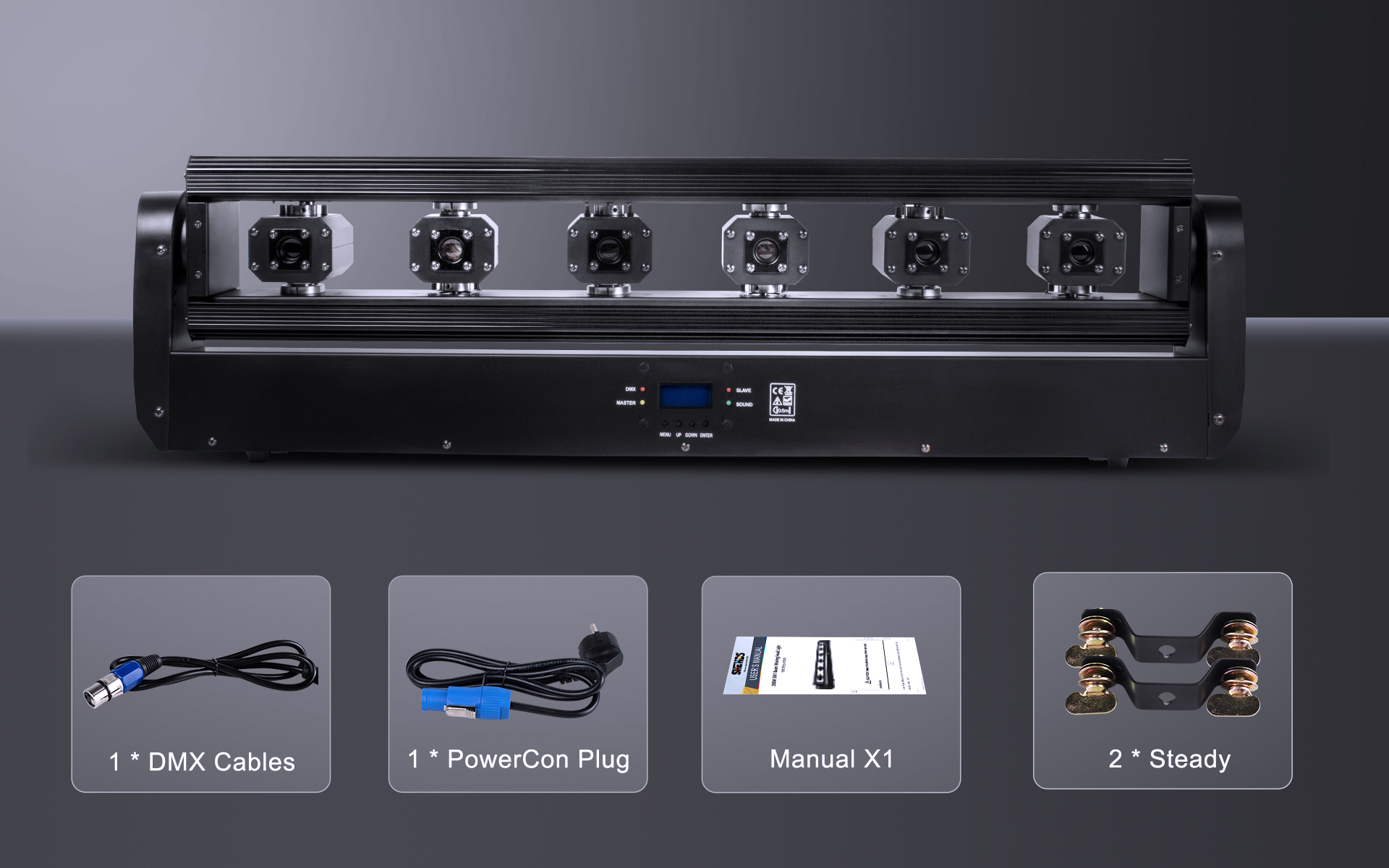

Additional Accessories
Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition before being shipped out.
Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail.
Only products that have gone through layers of scrutiny can confidently leave our factory and arrive in your hands with unparalleled quality,
bringing you an excellent user experience.

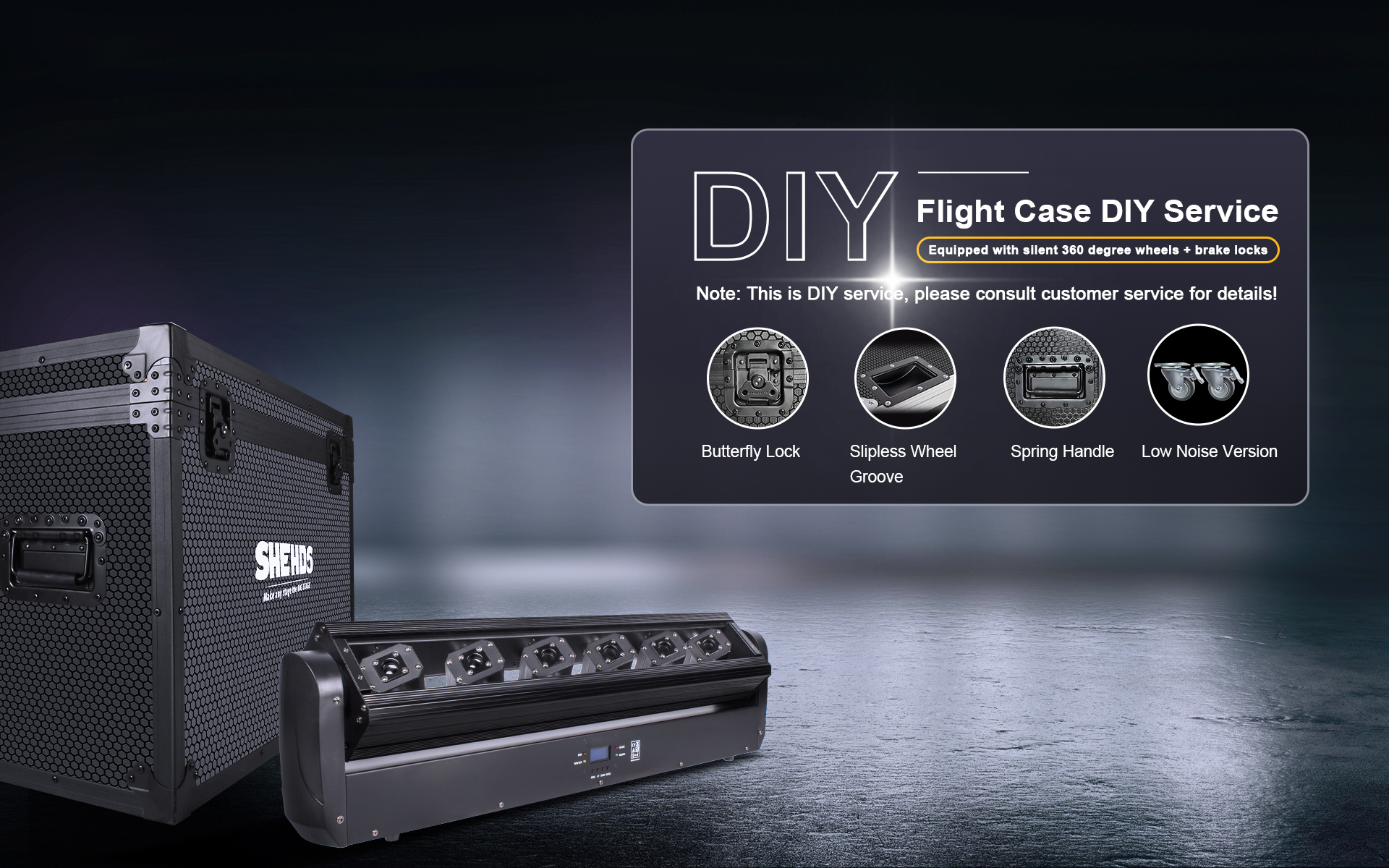

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods,
our aviation box design not only ensures safety protection, but also adapts flexibly to various specifications and shapes.
Each box is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products.
From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service, please consult customer service for details!
