Feature：
Accuracy:0.001mm
Lifetime of Touch Point: 3,000,000 times
Touch Power: 1.3N-2.4N
Protection Instruction: IP67
Applicable Controller:
Mach3, LNC,SYNTEC,WEIHONG, BEIJING JINGDIAO,etc.

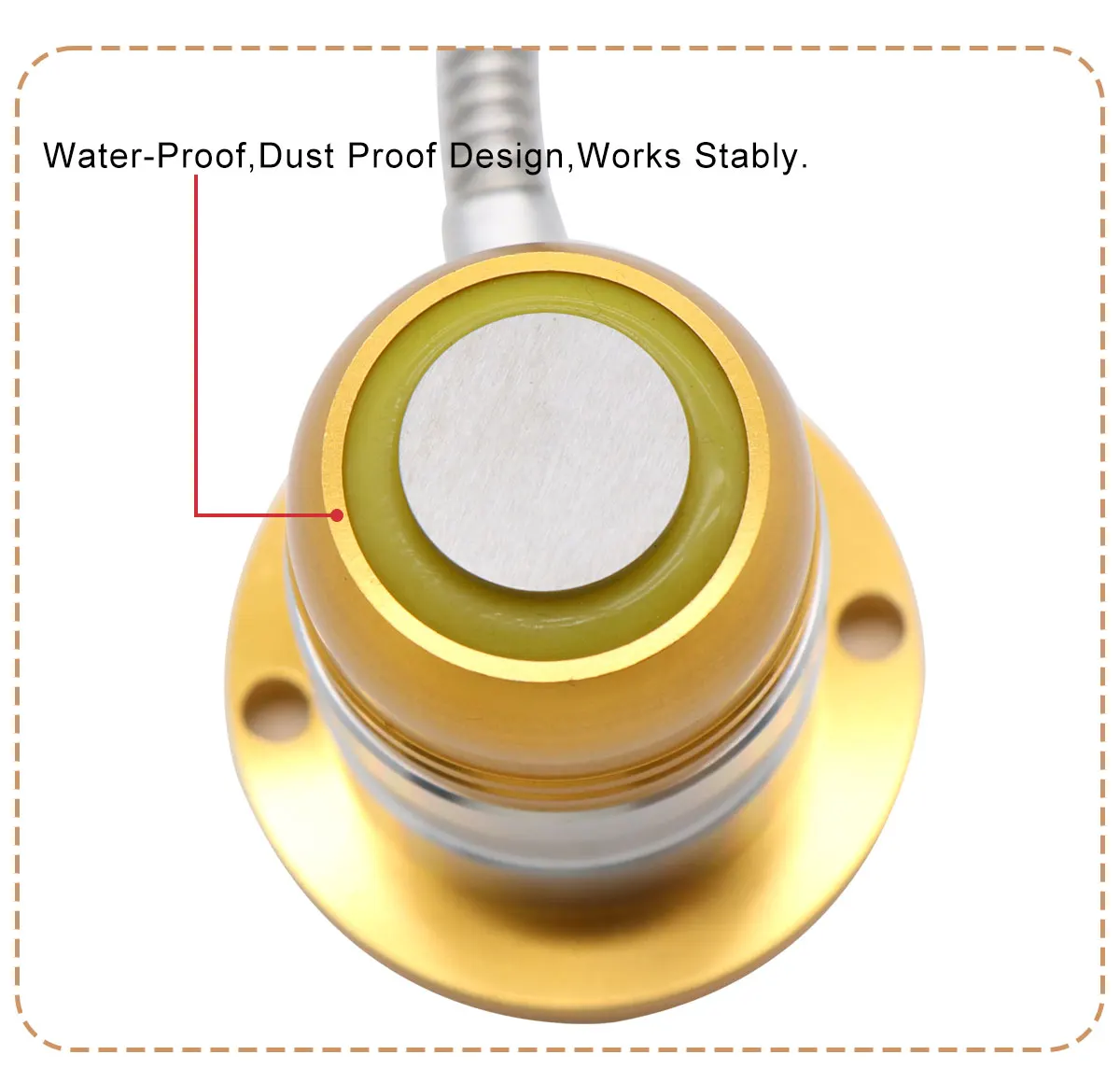

It is a kind of tool sensor with water-proof, dust-proof function.
The base is magenatic type.
Notice:

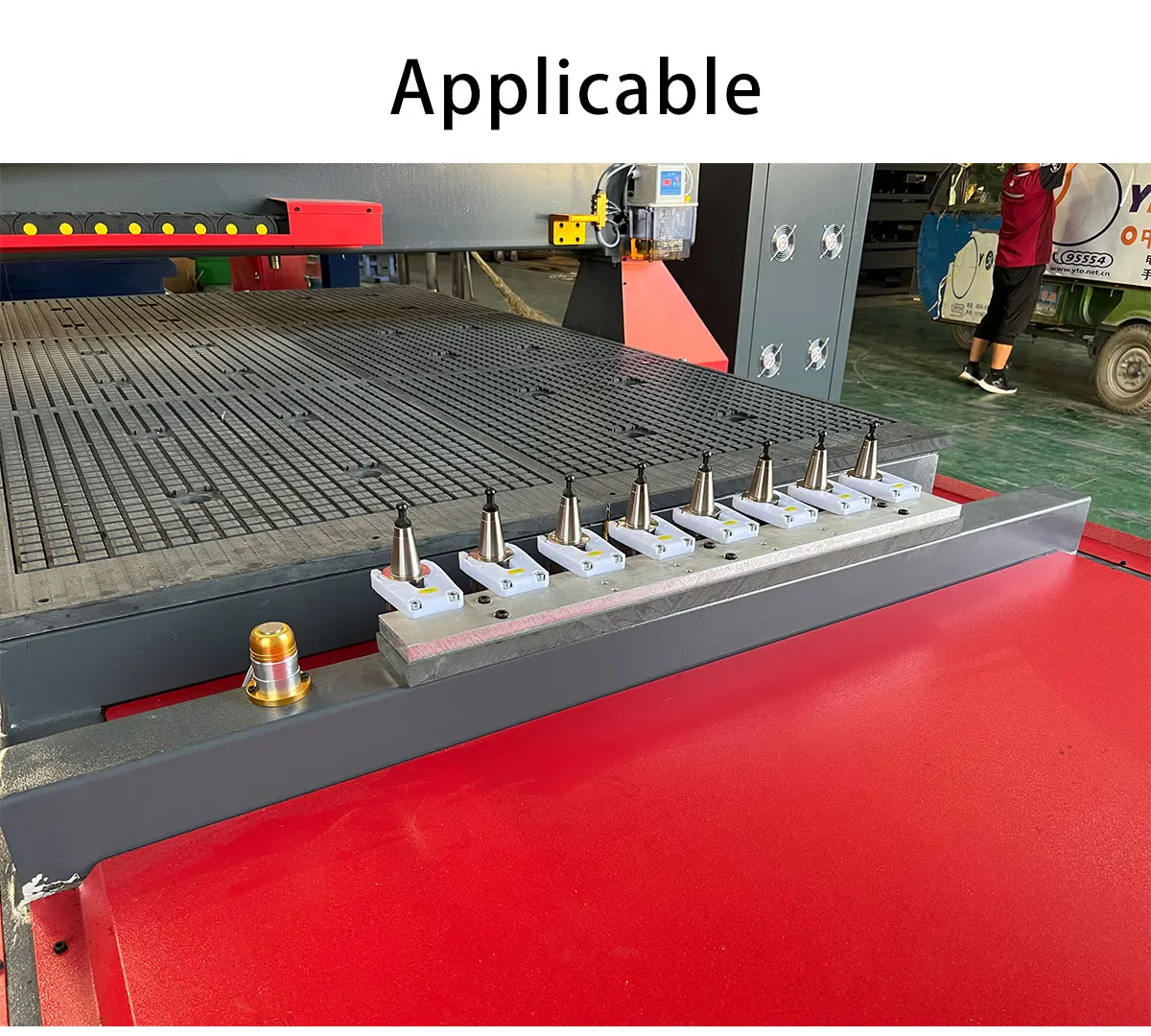

1. Make sure the cutting tool is prependicular to touch surface of tool sensor, install the tool sensor in a clean place of the working table, to avoid any damage of tool sensor’s accuracy.
2. Working voltage DC10-30V, currency below 20mA, temperature -25℃-70℃.
3. Diameter of tool should be below 20mm, tool adjust speed 50-200mm/min, the center of tool top should touch the center of the center of the touch surface.
