Alpine S-Series: The Music Lovers Starter Pack

S-Series 4-channel Power Amplifier - RMS Power Ratings 4 x 90W @ 2 Ohms

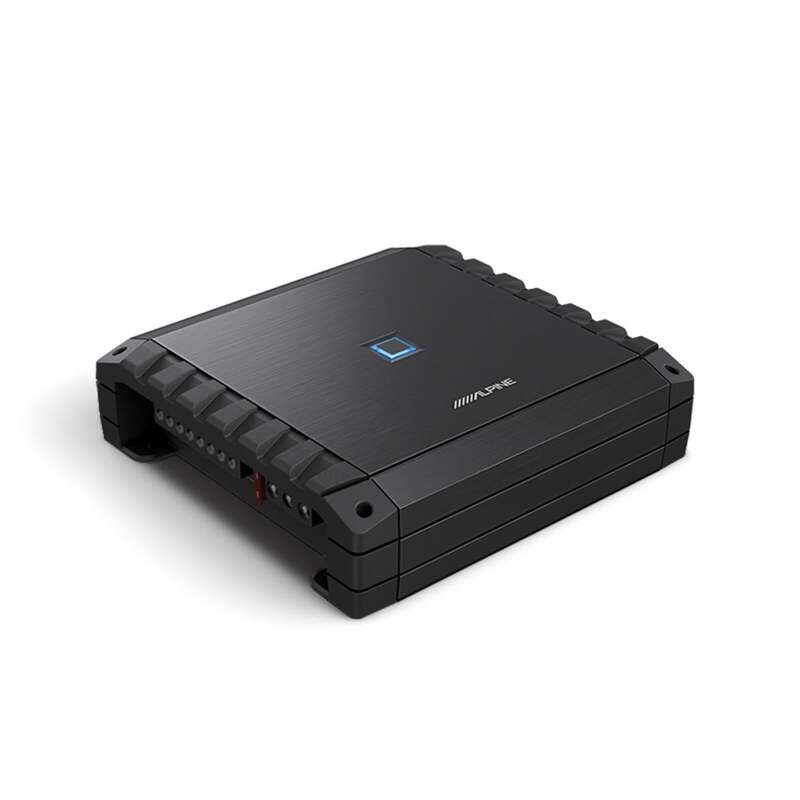

S2-A36F

The next generation of Alpine S-Series amplifiers are designed to take your car audio experience to the next level without breaking the bank. With a sleek new redesign and upgraded features from their predecessors, these amplifiers offer exceptional performance and power on an affordable budget.

The S-Series S2-A36F 4-channel amplifier delivers 60 Watts RMS @4 Ohms or 90 Watts RMS @2 Ohms of pristine high-fidelity signal to each of your car's front and rear speakers, adding sweet, clear sound to your vehicle.

The amp brings your music to life being Hi-Res Audio certified, with its precise details and emotional power clearly revealed with a frequency response up to 40kHz. For a 3-channel 2-way system, you could also use the amp to drive a pair of front speakers with 60 Watts RMS each, while powering a subwoofer with 180 Watts RMS from the bridged rear channels. A variable mid-bass boost on those rear channels allows you to dial in some extra kick and impact to your system's low-frequency sound. You can even add the optional wired remote RUX-KNOB2 to control the level of the rear channels from your front seat.

High- and low-pass filters put you in command of the frequency spectrum that reaches your speakers and subs. The amp includes preamp- and speaker-level inputs, so you can install it in almost any vehicle, even one with a factory radio. When using the speaker-level inputs, the amp can sense the incoming signal and turn itself on, eliminating the need to run a separate turn-on wire to the receiver or fuse box.

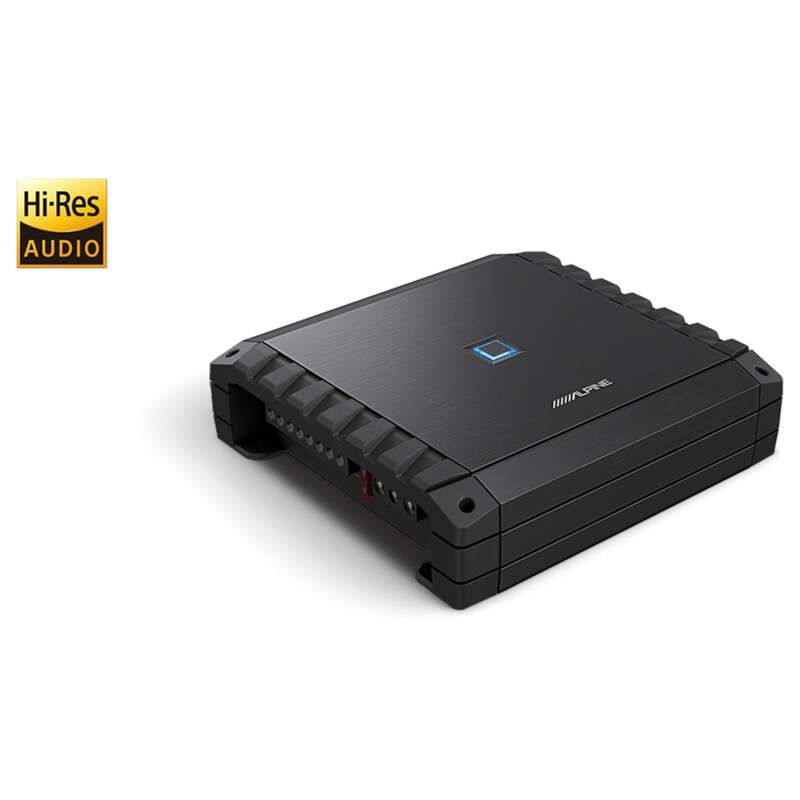

Hi-Res Audio Certified

The Next-Gen Alpine S-Series S2-A36F 4-Channel Amplifier is Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth coupled with the elevated S-Series design brings out a new benchmark for entry-level performance and price.

Flexible Application

The Next-Gen S-Series amplifiers now feature a new selectable remote turn-on circuit, a three-position switch that ensures the amplifier turns on and off at the proper times. This design is crucial with newer, in-vehicle technology and allows for proper integration with any factory or aftermarket system.

Easy Control Access

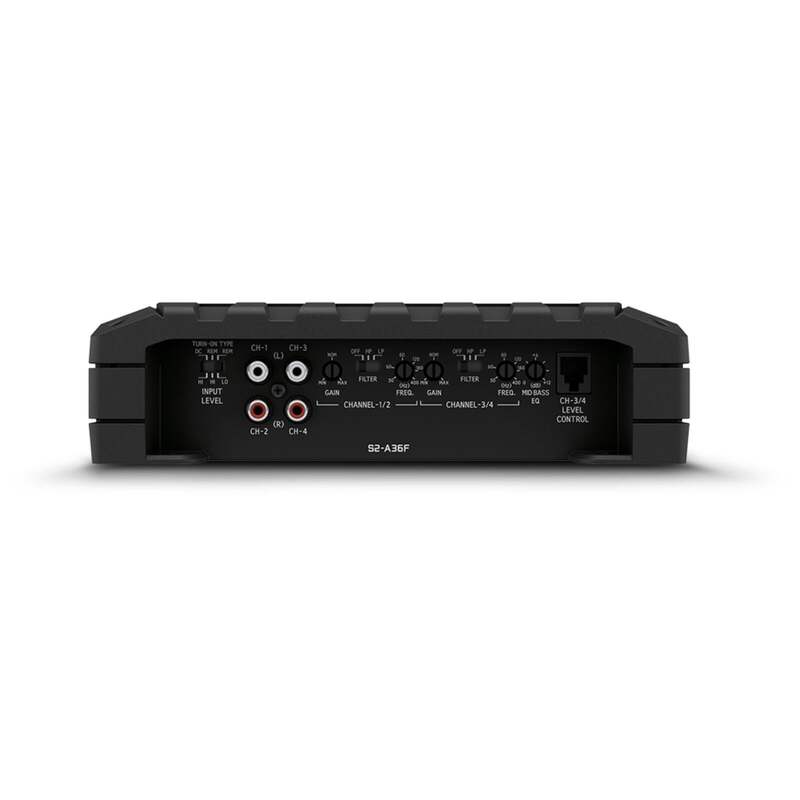

The amplifier was intentionally designed with sound controls located on the side panels, instead of the top panel, making it easier to access gain and crossover controls when installed under vehicle seats or in shallow-depth locations. Removable end-caps were added to cover the side controls and connections, providing a clean, sleek finish to the amplifier.

Mid-Bass EQ

With its new and unique variable Mid-Bass EQ Circuit, the S2-A36F allows you to dial in the mid-bass impact as desired, making it an ideal choice for those seeking a more dynamic and powerful audio experience.

• Terminal Layout: Two-sided
• Included terminal covers

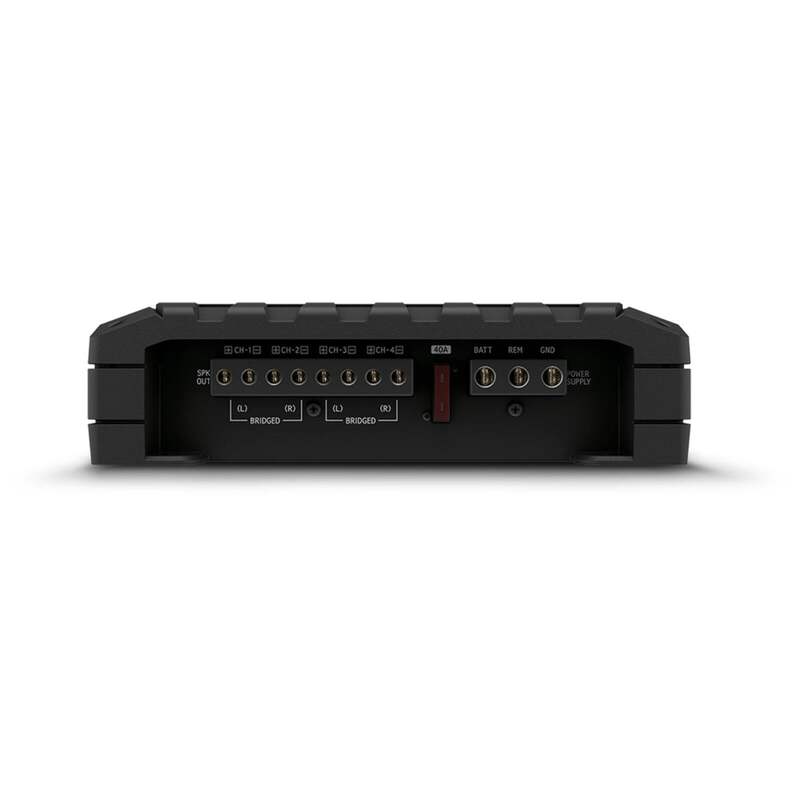

• Screw terminals (for speaker and power cables)
• Class-D Amplification (Digital)
• Hi-Res Audio Certified
• Channel Design: 4/3/2 Channel
• Side panel controls
• Thermal Management Control

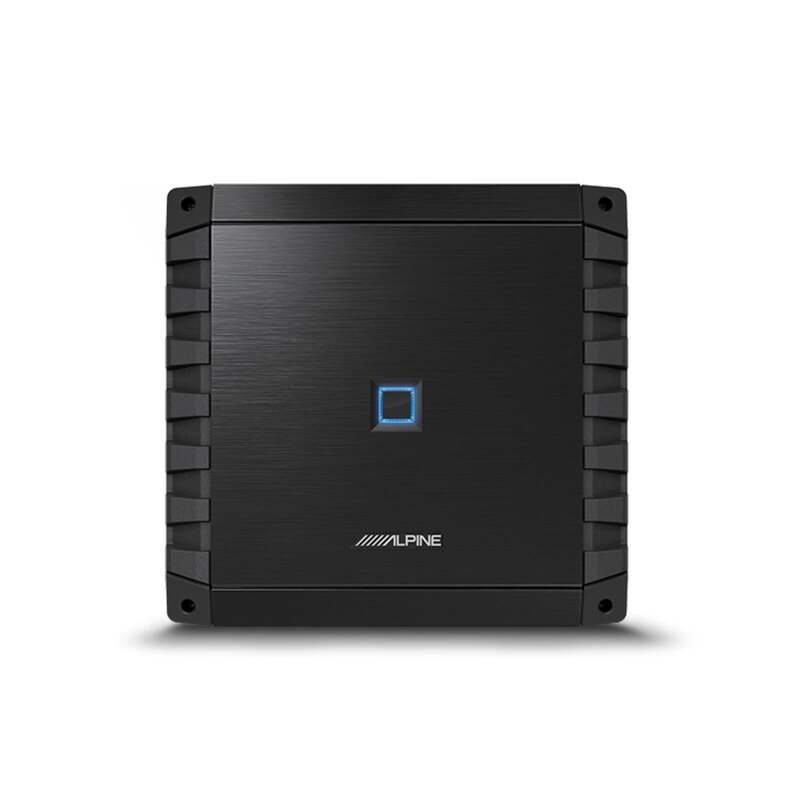

• Top Mounted LED Power/Status Indicator
• Speaker Level Input
• 3 turn-on modes (DC HI, Remote HI, Remote LO)
• Crossover: Variable Low-pass Filter (LPF) and High-Pass Filter (HPF),
• Adjustable Gain Control
• Mid-Bass EQ
• Remote Bass Control (RUX-KNOB2) Ready (for channel 3+4 in bridged mode only)
• RMS Power Ratings
• Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 90W
• Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 60W
• Bridged, 4 Ohms, 14.4V: 2 x 180W
• Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct )
• Mid-Bass EQ (0 to +12dB)
• Power Requirements: 14.4 V.DC (9 - 16 V allowable)
• Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V
• High Level Input with automatic power on
• Cable size: Power Cable AWG 4, SPK Cable AWG 8
• Frequency Response: 10Hz – 40kHz
• THD+N (@ 10W into 4 Ohms): <0.03%
• Damping Factor: >100
• Weight: 2.2kg
• Heat Sink (WxHxD) mm: 220 x 57 x 210

• Alpine S2-A36F 4-Channel amplifier (40A ATO fuse installed)
• 2 End caps
• Four 3/4" screws
• Four 1/4" screws
• 2mm Allen key
• Owner's manual
