Evertz 7721AD4-HD HD-SDI Audio De-embedder with 4 unbalanced AES outputs +3RU
Evertz 7721AD4-HD HD-SDI Audio De-embedder with 4 unbalanced AES outputs +3RU
Evertz 7721AD4-HD HD-SDI Audio De-embedder with 4 unbalanced AES outputs +3RU
Functional Condition: Fully Functional
Cosmetic Condition: Very Good
CONDITION:
Functional: Fully Functional
Cosmetic: Very Good
Scroll down for additional photos
Overview:

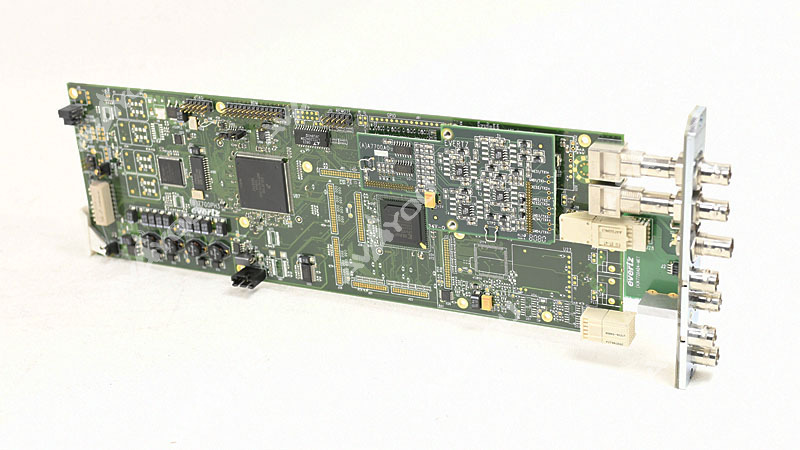

For sale is ONE (1) used De-Embedder board in good working condition. Comes with a matching backplane, +3RU. Because we have a quantity of these, appearances may vary, but condition is guaranteed to be better or equal to pictured sample. Serial numbers are unique to each unit sold and may be different from one depicted in the photos - we record all serial number of all items shipped. If you are looking for any other Evertz modular cards - we probably have them. Thousands of cards available. Check out our inventory.
SKU# 3501
Description:
The 7721AD-HD series Audio De-embedders extract embedded audio as specified by SMPTE ST 299-1 from a 1.5Gb/s serial HDTV video signal. The companion 7721AE4-HD Audio Embedder facilitates audio multiplexing at the source.

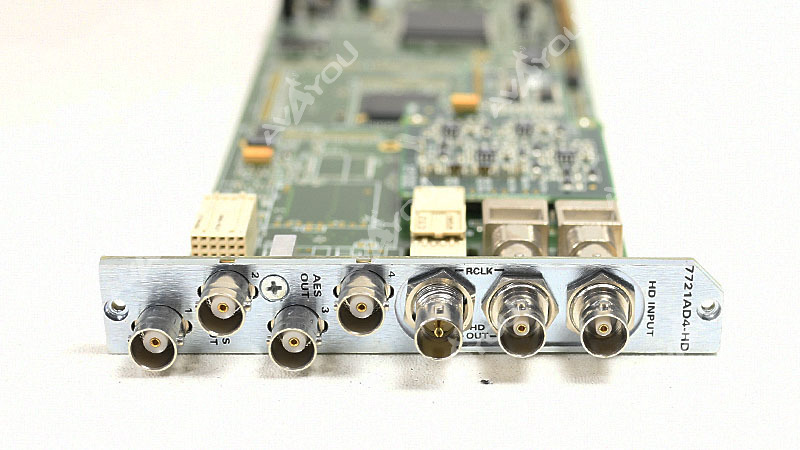

SMPTE ST 299-1 allows for up to four groups (4 channels/group) to be embedded within a serial digital signal. The 7721AD4-HD can de-embed two audio groups onto four unbalanced AES outputs.
Features:
  • Automatic detection of video standard

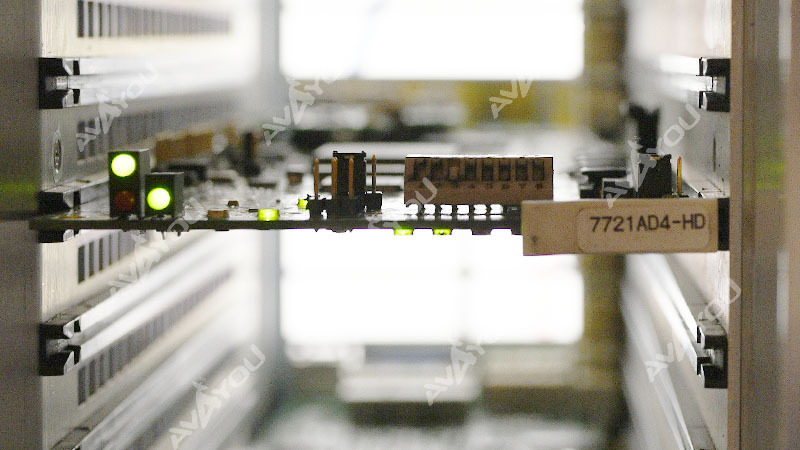

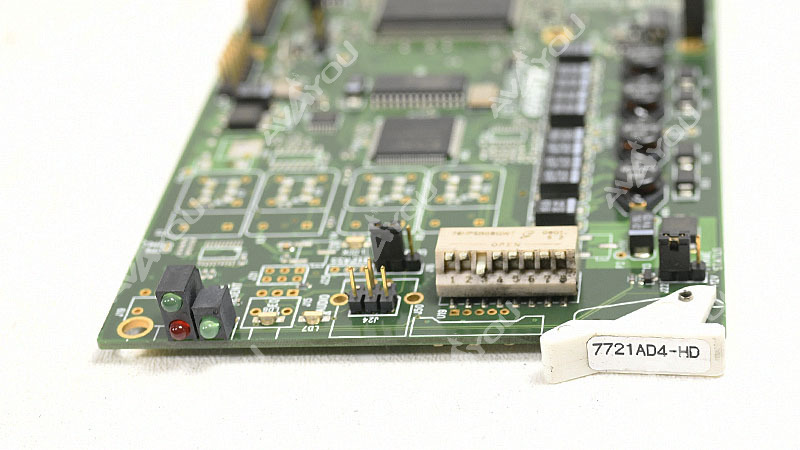

  • Card edge LEDs indicate video and audio signal presence, and module fault
  • LED indication for the presence of each of the four audio groups within the input video
  • Audio group selection via card edge DIP switches
  • 7721AD-A4-HD has independent volume controls for each of the audio channel outputs and supports both HD and SD-SDI signals
  • VistaLINK® capable for remote monitoring, control and configuration capabilities via SNMP; using VistaLINK® PRO, CP-2116E or CP-2232E Control Panels. VistaLINK® is available when modules are used with the 3RU 7800FR frame and a 7800FC VistaLINK® Frame Controller module in slot 1 of the frame
