Brand: ANNOYBIKE

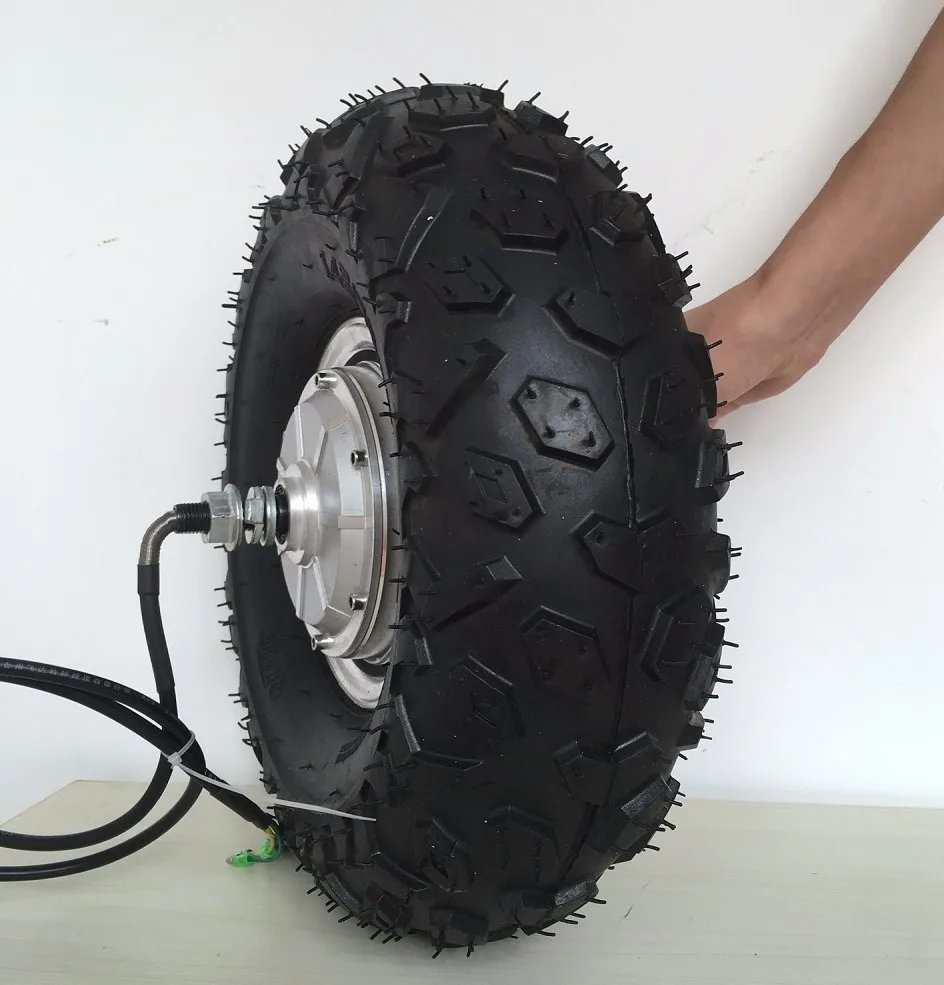

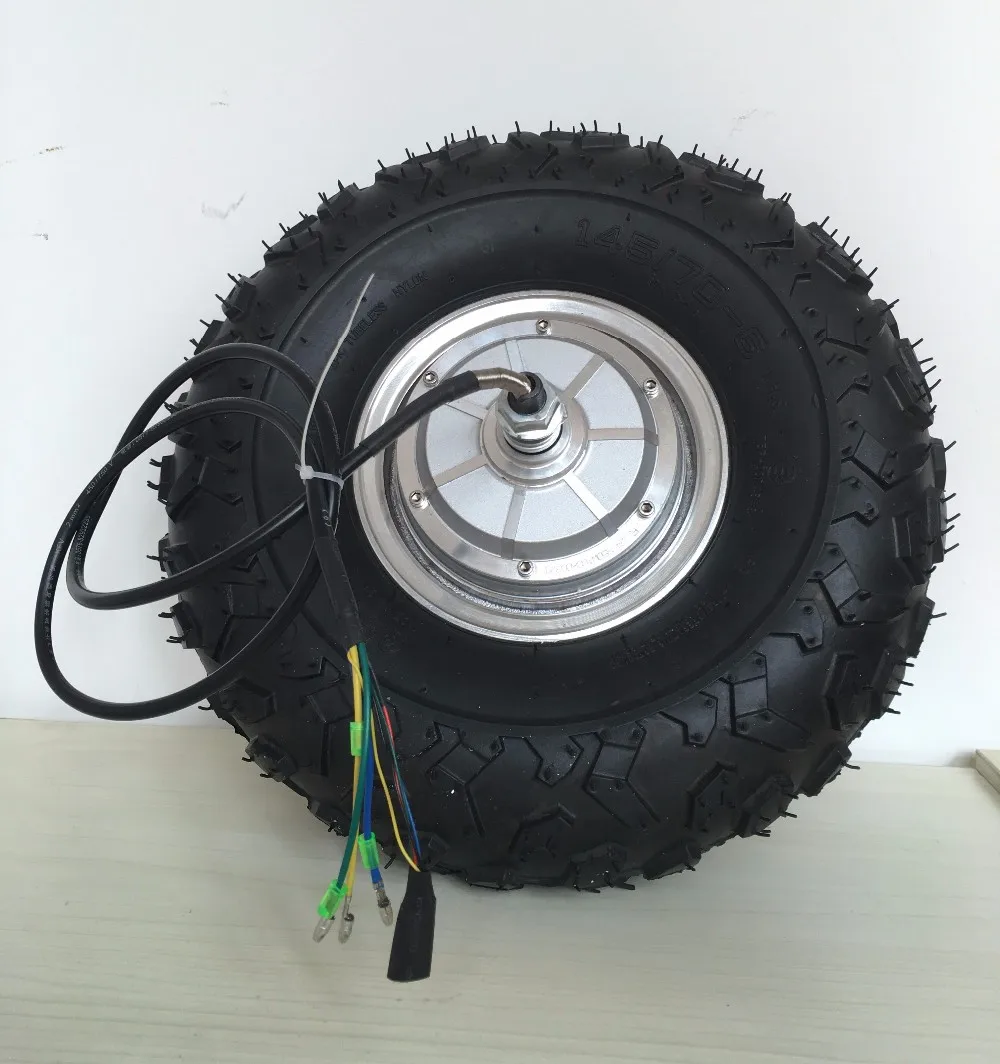

Name: Motor Wheel 14.5 Inch Electric Wheel Motor Hub Motor Wheelchair Electric Bike Electric Scooter Hub Motor Wheel

Application: Motorcycle/ E-scooter/ Electric bicycle/ Wheelchair/ Electric tricycle/etc.

Note：

All the shipping way won't allow the item with gas go to there aircraft. So all the wheels are without gas to arrive to you. When you get it, please inflate the wheel firstly.


Motor: 14.5 inch Brushless Gearless motor

Hallsensor: YES (5 hall sensor wires)

Brake type: V/Disc brake

Motor wheel size( include the tire): 14.5 inch

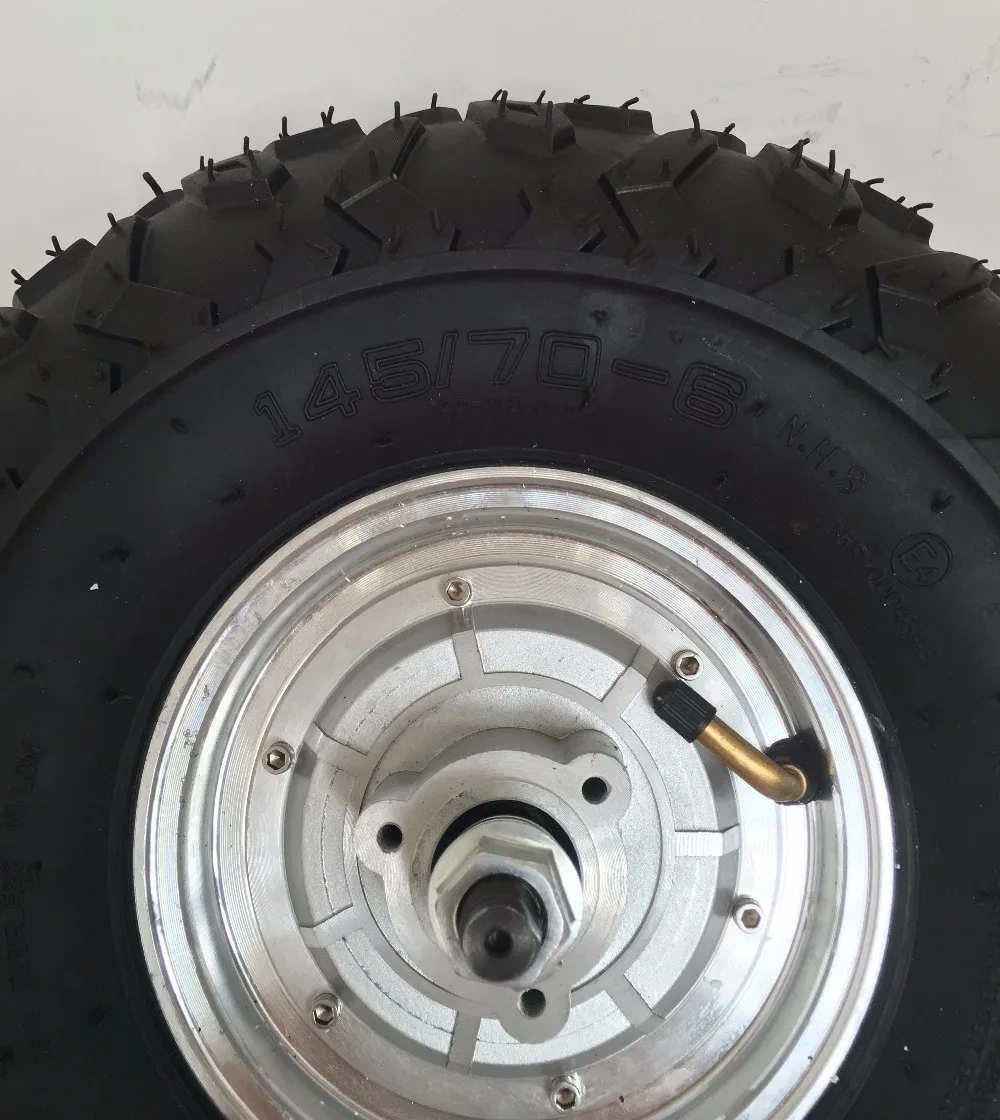

Tire Model: 14.5x7.00-6 Vacuum tire

Tire Width: 116mm

Max Torque: 15 N.M

Rated power : 250W-800W

Rated voltage ：24V 36V 48V

No-load current: 0.4-1.1A

Speed : 12---45km/h

Rotating speed : 250---1000 RPM

Load Weight: 100kg-120kg

Tire Diameter : 324 mm

Open file : 130 mm

Weight : about 7 kg



PS: If you want the single shaft motor, please leave message when you make order.

The gear-less motor:Has ahigh speed and RPM. It is suitable for riding on the ground, but can't climb a steep slope.

The gear motor:Has a low speed and RPM, but it has ahigh torque. It is suitable for climbing slope and can load a big weight.




1. wheel: standard international A356 aluminum heat treatment.

2. magnetic steel: standard 38H

3. iron core: DW350 lamination

4. Hall: Honeywell can resist high temperature: 150



Note:

Single shaft motor shaft is non-threaded

Double shaft motor shaft is threaded

If you need thread model on the single shaft motor, please leave message when you make order. Or we will send the non-threaded single shaft model to you

Tyre B
