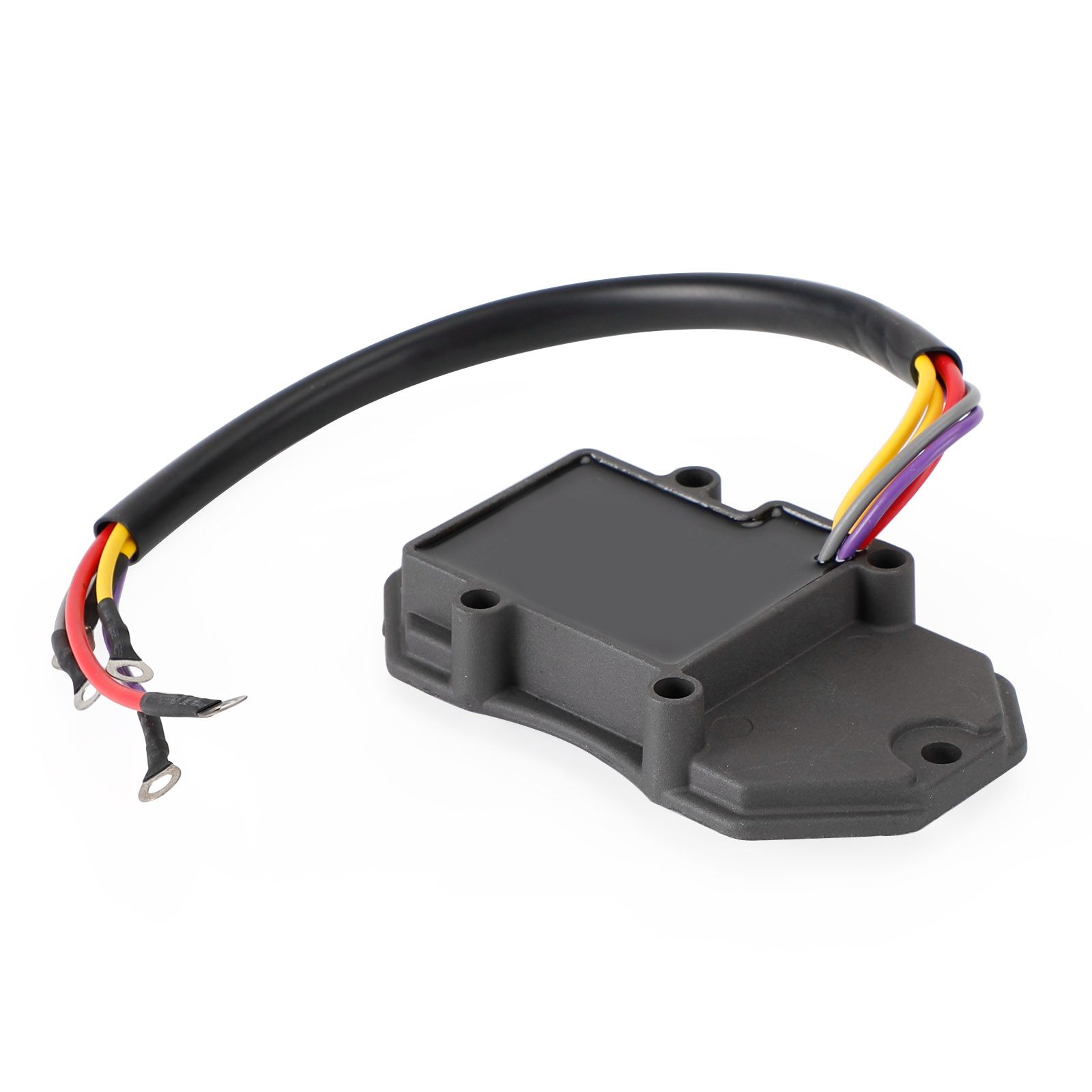

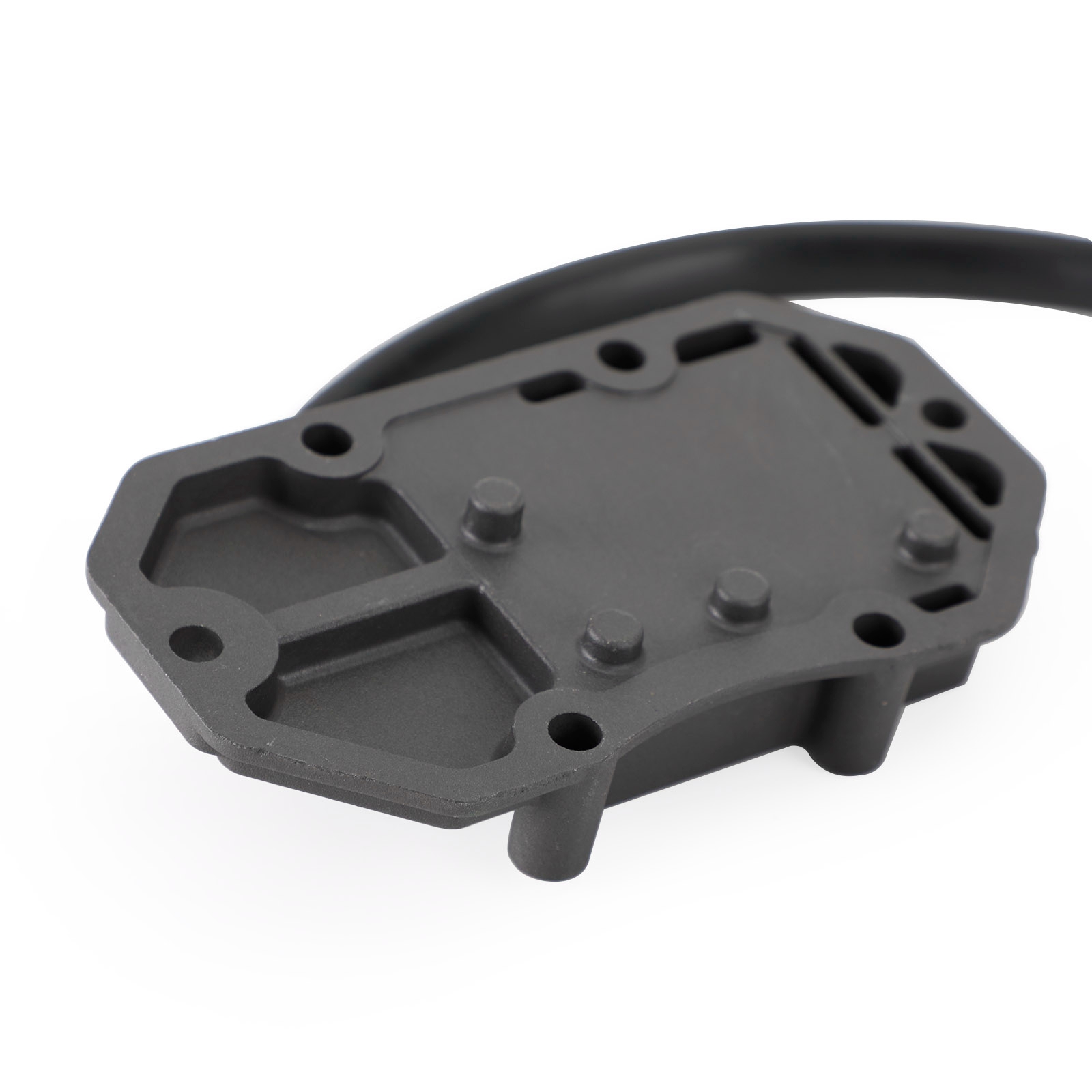

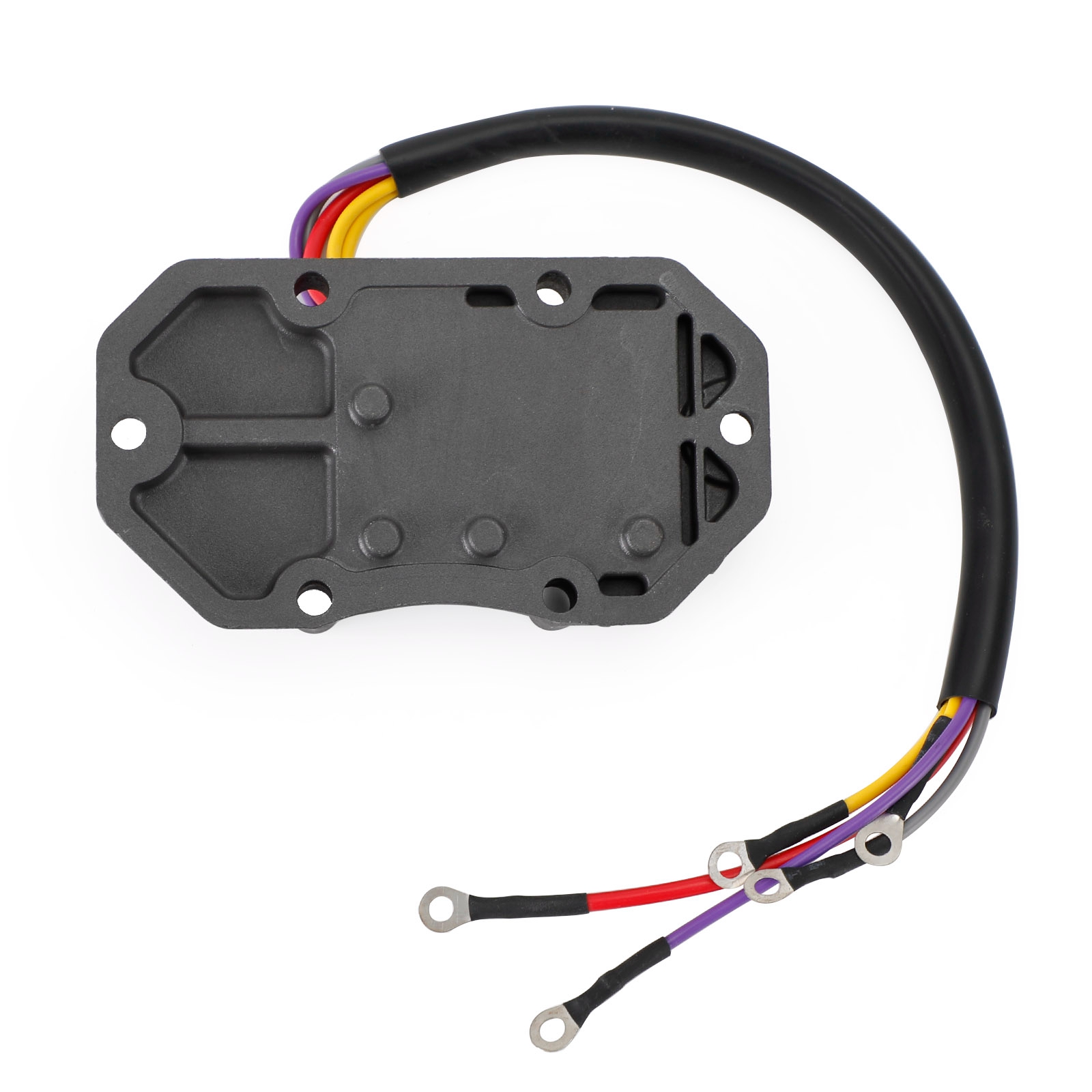

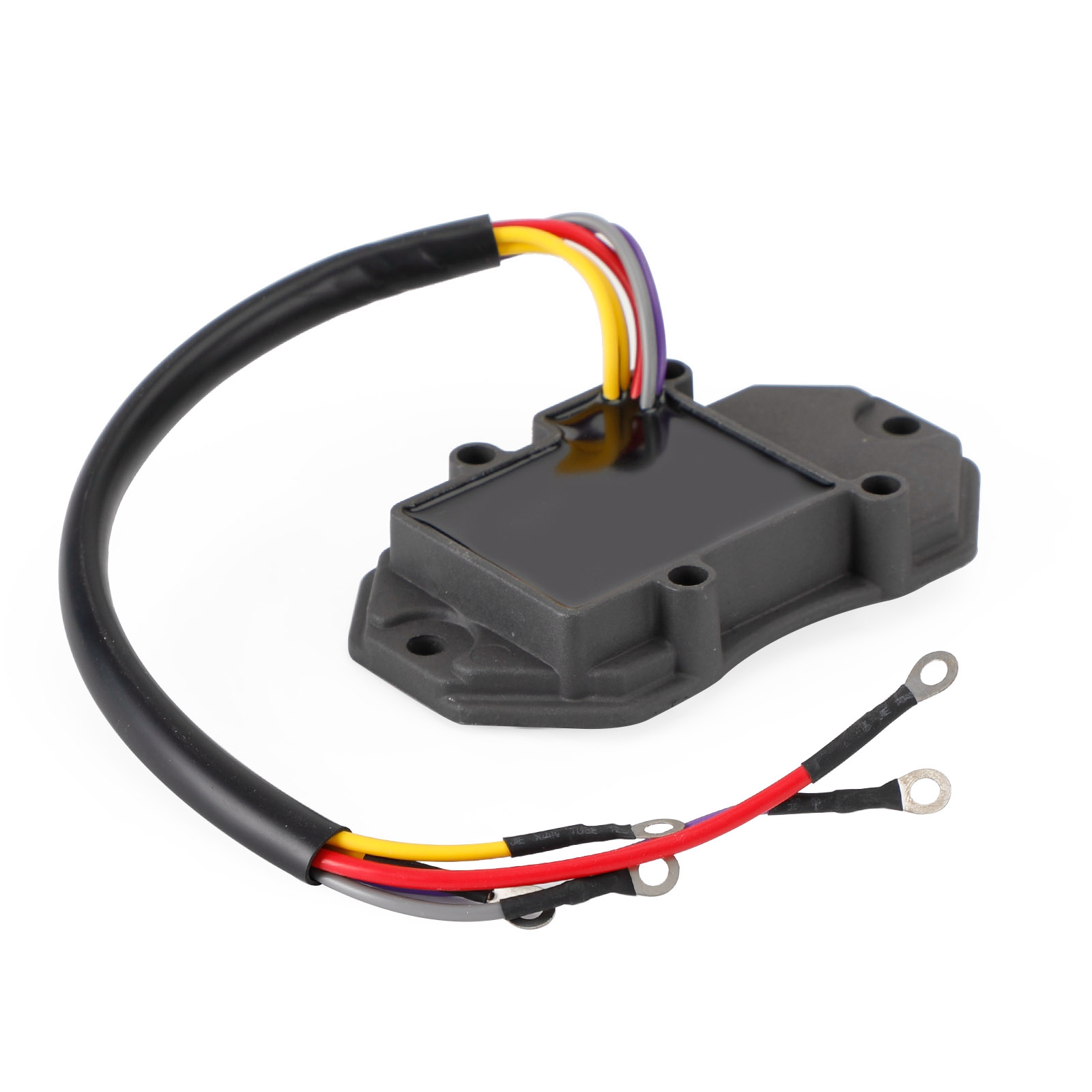

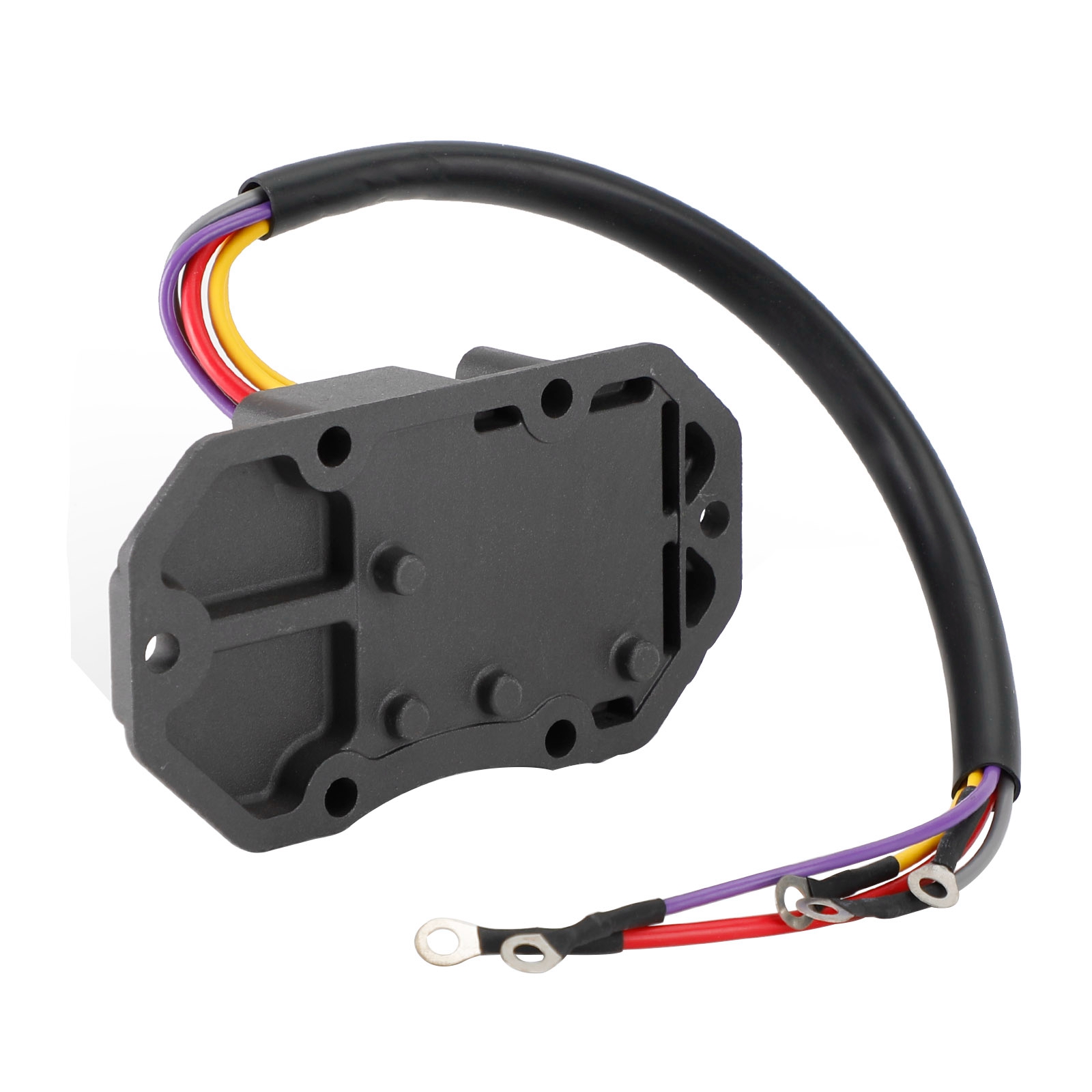

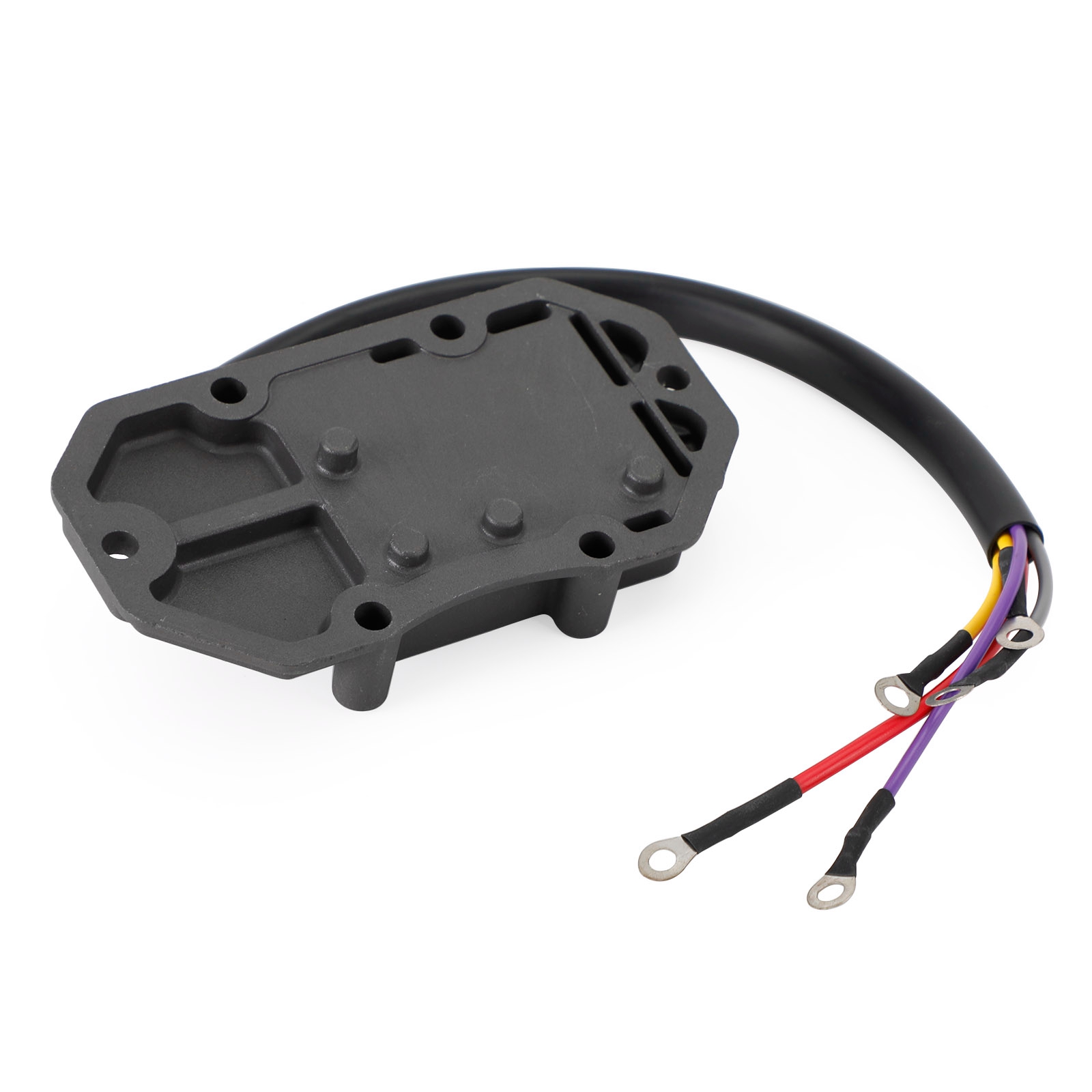

5-Wire Regulator / Rectifier 10Amp  Fit for Johnson / Evinrude 88-175 Hp # 0584204, 0583529, 0585195

Features:
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
No assembly required.
Higher grade of electric components.
Improved heat sink and charging capabilities.
The quality exceeds or meet the OEM equipment.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Power Capability: 10 Amp
Type: Regulator / Rectifier

Other specifications :
Number of wires: 5
Number of plugs: 5
Number of pins: 5

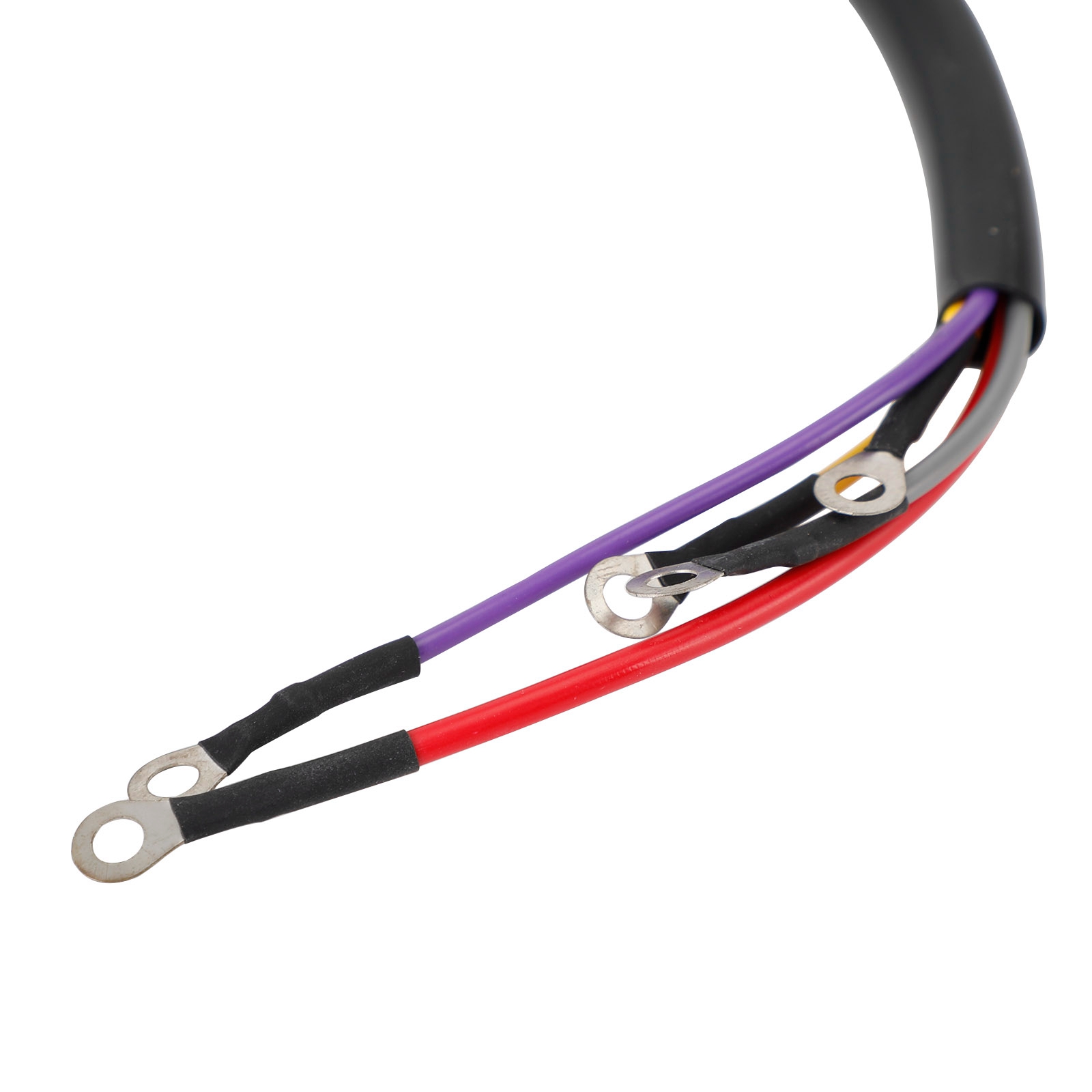

Wiring Diagram:
Red - Battery +
Yellow - AC
Yellow - AC
Gray - Out
Purple - Count
Shell - Ground

Replacement Part Number:
0583529
0585195
0584204

Fits Make/Model/Year:
Fit for Johnson / Evinrude 88HP E88 1988-1996
Fit for Johnson / Evinrude 88HP XE88 1995-1996
Fit for Johnson / Evinrude 88HP HE88 1996
Fit for Johnson / Evinrude 88HP VE88 1988-1990
Fit for Johnson / Evinrude 90HP E90 1988-1998
Fit for Johnson / Evinrude 90HP TE90 1989-1990
Fit for Johnson / Evinrude 90HP VE90 1990
Fit for Johnson / Evinrude 90HP BE90 1995
Fit for Johnson / Evinrude 90HP HE90 1996
Fit for Johnson / Evinrude 90HP XE90 1997-1998
Fit for Johnson / Evinrude 100HP E100 1988-1997
Fit for Johnson / Evinrude 100HP W100 1988
Fit for Johnson / Evinrude 100HP VE100 1990
Fit for Johnson / Evinrude 100HP SE100 1996-1997
Fit for Johnson / Evinrude 110HP E110 1988-1990
Fit for Johnson / Evinrude 110HP TE110 1989
Fit for Johnson / Evinrude 110HP VE110 1990
Fit for Johnson / Evinrude 112HP E112 1995-1996
Fit for Johnson / Evinrude 112HP XE112 1995-1996
Fit for Johnson / Evinrude 112HP VE112 1995
Fit for Johnson / Evinrude 115HP E115 1995-1998
Fit for Johnson / Evinrude 115HP BE115 1995
Fit for Johnson / Evinrude 115HP TE115 1990
Fit for Johnson / Evinrude 115HP VE115 1990
Fit for Johnson / Evinrude 115HP HE115 1996
Fit for Johnson / Evinrude 115HP XE115 1997-1998
Fit for Johnson / Evinrude 150HP E150 1988-1990
Fit for Johnson / Evinrude 150HP TE150 1989
Fit for Johnson / Evinrude 175HP E175 1988-1990

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1x 5-Wire Regulator / Rectifier

Note:
Signs that your regulator needs replacing:
Depending on the location of the regulator rectifier, the part can easily overheat. Other causes for a dead regulator rectifier center on the battery. Ground connections are important for good voltage, and if there is a faulty voltage, the regulator rectifier can run hot. Bad grounding, corroded battery connection and poor or loose battery connections will cause faulty voltage too.

There are generally two ways for the regulator rectifier to fail:
The first deals with diode burnout, resulting in battery drain. It is easy to assume that the issue is a bad battery because of symptoms such as dimming headlights and poor starts. Checking the voltage with a voltmeter versus relying on symptoms alone will prove highly beneficial. If the voltage drops below 13 volts, the motorcycle will begin to drain the battery and eventually the engine will stop. Check for bad connections and corrosion; these can also cause voltage issues.
The other failure type is shunt regulator burnout, where the regulator rectifier fails to control the voltage, resulting in battery overcharge. Again, a voltmeter will be useful for diagnosis. Though generally, readings above 17 volts mean the regulator rectifier is not converting the excess power correctly and all of that excess voltage may cause the headlights to become extremely bright and then blow.
