This Closed-loop Stepper offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 2-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.

Shipping List: We will send the units as you choose

Closed Loop Stepper Motor + Driver Kit included:

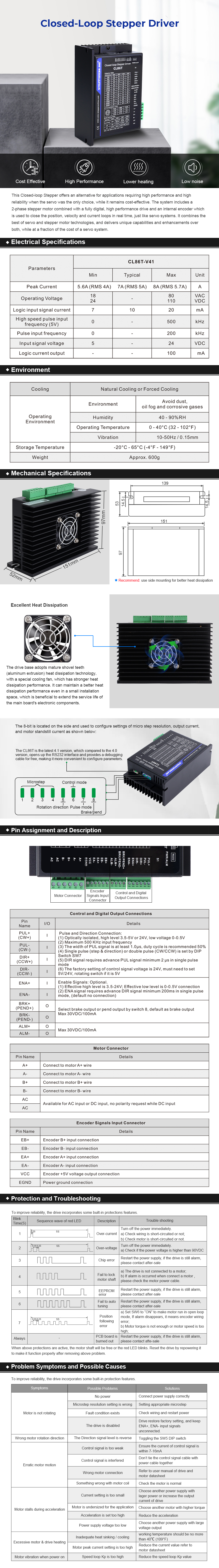

• 1 x  Closed Loop Stepper Driver 0-8.2A 24-80VDC for Nema 34 Stepper Motor
• 1 x Nema 34 Closed Loop Stepper Motor 12.0Nm(1699.68oz.in) Encoder 1000CPR
• 1 x 1.7m Long Encoder Extension Cable for Closed Loop Stepper Driver
• 1 x RV-4 AWG18 1.7m Long Motor Extension Cable with GX16 Aviation Plug
• 1 x RS232 Debugging Cable

Motor Specification

Model	34HS59-6004D-E1000
Phase Number	2
Step Angle	1.8deg
Holding Torque	12Nm
Rated Current	6A
Phase Resistance	0.7(Ohm)
Inductance	7.9 mH ± 20%(1KHz)
Number of Leads	4
Shaft Diameter	14mm
Shaft Length	37mm
Keyway Shaft Length	25mm
Lead Length	300mm
