CNC Kitchen Threaded Insert M2.5 / M3 / M4 / M5 / 1.4"

CNC Kitchen's threaded inserts are engineered specifically for FDM 3D printed parts, ensuring durable and reliable screw threads. These inserts maintain the strength and functionality of your prints through multiple assembly cycles, preventing wear and damage. When paired with CNC Kitchen's Soldering Tips, they provide precise and secure joining, ideal for professional-grade 3D printing projects. Available in sizes M2 to M10 and 1.4", G1/8-28x12.7, 3/8"-16x12.7 , they offer versatile compatibility for various applications. 10% off for bulk order (10+ items of CNC Kitchen Products - Mix and Match) - Auto Apply at cart/checkout Features: Made from a brass alloy that is completely free of lead and cadmium, ensuring environmental safety. Genuine CNC Kitchen threaded inserts designed specifically for 3D printed materials such as PLA, PETG, ABS, and others. Premium quality inserts that elevate your printed parts to a professional standard. Accurately CNC machined inserts crafted from premium alloy free of lead and cadmium. Simple installation using a soldering iron, set to the printing temperature plus 10 °C for optimal results. Threaded inserts not only look great in 3D printed parts, but they also have a practical use. Everyone has had a device that was assembled with screws. After disassembling and reassembling it a few times, you realise that if the screws dug directly into the plastic, they won't hold any more. Each time you screw the parts together, the material gets plastically deformed at the threads, which eventually leaves you with nothing but a ragged hole where nothing can grab. This is where thread inserts come into play. By melting them into your parts, they are positively bonded to the plastic and no longer move. The screws are now turned into durable and also low-friction brass and thus will last forever. Package includes the following specific items: All Size Set (760 pcs) Set standard: M3x5,7 mm (100x); M4x8,1 mm (50x); M5x9,5 mm (50x) pcs Set short: M3x3 mm (100x); M4x4 mm (50x); M5x5,8 mm (50x) pcs M2 standard (100x) pcs M2.5 standard (100x) pcs M3 standard (100x) pcs M3 short (100x) pcs M4 standard (50x) pcs M4 short (50x) pcs M5 standard (50x) pcs M5 short (50x) pcs M6 (20x) pcs M8 (20x) pcs 1/4" (20x) pcs G1/8-28x12.7 (20x) pcs 3/8"-16x12.7 (20x) pcs M10 (20x) pcs Note: For the larger M10 and above sizes, you would need additional copper tips in additional to soldering iron tip pack for your iron, for collection of compatible and customised made install tips. See CNC Kitchen collection for range of supported soldering irons. Documentation: TIPS & TRICKS FOR HEAT-SET INSERTS USED IN 3D PRINTING CAD FILES HOW TO USE HEAT INSERTS IN RESIN TESTING VIDEO BY TOM SANLADERER Installation Heat-set inserts can be installed by pressing them into the plastic using a soldering iron. The plastic melts and flows around the knurled exterior of the insert, forming a robust bond that provides excellent pull-out and torque resistance. When heating your soldering iron, set the temperature to the filament’s printing temperature plus an additional 10°C to 20°C for optimal results. Hole Dimensions Refer to the drawing below for the recommended hole dimensions for the insert. The hole should be sized to allow easy insertion of the insert while ensuring no burrs remain beneath it after melting.

CNC Kitchen Threaded Insert M2.5 / M3 / M4 / M5 / 1.4"

All Prices include GST. Message us if require a tax invoice.

10% off for bulk order (10+ items of CNC Kitchen Products - Mix and Match) - Auto Apply at cart/checkout

Features:

Made from a brass alloy that is completely free of lead and cadmium, ensuring environmental safety.
Genuine CNC Kitchen threaded inserts designed specifically for 3D printed materials such as PLA, PETG, ABS, and others.
Premium quality inserts that elevate your printed parts to a professional standard.
Accurately CNC machined inserts crafted from premium alloy free of lead and cadmium.
Simple installation using a soldering iron, set to the printing temperature plus 10 °C for optimal results.

Threaded inserts not only look great in 3D printed parts, but they also have a practical use. Everyone has had a device that was assembled with screws. After disassembling and reassembling it a few times, you realise that if the screws dug directly into the plastic, they won't hold any more. Each time you screw the parts together, the material gets plastically deformed at the threads, which eventually leaves you with nothing but a ragged hole where nothing can grab. This is where thread inserts come into play. By melting them into your parts, they are positively bonded to the plastic and no longer move. The screws are now turned into durable and also low-friction brass and thus will last forever.

Package includes the following specific items:

All Size Set (760 pcs)

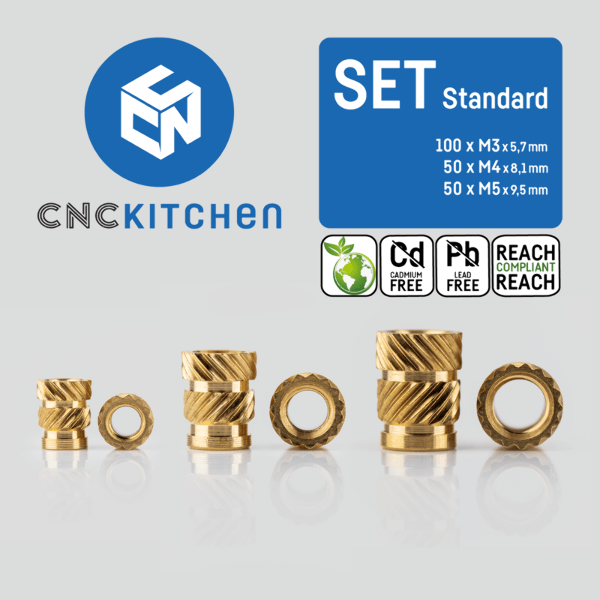

Set standard: M3x5,7 mm (100x); M4x8,1 mm (50x); M5x9,5 mm (50x) pcs
Set short: M3x3 mm (100x); M4x4 mm (50x); M5x5,8 mm (50x) pcs
M2 standard (100x) pcs
M2.5 standard (100x) pcs
M3 standard (100x) pcs
M3 short (100x) pcs
M4 standard (50x) pcs
M4 short (50x) pcs
M5 standard (50x) pcs
M5 short (50x) pcs
M6 (20x) pcs
M8 (20x) pcs
1/4" (20x) pcs
G1/8-28x12.7 (20x) pcs
3/8"-16x12.7 (20x) pcs

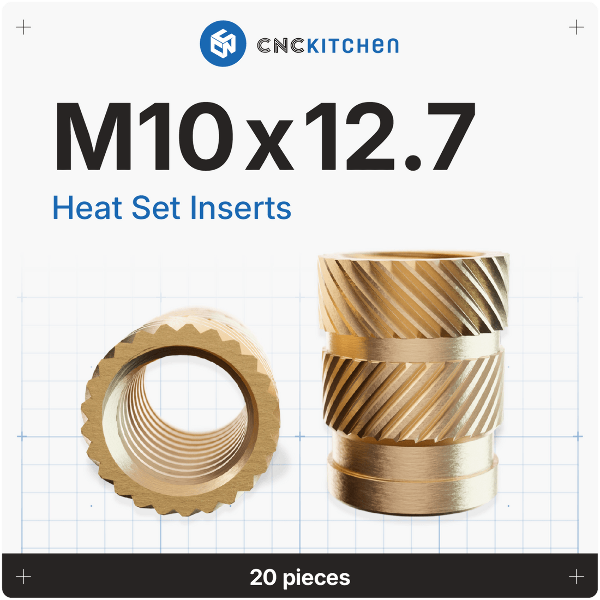

M10 (20x) pcs

Note: For the larger M10 and above sizes, you would need additional copper tips in additional to soldering iron tip pack for your iron, for collection of compatible and customised made install tips. See CNC Kitchen collection for range of supported soldering irons.

Documentation:

Installation

Heat-set inserts can be installed by pressing them into the plastic using a soldering iron. The plastic melts and flows around the knurled exterior of the insert, forming a robust bond that provides excellent pull-out and torque resistance. When heating your soldering iron, set the temperature to the filament’s printing temperature plus an additional 10°C to 20°C for optimal results.

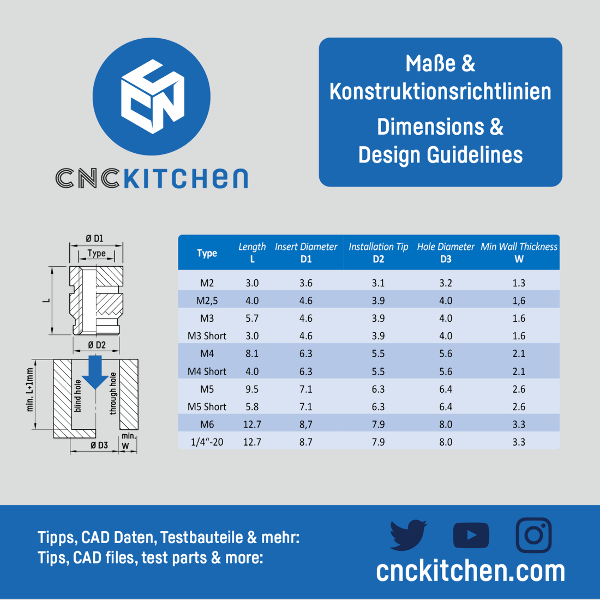

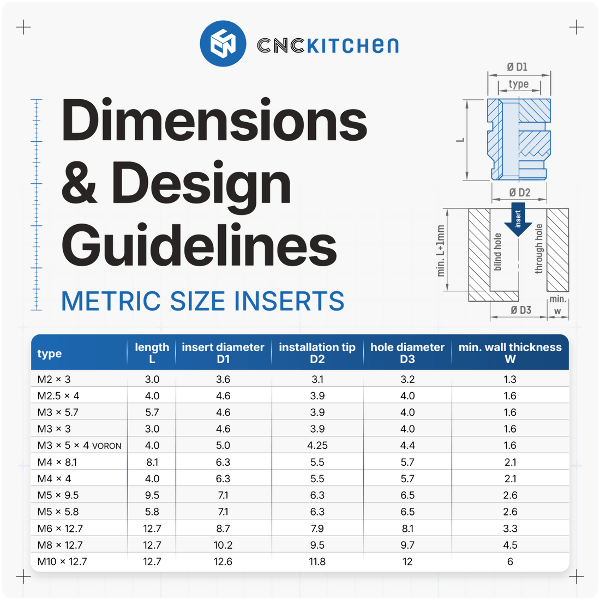

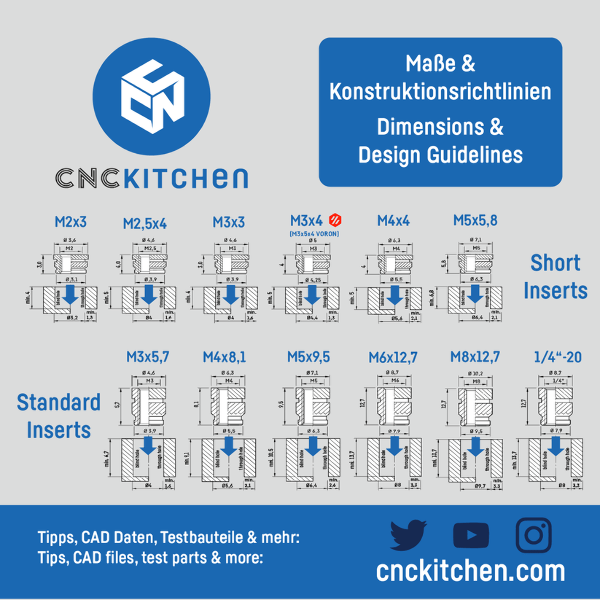

Hole Dimensions

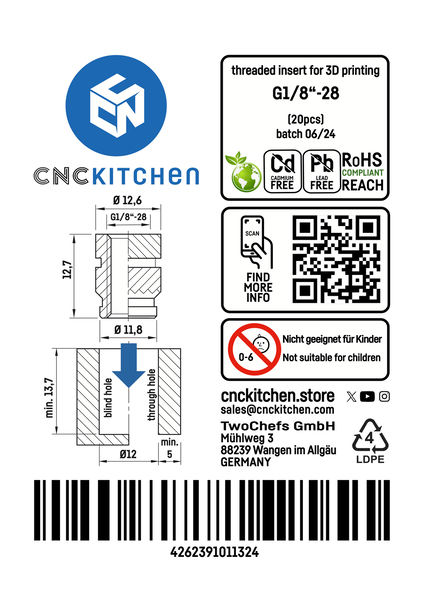

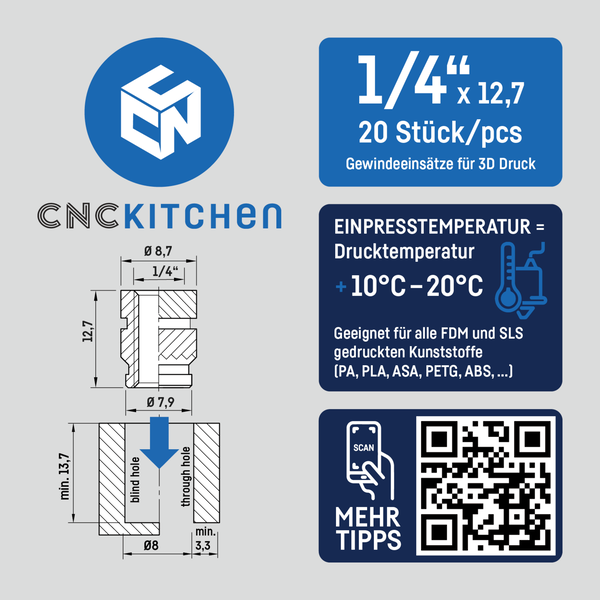

Refer to the drawing below for the recommended hole dimensions for the insert. The hole should be sized to allow easy insertion of the insert while ensuring no burrs remain beneath it after melting.
