Voltage: 48V

Power: 1000W 1500W

Speed: 60km/h no load weight

Magnetic poles: 15

Note: for this one motor, the 11 inch size is the motor with tyre size. Not the tyre, only this one hub is not 11 inch. Hope you can check the size before you order it.

A: If you only choose the hub motor, then is a gear hub motor wheel with tyre, 48V1000W.

B: The whole kit.

what is includ in the whole kit:

1*11 inch doubel shaft designhub motor with tire

1*matched controller 48V1000W 1500W

1* 48v LCD

1* Disc brake set

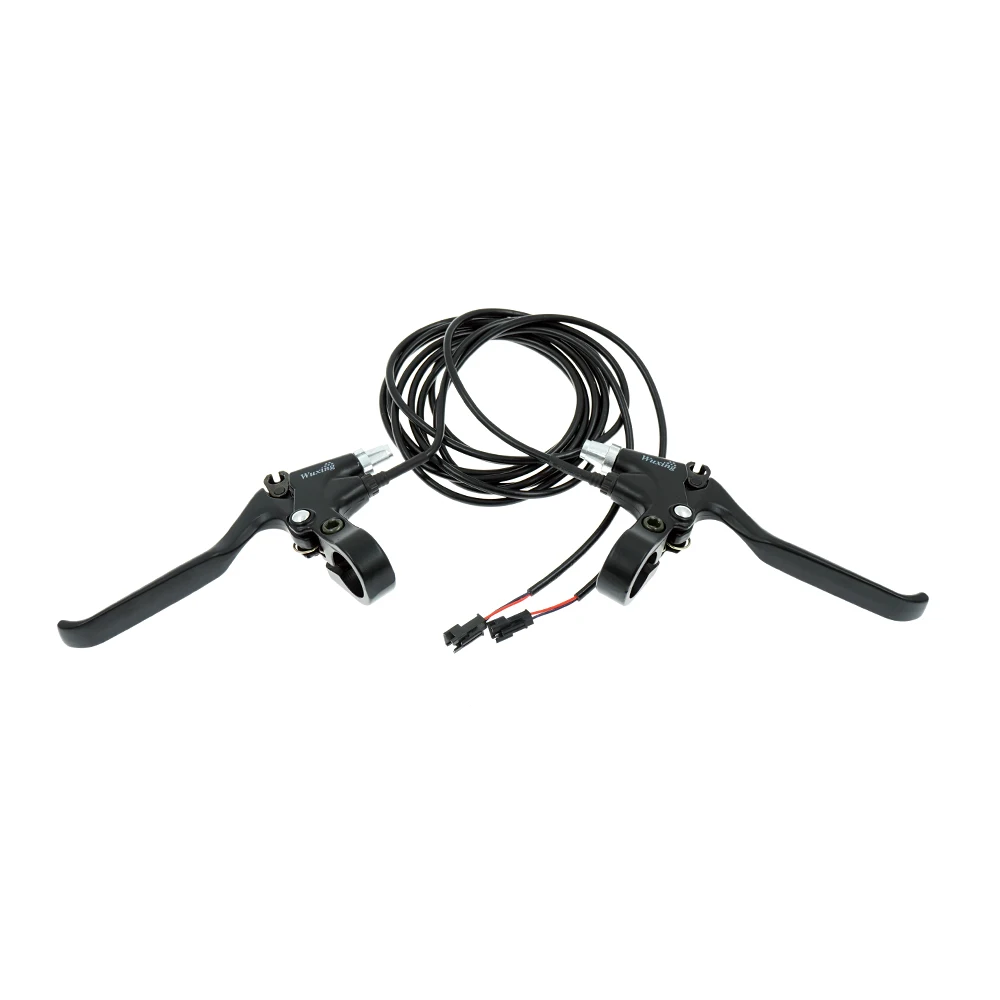

2* Brake lever

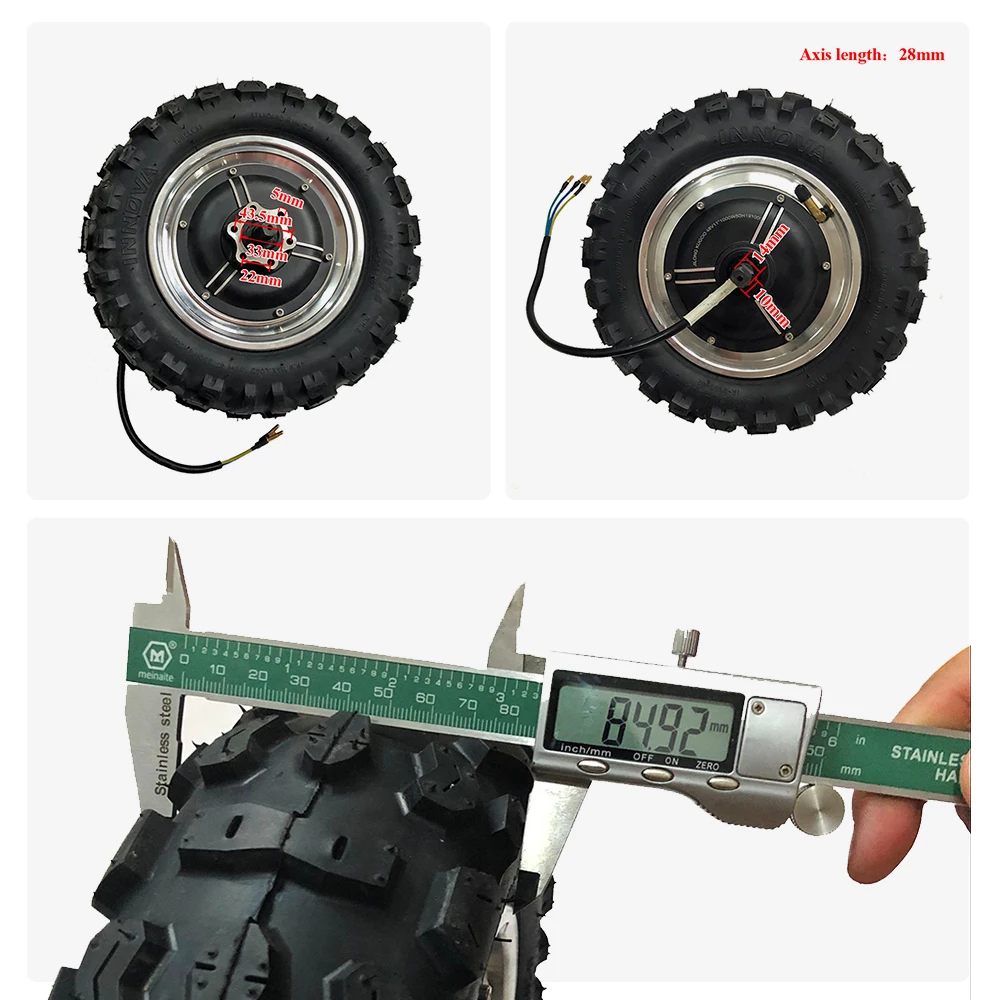

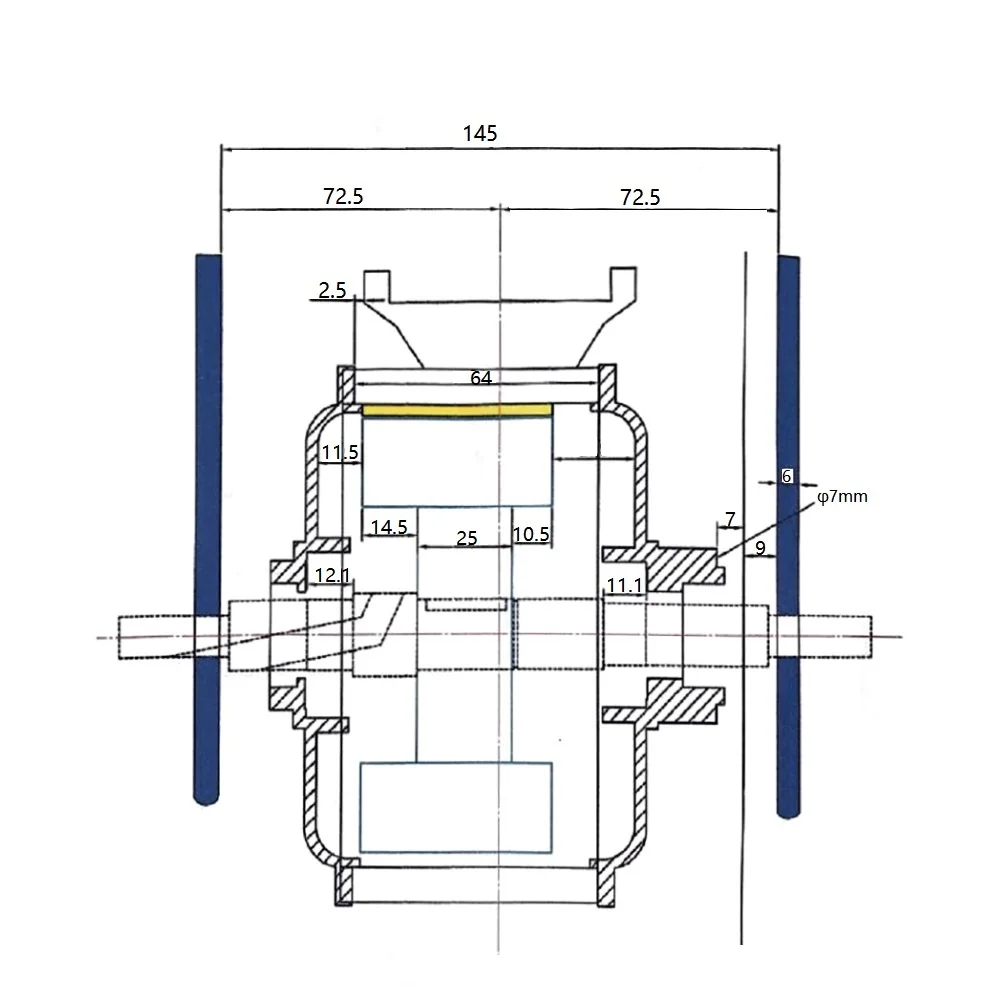

The size of the hub motor:

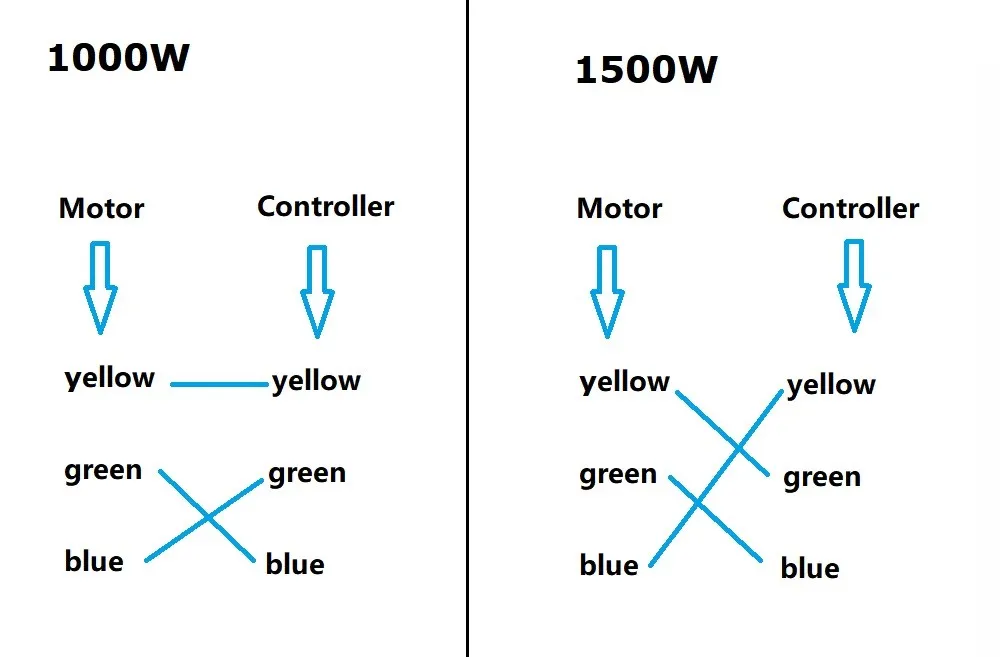

The way to connect the motor 3 phase sensor lines:

Controller size: 30*50*90mm

LCD display Features:

With USB  charger port

Two Bottons:Power botton and Fuction botton

Long press power botton:Open the power

Short press function botton:Shoe the TIME,TRIP,ODO,DST,VOL,CH2:00

In the TRIP, long press function botton:Single trip clear.

Short press Power botton, and press function botton:Change the gear position

How to setting the LCD display:

Press power botton and function botton together:

P0= wheel diameter setting

P1= Undervoltage setting

P2= Number of pole pairs settting

P3= Speed signal selection setting

P4= Kilometer/Mile selection setting

P5= Non-zero start/Zero start selection setting

P6= Cruise/No cruise selection setting

P7= Soft start/Hard start selection settting

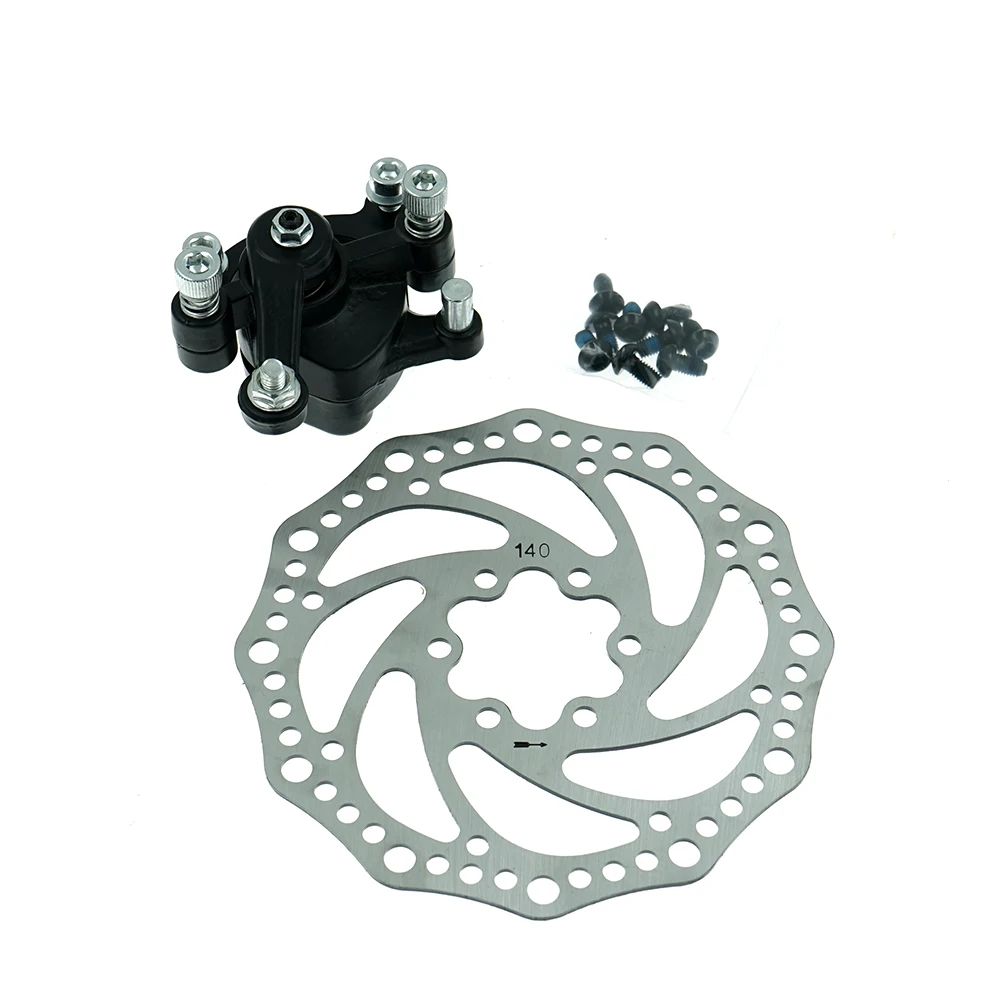

The picture about the disc brake:

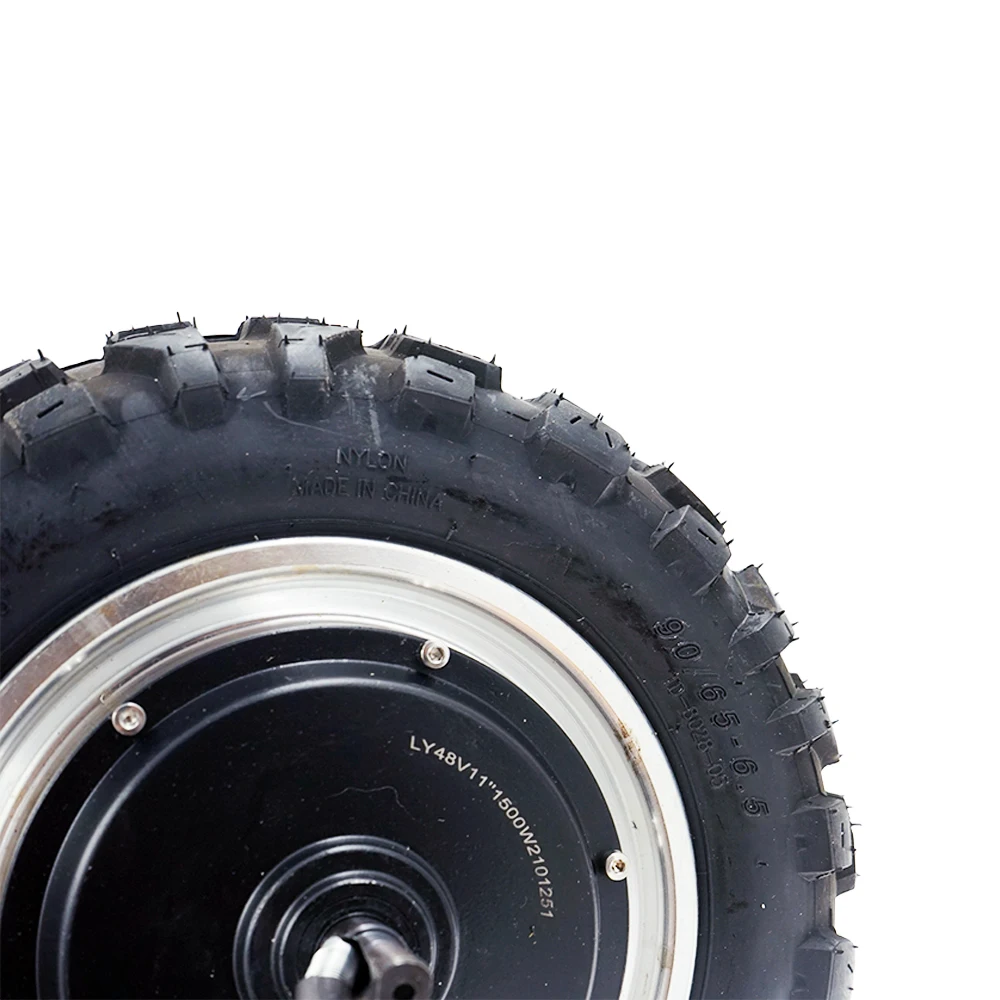

Use the high quality INNOVA tyre

Tyre model: 90/65-6.5

The disc brake suggest: 140mm with 6 poles.

\
