M24 Hex Bolt Nut Washer A2 304 Stainless Steel
M24, Hexagon Head, Partially Threaded Bolts in A2-70/ 304 Stainless Steel, DIN 931, plus Nut and Washers
Fixaball sells all lengths of M24 Hexagon Head Bolts in A2-70/ 304 Stainless Steel, plus Nut and Washers.
Hex-Bolt vs Hex-Set Screw
A set screw fastens materials together by twisting it directly through the last component, into a pre-threaded hole, pulling everything together. A shoulder bolt fastens materials by passing them through pre drilled holes in the adjoining materials and cramping them between the head at one end and a nut on the other. Additional washers are often uséd to spread the load further. A set screw is fully threaded from underneath the head and a bolt is partially threaded (has a part-plain shank). A bolt is uséd when you know the length you need and a set screw can be uséd as a bolt if you need more flexibility in the length.
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Please choose your, 'No. of Items in Pack', 'Length', and 'Quantity', of packs selection from the drop down menus.
M24 Hex Bolt Lengths available:
| M24 X 80 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M24 X 90 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M24 X 100 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M24 X 110 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M24 X 120 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M24 X 130 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M24 X 140 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M24 X 160 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M24 X 170 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M24 X 180 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
| M24 X 190 HEXAGON HEAD BOLT DIN 931 A2-70 STAINLESS STEEL |
Red = request lengths
Spanner Sizes
|
FIXABALL – Specialist Fixings and Fasteners Spanner Sizes METRIC - Hexagon Head Bolts/ Sets |
|
|
Thread Size/ Diameter |
Spanner Size |
|
M3 (3mm) |
5.5mm |
|
M4 (4mm) |
7mm |
|
M5 (5mm) |
8mm |
|
M6 (6mm) |
10mm |
|
M8 (8mm) |
13mm |
|
M10 (10mm) |
17mm |
|
M12 (12mm) |
19mm |
|
M14 (14mm) |
22mm |
|
M16 (16mm) |
24mm |
Threads
This listing is for standard coarse thread, shoulder bolts.
Metric Threads are measured in Millimetres (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is uséd for heavier loads and fine is uséd for lighter loads prone to vibrations.
|
Metric Threads/ Pitches |
|||
|
Fixaball – Specialists in Fixings and Fasteners |
|||
|
Pitch / Thread Types |
|||
|
Size |
Standard/ Coarse |
Fine |
Super Fine |
|
M1.6 |
0.35 |
||
|
M2 |
0.4 |
||
|
M2.5 |
0.45 |
||
|
M3 |
0.5 |
||
|
M4 |
0.7 |
||
|
M5 |
0.8 |
||
|
M6 |
1.0 |
||
|
M7 |
1.0 |
||
|
M8 |
1.25 |
1.0 |
|
|
M10 |
1.5 |
1.25 |
1.0 |
|
M12 |
1.75 |
1.5 |
1.25 |
|
M14 |
2.0 |
1.5 |
|
|
M16 |
2.0 |
1.5 |
|
|
M18 |
2.5 |
2.0 |
1.5 |
|
M20 |
2.5 |
2.0 |
1.5 |
|
M22 |
2.5 |
2.0 |
1.5 |
|
M24 |
3.0 |
2.0 |
|
|
M27 |
3.0 |
2.0 |
|
|
M30 |
3.5 |
2.0 |
|
|
M33 |
3.5 |
||
|
M36 |
4.0 |
||
|
M39 |
4.0 |
||
|
M45 |
4.5 |
||
|
M52 |
5.0 |
||
|
M56 |
5.5 |
||

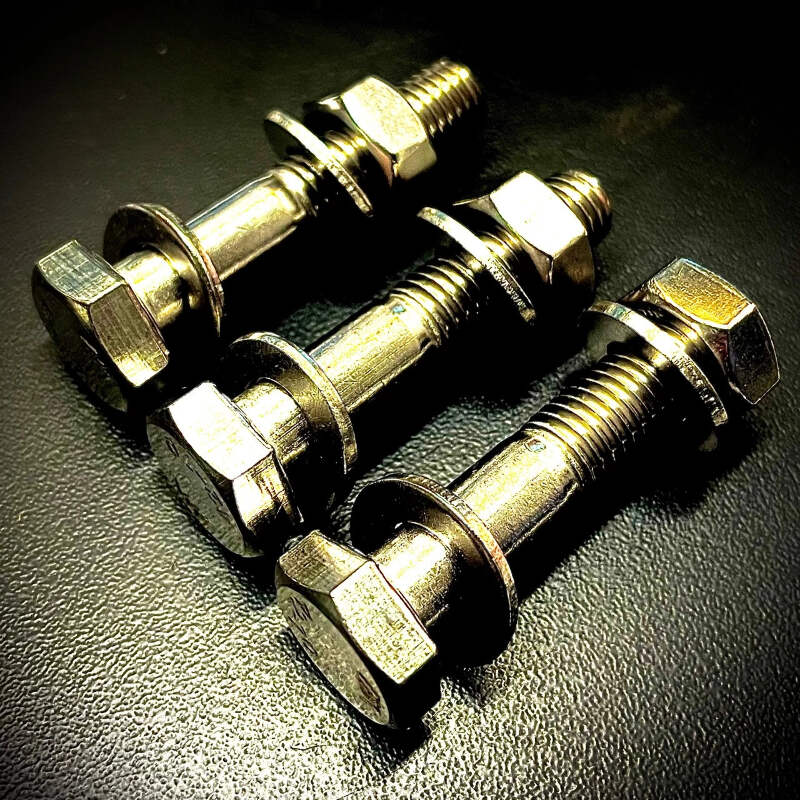

Image is for illustrative purposes only.
