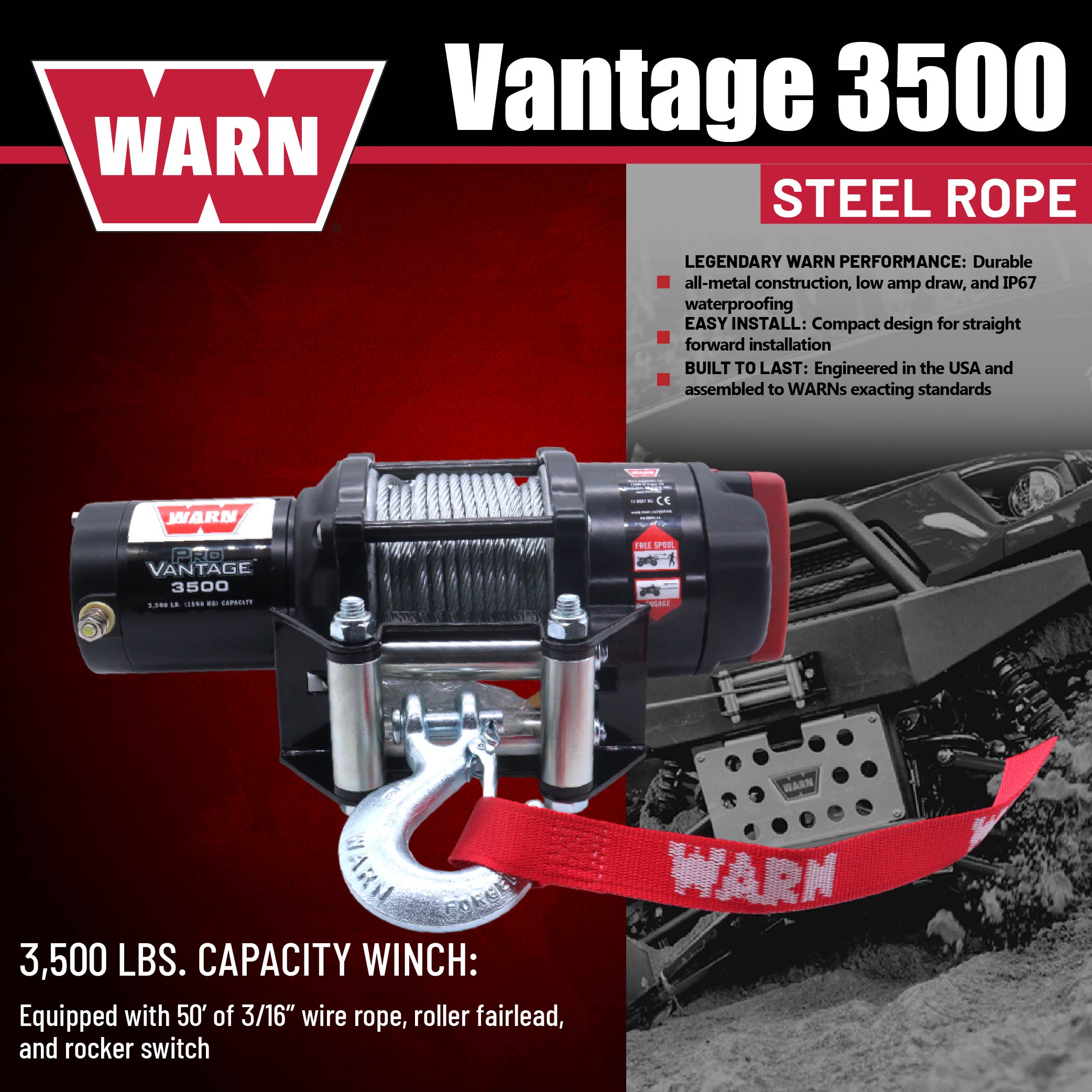

Warn 90350 ProVantage 3500 Winch - 3500 lb. Capacity 50 ft. Of 3/16 in Wire Rope
Description
Warn 90350 ProVantage 3500 Winch - 3500 lb. Capacity 50 ft. Of 3/16 in Wire RopeSKU: 108216
The WARN ProVantage 3500 Winch (108216) is a premium solution for demanding ATV and UTV recovery tasks. With a 3,500 lb. pulling capacity, 50 feet of durable 3/16-inch wire rope, and a patented roller disc brake, this winch is built for exceptional durability and performance. Its three-stage planetary gear train ensures smooth operation, while the fully sealed design provides protection from the elements. Engineered for reliability and versatility, the ProVantage 3500 is perfect for off-road adventures, plowing, and heavy-duty applications.| SKU | 619-90350 |
| BRAND | WARN |
| PRODUCT TYPE | Winch |
| RATED LINE PULL | 3500 lbs. (1588 kgs) |
| MOTOR | 12V DC, 1.4 hp (1.0 kW) Permanent Magnet, Sealed |
| PRIMARY CONTROLS | Handlebar Mini-Rocker with Socket |
| GEAR TRAIN | 3-Stage Planetary |
| GEAR RATIO | 154:1 |
| CLUTCH | Sliding Pin and Ring Gear |
| BRAKE | Roller Disk |
| DRUM DIAMETER/LENGTH | 2.0 inch/2.9 inch (52mm/74mm) |
| ROPE | Wire, 3/16 x 50 ft (4.8mm x 15 m) |
| FAIRLEAD | Roller |
| DUTY CYCLE | Intermittent |
| BATTERY LEADS | 6 gauge |
| FINISH | Black Powder Coat |
| RECOMMENDED BATTERY | 12 Amp/hr minimum |
