Fixaball sells lengths of M8 x 1.25mm Pitch (Standard Coarse Thread), A2/ 304 Stainless Steel, Allen Socket Cap Screw/ Bolts.
Descrcription: M8 socket cap screw/ bolts.
Material: A2/ 304 Stainless Steel.
Coating/ Finish: None.
Thread: Threads are metric coarse M8 x 1.25mm pitch.
Head diameter: 13.2mm.
Head height: 8mm.
Allen key size: 6mm.
Standard: DIN 912.
Note: Bolt lengths do not include the head.
What is a socket cap screw/ bolt?
The, ‘Socket Cap Screw/ Allen Bolt,’ term is uséd to describe a fastener that is either fully or partially threaded. A screw is fully threaded and a bolt is partialy threaded. Some engineers may call them screws if the person uses the shorter length range of sizes. The thread stays the same length as the fastener gets longer and the maximum length of thread is equal to 2.5 times the diameter (or thereabouts). ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head. Here, you can use a hexagon key (Allen Key) to tighten and loosen the fastener. 'Cap' refers to the cylindrical shaped head.
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Please make your 'No. of Items in Pack', 'Length' and 'Quantity' of packs, selection from the drop down menus.
M8, Socket Screw, Cap Head, A2/ 304 Stainless Steel, DIN 912 descriptions:
| M8 X 10 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
| M8 X 12 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
| M8 X 14 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
| M8 X 16 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
| M8 X 18 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
| M8 X 20 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
| M8 X 22 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
| M8 X 25 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
| M8 X 30 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
| M8 X 35 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
| M8 X 40 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
| M8 X 45 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
|
FIXABALL – Specialist Fixings and Fasteners Suppliers Hexagon/ Allen Key Sizes METRIC – Allen Socket, Cap Head, Screw Bolts |
|
|
Allen Socket, Cap Head Screw Size Diameter |
Allen/ Hex/ Hexagon Key Required to tighten and loosen |
|
M6 |
5 |
Available Materials: A2/ 304 Stainless Steel.
|
Material/ Finish |
Appearance |
Level of Corrosion Resistance |
Typical Application |
|
A2/ 304 Stainless Steel |
Dull Shine |
External |
Intermittent weathering |
What is Metric Coarse and What is Metric Fine?
Different threads have different applications. Metric System threads are measured in millimetre (mm) units and were developed to simplify the imperial (Inch) systems. A coarse thread has less helical coils per mm and a fine one has more. Coarse is uséd for heavier/ higher torque loads.

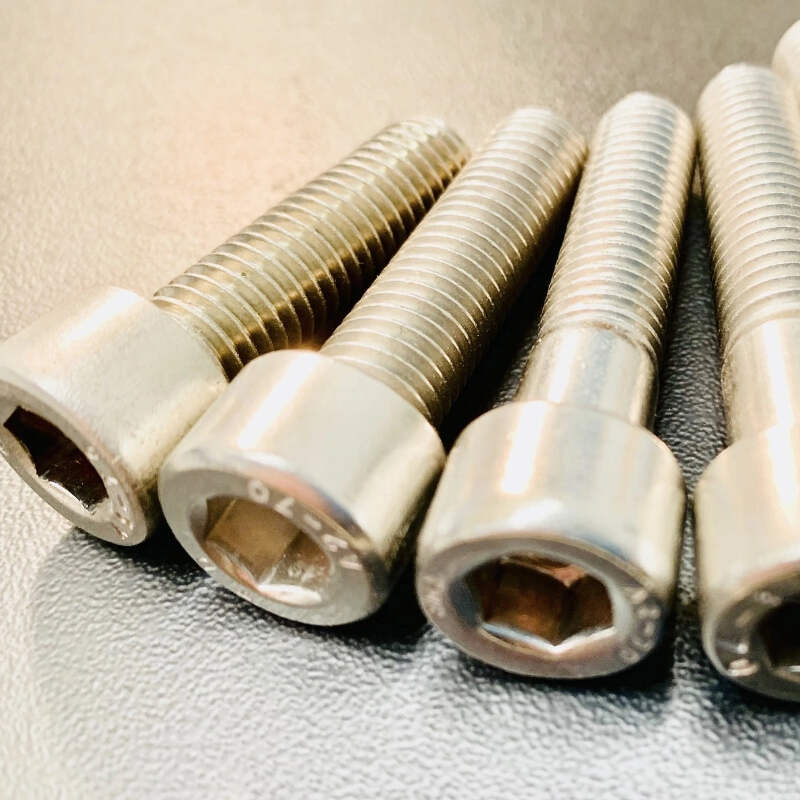

Image is for illustrative purposes only.
