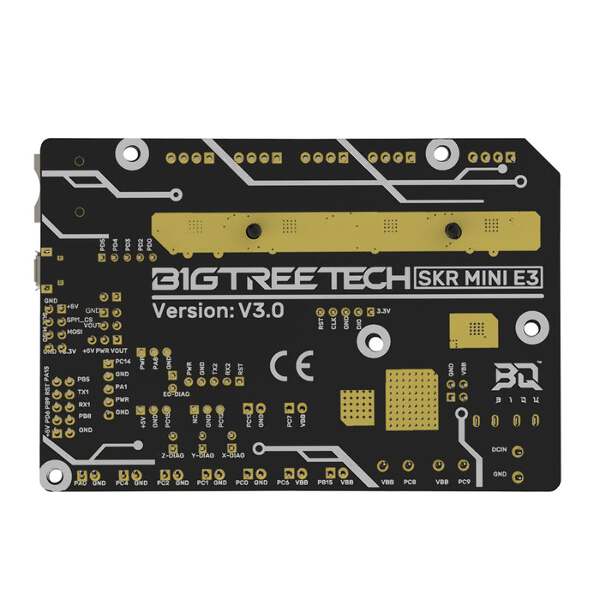

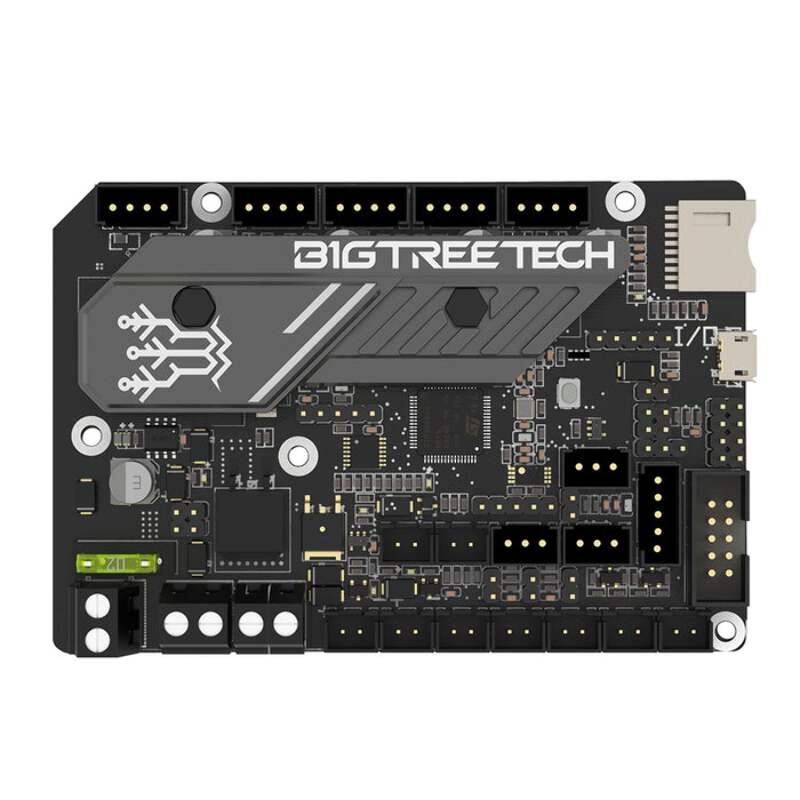

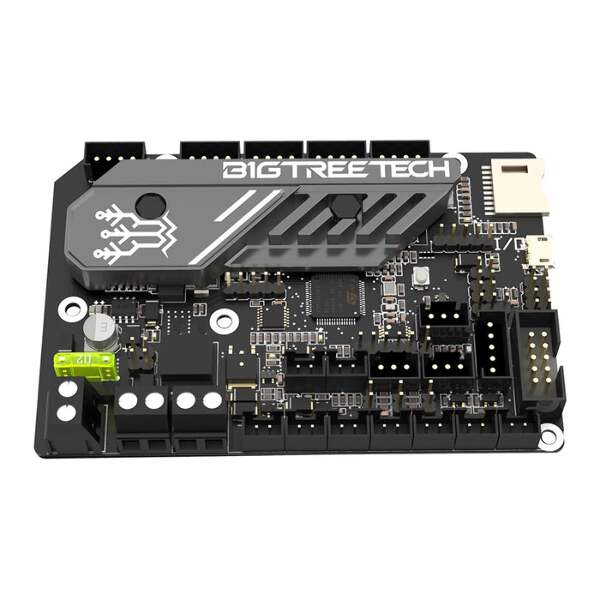

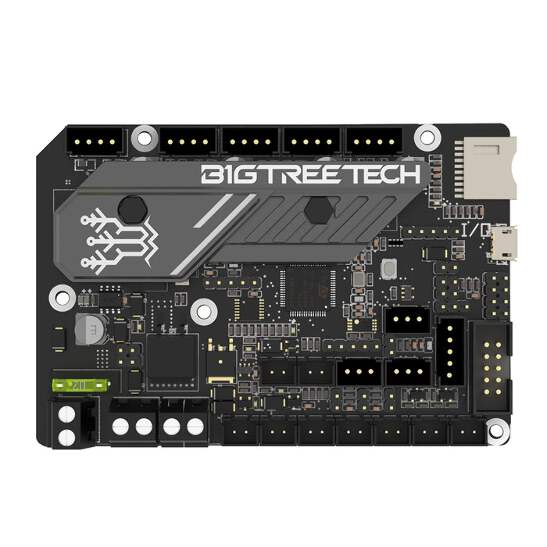

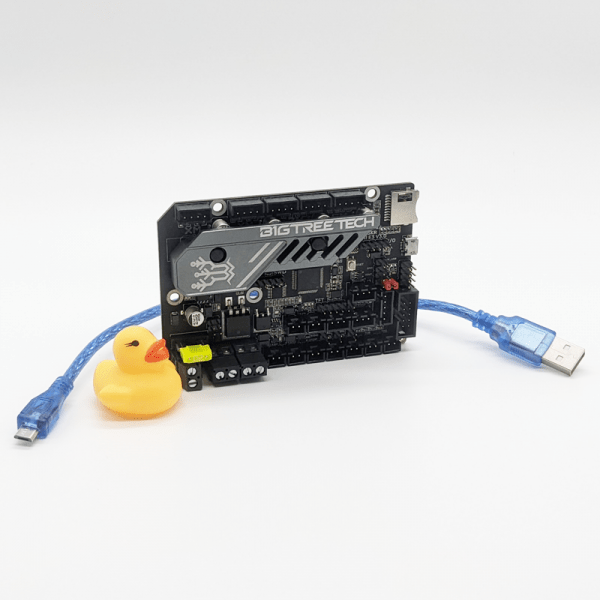

BIGTREETECH SKR MINI E3 V3.0 32 Bit Control Board for Ender 3 Series Ender 5

All Prices include GST. Message us if require a tax invoice.

Replacement Aftermarket Mainboard for Ender 3, Ender 5 and CR10 Series from BIQU/Bigtreeteech

Features:

New ID design upgrade
G0 series MCU- STM32G0B1RET6
Heat sink design upgrade, increase the heat dissipation area, greatly improve the heat dissipation performance
Increase the fan that can control the heat dissipation of the device to lower the temperature of the device
Increase the thermistor interface protection circuit to prevent burning of the master control chip

Specification:

Board Layer: 4
MCU: ARM Cortex m0 + STM32G0B1RET6
Power input: DC 12/24v
Logic voltage: 3.3v
Motor driver: UART mode of on board TMC2209
Interfaces of motor driver: XM YM ZAM ZBM EM
Interfaces of temperature sensor: TH0 THB 2 WAY 100K NTC
Compatible display screen: 2.4inch BTT TFT, 3.5inch BTT TFT, Ender 3 orginal LCD12864
PC Communication interface: USB Micro B type, easy to plug, communication buad rate 115200
File format: G code

For Stock or DREMC firmware (Fan Header Allocation) Otherwise, if you compile your own firmware or klipper you can allocate those to your preference.

FAN0, Part Cooling Fan
FAN1, Hotend Fan
FAN2, Electronics Bay Fans
»
