5L Short Path Distillation Set w/ Cooling Chiller， Circulating Water Vacuum Pump
Short path distillation is mainly used for enrichment, crystallization, drying, separation, drug, solvent recycling, and others. It is widely used in university, bio~pharmaceutical industry,petrochemical industry other industries.

Features:
Our products have good chemical stability, electrical insulation properties and mechanical properties.
1.It adopts electric heating mantle, no flame, large heating area and fast heating speed;
2.The electric heating set has magnetic stirring function and intelligent digital display.
3.The Liner is made of high-temperature alkali-free glass fiber as the insulating material. The resistance wire in the insulation layer is sealed and then woven into a hemispherical heater for good insulation performance.

Read before place order:
Post by DHL/FedEx/UPS; Delivery whthin 7-14 business days; Wooden box packaging.
There might be a small amount of customs duty tax, which will be paid by the buyer.
The shipping cost in this listing is valid for customers in US or West Europe. Customers in other parts of the world please contact us before placing order.
One year warranty for heating mantle, chiller and pump(except glassware).

Product portfolio list:

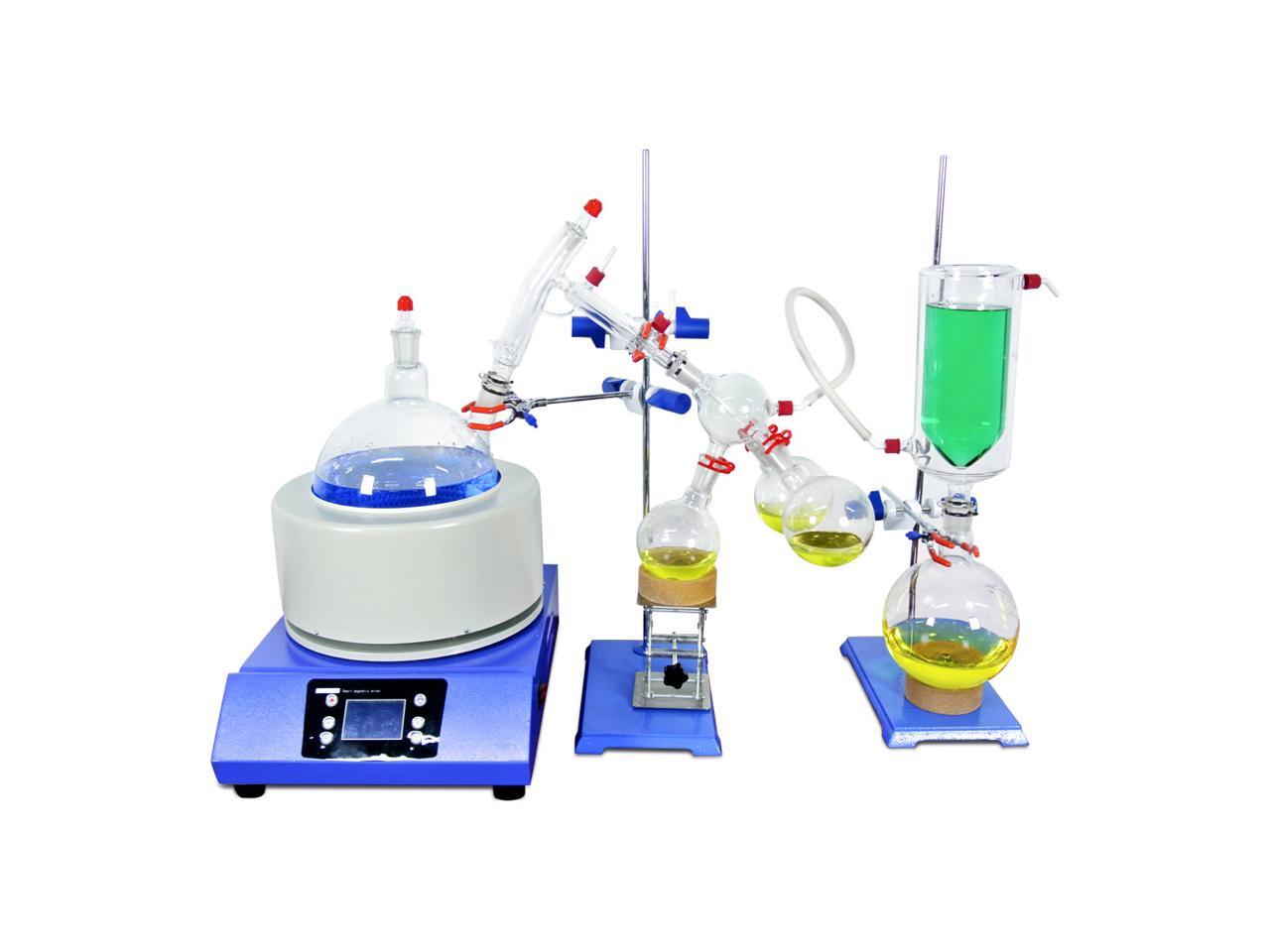

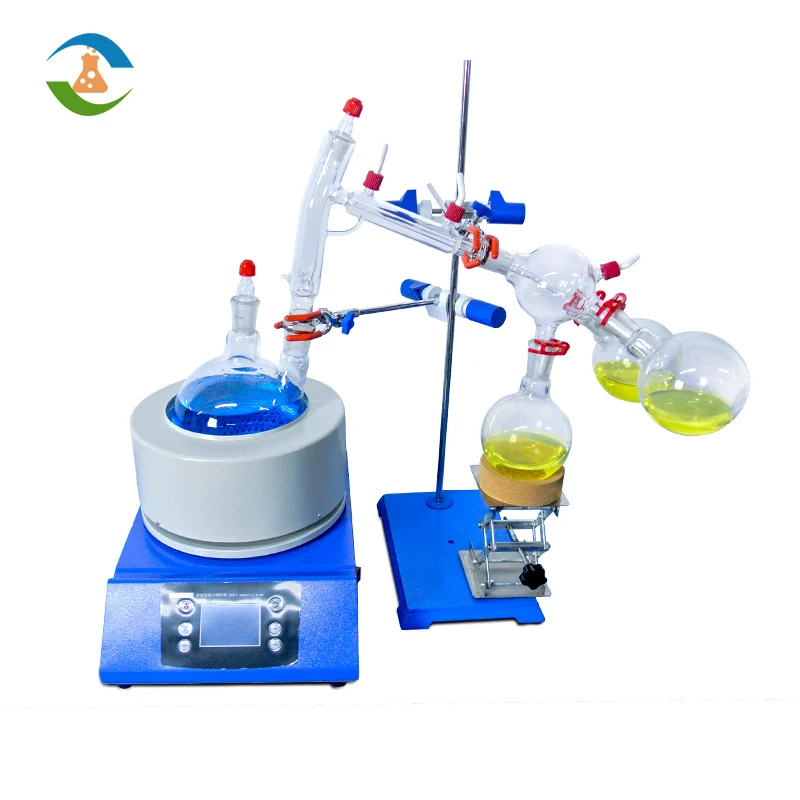

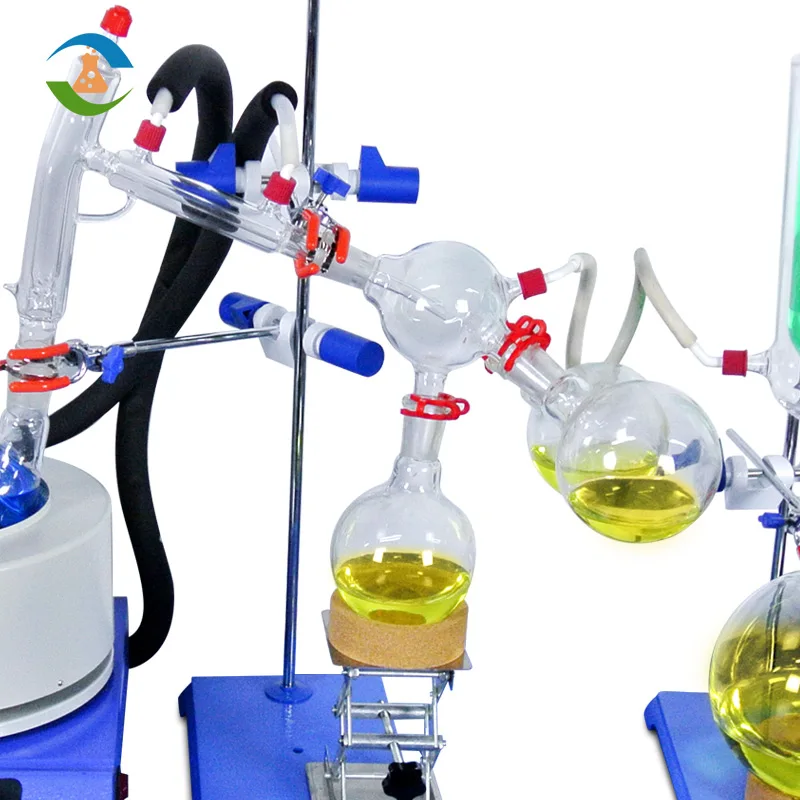

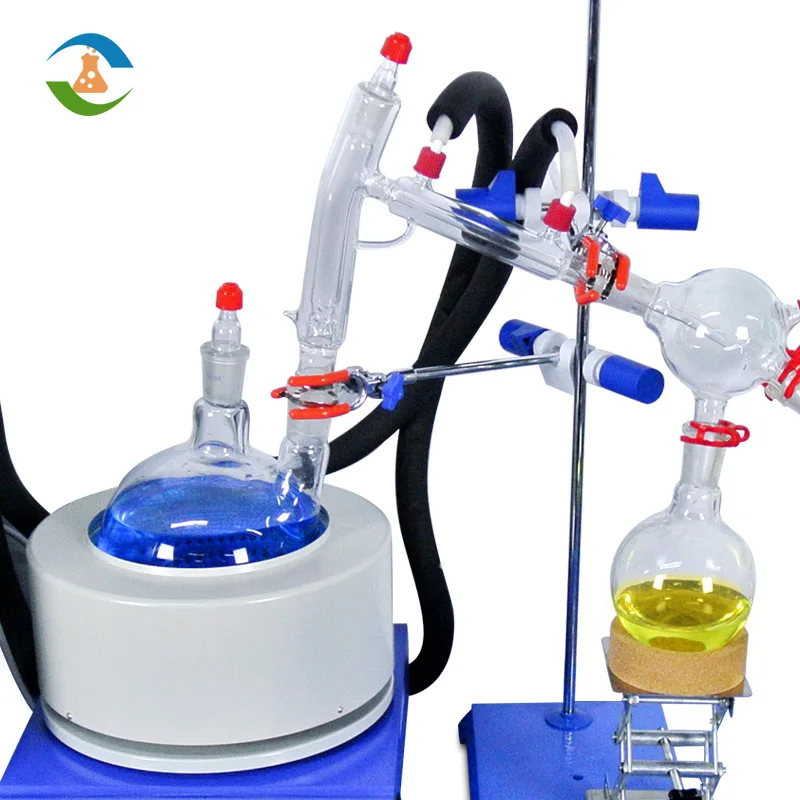

5L Short path distillation

5L short path distillation

  1. 5000 ml Digital Heating Mantle 1
  2. 5000 ml 2 Neck Boiling Flask 1
  3. Short Path Distillation Head 1
  4. Cow Receiver 1
  5. 1000 ml Round Bottom Flasks 3
  6. Plastic Keck Clips 7
  7. Cast Iron Stand 1
  8. Metal Three Finger Clamp 1
  9. Cold Trap 1
heating mantle

5L heating mantle

  • Voltage:110V/60HZ
  • Motor Power:40W,Heating power:900W
  • Working time:continuous work ＞8 hours
  • Insulation:E-glass fibers, can be temperature 450 degrees
Double-tap Vacuum Pump


Double-tap Vacuum Pump

    1. Power Supply(V/HZ):110V/60Hz
    2. Power:180W
    3. Flow(L/min):60
    4. Lift(m):8
    5. Body material:Anti-corrosive
    6. Material:static spraying
    7. Max. pressure (M Pa):0.098
    8. Sucking Rate for Single Tap:10L/min
    9. Quantity of tap (Pcs):2
    10. Tank Capacity:15L

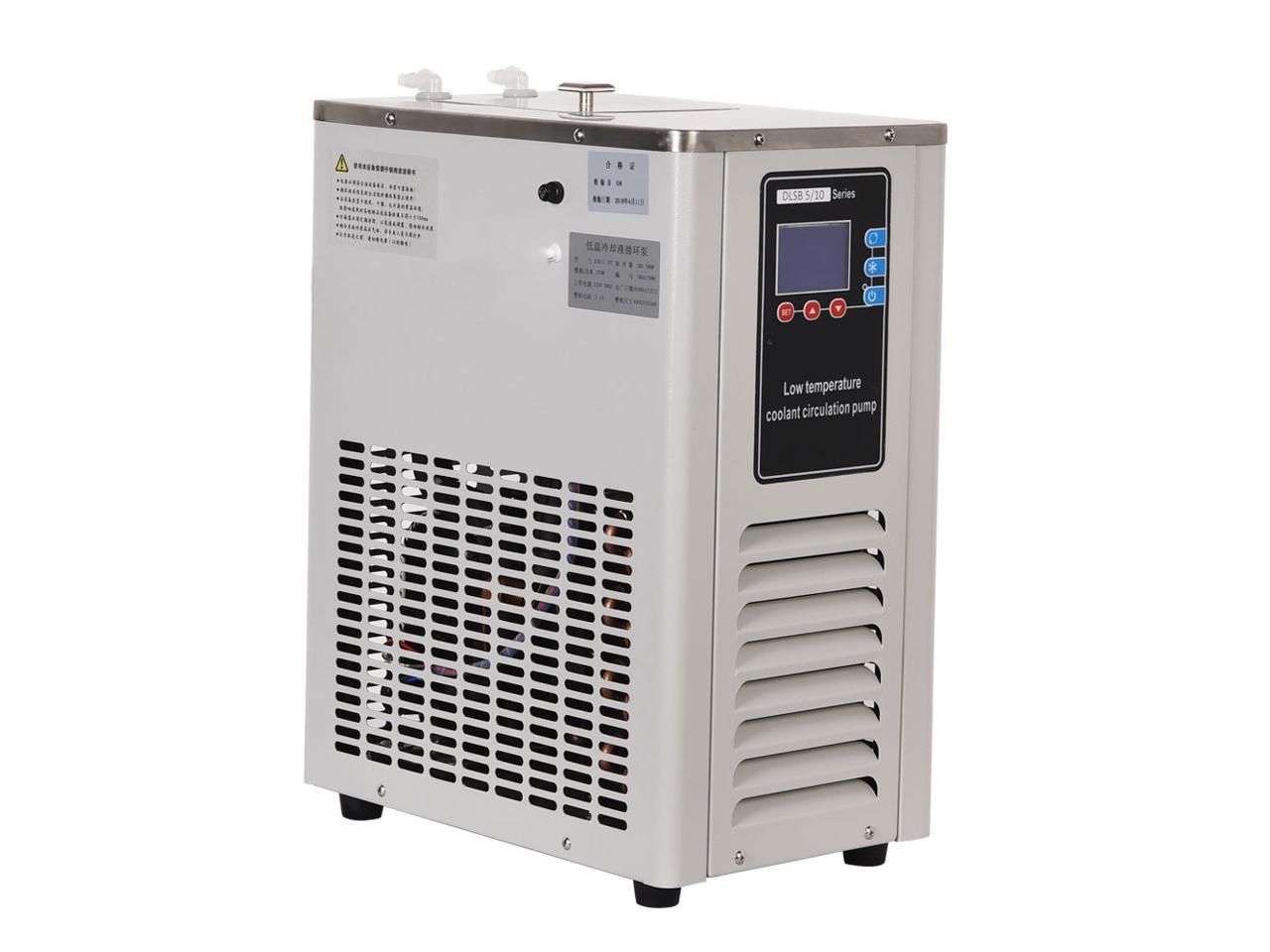

Chiller



Chiller

  1. Voltage:110V/60HZ
  2. Refrigerated Circulator Volume:5L
  3. Refrigerated Circulator lowest temperature:-15℃
  4. Refrigerated Circulator Temperature range:-10℃
  5. Refrigerated Circulator capacity:1328-319W
  6. Refrigerated Circulator flow:20L/min
  7. Refrigerated Circulator lift:4-6m

Lab 2L Vacuum Short Path Molecular Distillation KitLab 2L Vacuum Short Path Molecular Distillation KitLab 2L Vacuum Short Path Molecular Distillation KitLab 2L Vacuum Short Path Molecular Distillation KitLab 2L Vacuum Short Path Molecular Distillation Kit
  • Payment should be completed within 4 (Four) days of auction closing. Or unpaid dispute will be filed for closing auction.
  • We will leave a positive feedback immediately after payment is received. We appreciate a positive feedback as much as you do. If for some reason there is any issue with the purchase, please contact us prior to leaving feedback, we will be glad to work together and provide a satisfying solution.
  • We only ship the item to the eBay Verified address that is sent to us at the time of checkout, most shipment will be shipped within 1-5 business day. Please verify the correct shipping address in your eBay account before making your payment. Shipping time during holidays may take longer than normal.
  • Any brokerage, customs, and duty fees associated with international shipments are the customer's responsibility and are not included in our shipping charges.
  • If you are located outside of the continental 48 United States, please email us in advance to see if the specific item ships to your location. These orders are generally shipped within 1-5 days after payment is received.
  • Please be patient as they are often subject to additional inspection upon delivery.
  • All of our items are backed with a 30-day return policy. We ensure all our items are new and in excellent condition prior to shipping. In case you receive the item that is not to the standards above, please contact us via e-Bay messages. All returns must be in new original condition as received and should be shipped with delivery confirmation
  • Please note that all returns must be pre-approved by us. Unauthorized returns will not be accepted. If you need to return, please check twice to confirm the item not work and contact our customer service representative, let us know the detailed problem and send us some pictures for confirmation.
  • We ONLY accept returns with original package. Please make sure that item has NO man-made sabotage. Used items will not be accepted for return.
  • We are a comprehensive company specializing in the research and development, production and sales of lab related equipment. Company tenet: Respect reputation and contract, provide high-quality and low-cost equipment for serve scientific research.
  • We believe that it is our vision and mission to provide innovative products with best service and competitive price to satisfy you. Our goal is to make sure that you can find exactly what you are looking for and make it easy for you to place your orders.
  • Email Customer Support:
  • 9:00am-2:00am PST Sunday-Friday
  • All emails will be responded to within 12-24 hours
Rotating Speed0-140 rpm
Power Supply110V/60Hz
Capacity5L
Stirring Power40W
Heating Power900W
ModelSPD-5L
Country/Region of ManufactureChina
MPN0734779413364
BrandMTST
Intended Use/DisciplineBiological Laboratory, Medical Laboratory, Physical Laboratory
Power SourceElectric
PackagingWooden case
MaterialHigh Borosilicate Glass
CertificationISO, CE
ApplicationDistillation
Evaporator TypeCentrifugal Evaporator/Concentrator
