- FCF/CJF series laboratory high pressure reaction kettle is gas-liquid,liquid-liquid, liquid-solid or gas-liquid-solid three-phase chemical materials for chemical reaction stirring reaction device,can make all kinds of chemical materials in high pressure, vacuum,temperature stirring fully, in order to strengthen the mass transfer and heat transfer process.

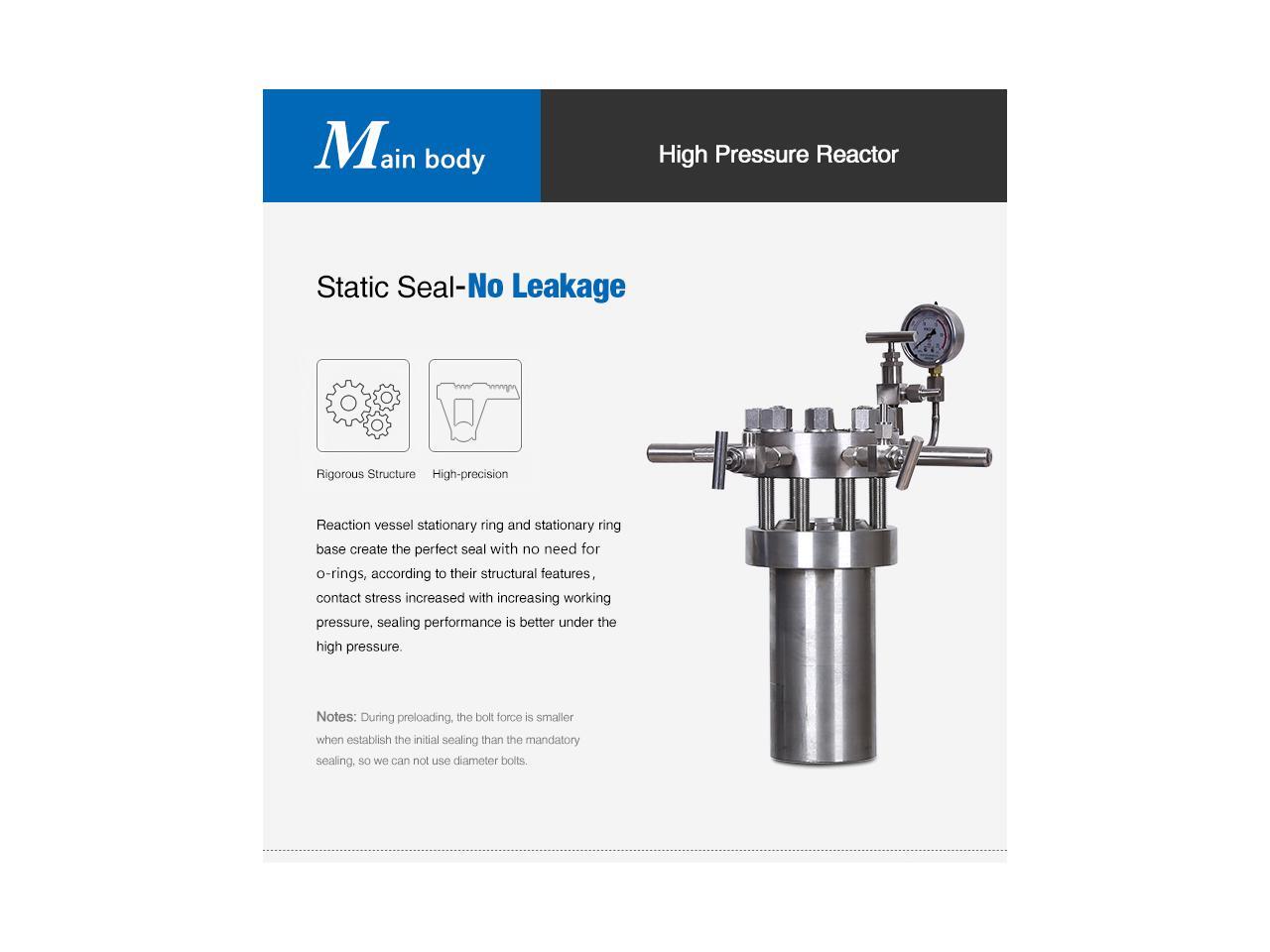

- The main features of this device are static seal structure, magnetic coupler is used to connect the agitator and motor drive, because of its non-contact torque transfer, static seal instead of dynamic seal, can completely solve the leakage problem of stirring, so that the whole medium and stirring components are completely in the state of absolute seal to work.
- Therefore, it is more suitable for stirring all kinds of inflammable and explosive, highly toxic, valuable media and other highly permeable chemical media. It is the most ideal non-leakage reaction equipment for vulcanization, fluorination, oxidation and other reactions in petroleum, chemical industry, organic synthesis,polymer material polymerization, food and other processes.
1. Use bolted structure, reactor cover could be lifted, so topple discharging or bottom discharging are both available.
2. Equip with intelligent controller to collect and control the data of motor speed, reaction temperature and pressure, high precision,
easy to operate and interfere resistant.
3. Use silicone oxide ceramic heating component, stirring speed is adjustable according to your needs.

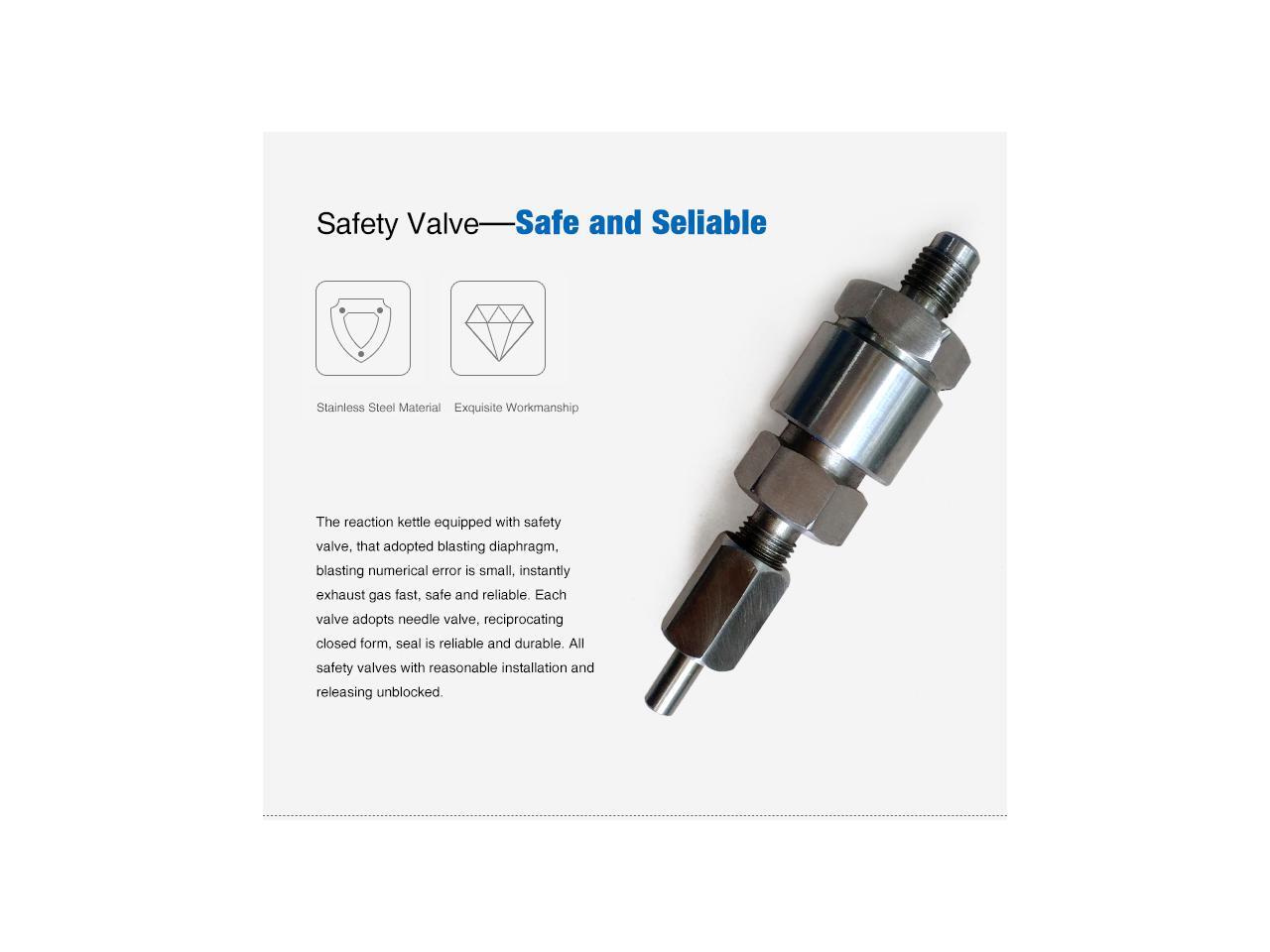

4. High pressure reactor is equipped with explosion-proof valve, which is safe and reliable.
| Name | Teachnical Parameter | |||||||||
Hight Pressure Reactor | Reactor | Model | CJF-0.05 | CJF-0.1 | CJF-0.25 | CJF-0.5 | CJF-1 | CJF-2 | CJF-3 | CJF-5 |
| Volume | 0.05L | 0.1L | 0.25L | 0.5L | 1L | 2L | 3L | 5L | ||
| Material | Stainless Steel 304 or 316L | |||||||||
| Design Pressure | 22MPa | |||||||||
| Design Temperature | 350℃ | |||||||||
| stirring | Sealing Method | static sealing , a type hard sealing | magnetic rotation, static sealing | magnetic rotation, a type hard sealing | ||||||
| Stirring Speed | magnetic mechanical sti | |||||||||
| Stirring Form | magnetic mechanical stirring,frequency control | |||||||||
| Heating Method | electrical machanical stirring,frequency control | |||||||||
| Heating Power | 110/220V 0.6KW | 110/220V 0.8KW | 110/220V 0.6KW | 110/220V 1.8KW | 110/220V 2KW | 110/220V 2.5KW | 220V 4KW | 220V 5.5KW | ||
| Motor Power | 140W | |||||||||
Temperature Control precision | ±1 | |||||||||
| control | speed regulation | |||||||||
| temperature control | ||||||||||
| temperature Display | ||||||||||
| rotary speed display | ||||||||||
| Nozzle | gas phase nozzle is equipped with needle valve | gas phase nozzle is equipped with needle valve | ||||||||
vent nozzle is equipped with needle valve | vent nozzle | |||||||||
temparature measureing nozzle is equipped with probe | tempareture measure | |||||||||
| N/A | stirring nozzle is equipped with coupling | |||||||||

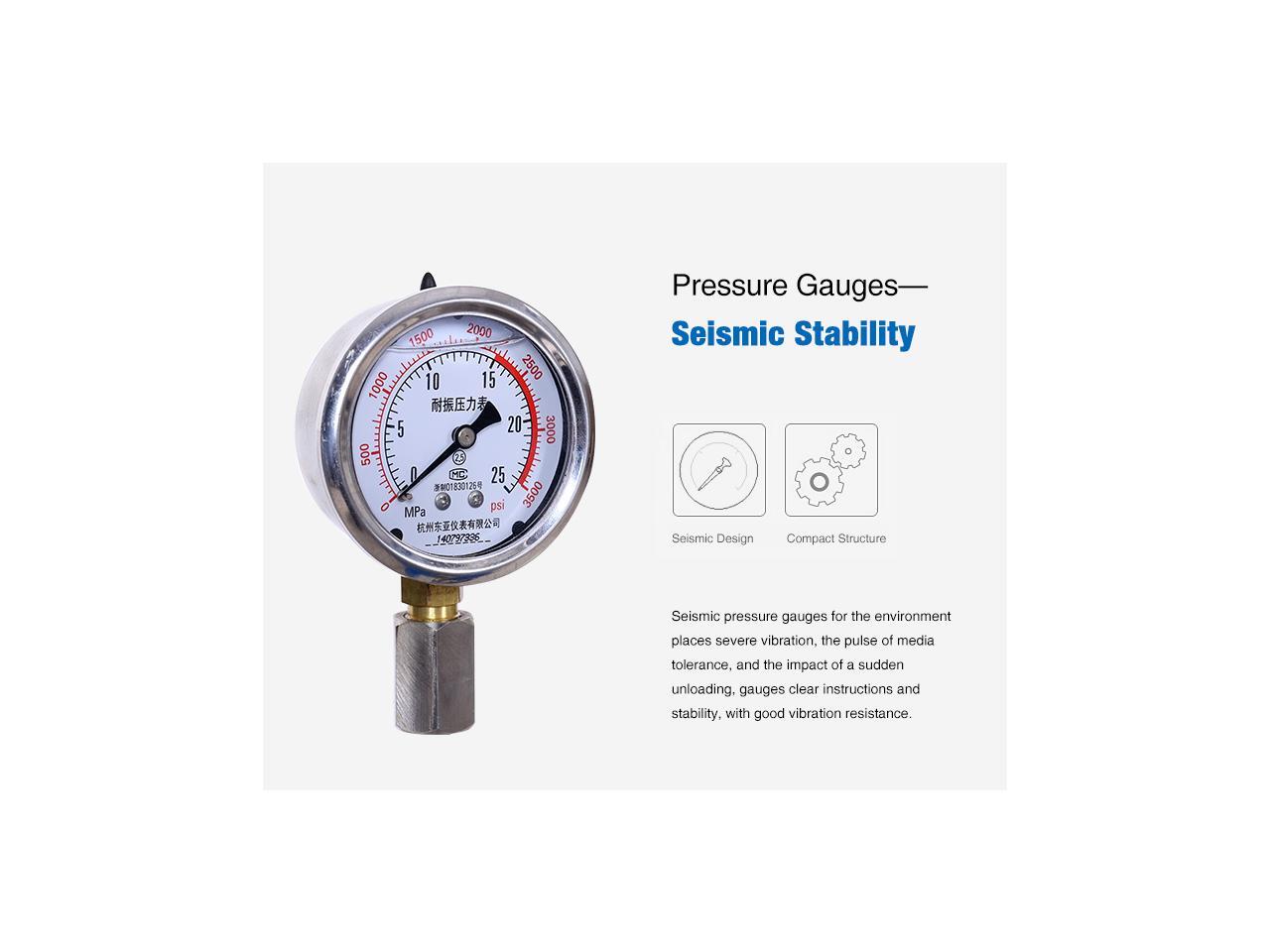

| N/A | pressure safety anti-explosion nozzle is equipped with pressure gage and rupure disc | |||||||||
| N/A | liquid phase nozzle is equipped with needle valve with bottom tube(used for sampling or dischaaarging) | |||||||||
