Introduce

Vacuum freeze drying refers to the process of removing water or other solvents from frozen samples. During the whole drying process, sublimation prevents the sample from passing through the liquid state, and the sample is in a vacuum state, and the temperature is generally lower than -10°C. The purpose of vacuum freeze-drying is to restore the original characteristics of the sample after rehydration.

Because the drying process is carried out at low temperatures, it can be used for some materials that are easily denatured at high temperatures, such as proteins, and can ensure that the properties of other compounds will not change.

After vacuum freeze-drying, most biological products such as tissues, tissue extracts, bacteria, vaccines and serum will become dry samples, and no enzyme changes and other biochemical reactions will occur during this process. Vacuum freeze drying is the gentlest process for preserving the biochemical properties of sensitive tissues or other tissues; it is also the best way to dry inorganic substances, such as nano-sized particles, because the surface area of the particles is almost unchanged.

Application

FD-01 vacuum freeze dryer is a high-performance freeze dryer widely used in laboratories. Solid and liquid samples in glass flasks and serum bottles can be freeze-dried. Various containers can be carried out on the same freeze dryer:

1) Surface temperature control of sample pre-freezing shelf

2) The main freeze-drying of samples can be carried out at a user-defined temperature

3) After the sample is freeze-dried, it can be dried at a high vacuum degree at a user-defined limit temperature, which can remove capillary and molecular bound water.

HFD-1 series dryers are suitable for bacteria, viruses, plasma, serum extracts, antibodies, vaccines and pharmaceutical products: such as chloramphenicol, streptomycin, vitamins, enzymes and plant extracts for biological testing.

Conditions of Use

 1. Ambient temperature under normal working conditions: 10℃~25℃

       Relative humidity: ≤70%

       Power supply voltage: single-phase 110V±10% 60Hz

       The working environment should be: placed horizontally, free of conductive dust, explosive, corrosive gas and strong electromagnetic field interference.

   2. Transportation and storage conditions: Ambient temperature: -35℃~50℃

         Relative humidity: ≤93%

         The storage environment should be well ventilated and free of corrosive gases.

   3. Safety classification Type I and type B.

Package Contents

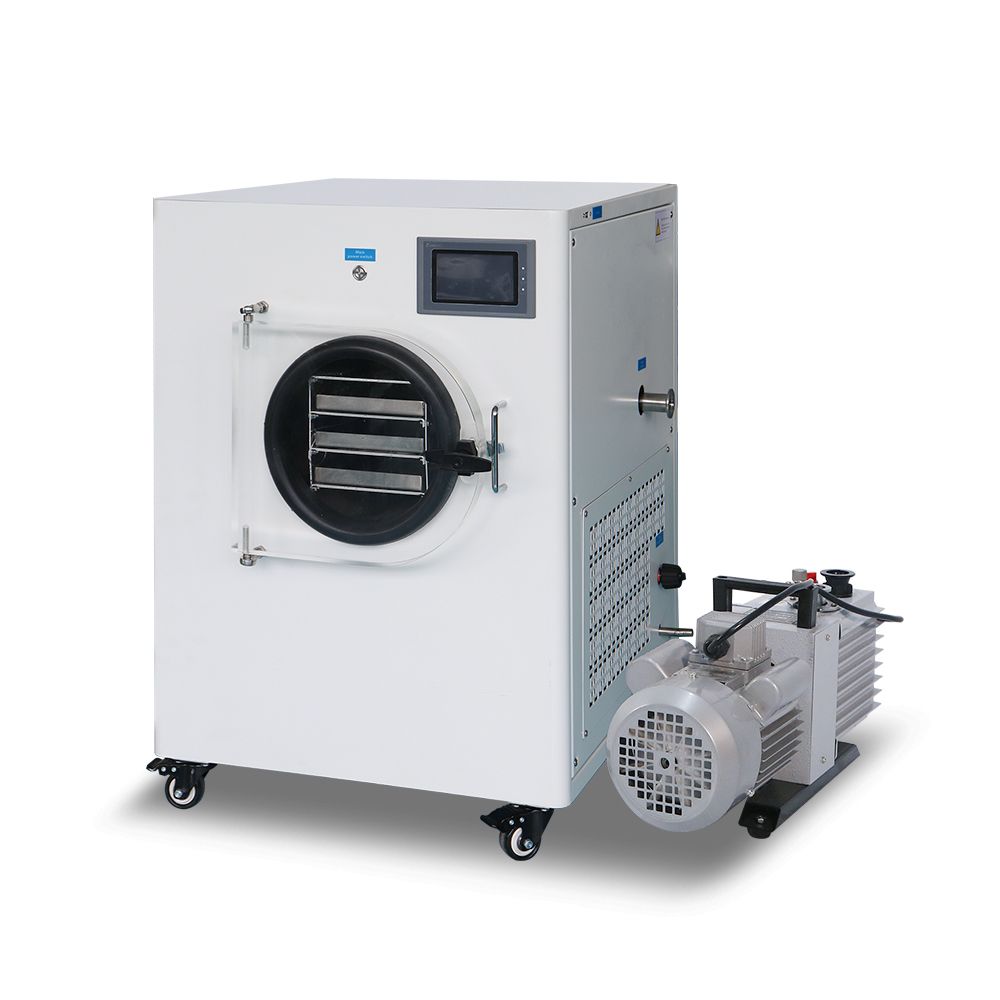

         1 x FD-01 Vacuum Freeze Dryer (110V/220V)

         1 x 2XZ-2 Efficient Vacuum Pump (110V/220V)

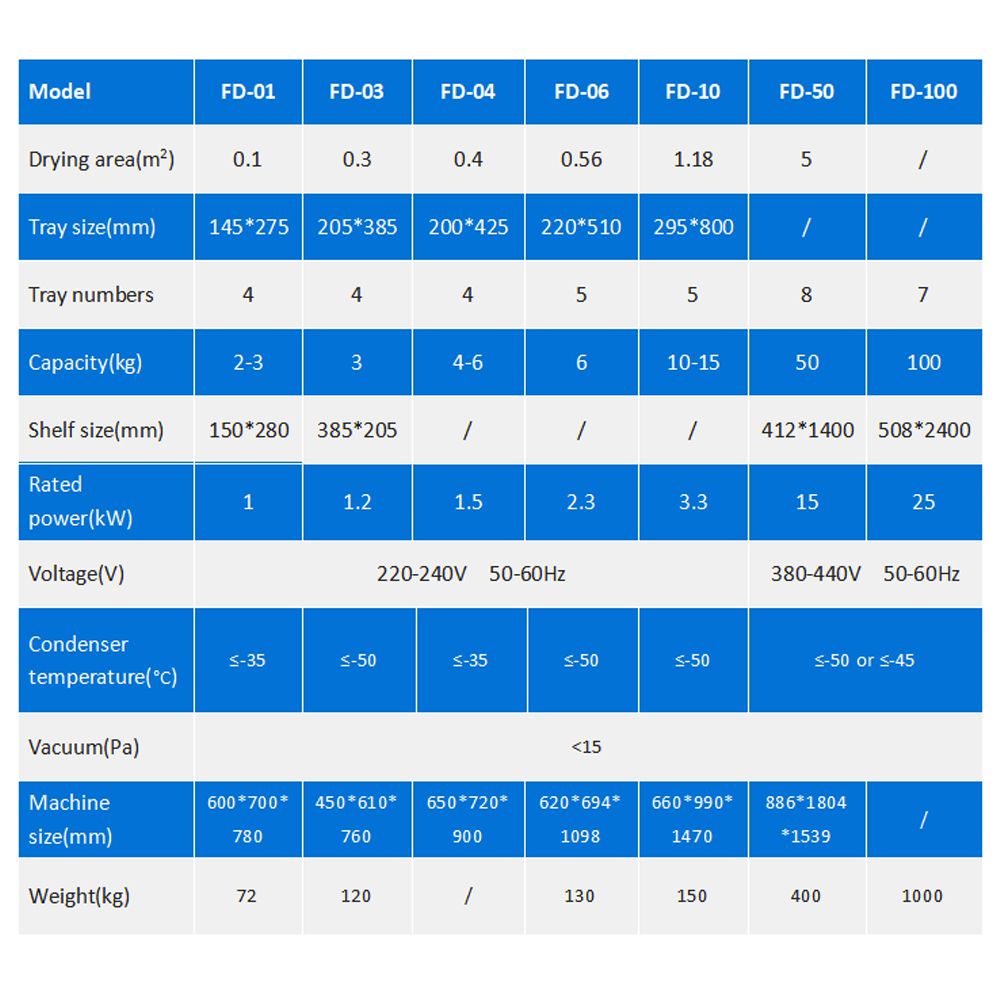

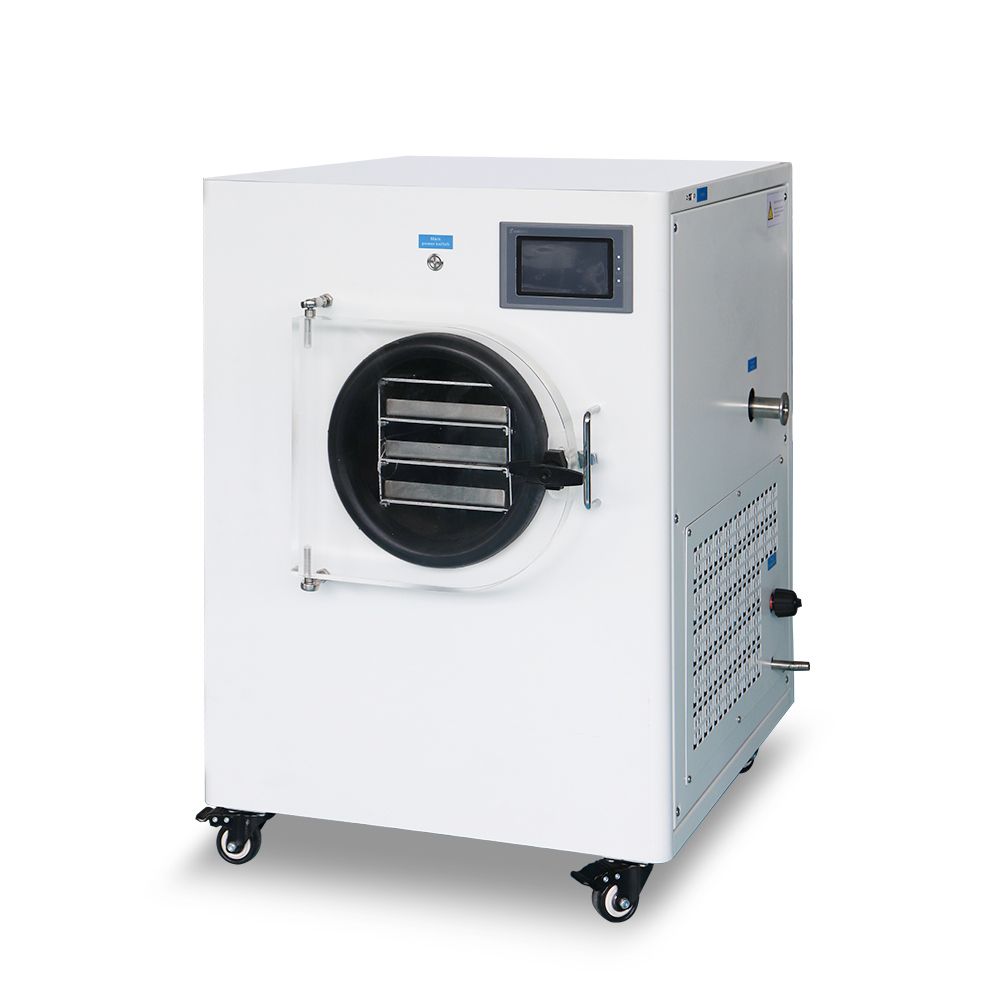

	2KG-3KG Vacuum Freeze Dryer Drying area(m2): 0.1 Tray size(mm): 145*275 Condenser temp(°C): ≤-35 Vacuum(Pa): <15 Shelf size(mm): 150*280 Tray numbers: 4 Capacity(kg): 2-3 Model: FD-01 Machine size(mm): 600*700*780 Rated power(kW): 1	Main Feature This machine adopts Secop (Danfoss) compressor for refrigeration, with rapid refrigeration and low temperature of the cold trap. The LCD screen control system is easy to operate and powerful. The door of the drying chamber is made of colorless transparent plexiglass, the sample is clear and intuitive, and the whole process of freeze-drying can be observed. The connection between the vacuum pump and the host adopts the international standard KF quick connector, which is simple and reliable. This machine has stable performance, easy operation and low noise. Technical Index Cold trap temperature: -35℃ (no load). Ultimate vacuum: below 15Pa (no load). Water catching capacity: 2-3kg
	Vacuum Pump Technical Details        Pumping rate (L/S):           2        Ultimate pressure (Pa):     6*10¯²        Speed (r/min):                  1400        Working voltage (V):         220        Motor power (KW):           0.37        Inlet diameter (mm):         25        Oil consumption (L):         0.65        Dimensions (mm):            488 x 145 x 280        Noise LwdB(A):                 70        Weight (KG):                     22	Vacuum Pump Features 1.The 2XZ series rotary vane vacuum pump belongs to a two-stage direct connection structure rotary vane vacuum pump, which can be used for drying, sealing the container and other ancillary pumping air or net vacuum equipments. 2.It has the advantages of small size, lightweight, low noise, convenient for using and more. 3.The 2XZ Series Rotary Vane Vacuum Pump can not be used as the compression type delivery pump.
