Rare Parts G2 Heavy Duty Tie Rod Assemblies (pair) & Cognito Pitman Idler Support Kit

LISTING IS FOR:

• RP28559G2 - Pair of Rare Parts G2 HD Tie Rod Assemblies 4 Pcs
• 110-90247 (PISK2008) - Cognito Pitman Idler Arm Support Kit

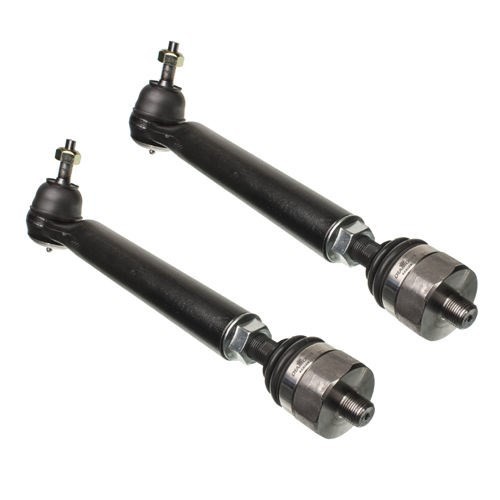

~ FIRST: THE RARE PARTS G2 TIE ROD KIT - RP28559G2

Rare Parts, Inc. has just released their newly redesigned heavy-duty tie rod assemblies for 2001-2010 CHEVY / GMC Trucks and SUV’s including the HUMMER H2. The NEW G2 outer tie rod end has been redesigned to eliminate the weak (buckling) point that the original design is known for. An oversized 1 1/2" diameter solid forging has replaced the original undersized 1/2" rod where the buckling occurs. The outer end also has a larger diameter full ball stud and socket allowing for a larger greaseable wear surface, and increasing reliability. This larger socket and ball also offers more stud swing for greater articulation. The Inner Tie Rod end incorporates the same oversize design with a ¾” threaded rod replacing the original ½” rod. The inner ball and socket has also been increased from 25mm to 32mm. Pre-greased with (AMSOIL) synthetic lubricant and Made in the USA.

These are an excellent choice for any stock or modified application with a lift and or large tire and wheel combinations. Order your set today!

~ SECOND: THE PITMAN IDLER ARM SUPPORT KIT - 110-90247

Features:

• Includes hardware for factory or after market pitman and idler arms
• Supports your Pitman and Idler Arms from Stress and Wear
• Comes Complete with All Parts for Installation

Overview:
Whether your truck is stock height or lifted and running oversized tires, Pitman and Idler arms have always been a problem on the steering systems of GM vehicles. The Pitman and Idler arm Support kit by Cognito Motorsports fixes a wear problem that is present on the factory and aftermarket steering system. Aftermarket companies have come out with heavier duty pitman and idler arms that fail the same way that the factory parts do. The design created by Cognito Motorsports solves the problem in an innovative way that no one else has been able to create before. This design works so well that we were able to obtain a UTILITY PATENT.

Applications:

• 2001-2010 - Chevy Silverado 1500HD, 2500, 2500HD, 3500 (2 & 4wd)
• 2001-2013 - Chevy Suburban 2500, Avalanche 2500 (2 & 4wd)
• 2001-2010 - GMC Sierra 1500HD, 2500, 2500HD, 3500 (2 & 4wd)
• 2001-2013 - GMC - Yukon XL 2500 (2 & 4wd)
• 2003-2009 - Hummer H2, H2T (8-lug)
• Does NOT fit 1500 Light Duty
