General Features:



·        Broad band UVA+UVB+UVC photodiode

·        Photovoltaic mode operation

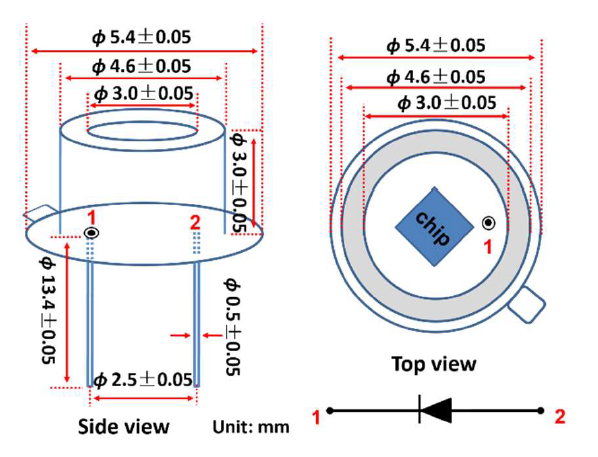

·        TO-46 metal housing

·        Good visible blindness

·        High responsivity and low dark current



Applications:



UV index monitoring, UV radiation dose measurement, flame detection



Specifications:

Parameters Symbol Value Unit

Maximum ratings

Operation temperature range (T_opt) : -25-85 ^oC
Storage temperature range (T_sto) : -40-85 ^oC
Soldering temperature (3 s) (T_sol) : 260 ^oC
Reverse voltage (V_r-max) : -10 V

General characteristics (25 ^oC)

Chip size (A) : 1 mm²
Dark current (Vr = -1 V) (I_d) : <1 nA
Temperature coefficient (T_c) : -0.02 %/ ^oC
Capacitance (at 0 V and 1 MHz) (C_p) : 18 pF

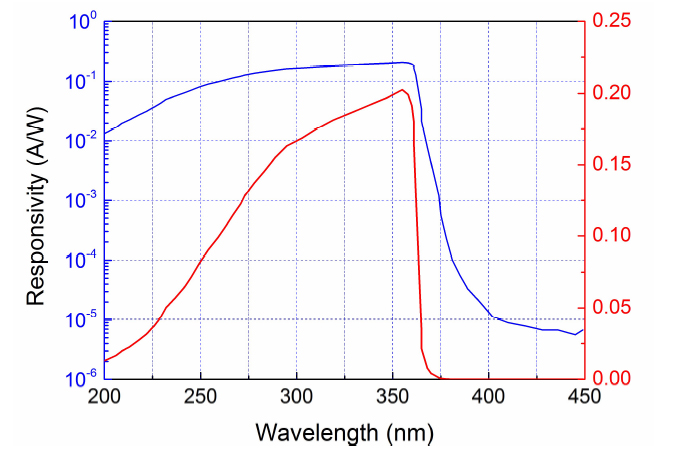

Spectral response characteristics (25 ^oC)

Wavelength of peak responsivity (λ_p) : 355 nm
Peak responsivity (at 355 nm) (R_max) : 0.20 A/W
Spectral response range (R=0.1×R_max) : 210-370 nm
UV-visible rejection ratio (R_max/R400 nm) : >10⁴
