KTM 690 ENDURO & SMC / SMCR SET OF 8 CRASH MUSHROOMS PROTECTORS SLIDERS  S5R








KTM 690 ENDURO & SMC / SMCR MODELS ONLY

FULL SET OF 8 CRASH MUSHROOMS





 BRAND NEW 4 PAIRS OF  CRASH MUSHROOMS PRECISION MACHINED FROM HIGH DENSITY ACETAL SPECIFICALLY DESIGNED FOR CRASH MUSHROOMS:-

  • MADE FROM HIGH QUALITY MATERIALS

    • Good sliding properties
    • Strong and rigid
    • Resistant to amny oils, greases, diesel, petrol and cleaning fluids
    • Increased surface hardness
    • Weathering resistant

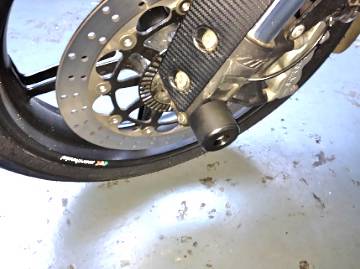

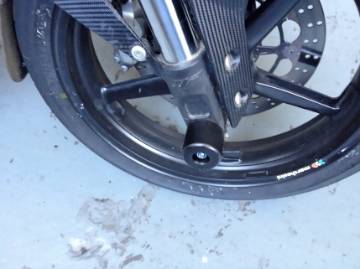

    FRONT AND REAR AXLE SLIDERS



    BRAND NEW 2 PAIRS  (TO FIT  FRONT & REAR)   CRASH MUSHROOMS PRECISION MACHINED FROM ACETAL SPECIFICALLY DESIGNED FOR CRASH MUSHROOMS



    • TO FIT FRONT & REAR SPINDLE

      THESE MEASURE 50MM IN DIAMETER AND  48MM (MAX) IN LENGTH, MUCH LONGER THAN MANY EBAY SELLERS, WHICH OBVIOUSLY GIVES YOU EXTRA PROTECTION, AND LOCATE WITHIN THE AXLE BORE, SO DO NOT FLOAT ABOUT IN CASE THE BIKE FALLS, ALSO GIVING BETTER PROTECTION.

    • VERY SIMPLE TO FIT SIMPLY CUT THREAD BAR TO DESIRED LENGTH , FULL INSTRUCTIONS INCLUDED

    • FRONT AXLE ALSO INCLUDES A M24 REPLACEMENT TITANIUM GR5 LOCK BOLT WITH A 8.5MM HOLE DRILLED THOUGH THE CENTRE ALLOWING THE FITTING OF THIS SET, THIS REPLACES THE ORIGINAL SOLID BOLT SUPPLIED AS STANDARD.



    • REAR AXLE ALSO INCLUDES A M25 REPLACEMENT TITANIUM GR5 LOCK NUT WITH THROUGH HOLE  ALLOWING THE FITTING OF THIS SET, THIS REPLACES THE ORIGINAL SOLID NUT SUPPLIED AS STANDARD.

    PLEASE DO NOT CONFUSE THIS KIT WITH CHEAP CHINESE IMPORTS, THAT USE ALUMINIUM REPLACEMENT NUTS AND BOLTS, I HAVE TESTED BOTH OF THE TITANIUM NUT AND BOLT UPTO 150 NM AND THEY DID NOT FAIL. THE FRONT AXLE BOLT IS TIGHTENED UPTO 40NM AND THE REAR 80NM.

    THE PLASTIC IS MADE FROM HIGH DENSITY ACETAL DESIGNED AND TESTD FOR USE WITH CRASH MUSHROOMS.

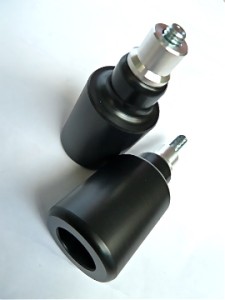

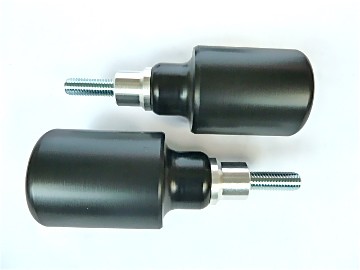

FRAME CRASH MUSHROOMS



 You must know if you own a bike how hard and expensive it is to replace your fairing panels.

There is no modifications to the body work at all

Very rare to find crash mushrooms for these  KTM'S

Very simple to fit! Simply remove the engine mount bolt and replace with the crash bobbin , aluminium spacer and longer bolt supplied.

No cutting or drilling needed.

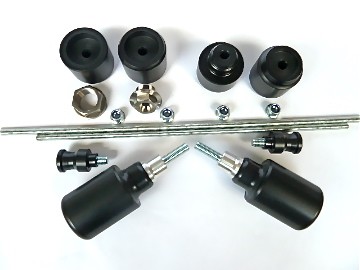

Parts supplied:

2 x crash mushrooms (HIGH DENSITY ACETAL)

2 x M10 steel bolts (hex head type)

2 x m10 shakeproof Washers

2 x m10 Washers  BZP

2 x aluminium spacers

fitting instructions



PADDOCK STAND BOBBINS / MUSHROOMS

 KTM 690  PADDOCK STAND BOBBINS   / CRASH PROTECTORS



LARGE DIAMETER 25MM FOR EXTRA CRASH PROTECTION

BRAND NEW PAIR OF M10 REAR PADDOCK STAND BOBBINS / CRASH PROTECTORS.

They are made from high quality ACETAL and come with 2 high tensile CAP HEAD screws with allen key heads WILL NOT RUST OR SEIZE IN SWINGING ARM

will fit the following models

KTM 690 ENDURO - R & SMC - SMCR  - ABS MODELS ONLY 2012 - 2024

Also Fits 2014-2024 SMC-R ABS






 AVAILABLE IN  BLUE , WHITE,  BLACK



BLACK & WHITE = PRICE AS PER LISTING

ALL OTHER COLOURS = +25%



I ALSO SELL AXLE CRASH MUSHROOMS, BAR END SLIDERS, PADDOCK STAND BOBBINS, AND FOOT PEG SLIDERS AND BAR END SLIDERS FOR THIS MODEL SEPARATELY IN ALL IN THE ABOVE COLOURS
