PRICES INCLUDE GST, TAX INVOICE AND FREE STANDARD DELIVERY ANYWHERE IN AUSTRALIA

This listing is for the following materials / grades:

Stainless A2-70 G304 & Stainless A4-70 G316

The rule of thumb is that if the fastener is in a corrosive environment (e.g within 5kms of the coast), G316 is preferable, particularly if the fastener is to be seen, as G316 is less like to "tea-stain" or develop a brown discolouration.

Machine screws are uniformly threaded screws, meaning they maintain the exact same diameter throughout the entire length of the threaded section of the fastener, unlike wood or chipboard screws which have tapered threads
Machine screws can be used to fasten components together by means of through holes and secured with a nut at the other end. But they can also be used to fasten components together by passing the machine screw through the parts and then threading it into the rearmost component
As the name suggests, these screws can be used to fasten components in machines, tools, appliances and electronic devices
Round Head Slotted Machine Screws, also know as Metal Threads were commonly used in old Motor Vehicles, furniture, electrical and industrial equipment
BSW = Imperial Coarse Thread
BSW and UNC have the same thread per inch value, except for the 1/2" size. Theoretical it would be possible to interchange them as they have the same amount of threads per inch. However due to the difference in thread angle, the connection would not be as strong as when using the proper combinations
Fully threaded
Manufactured to BS 450

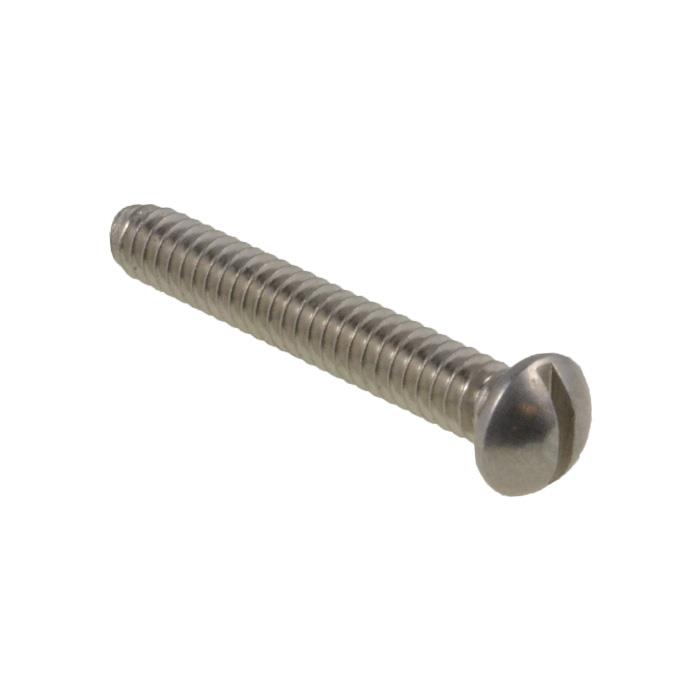

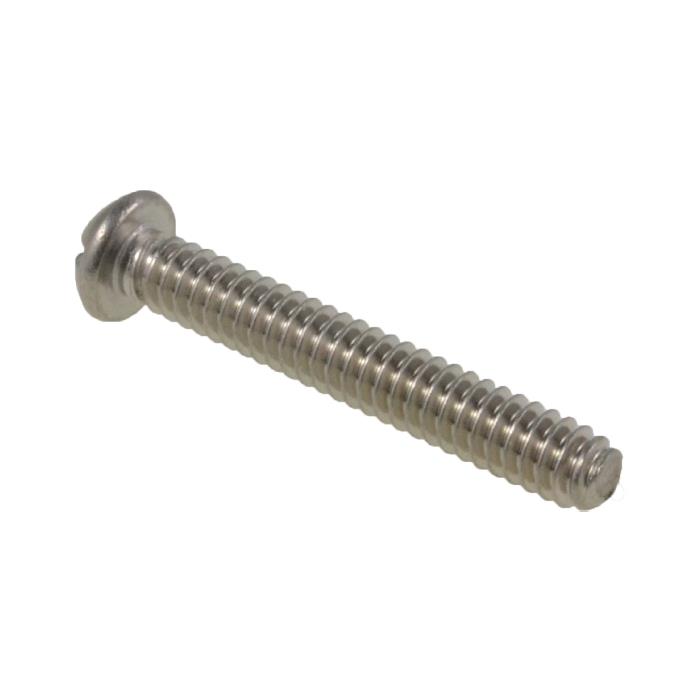

Photos are for illustrative purposes only and may not be the actual diameter or length
Every effort has been made to ensure all measurements are accurate, they should only be used as a guide
Our stock is sourced from various manufacturers, therefore differences may exist between batches such as visible stamped head markings, thread lengths and actual material finish
A Tax Invoice will be included with every order
Need help? message us through eBay

Specification
Product	Machine Screw
Head Type	Round Head
Screw Size	1/4"
Thread Pitch (TPI)	BSW - 20
Thread Type	BSW
Length - from under the head	Click on the dropdowns above
Thread Length	Fully Threaded
Head Diameter APPROX	0.417 ~ 0.438"
Head Height APPROX	0.165 ~ 0.175"
Slot Width APPROX	0.061"
Material	Stainless Steel
Grade	Click on the dropdowns above
Brand - Our Discretion	Hobson / FKO
Pack Quantity	Click on the dropdowns above
