Description

Specifications:

1.Model Type: Intelligent IC COB Chip

2. Product Name: 4054 Smart IC COB Chip

3. Shapes: Oval

4. Power: 10W / 20W / 30W / 50W

5. Voltage: AC 220V / 110V

6. Luminous flux: 90-120LM / W

7. Color rendering index: 60-85

8. Opening angle: 180 degrees

9. Working temperature: -20 ° C to 60 ° C

10. Lifespan: 100,000 hours

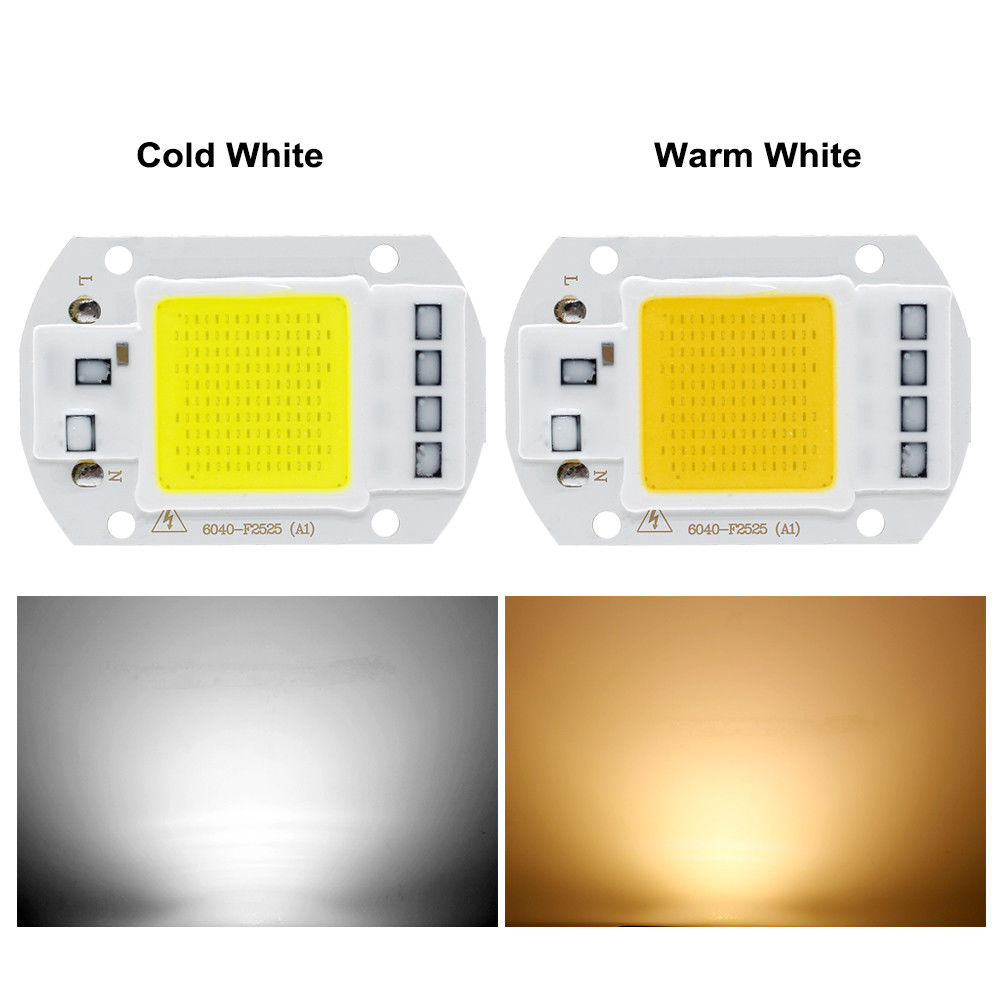

11.White: 6000 ~ 6500K, Warm White: 2800 ~ 3200K

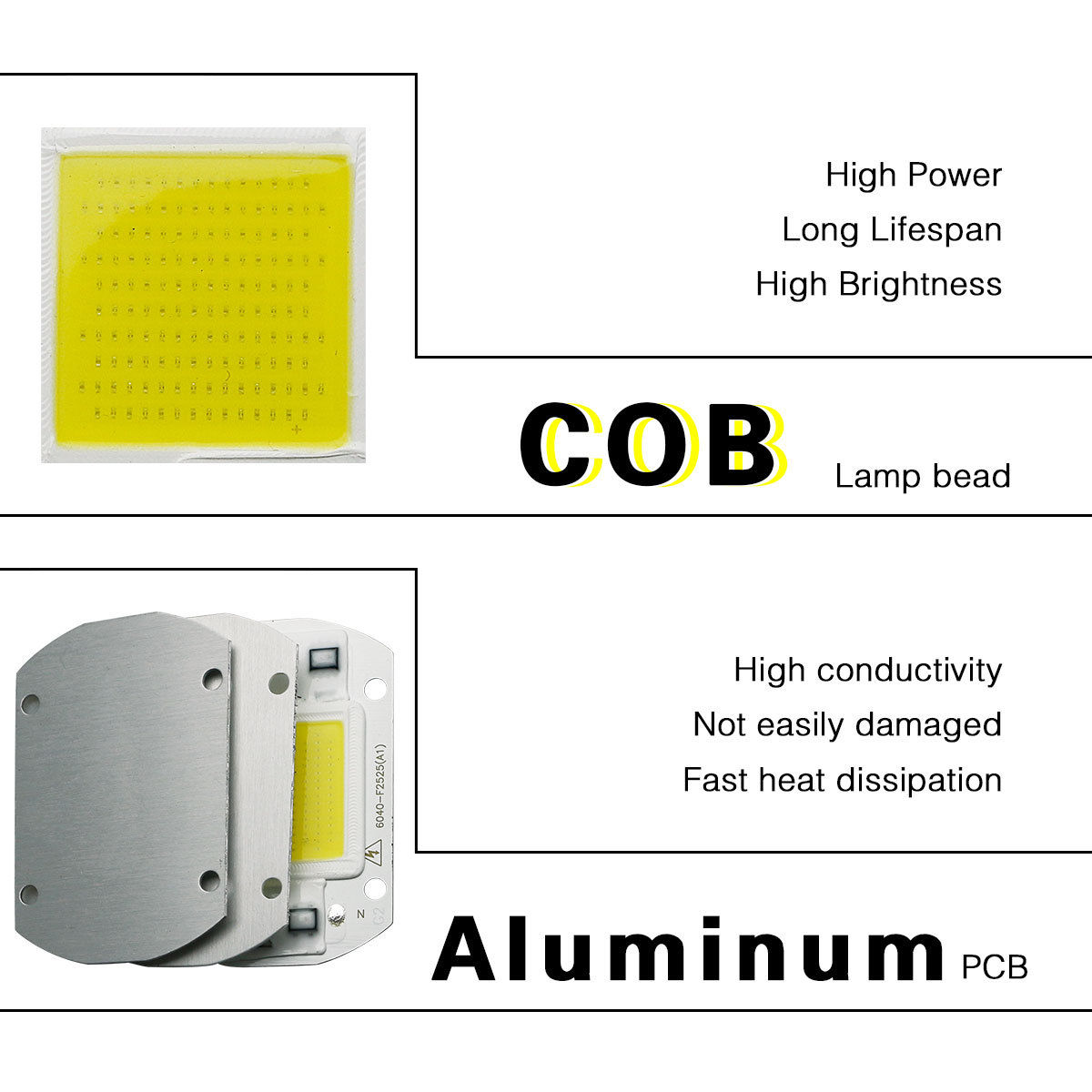

12. Housing material: aluminum

AC directly, Suitable for DIY

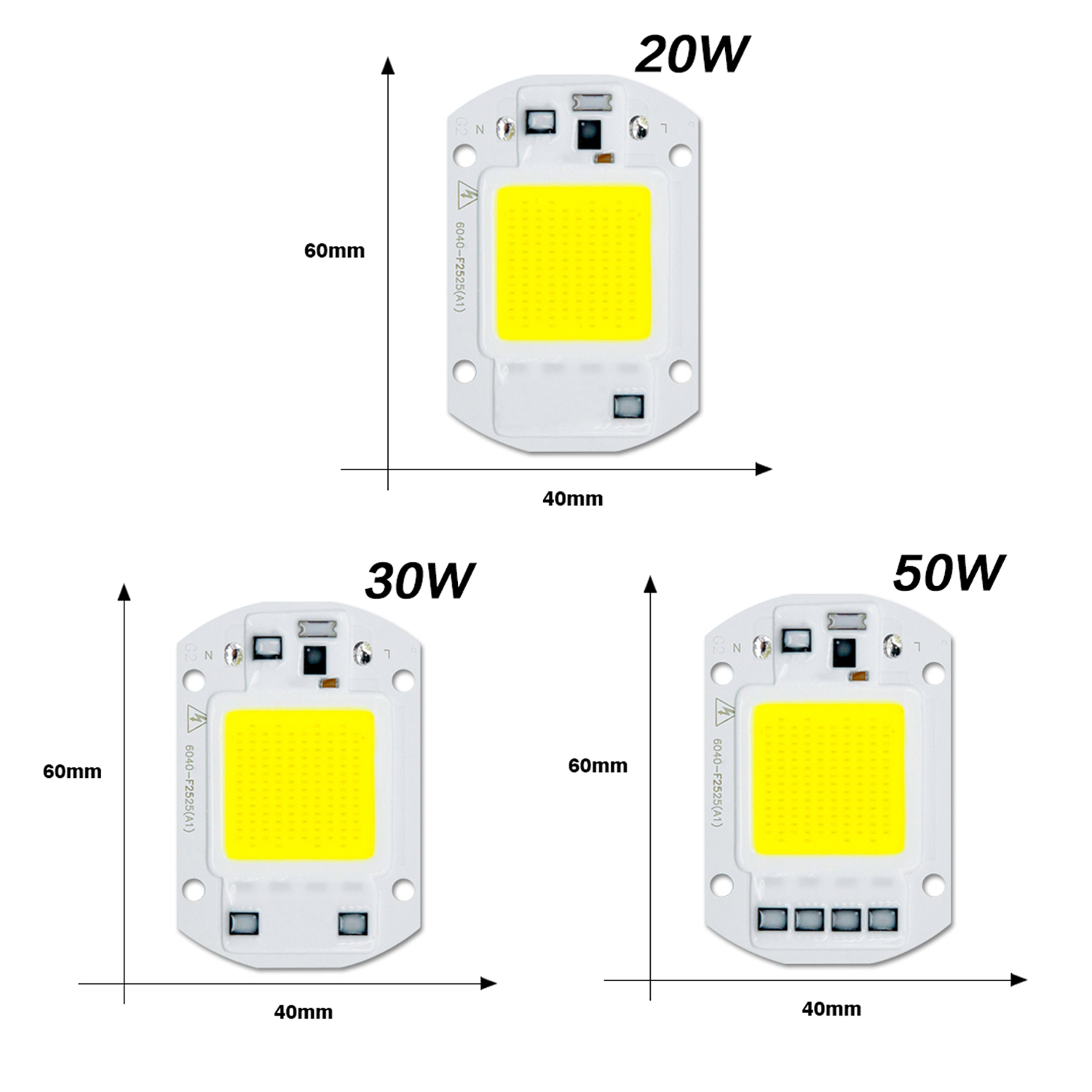

10W / 20W / 30W / 50W chip measurements are: long: 62mm width: 40mm

Properties:

1. Low heat development to reduce power consumption

2. Save money on electricity costs

3. Great reduction of CO2 emissions

4. Minimization of drastic climate change

5. Great reduction of maintenance costs

6. long life

7. Immediate start, no blinking

8. Solid State, shockproof

Applications:

Widely used in Traffic lighting, Landscape lighting, advertising lighting, Indoor Lighting, Special lighting,Landscape scene / spot lighting,Architectural lighting,Display scene,Artwork lighting,general lighting,Amusement park scene,Aquarium lighting and so

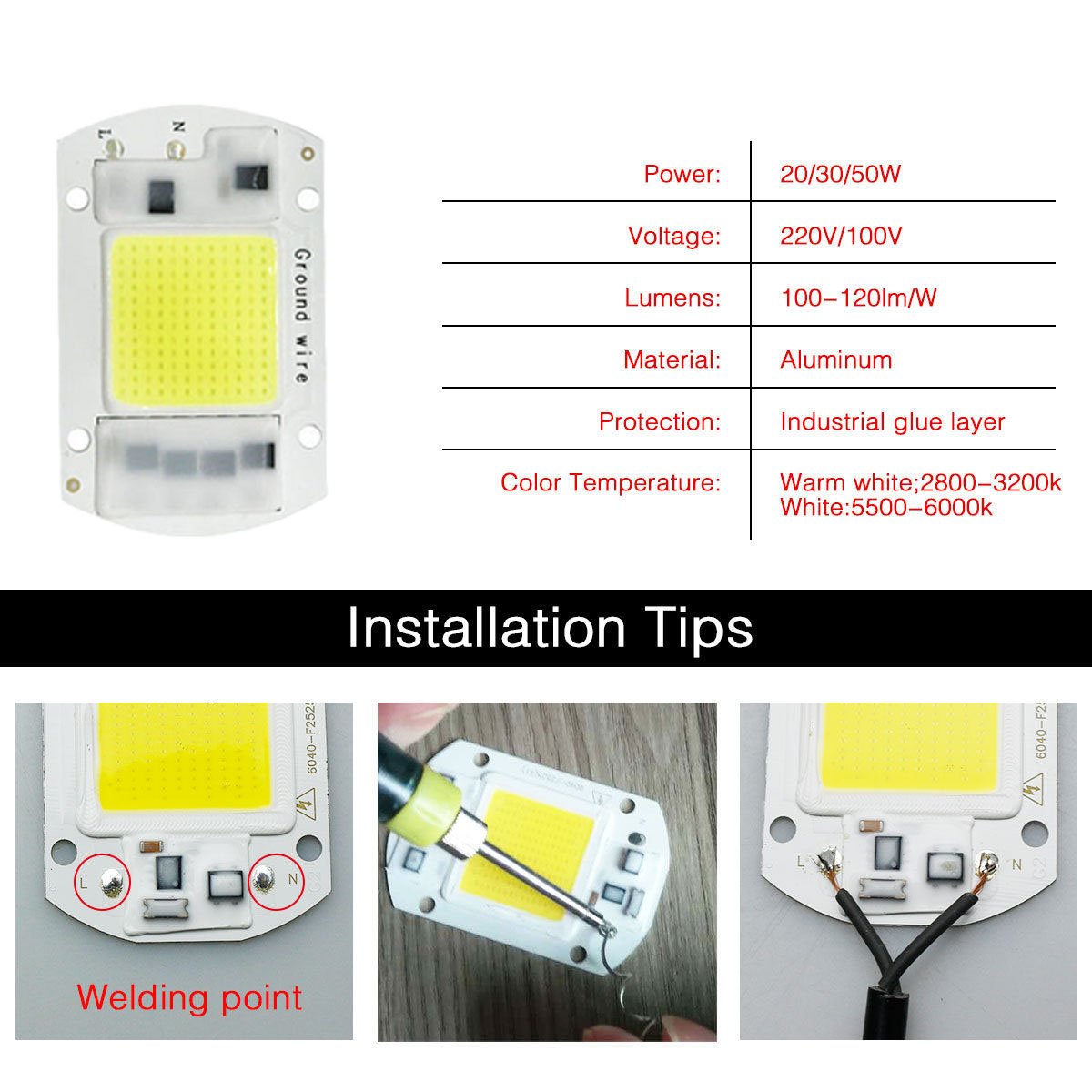

LED installation method

1. The chip needs to be mounted on a suitable heat sink, and a thermal grease is applied between the heat sink and the chip. The area where the heat sink is mounted needs to be polished to ensure that the surface of the heat sink is smooth and smooth. The chip needs to contact the heat sink 100% without any gaps.

2. When installing and using the chip, do not apply pressure to the light emitting part of the chip to prevent the chip's light source from being damaged.

Delivery content:

Only 10W chip: 1 chip

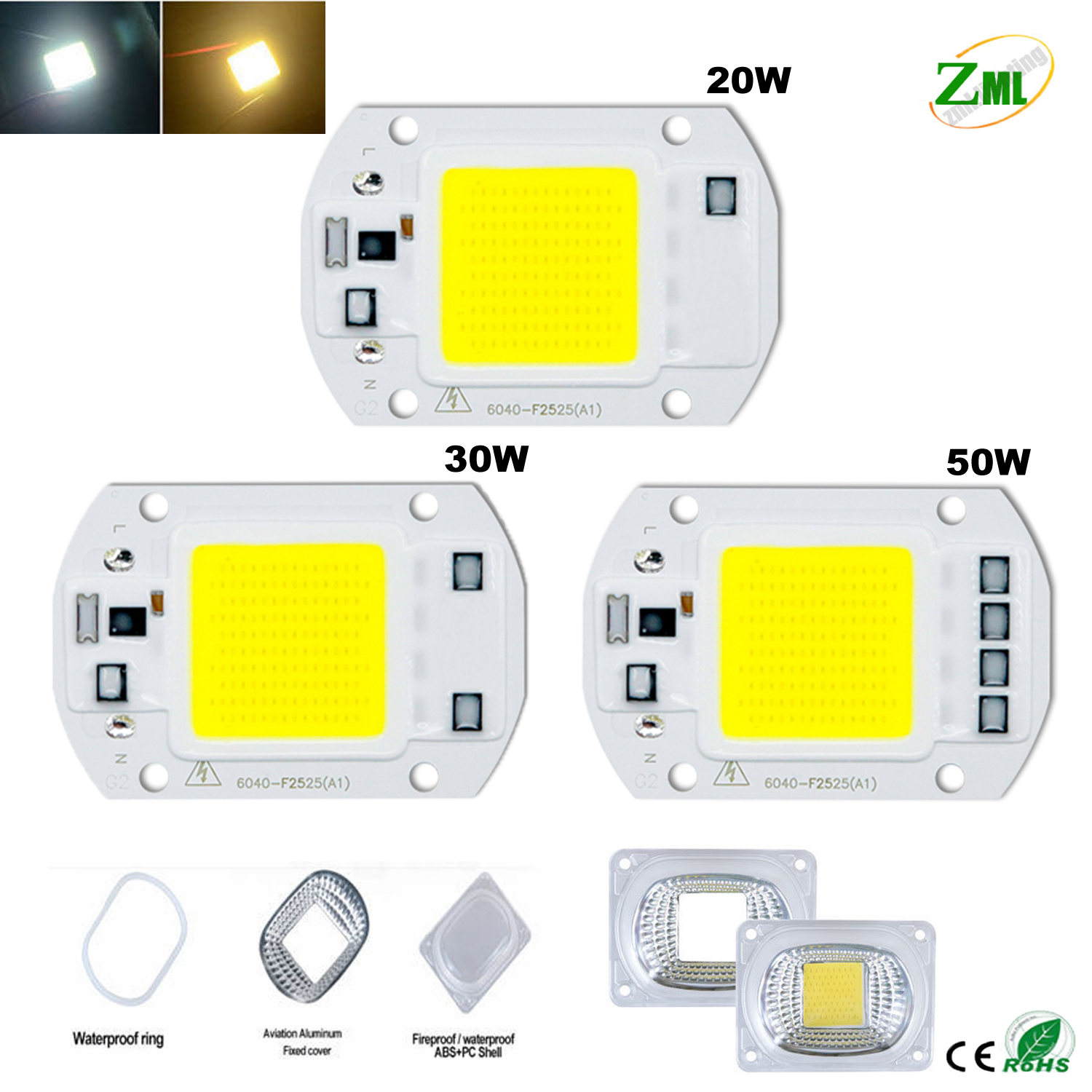

20W / 30W / 50W + Lens Reflector kit: 1 Chip + Lens Reflector kit

detail Screen
