Item Description

PRICE INCLUDES GST, TAX INVOICE AND FREE DELIVERY ANYWHERE IN AUSTRALIA

Select the item(s) you want, add them to your cart, once your cart exceeds $75 you will receive an additional 5% discount off your order, over $200 it is a 10% discount

The sizing of our shoulder bolts is SHOULDER dia x SHOULDER length x THREAD size
Shoulder screws have an undercut portion between the thread and shoulder, allowing a close fit. They’re used for a wide range of punch and die operations, such as the location and retention of stripper plates, and act as a guide in blanking and forming presses.
Other applications for shoulder screws include: bearing pins for swing arms, links and levers, shafts for cam rolls and other rotating parts, pivots, and stud bolts.
Shoulder screws are sometimes referred to as stripper bolts, resulting from their use with stripper plates and springs.
Plain finish with an oil coating, this product is suitable for internal applications only, can be used externally if a coating is applied
Photos are for illustrative purposes only and may not be the actual diameter or length
Every effort has been made to ensure all measurements are accurate, they should only be used as a guide
Our stock is sourced from various manufacturers, therefore differences may exist between batches such as visible stamped head markings and thread lengths
Manufactured to ISO 7379
A Tax Invoice will be included with every order
Need help? message us through eBay
If you are looking for another type, diameter, length, width, material or pack size use the store search box on our store page

Specification

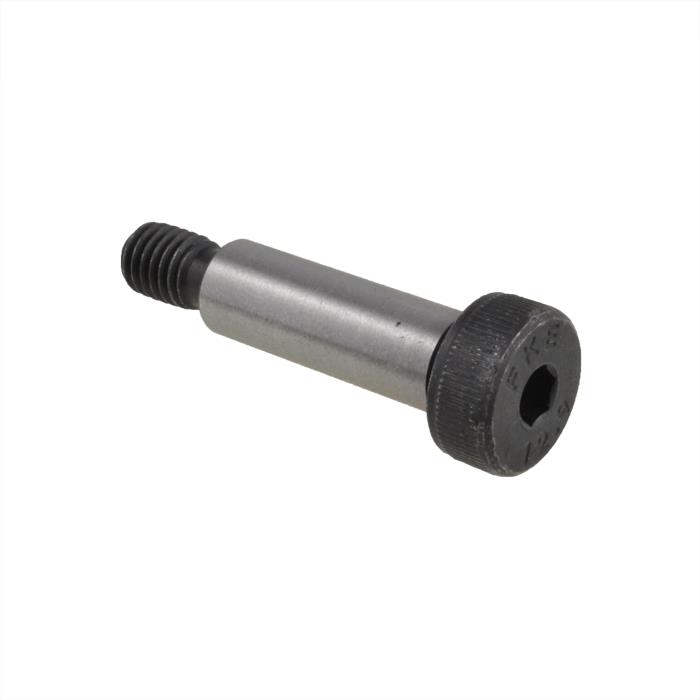

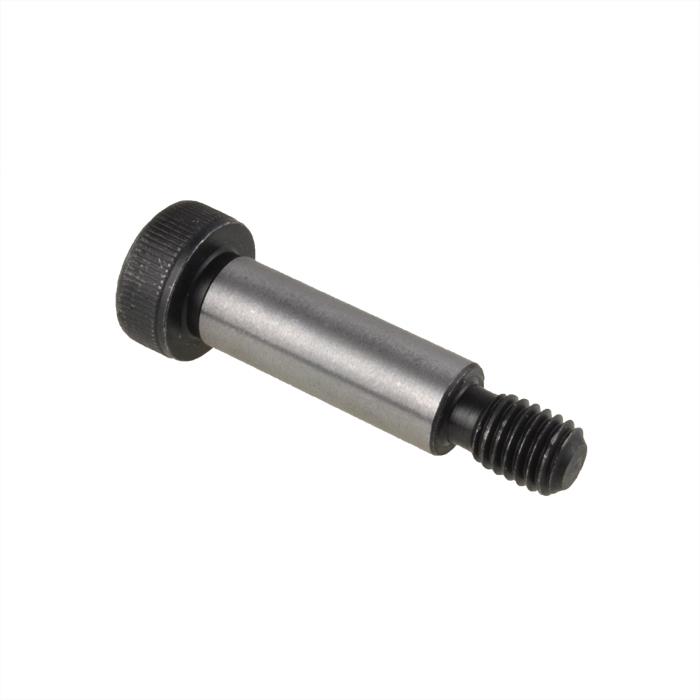

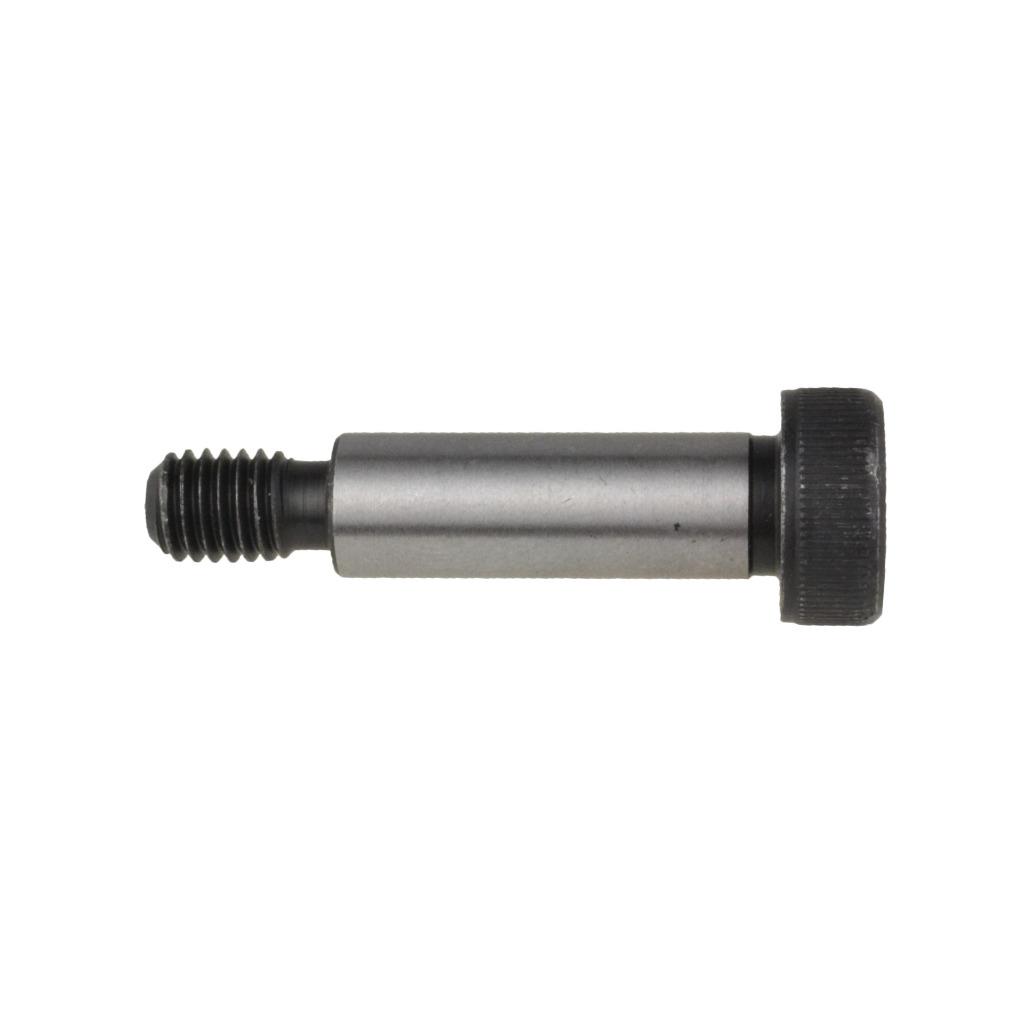

Product	Socket Shoulder Screw
Head Type	Socket Cap
Shoulder Diameter	M16 (16mm)
Thread Size	M12 (12mm)
Thread Pitch	1.75mm
Thread Type	Metric Coarse
Thread length APPROX	18.40mm
Shoulder Length - from under the head APPROX	25mm
Shoulder Diameter APPROX	15.94 ~ 15.98mm
Head Diameter APPROX	23.67 ~ 24mm
Head Height APPROX	10.00mm
Wrench Key Size	8mm
Material	Alloy Steel
Grade	12.9
Finish	Plain - Not Coated
Brand - Our Discretion	Brighton Best / Hobson / Bremick
Pack quantities available for this product	1, 2, 5, 10, 20, 30, 50
