Features
  • Worldwide voltage input 110 - 240VAC.
  • Indoor use only.
  • With Backup Battery Link, support add external battery. External battery specifications: 12V rechargeable lithium battery (Battery is not included)
  • Low noise design with ripple as low as 85mVp-p.
  • Compatible with electric lock, access controller, exit push button and intercom camera.
  • Can reduce the load of access controller and save wiring to reduce the hidden trouble.
  • Based on relay control circuit, lock time can be adjusted from 0 to 15 seconds.
  • Automatic protection function for dangerous situations, such as, overload, over voltage and short circuit.
  • Protection mechanism: Power will be disconnected temporarily or the fuse will be insured automatically.
  • A short circuit (flow) protection: When the output circuit is short-circuited, it will be automatically disconnected and will automatically return to normal state when troubleshooting.
Specifications
Input Voltage 110-240VAC (Worldwide voltage) Input Frequency 50-60Hz
Output Voltage 12VDC/3A Power 36W
Time Delay 0-15 seconds Operating Temperature -20℃~60℃ (-4℉~140℉)
Operating Humidity 10%-90%RH Material of Enclosure Aluminum Alloy
Finish Spray Enclosure Dimensions 4-29/64"x3-5/64"x1-17/64" (113x78x32mm)
Product Weight 207g (7.3oz) Enclosure Color
 Gray
Backup Battery Type 12V rechargeable lithium battery
Details

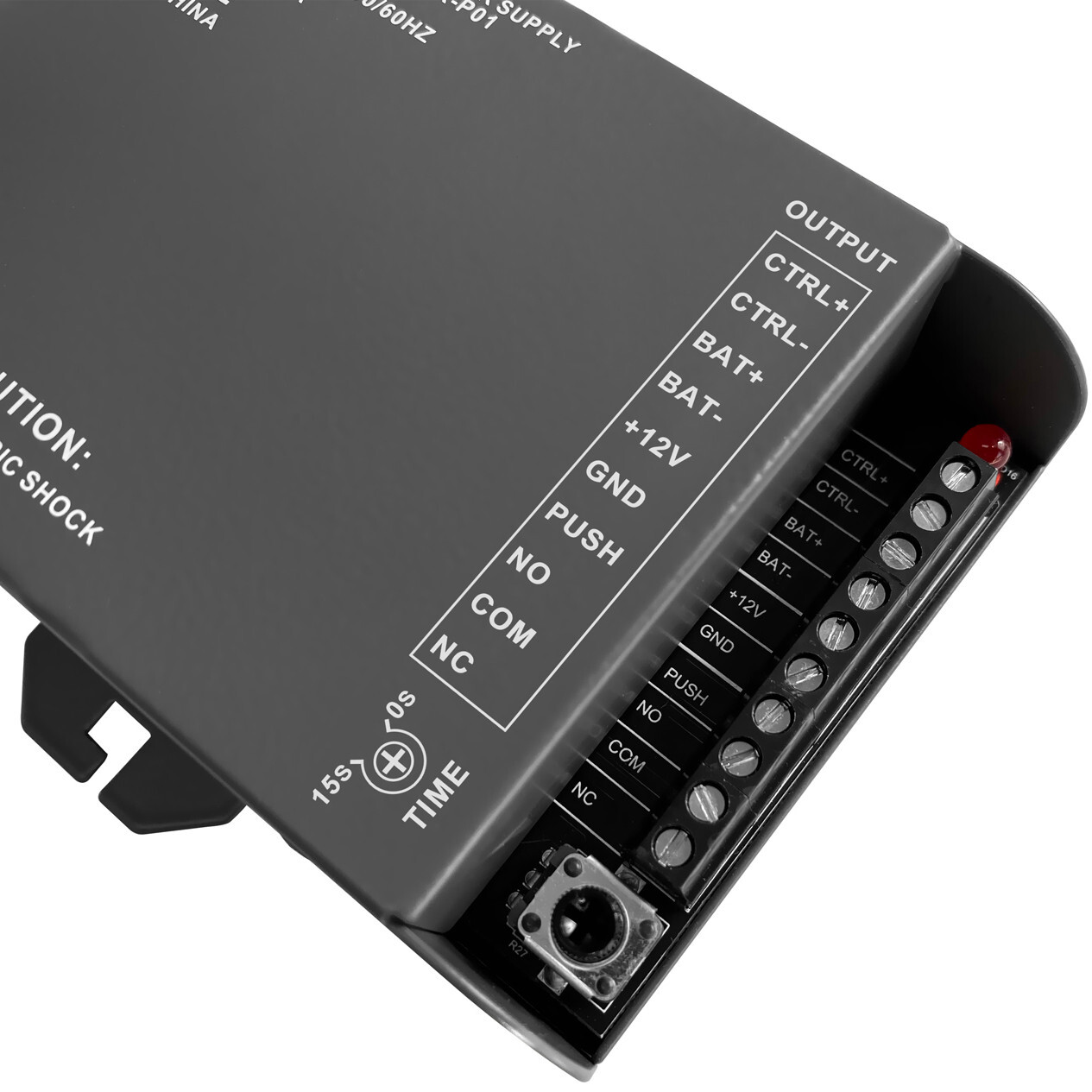

  • Contact Output:
  • Set NC/NO outputs, can control various types of electric locks
  • Compatible with electirc lock, access controller, exit push button and RFID reader

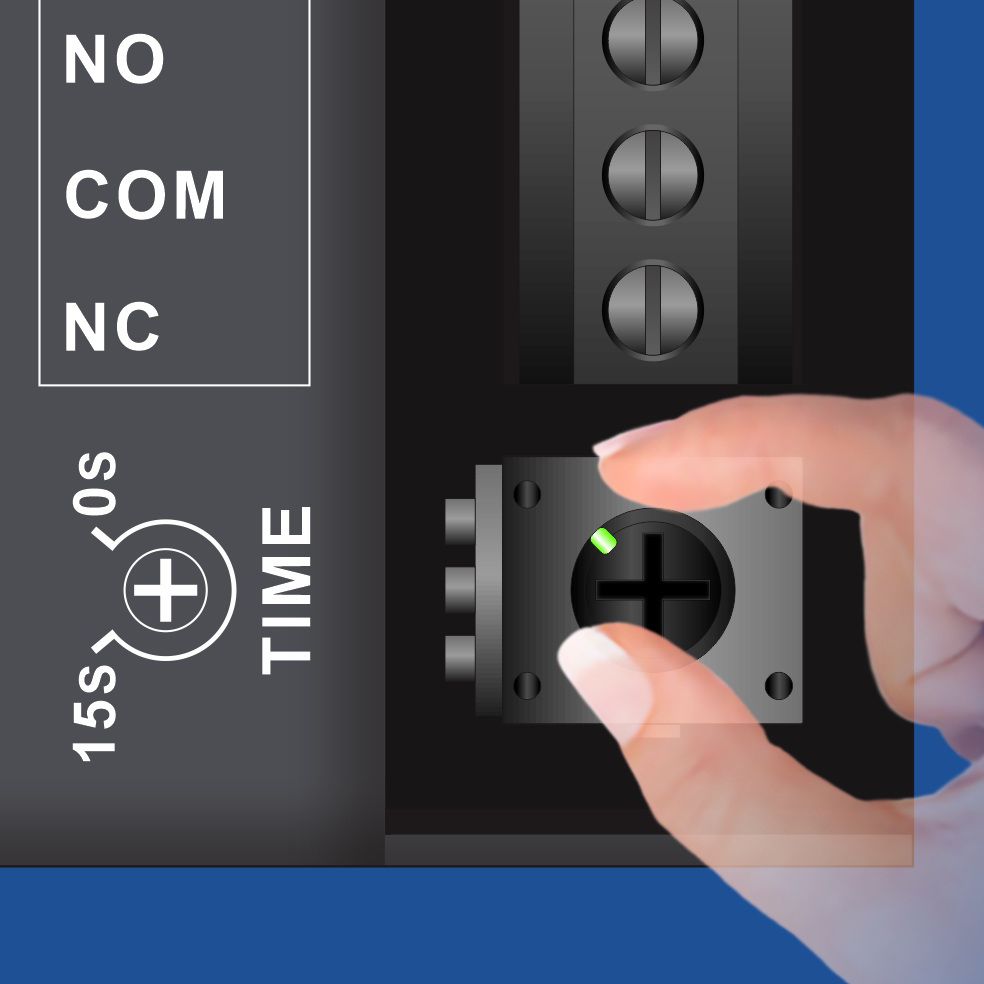

  • Locking Time Can Be Adjusted:
  • The rotary button is used to adjust the locking time and the locking time can be adjusted from 0 to 15 seconds.

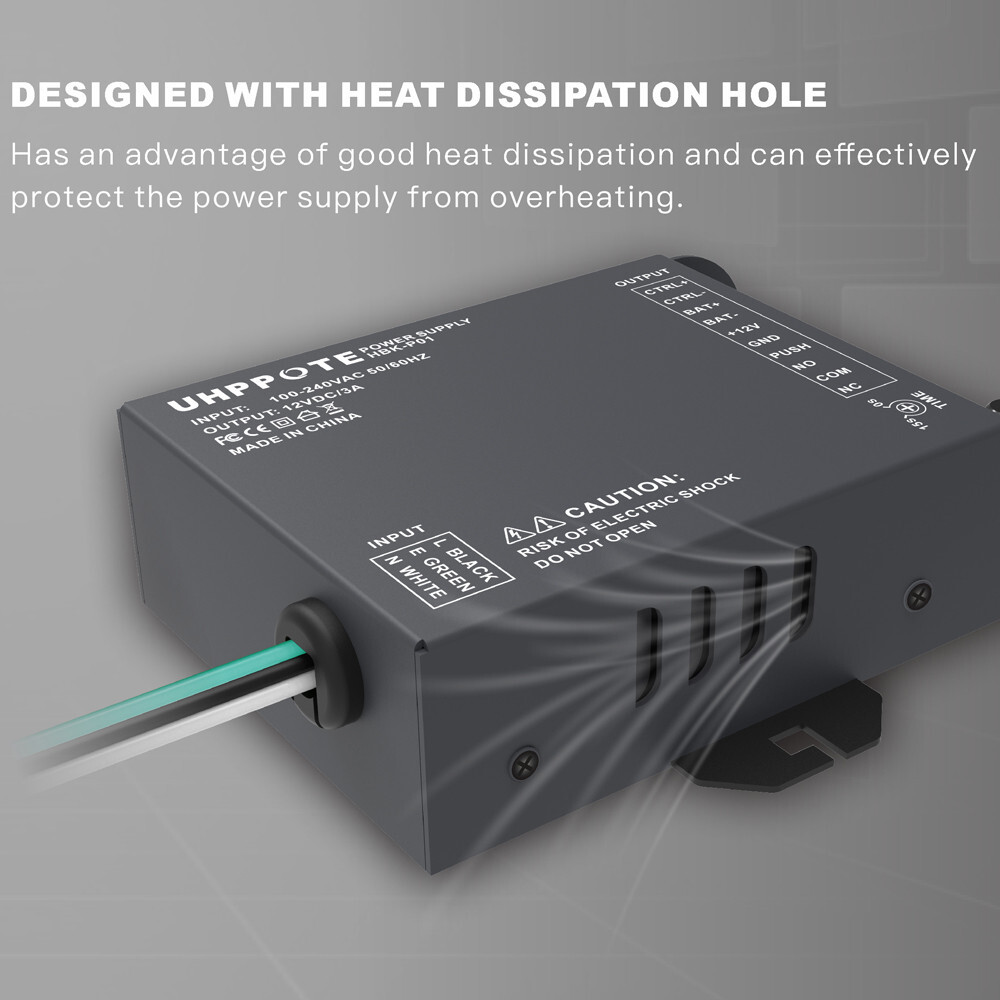

  • Good Heat Dissipation:
  • Designed with heat dissipation hole. It has an advantage of good heat dissipation and can effectively protect the power supply from overhearting.
  • The enclosure is made of high quality aluminum alloy, light weight and good heat dissipation.
Wiring Diagram
Demo Video
Note
  • Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down
Package List
  • 1 x Power Supply
  • 1 x User manual (English)
