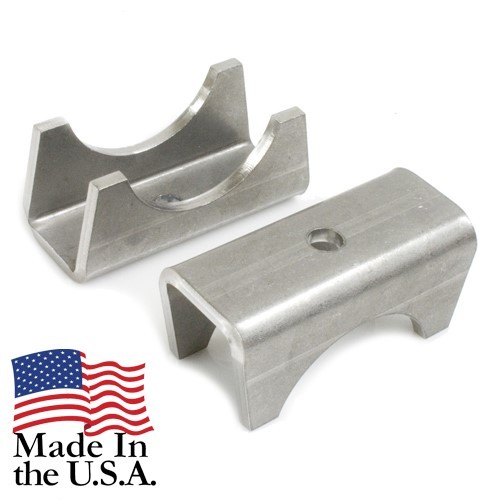

2.0" Wide Leaf Spring Axle Perch Brackets

Description:

These leaf spring perch brackets are perfect for that custom hot rod, off road project or to repair a damaged leaf spring axle perch bracket. Laser cut from 1/4" thick steel plate and then cold formed on a 140 ton hydraulic press. These leaf spring axle perch brackets are a top notch quality product. Ready to weld onto your next axle project. MADE IN U.S.A. locally right here in California -  Not an over-seas piece of junk.

Condition:

NEW in Package - Item is bare steel, perches need to be WELDED onto the axle housing. "U" bolts alone are not enough!

Dimension (picture below):

• Material - 1/4" Steel
• Dim A - 1/2" Diameter - (.520)
• Dim B - 2.0"
• Dim C - 2.0"
• Dim D - 3.0"
• Dim E - 7/8" - (.900)
• Dim F - 4-1/2" (4.50")

Includes:

• 2 Brackets - 1/4" Thick Material
• Center Alignment Hole 1/2" [.520]

Applications:

• 3" Axle Housings x 2.0" wide leaf springs
• Will work with 1/2" or smaller leaf spring alignment pins

Part # SSM-LSAP-200
