Product Overview

This hydraulic lifting controller kit comes with an FSK frequency hopping V2 2-key remote controller, adopting GFSK signal transmission. It supports both manual and wireless remote operation, plus limit switch protection. Wide AC input voltage from 85V to 380V, ideal for hydraulic lifting equipment.

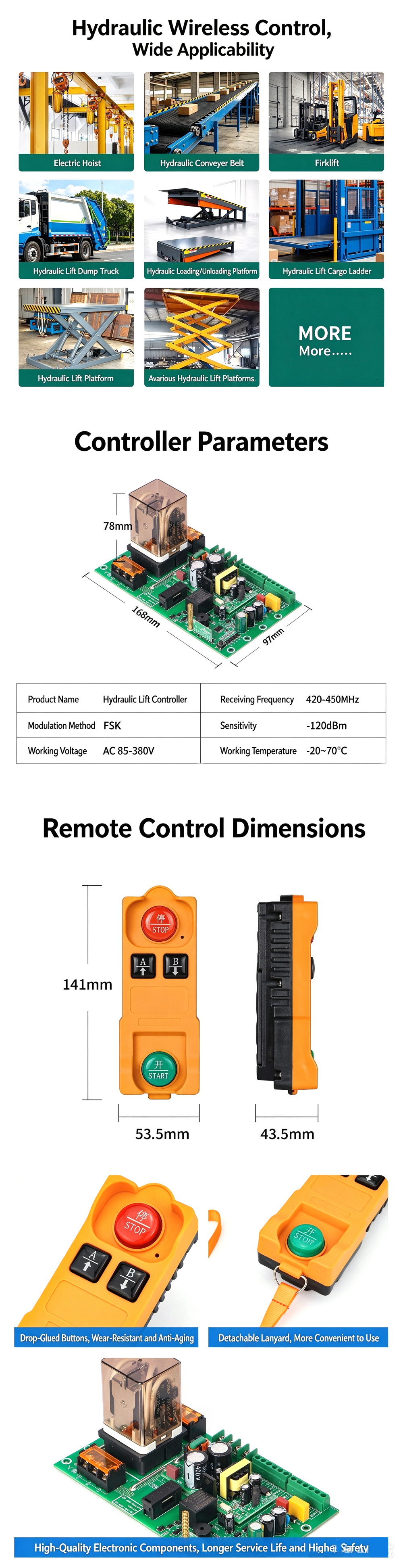

Specifications

2-Key FSK Frequency Hopping Remote Controller

  1. Operating Frequency: 420–450MHz
  2. Battery: 2 × 1.5V AA batteries (not included)
  3. Modulation: GFSK
  4. Encoding: Custom encoding
  5. Housing Material: ABS
  6. Dimension: 140 * 53.5 * 44mm
  7. Net Weight: 160g

Hydraulic Lifting Controller Main Board

  1. Operating Frequency: 420–450MHz (Frequency Hopping)
  2. Input Voltage: AC85V ~ AC380V
  3. Working Mode: Jog & Interlock function, relay output
  4. Standby Current: ＜20mA
  5. Output Type: Live terminal output
  6. Control Modes: Remote Control + Manual Button + Limit Switch
  7. Working Temperature: -20℃ ~ 70℃, stable performance under harsh temperature conditions

Notes

  1. Do NOT apply voltage beyond the rated power range, otherwise the controller will be damaged.
  2. Keep the product away from children.
  3. The remote control distance may be shortened under strong wireless interference environments.
  4. Do not use this controller in wet or humid surroundings, moisture will damage the circuit board.

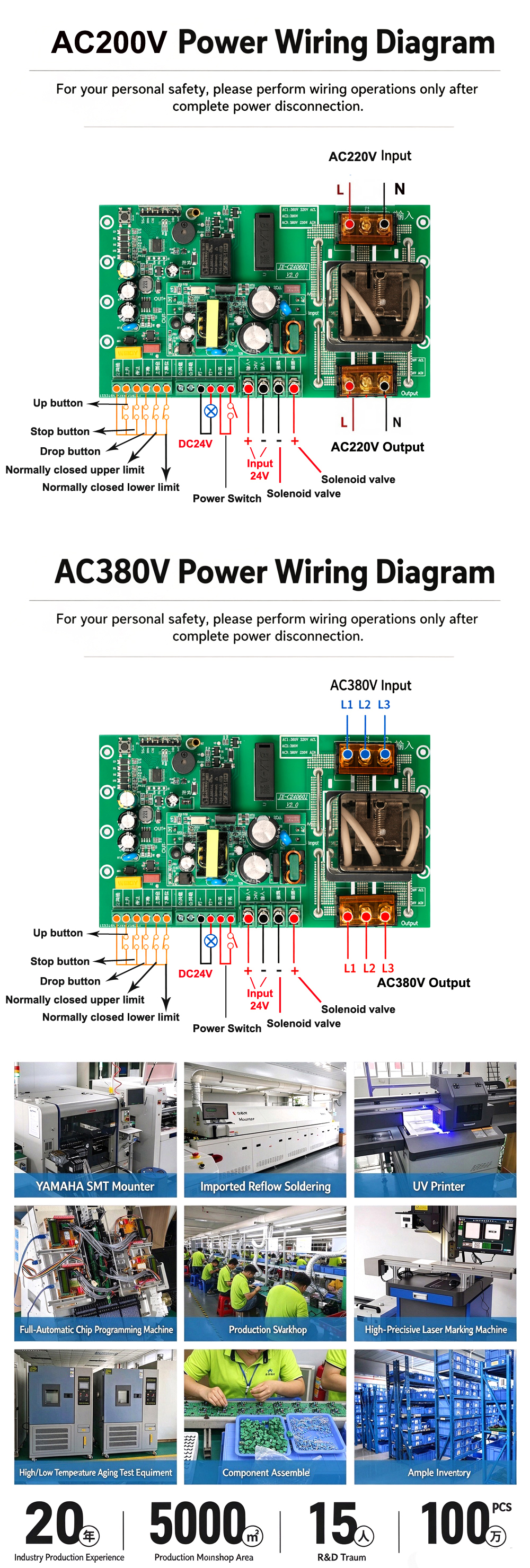

  5. ⚠️ Safety Reminder: Cut off all power before wiring to avoid electric shock hazard.
