All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Application

For Suzuki Sidekick (1996–1998) – Fits G16A / G16B 1.6L engine
For Suzuki Esteem (1992–1997) – Fits G16A / G16B 1.6L engine
For Suzuki Vitara (1999–2002) – Fits G16B 1.6L engine
For Suzuki X-90 (1996–1998) – Fits G16A / G16B 1.6L engine
For Suzuki Escudo (TA01R-3 / TA01-2 / TD0W-2, 1990–) – Fits G16A engine
For Suzuki Cultus (ST413, 1990–) – Fits G16A engine
For Suzuki APV (2005–Present) – Fits G16A engine
For Suzuki Baleno (1995–2002) – Fits G16B engine

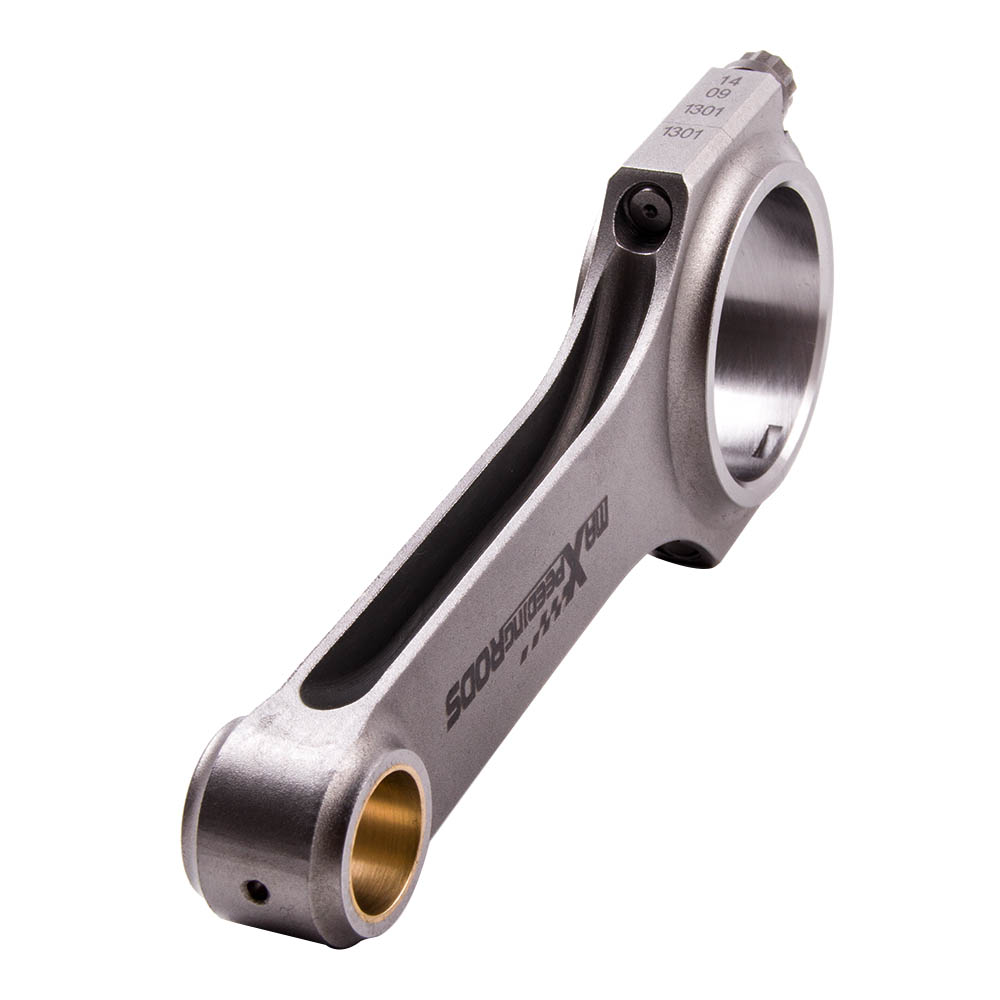

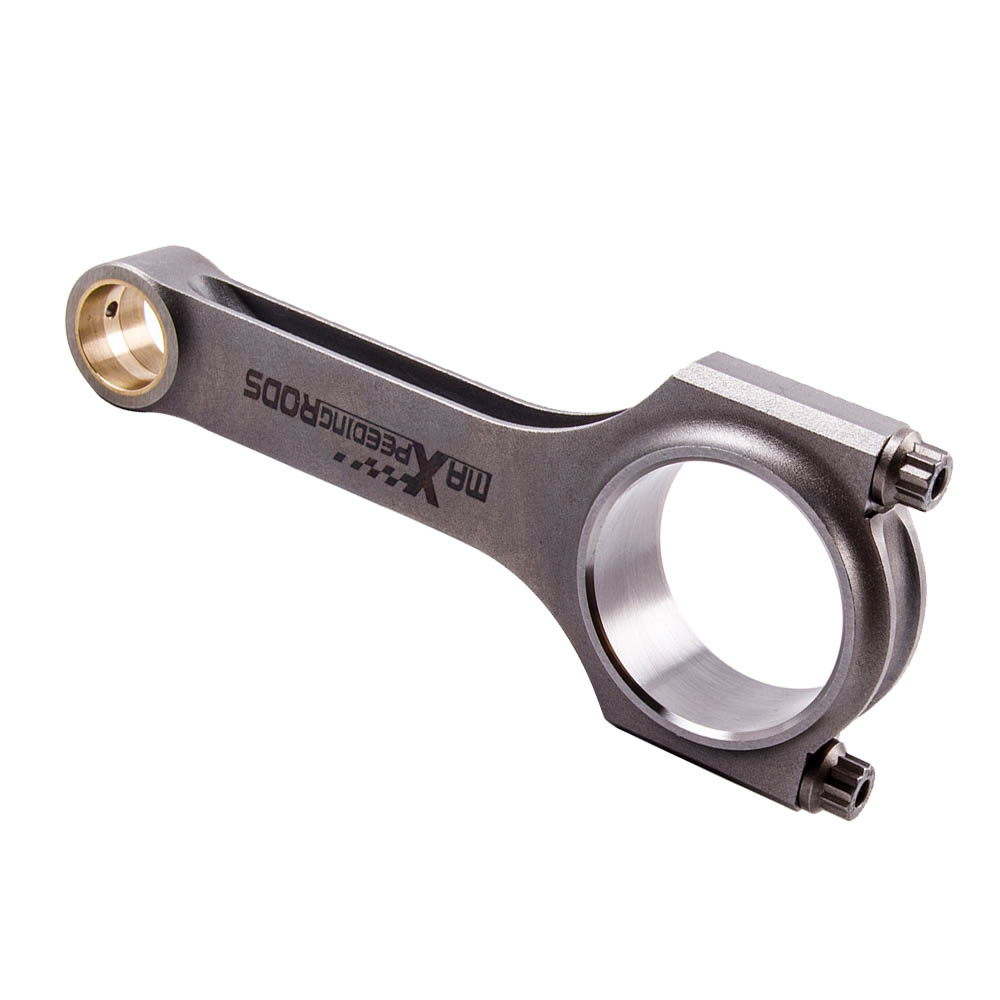

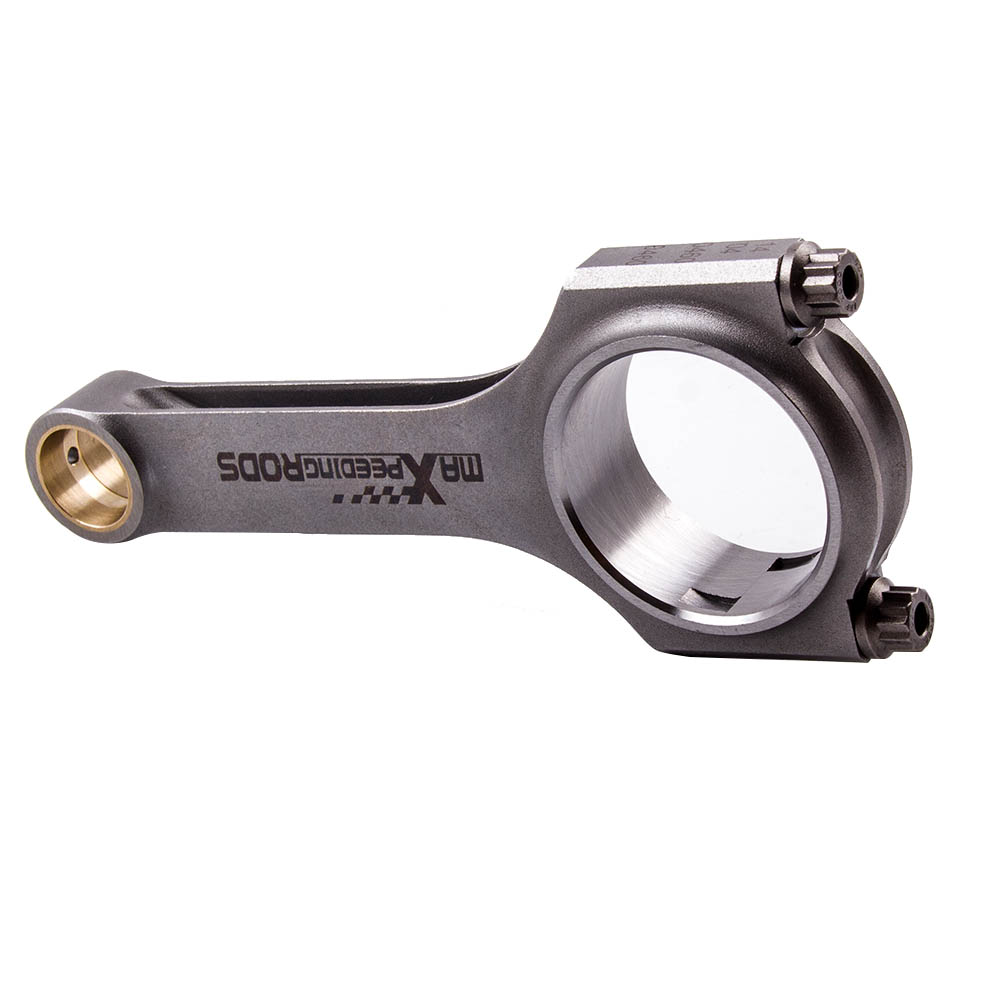

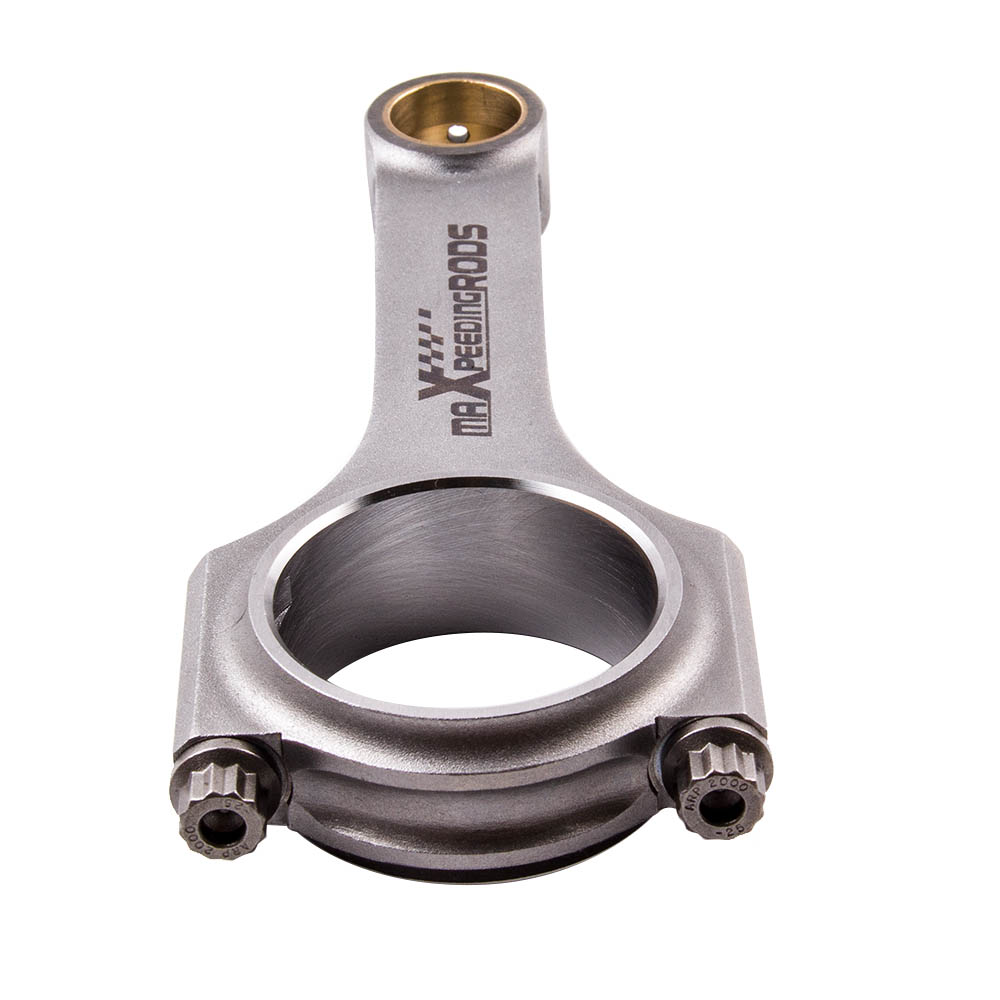

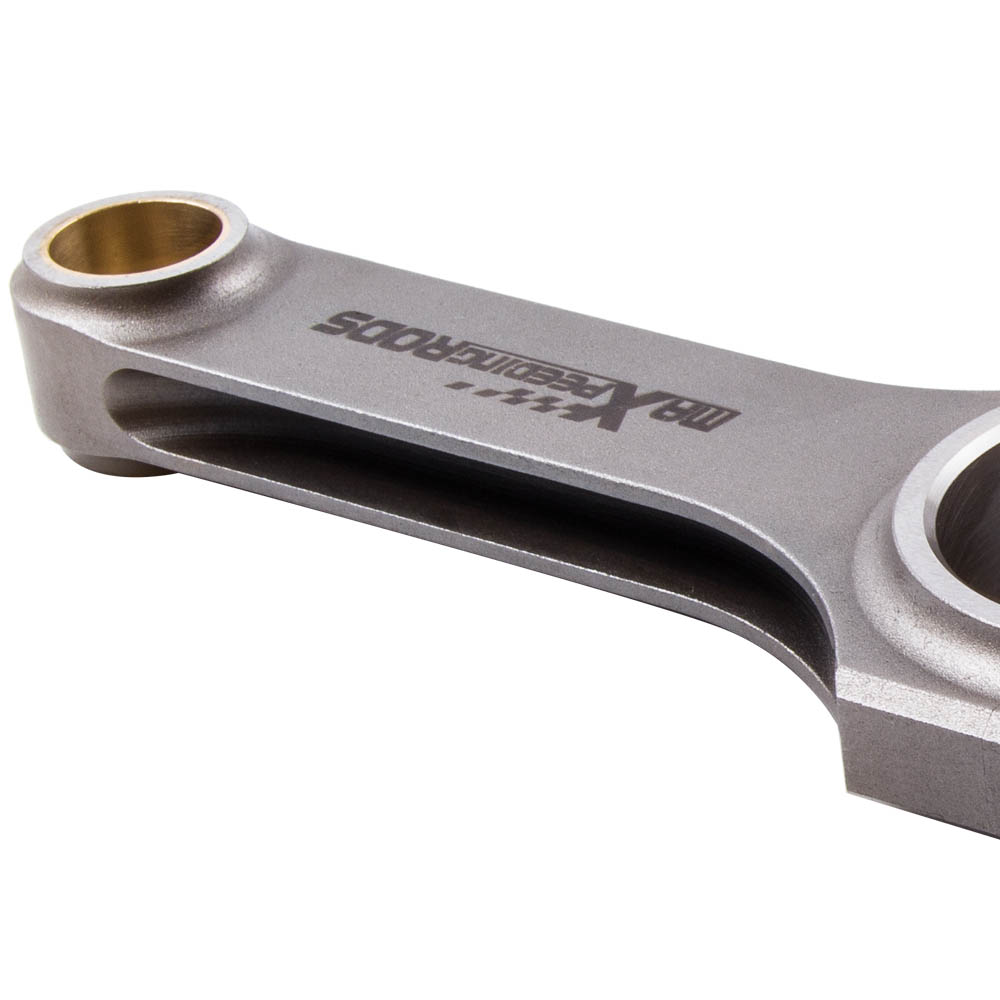

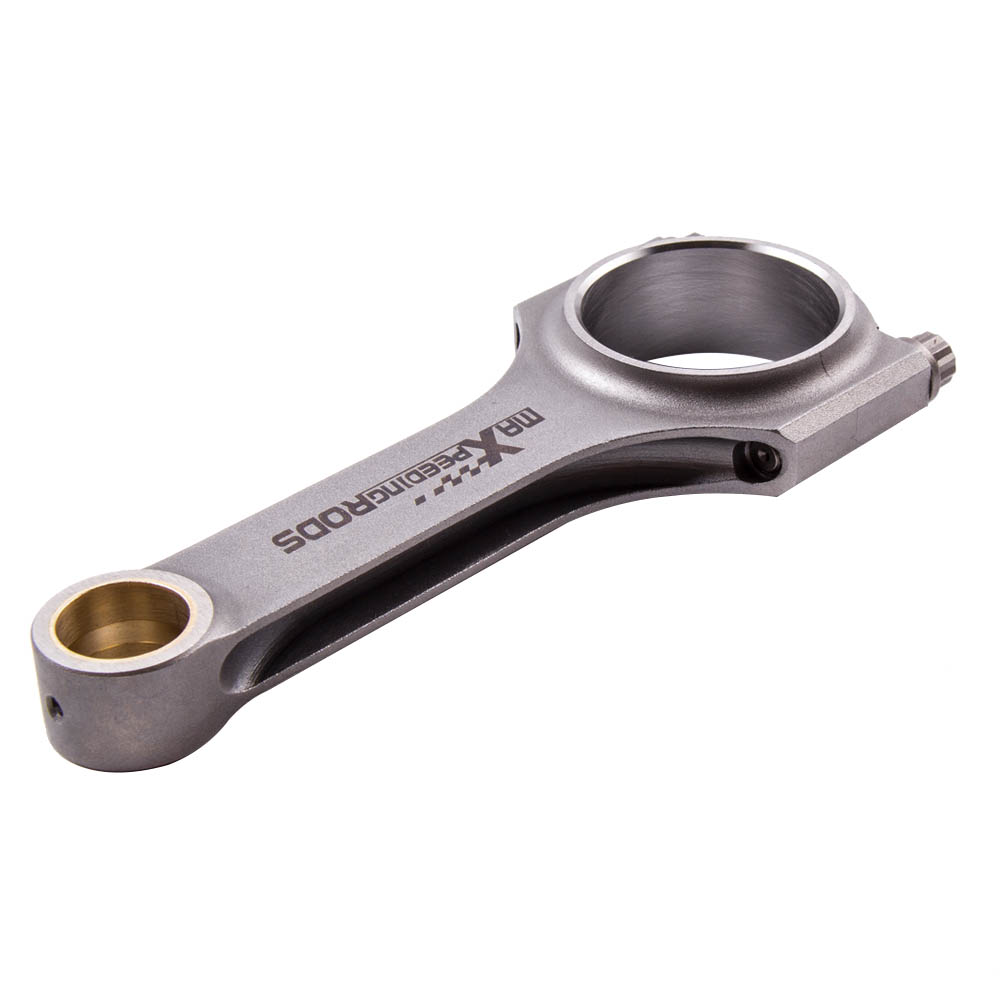

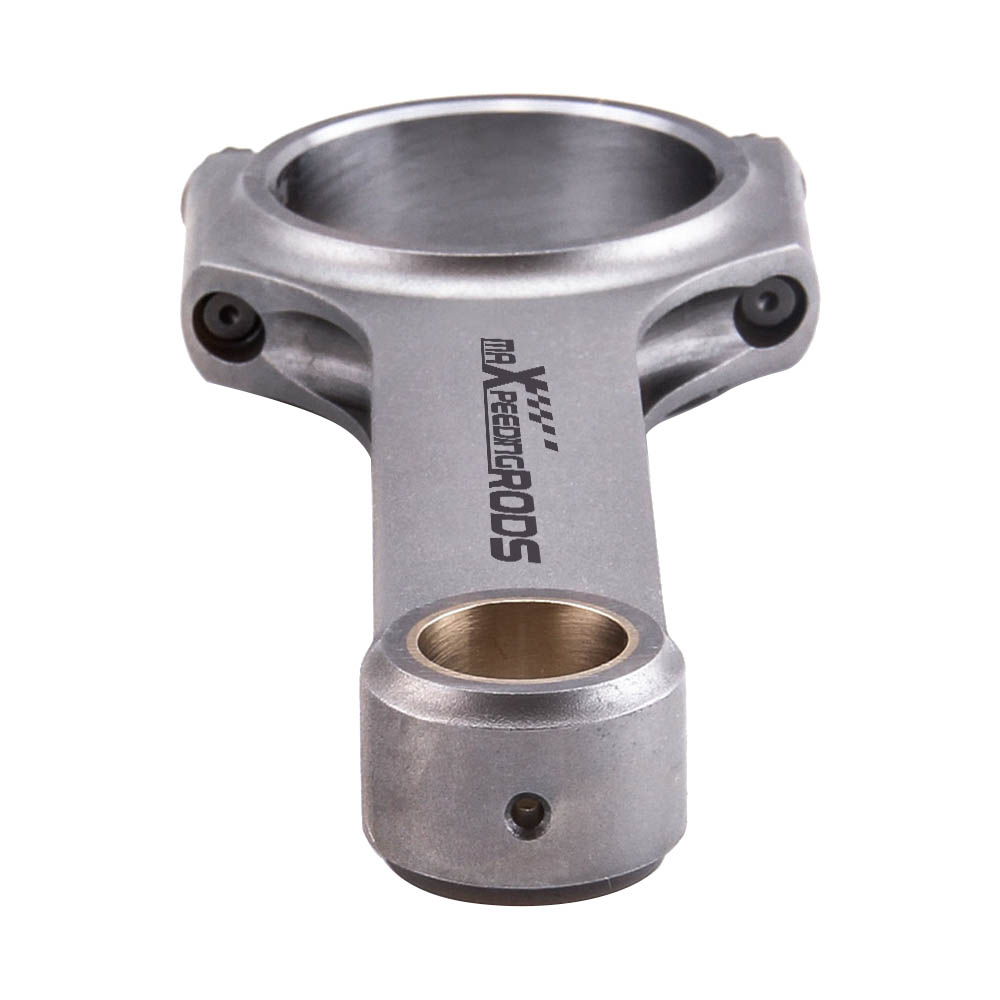

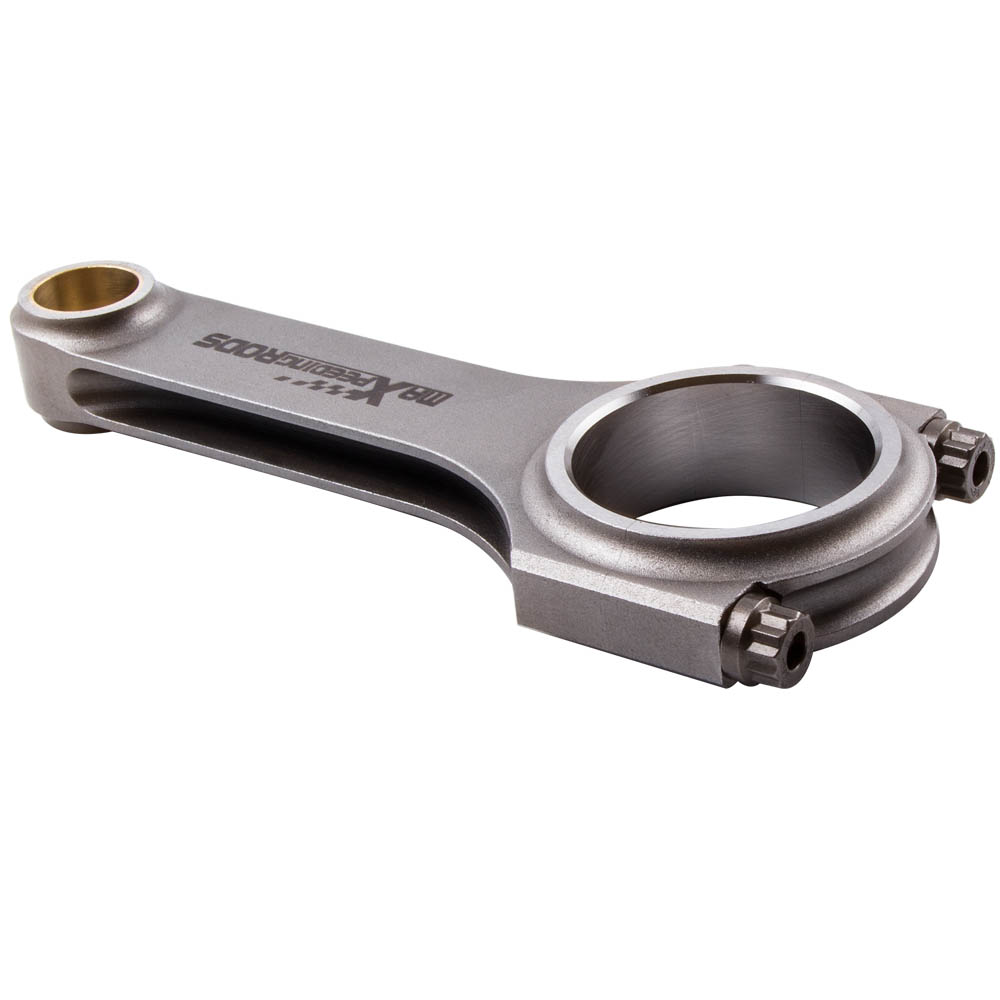

Dimension

Connecting Rod Length Center to Center: 139.50mm/5.492in
Approximate Connecting Rod Weight:473g
Big End Bore Diameter: 47.00mm/1.850in
Pin End Bore Diameter: 19.00mm/0.748in
Big End Width: 22.00mm/0.866in
Small End Width: 22.00mm/0.866in

Specification

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

Performance Ratings

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9000rpm

Packaging

Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM
