All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Notice:

Pick up service is not available.

Specification

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

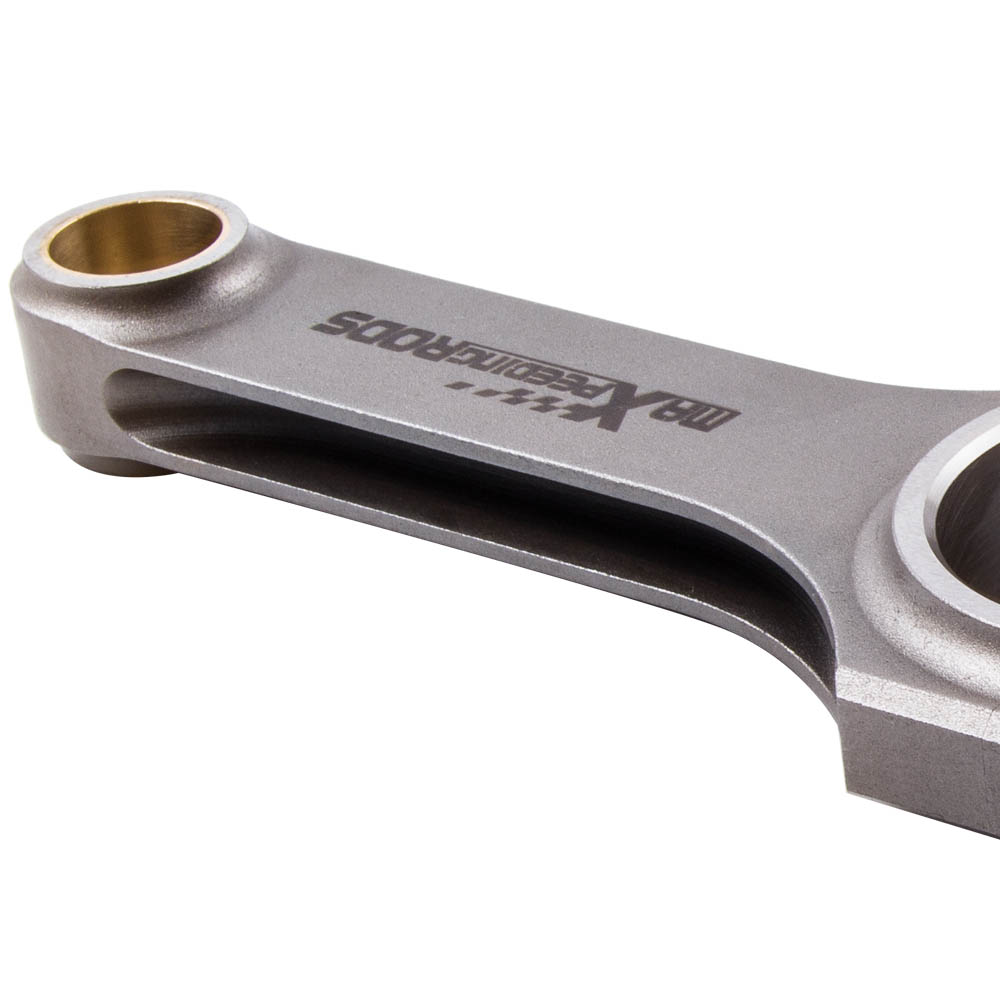

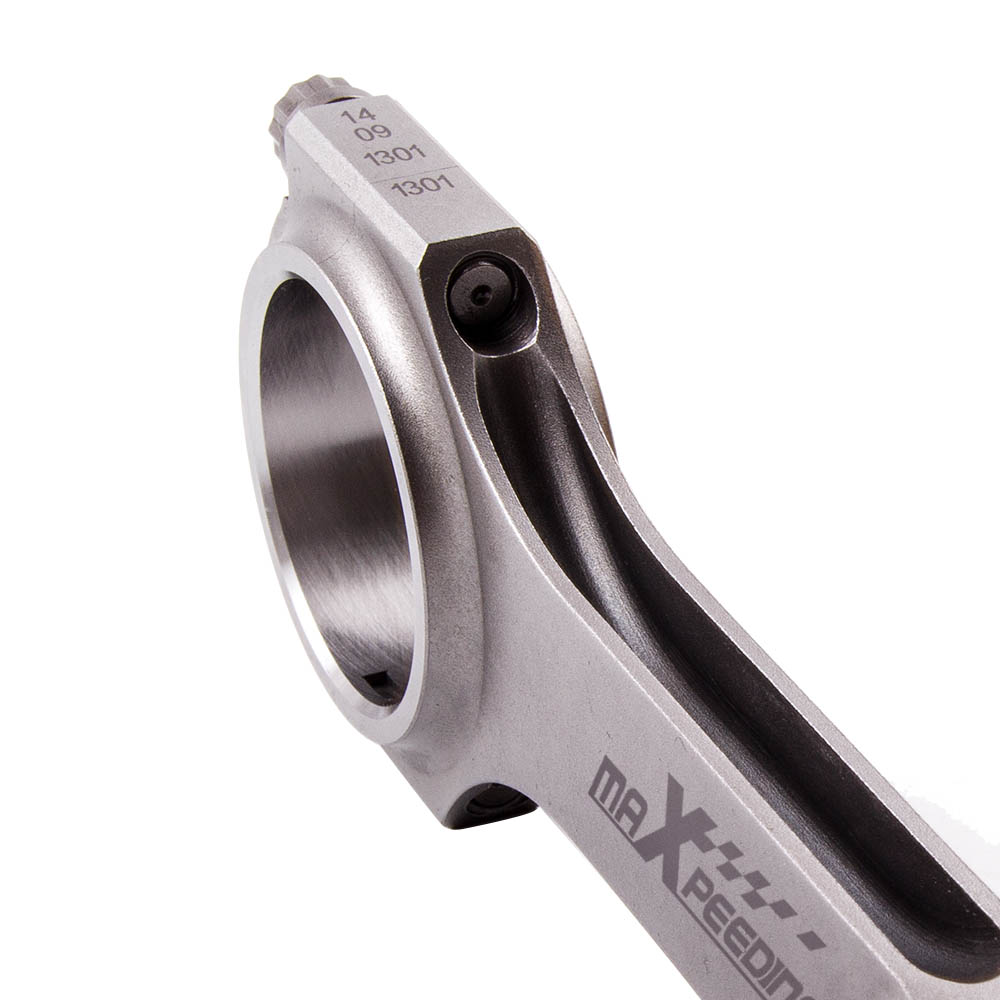

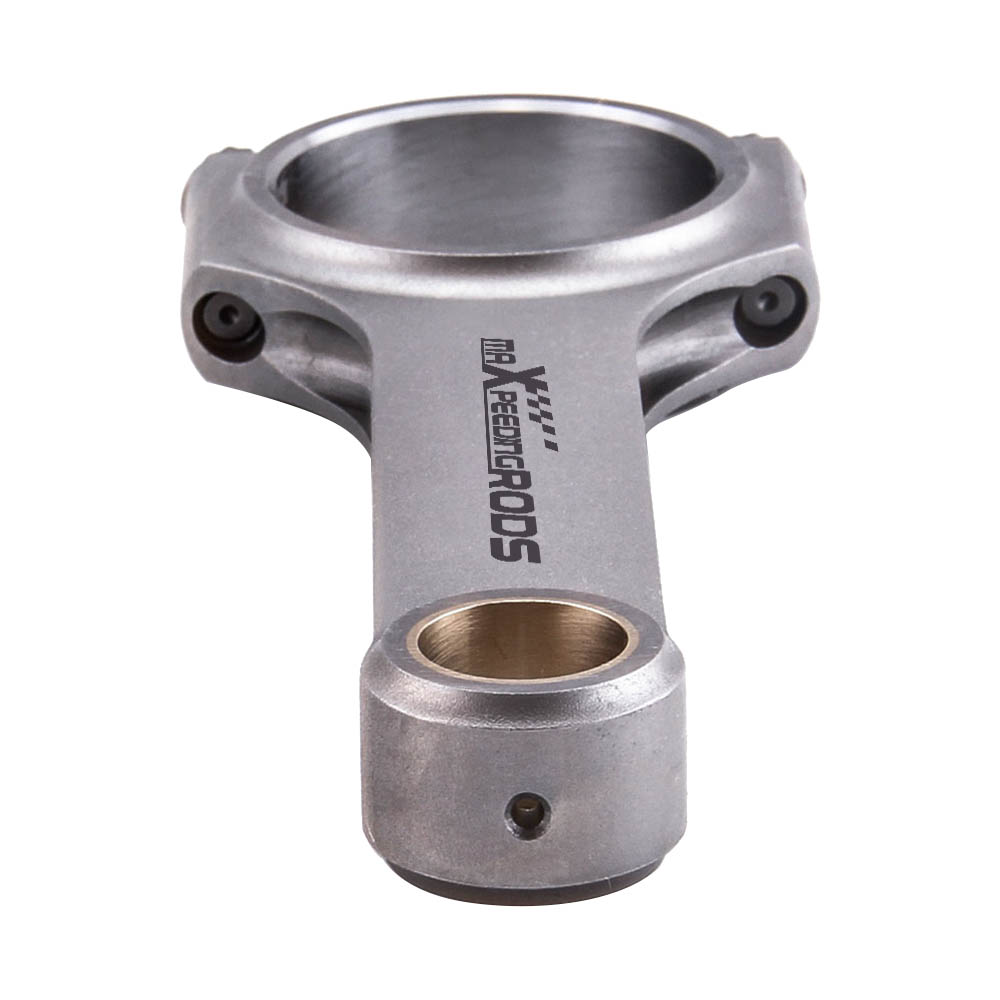

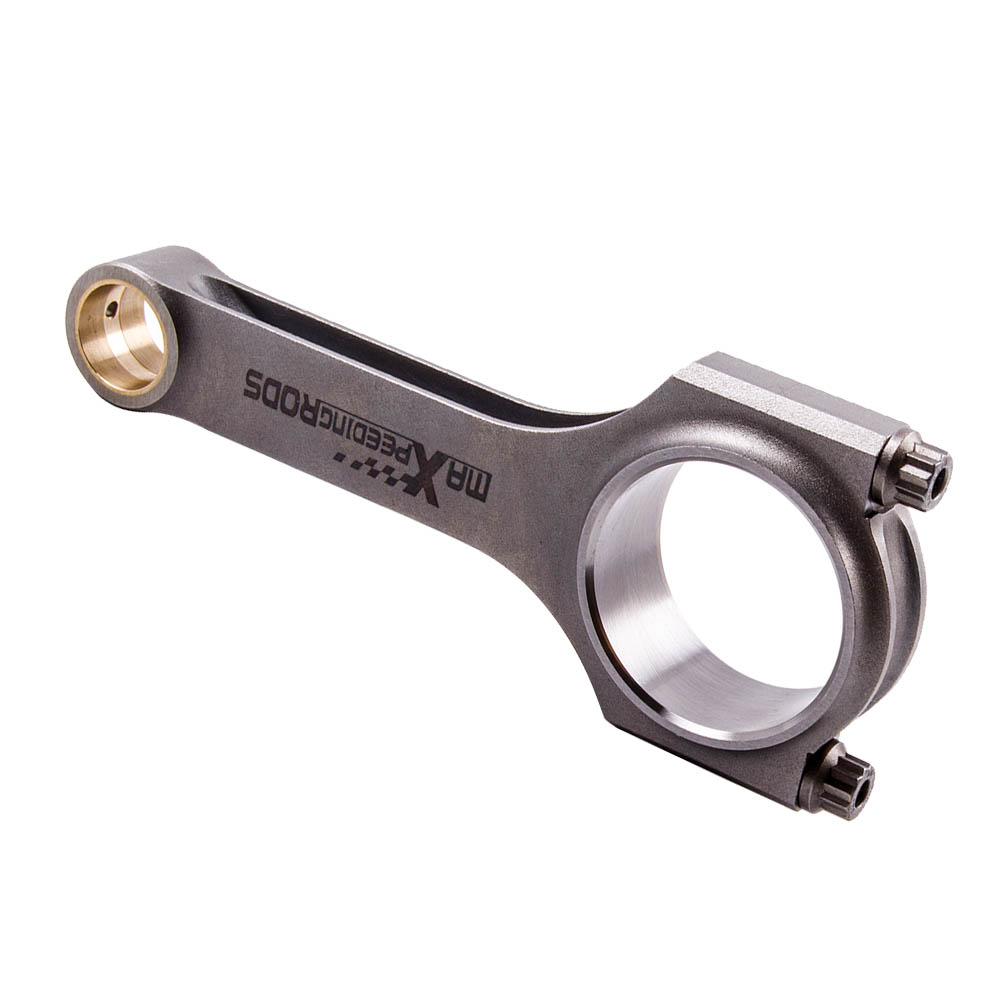

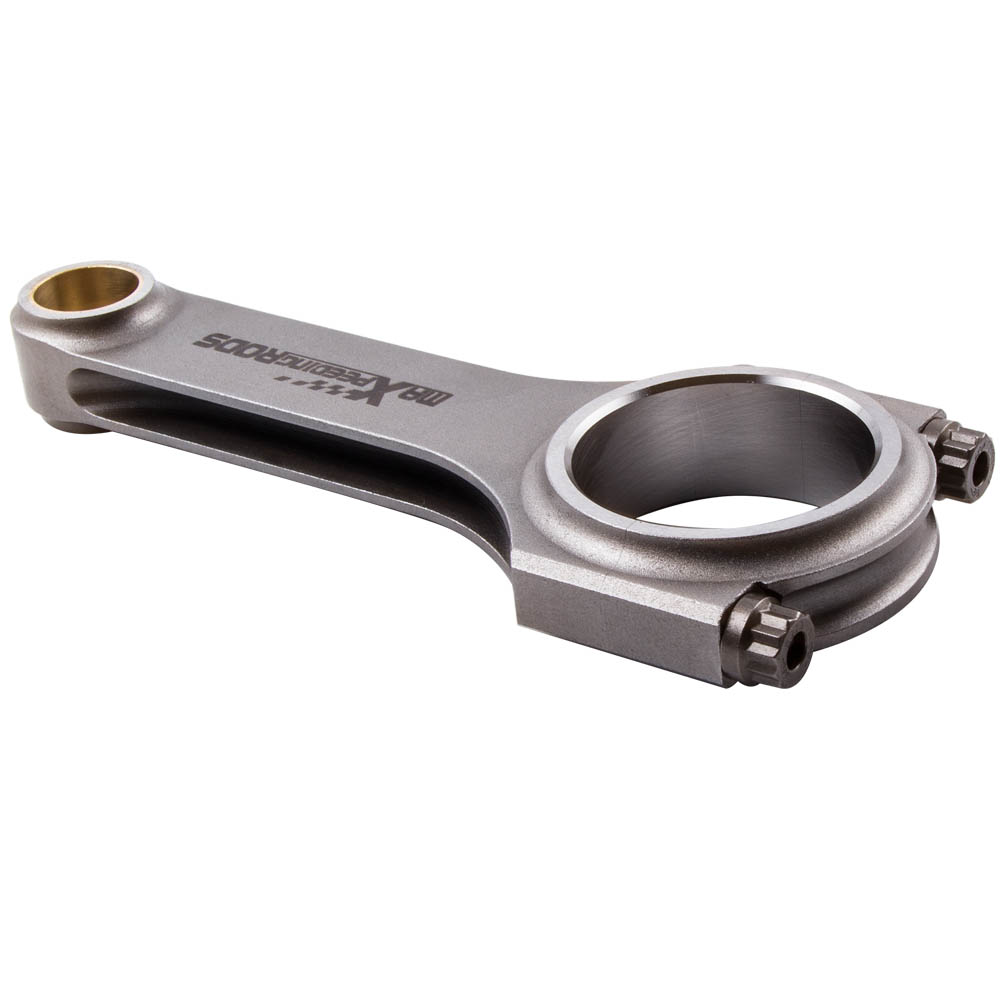

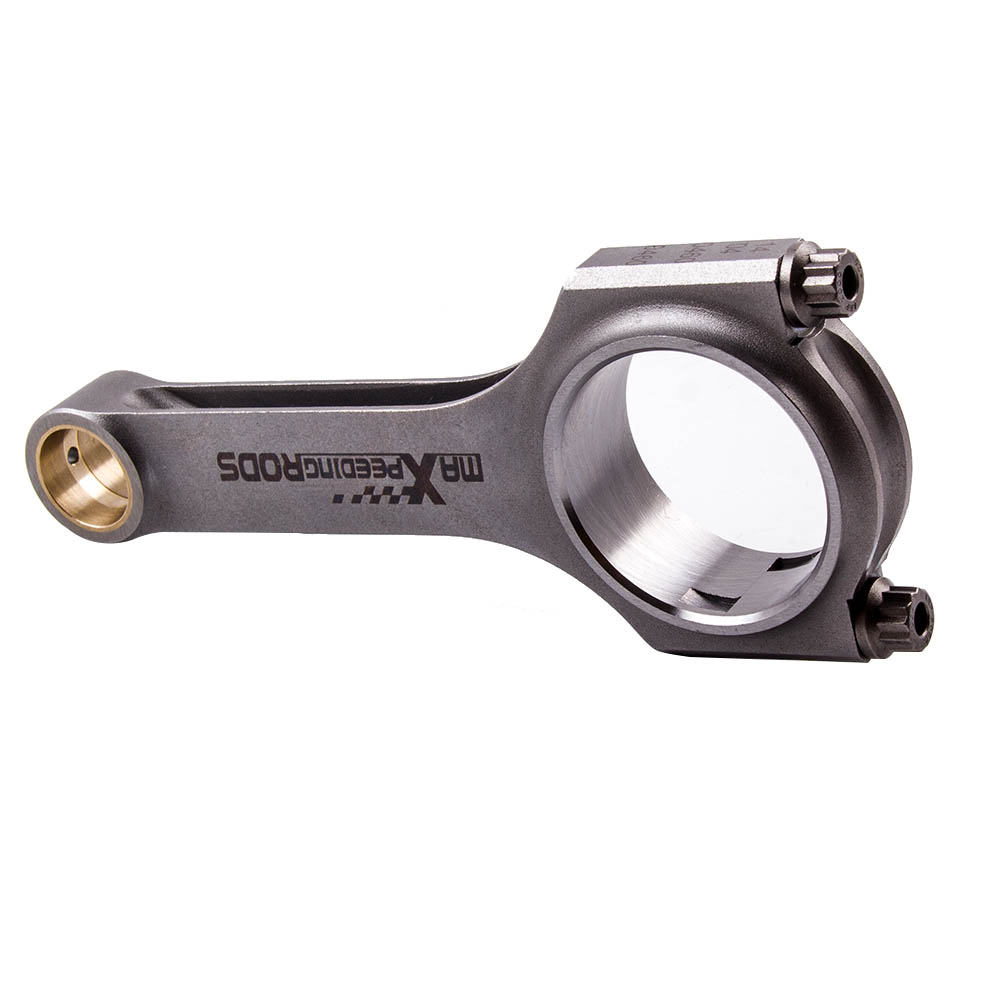

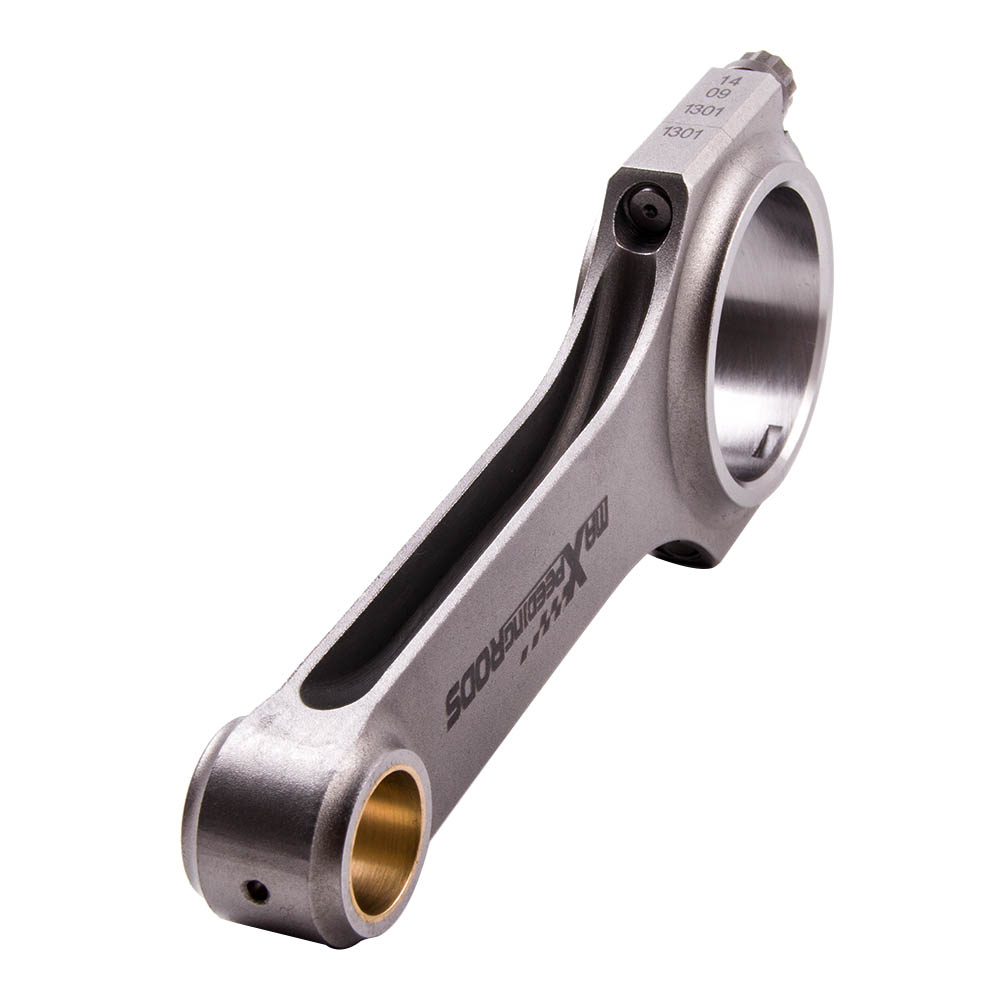

Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set

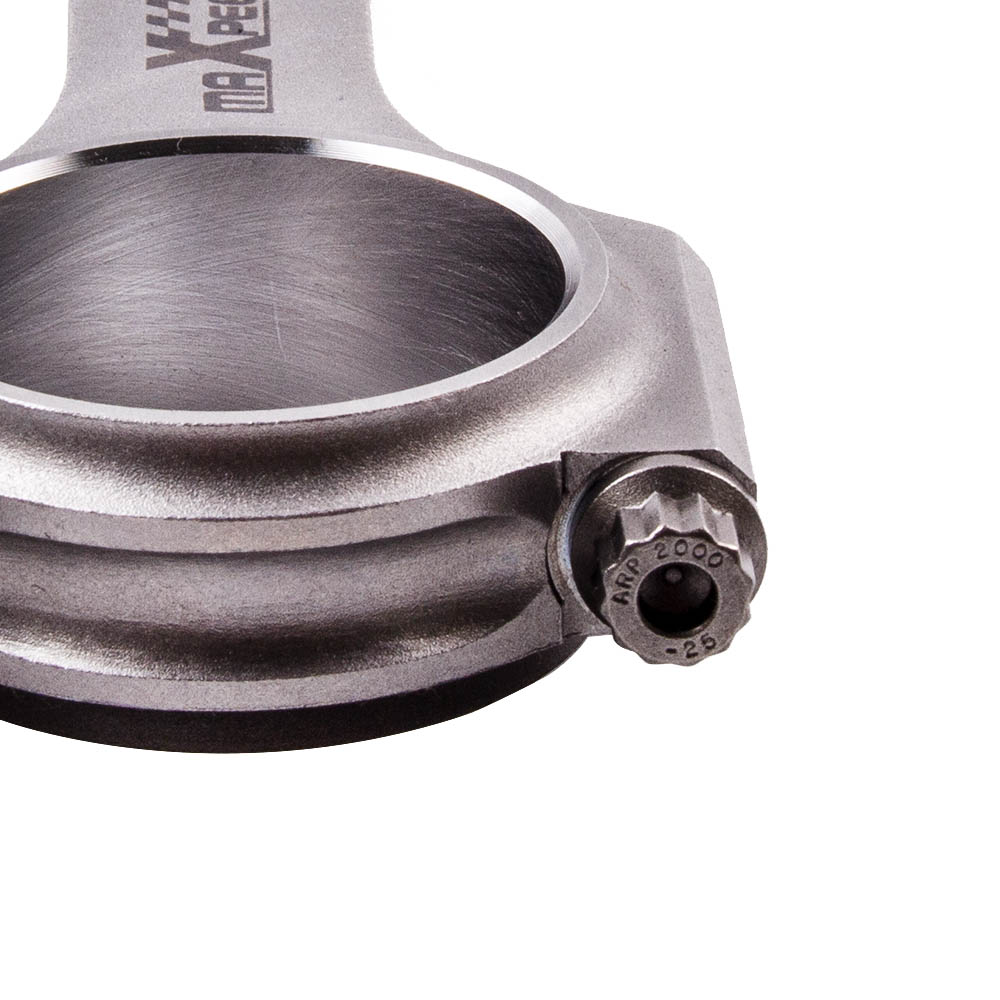

Bolts:Including ARP 2000 3/18" bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 5/16" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 200,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000-9000rpm
warranty: 2 years warranty for any manufacturing defect

Applications

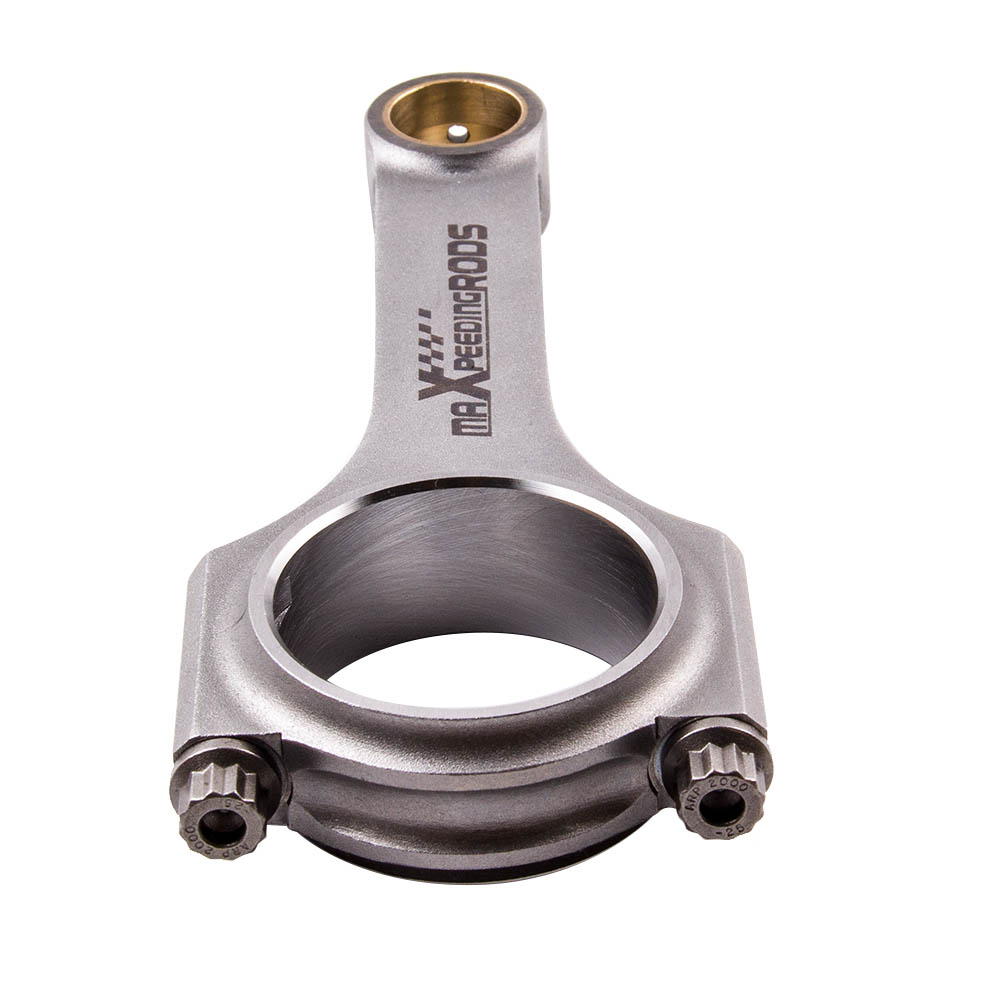

For Toyota Tacoma Hilux 2RZFE 2.4L

Dimensions

Center to center length: 135mm
Big end diameter:56mm
Small end diameter: 24mm
Big end width: 25.8mm
Small end width: 25.8mm

Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
-Designed and processed by CNC machine.
-All big and small ends are finished with SUNNEN honing machine
-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
-100% X-rayed, sonic tested and magnafluxed
-Multi-stage heat treated
-Shot peened to relieve stress
-Come with the bronzed bushing suitable for the floating piston pin


Important Notice
* Professional installation is highly recommended (No Instruction Included)
