Monarch 6235-011 PLS Pocket LED Stroboscope Kit

Model: 6235-011 | Order No:6235-011

Compact, rugged, light weight device that provides a super bright, uniform light output.
Brand: Monarch
Model: 6235-011
Order No: 6235-011
Condition: NEW
Description

Monarch 6235-011 PLS Pocket LED Stroboscope Kit

The PLS Pocket LED Stroboscope is a compact, rugged, light weight device that provides a super bright, uniform light output for performing visual diagnostic inspection and RPM measurements. The silent cool running LED's are extremely energy efficient providing up to 5 hours of operation on a single charge. The PLS has a wide operating range of 30-300,000 flashes per minute which covers most industrial applications. Additional features include external input for remote triggering or tachometer mode, pulse output, memory for up to 5 preset flash rates, NIST calibration certificate, tachometer mode for speed measurements up to 300,000 RPM using optional remote sensors and TTL pulse output.

Features

  • intuitive one hand operation
  • Extremely bright, uniform light
  • Quiet/Cool operation
  • Digital LCD backlit display
  • Compact size, long battery life
  • Tripod mounting bushing (¼-20)
  • No lamp replacements
  • NIST Certificate included

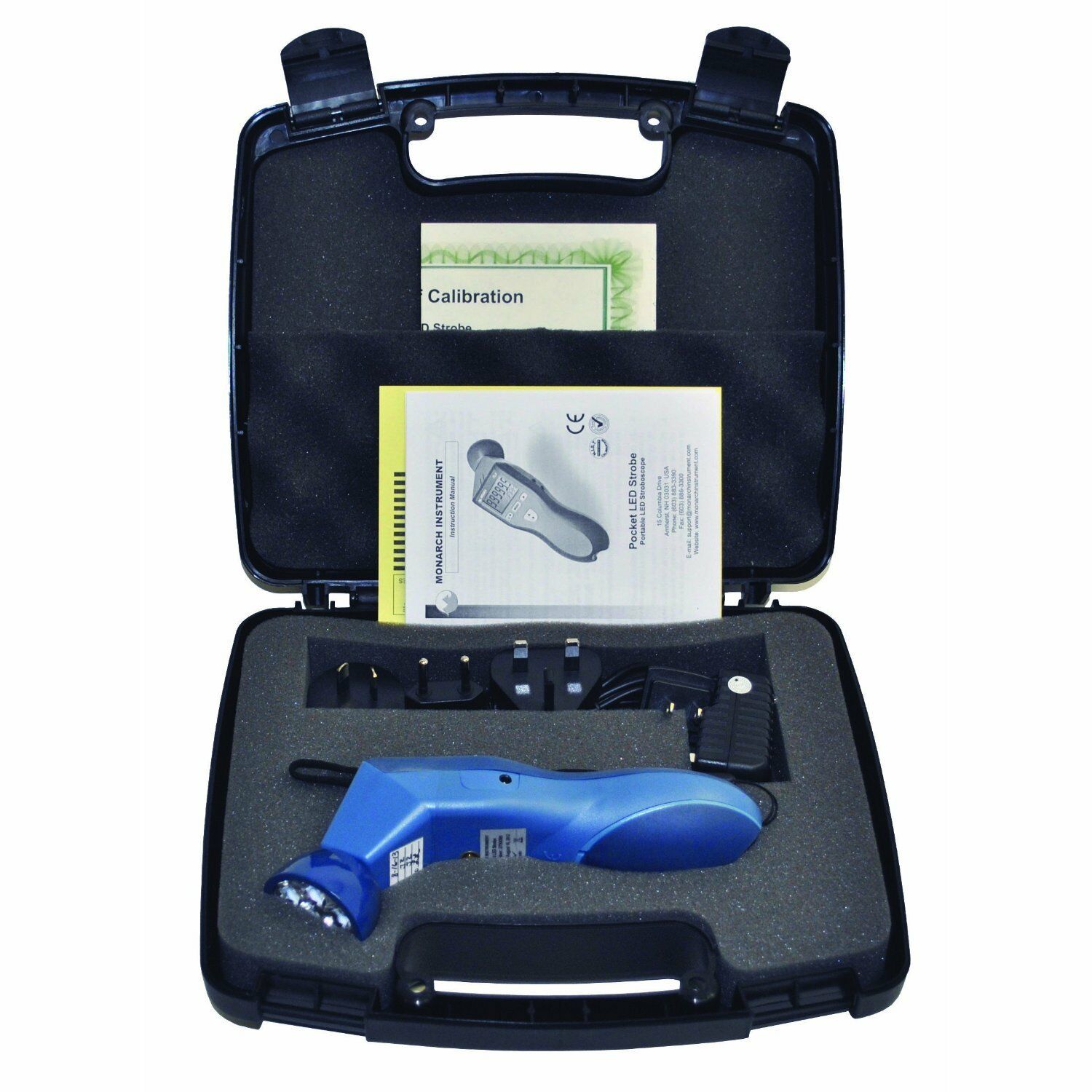

Included
  • Strobe
  • Universal 115/230 Recharger with Interchangeable Wall Plugs
  • Manual
  • NIST Calibration
  • Plastic Latching Carry Case
Specifications
DisplayLCD display with 6 numeric 0.506 inch (12.85mm) high digits and 5 alphanumeric 0.282inch (7.11mm) high digits
IndicatorsBattery level, On Target, Select, TACH, and EXT icons
MemoryLast setting before power down is remembered and restored on next power up. 5 user settable memory locations
Flash DurationAdjustable 0.5 to 2500 microseconds or 0.1 to 18 degrees of rotation (auto adjusts with flash rate)
PowerBattery powered: Internal Li‐Ion rechargeable batteries 3.6Vdc
Light Source7 LED Array
Light OutputAverage: 1800 Lumens at 6000 FPM 8" from lens
Color Temp5600°K
Run Time5‐6 hours typical at 6000 FPM, and 2.8° pulse width with fully charged batteries
Charge Time4‐5 hours typical with supplied charger
Weight0.6 lbs (0.27kg) including batteries
Dimensions7.75" x 2.75" x 2.3" (197 x 70 x 58 mm)
