All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Application

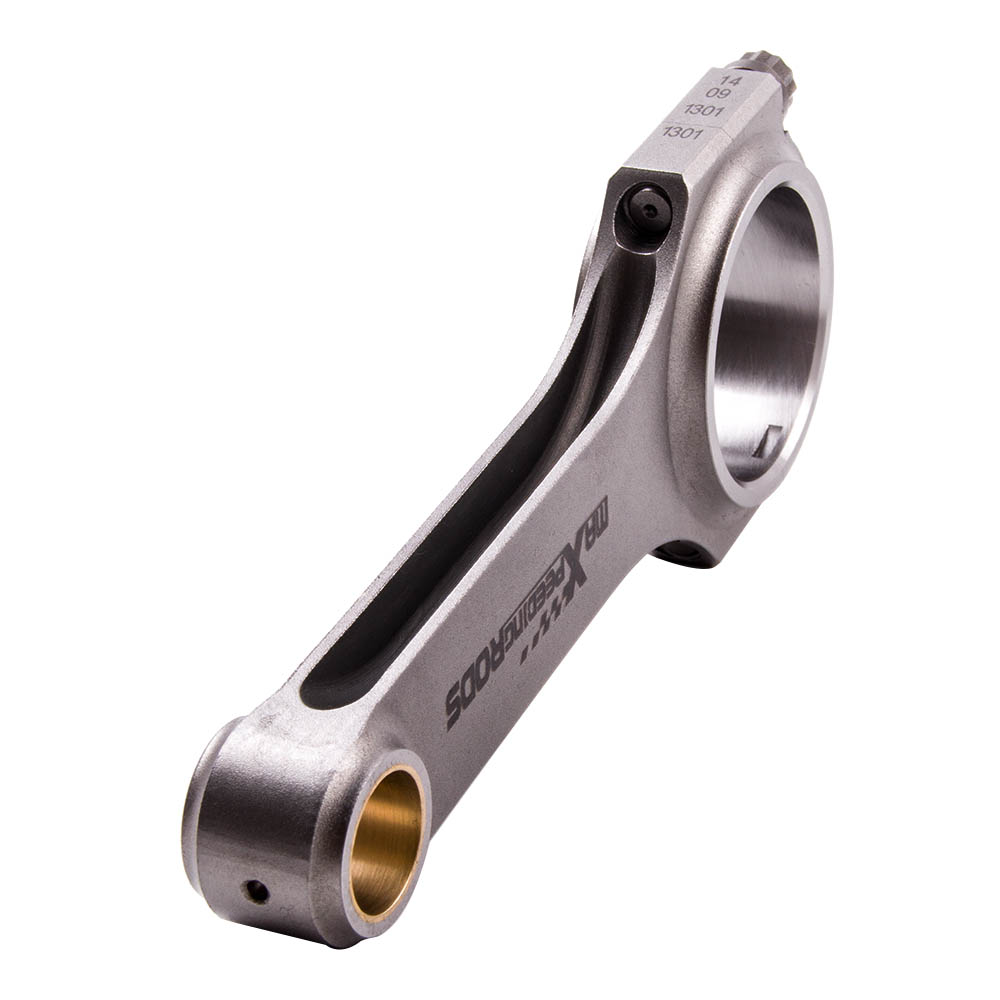

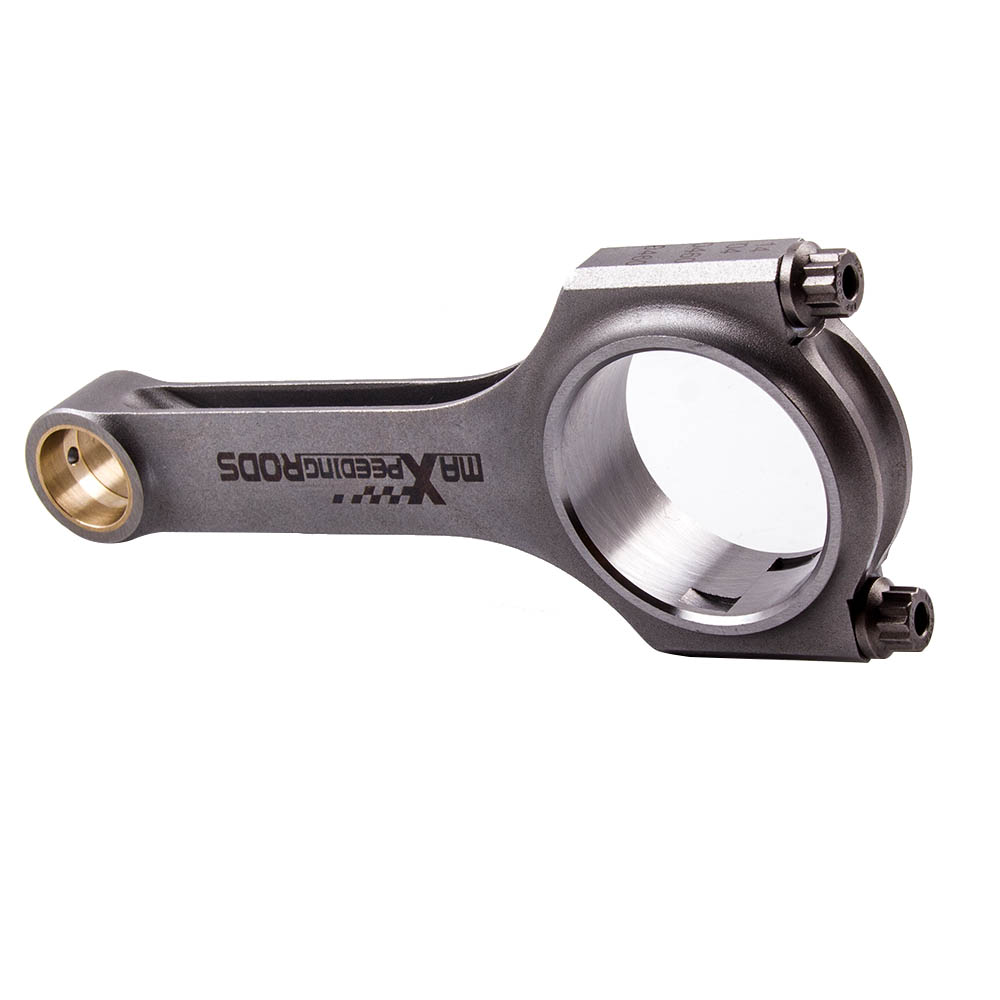

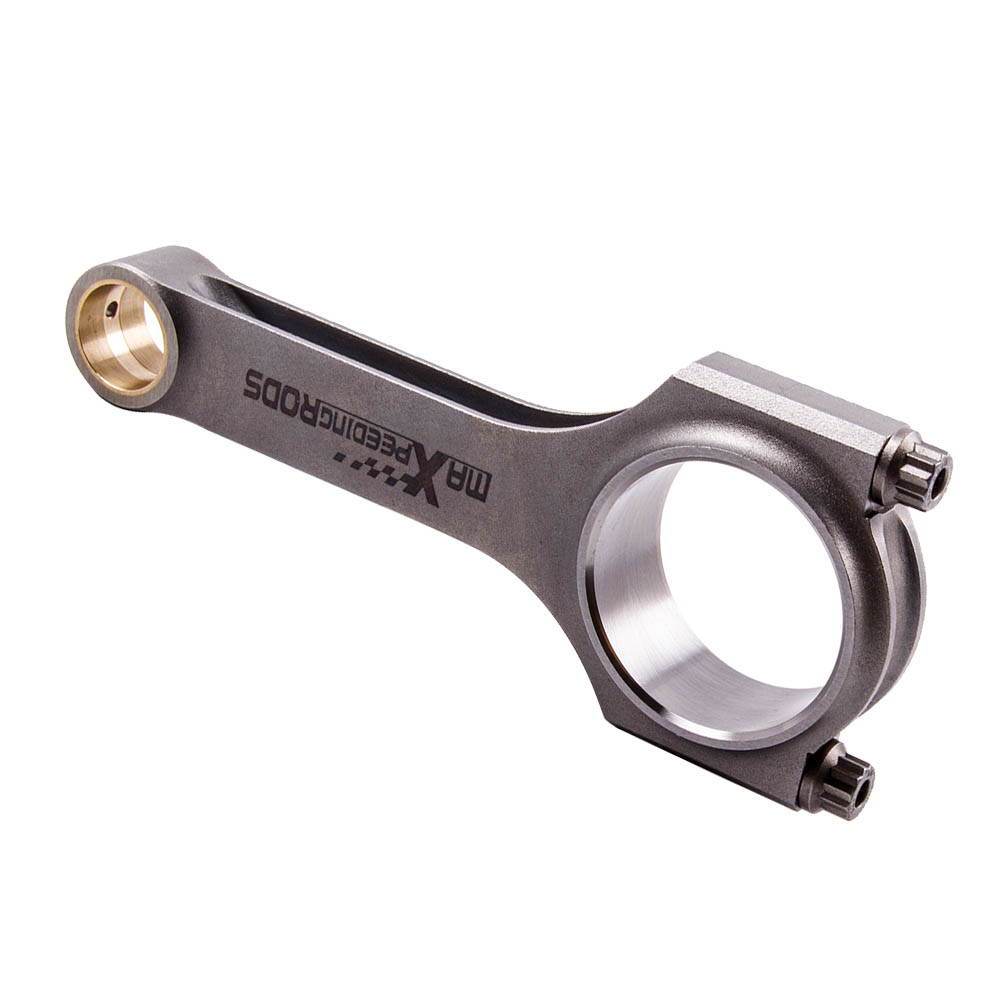

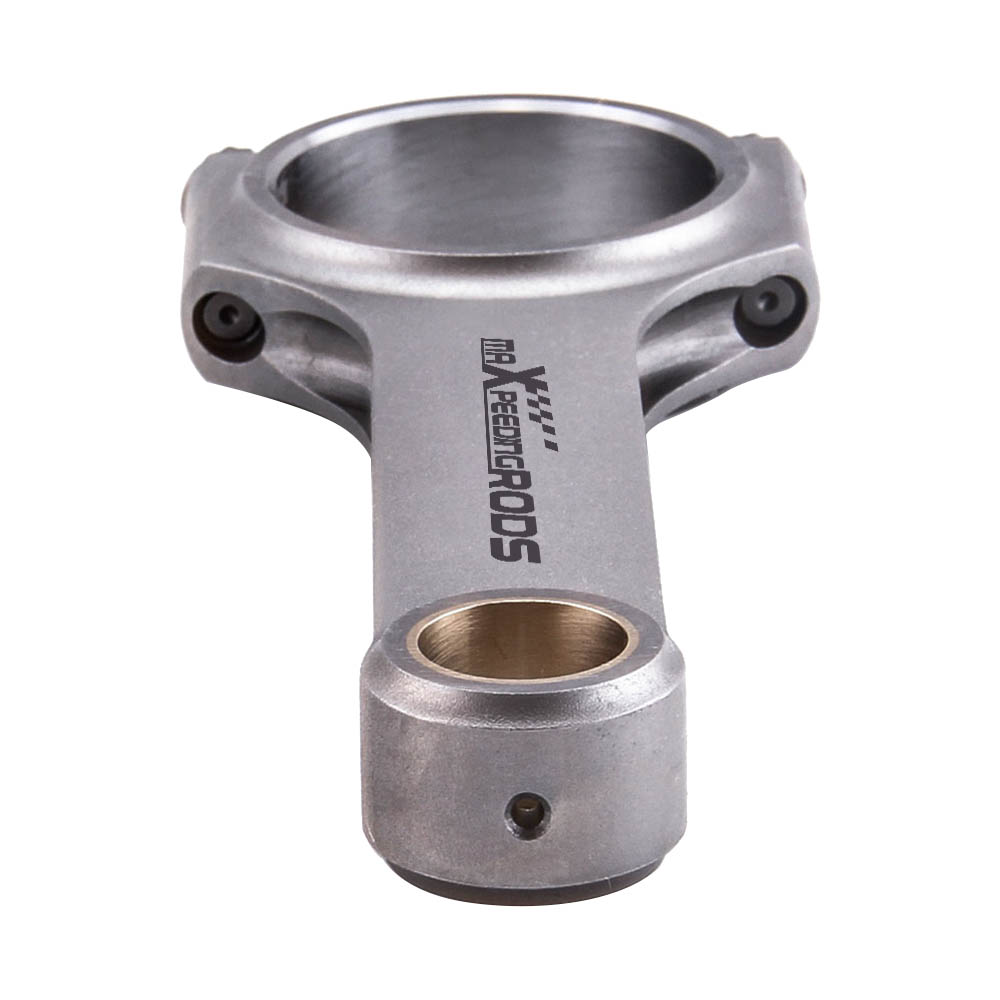

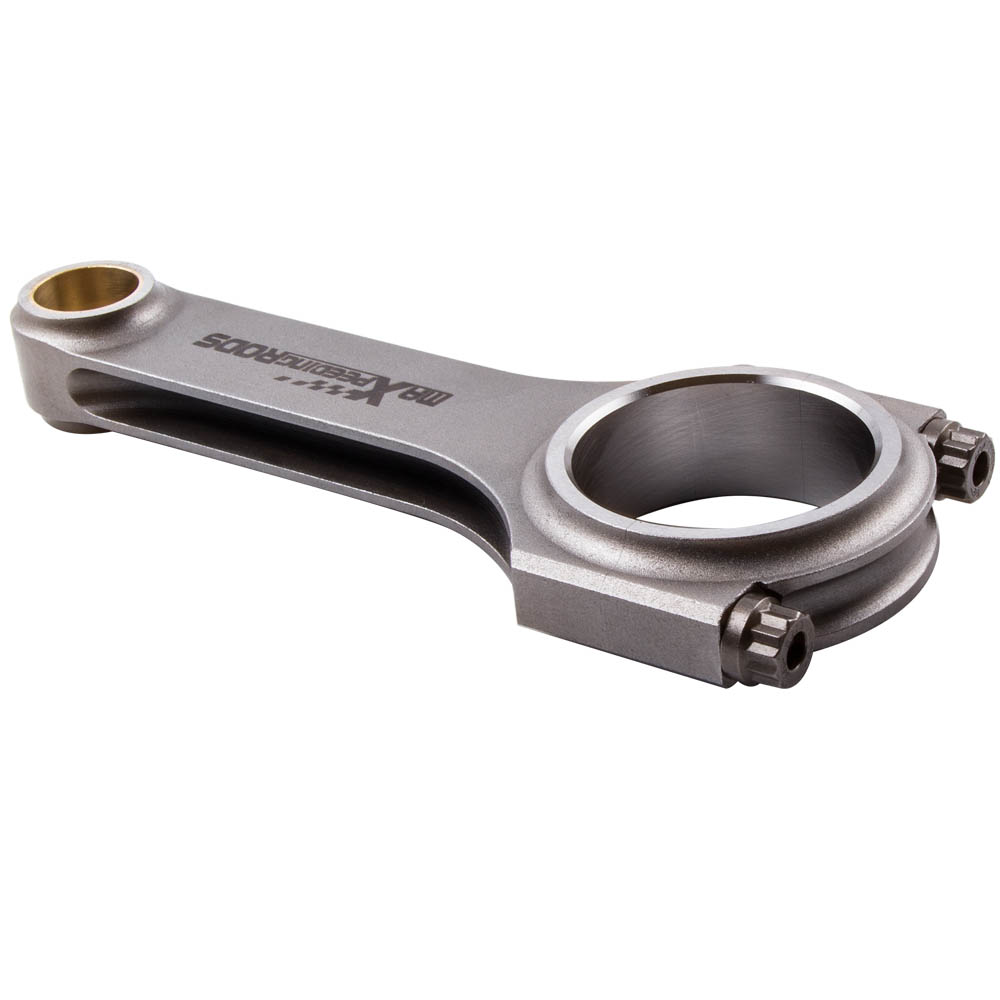

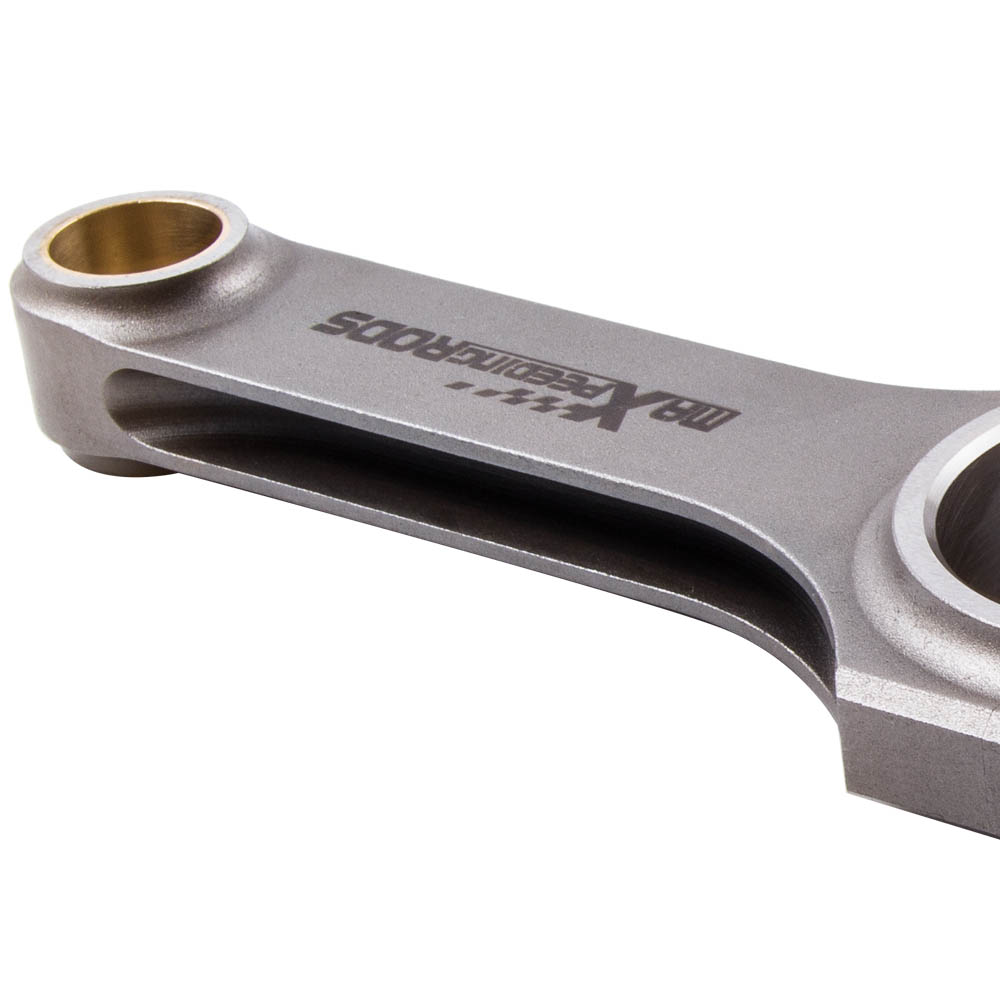

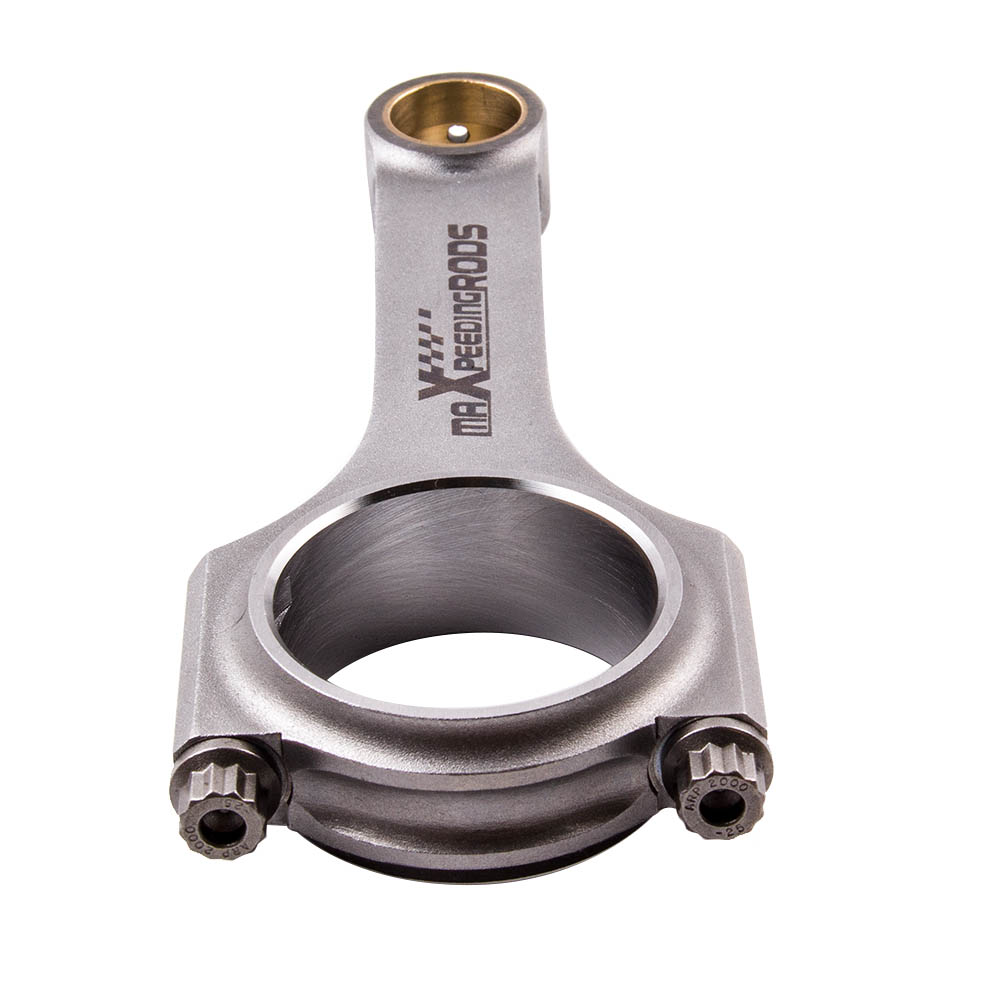

For Mitsubishi 4G63 2.0L DOHC Turbo (Gen 2 / 7-Bolt)
For Mitsubishi Eclipse / Lancer Evo 4–9

Note: Will not fit 1G 4G63 6 Bolt Engines. We have related products available.

Dimensions
- Connecting Rod Length Centre to Centre: 150.00mm / 5.906in
- Approximate Single Rod Weight: 498g
- Big End Bore Diameter: 48.00mm / 1.890in
- Small End Wrist Pin Bore Diameter: 22.00mm / 0.866in
- Big End Width: 26.40mm / 1.039in
- Small End Width: 26.40mm / 1.039in

Specifications
- Beam Style: H-beam design for daily road and strip performance use
- Material: Premium 4340 Chromoly Steel
- Surface Finish: Shot-peened to relieve internal stress and improve fatigue resistance
- Wrist Pin Fitment: Floating style
- Clearanced to suit stroker crankshaft kits: Yes

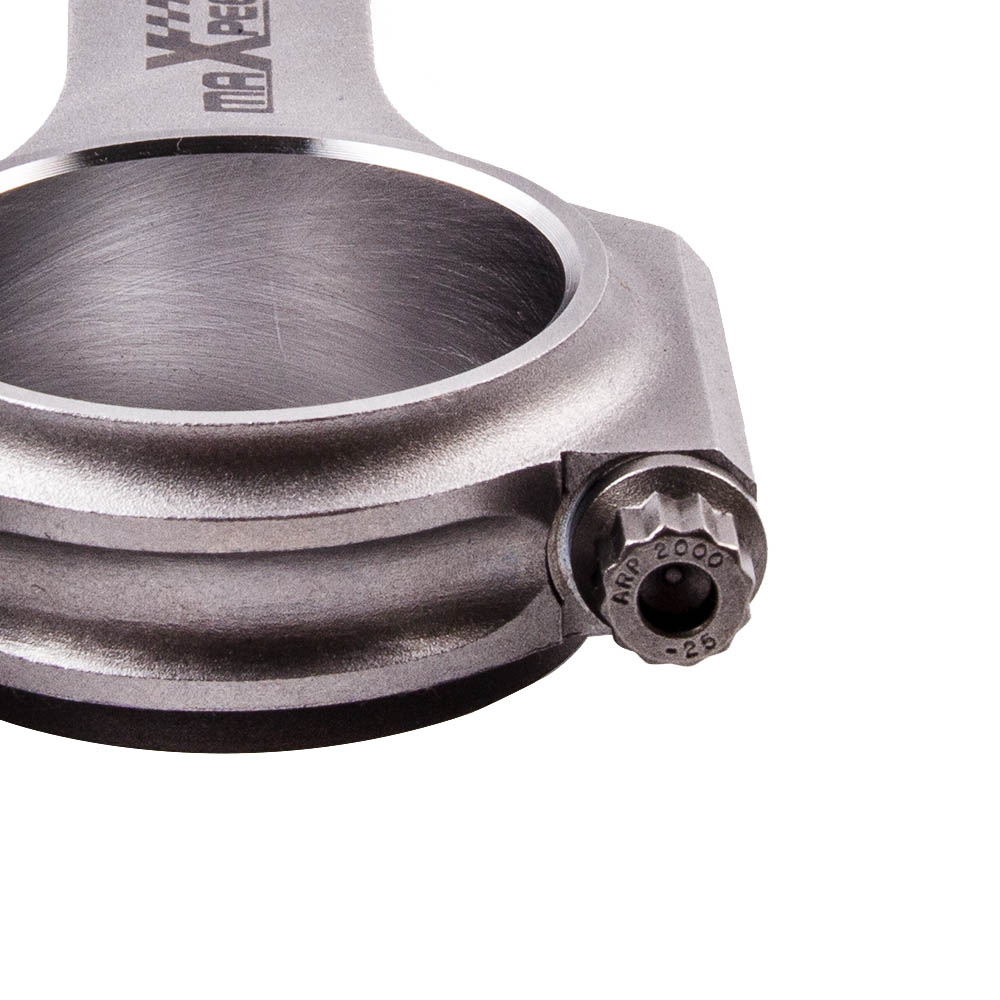

- Rod Cap Retention: Heavy-duty through-bolt construction
- Connecting Rod Bolt Brand: ARP
- Bolt Diameter: 3/8"
- Bolt Material: High-strength Alloy Steel
- Standard Fastener Yield Strength: 220,000 psi (ARP 2000 Series)
- Optional Upgraded Fasteners: ARP L19 (260,000 psi)
- Bolt Head Style: 12-point
- Machining: High Precision CNC Machined for accurate fitment
- Rod Cap Alignment: Precision locating dowels for perfect cap alignment
- Bore Machining Tolerance: ±0.005 mm
- Balancing Tolerance: ±1 gram per individual rod
- Fully Weight Matched Complete Set: Yes
- Condition: Brand New, Non-Remanufactured
- Quality Control Tests: Magnaflux crack testing, X-ray inspection, ultrasonic material testing
- Manufacturing Process: Fully heat treated for enhanced durability and tensile strength

Performance Ratings
- Rated Horsepower Capacity Per Rod: 200HP
- Safe Maximum Operating RPM: 9,000rpm

Packaging
- Quantity Supplied: Complete set of 4 connecting rods
- Outer Package Dimensions: 28CM × 20CM × 10CM
