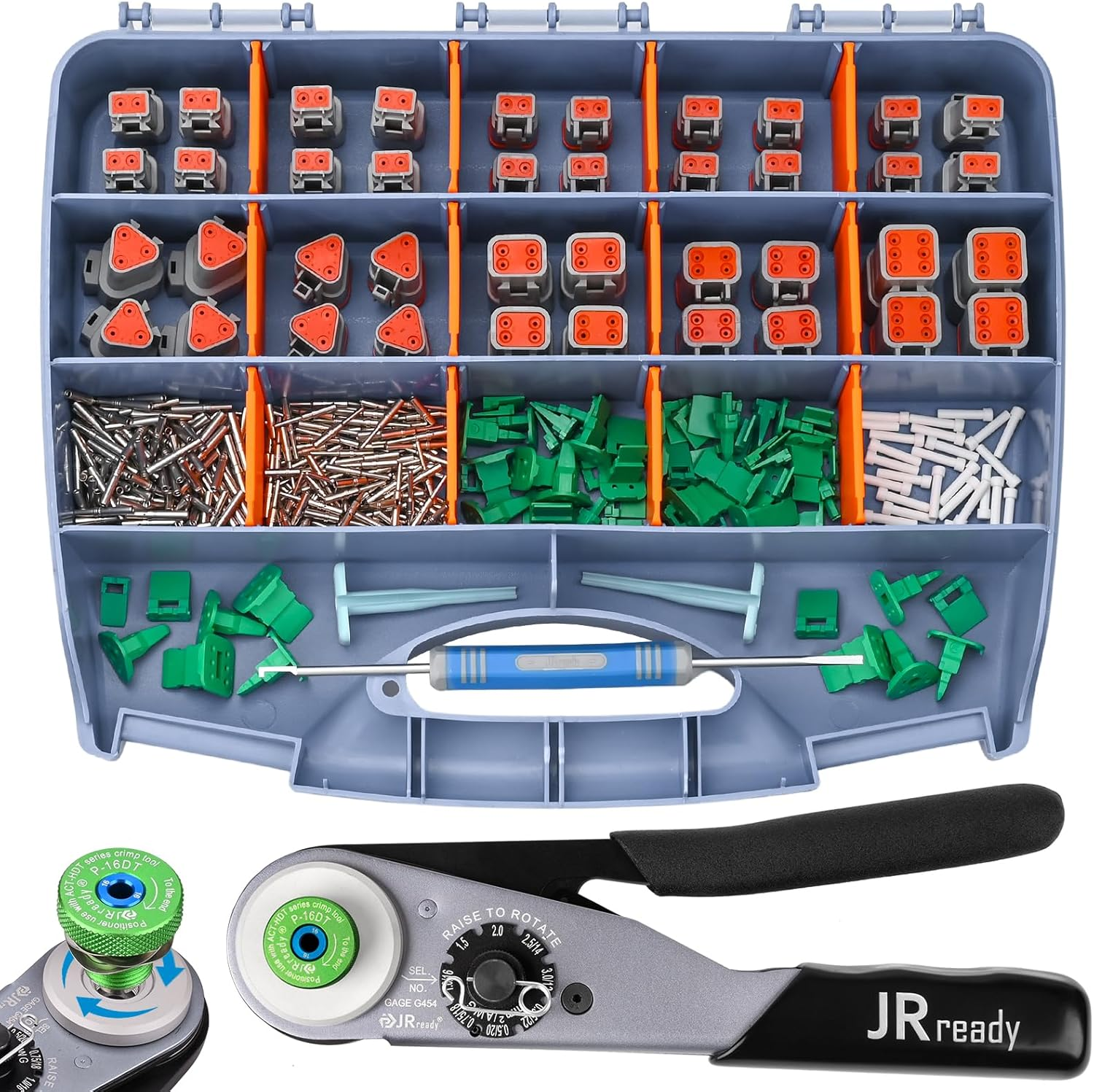

DW5011 Deutsch Connector Kit - DT Connectors 2 3 4 6 Pin, Size 16# Solid Contacts16-20 AWG, Deutsch Crimp Tool & Pin Removal Tool. IP68 Waterproof Automotive Electrical Connectors

Description

Model Number	DW5011
Included Components	Deutsch CrimpTool 1PC, DT connecor 2 Pin 10 Pairs,DT connecor 3 Pin 4 Pairs,DT connecor 4 Pin 4 Pairs,DT connecor 6 Pin 2 Pairs,16# Solid Contacts 60 Pairs,Deutsch Pin Removal Tool *3
Item Type Name	DW5011 deutsch connector kit
Manufacturer Part Number	DW5011
Manufacturer Warranty Description	1Year Manufacturer
Specific Uses For Product	automotive wiring, ATV wiring, trailer wiring, boat wiring, light-bar wiring, sensor wiring, engine wiring
Set Name	DW5011 Deutsch Connector Kit
Item Weight	1.51 kg
Item Dimensions L x W	12.8"L x 10.24"W
Size	DT 2/3/4/6 Pin Kit
Color	Gray
Handle Material	Rubber
Grip Type	Ergonomic
Handle Type	ratchet
Product Dimensions	12.8"L x 10.24"W

Product description

1 Extreme Heat & Cold 2 IP68 Sealed Protection 3 Enhanced sealing design 4 Built to Last Longer 5 Secure and anti-loosening 1 Precision Crimping 2 Expandable System 3 8-Indent Crimp 4 Stepped Design 5 Comfort Grip

DEUTSCH DT DTM DTP CONNECTOR KIT

Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.8 out of 5 stars 46 4.8 out of 5 stars 46 5.0 out of 5 stars 2 5.0 out of 5 stars 4 4.7 out of 5 stars 4 4.6 out of 5 stars 16 4.9 out of 5 stars 18 Price $159.99$159.99 $243.99$243.99 $213.99$213.99 $214.99$214.99 $59.99$59.99 $12.99$12.99 $12.99$12.99 PRODUCT TYPE Connector Tool Kit Connector Tool Kit Connector Tool Kit Connector Tool Kit Contacts Positioner Positioner CONNECTOR TYPE Deutsch DT 2 3 4 6 Pin Kit Deutsch DT 2 3 4 6 8 12Pin Kit Deutsch DTM 2 3 4 6 Pin Kit Deutsch DTP 2 4 Pin Kit Deutsch DT DTM DTP Contacts P-12DTP Positioner P-20DTM Positioner CONTACT TYPE Solid 16# Solid 16# Solid 20# Solid 12# Solid 16# 12# 20# Solid 12# Solid 20# CRIMP TOOL ACT-HDT-16DT ACT-HDT-16DT ACT-HDT-20DTM ACT-HDT-12DTP ACT-DT1 ACT-HDT ACT-HDT RATED CURRENT 13A(max) 13A(max) 7.5A(max) 25A(max) 7.5A/13A/25A(max) Not Applicable Not Applicable WiRE RANGE 14-20AWG 14-20AWG 20-22AWG 12-14AWG 12-22AWG Not Applicable Not Applicable

• Should I choose DW5011 or a full 2–12 pin kit?

  If you mainly do lighting add-ons, trailer repairs, sensor/control leads, or fan/pump branches, DW5011’s 2–6 pin core covers most jobs. For control boxes or multi-circuit harnesses, add 8/12 pin later—no upfront spend on rarely used sizes.

• How do I choose 2/3/4/6 pin? I’m worried I’ll pick the wrong one.

  Choose by number of wires/functions, not watts: 2P power+ground; 3P sensor/control (PWR/GND/SIG); 4P two circuits (main+DRL); 6P multi-wire sub-harness/service disconnect.

• Can the ACT-HDT-16DT crimp other contact sizes? Is the positioner swappable?

  Size 16 positioner is installed. To expand, search Amazon for P-12DTP (Size 12) or P-20DTM (Size 20), or contact JRready support. typically $9.99 each—swap in to expand capability and make the same crimper multi-purpose.

• I’m a beginner—will I mess up the crimp? Why is this kit easier than buying connectors only?

  DW5011 is ready-to-work: connectors + contacts + precision crimp tool + depin tool. Terminals seat with a clear “click.” If you mis-pin or need rework, depin and redo—less scrap and fewer repeat orders.

• What wire gauge does DW5011 support? Will it fit my wiring?

  DW5011 uses Size 16 contacts for 16–20 AWG wire. If you’re unsure, measure your wire gauge first—using the correct AWG helps ensure a clean crimp and proper sealing.

• Professional Deutsch DT Connector Kit: Complete set includes most-used 2/3/4/6 pin DT connectors, ACT-HDT-16DT professional crimp tool (comparable to HDT-48-00), and DRK-RT1B pin removal tool. Perfect for automotive repair shops, electrical engineering projects, lighting installations, sensor wiring, and trailer repairs.
• Verified 8-Indent Crimp Tool Performance: ACT-HDT-16DT ratchet crimper is specifically designed for Size 16 Deutsch DT contacts and 12-22 AWG wires. The adjustable selector creates consistent compression, reducing loose wires, poor contact, and rework caused by inadequate crimp quality. Professional-grade performance comparable to HDT-48-00 standard.
• IP68 Waterproof Rating for Harsh Environments: Glass-fiber-reinforced Nylon 66 housings provide superior protection against water, dust, oil, salt, and fuel. Operates reliably from -40°C to +125°C. Each size 16 contact carries 13A continuous current, keeping race cars, UTVs, boats, and heavy equipment powered in the most demanding conditions.
• Size 16# Solid Contacts for Reliable Connections: High-conductivity copper-alloy pins with corrosion-blocking nickel coating maintain low resistance and cool operating temperatures. Delivers steady 13A on 16-20 AWG wire leads, adding years of reliability to automotive wiring harnesses and electrical systems.
• Professional Pin Removal Tool Included: DRK-RT1B extraction tool quickly removes contacts without damaging terminals, casings, or wires, saving countless hours of labor. Compatible with DT, DTP, DTM, DRB, DTV, and STRIKE Series connectors. Equivalent to Deutsch DT-RT1 extraction tool for professional-grade performance.
• Wide Professional Applications: Ideal for automotive repair, trailer wiring harness, off-road vehicle modifications, marine electrical systems, and agricultural machinery maintenance. Perfect for professional technicians and serious DIY enthusiasts working on lights, sensors, winches, ignition systems, and custom electrical installations. A must-have tool in every professional toolkit.
