Main Features

● Pocket portable size: 120x76x30mm, put it into your pocket, save energy, save cost, easy to carry.

● High accuracy 0.025%+1/2 digits, high reliability and stability.

● Signal output & simulation: 0/4-20mA source or passive, 0-11V, 0-110mV, 20-400Ω, R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V outputs, frequency, etc.

● Measurement: 0-30V, 0-150mV, 0-999.9Ω, R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V, 0-24mA, Ohm, frequency etc.

● Support standard MODBUS Master, MODBUS Slave, Hart communicator/operator.

● High resolution LCD display, have back light for different lighting conditions, large screen clear display.

● Fast response, no delay in signal source simulation and signal testing or measurement.

● Have charging and status indicator to check the battery status easily.

● Can be used as signal generator, multifunction process calibrator and digital multimeter.

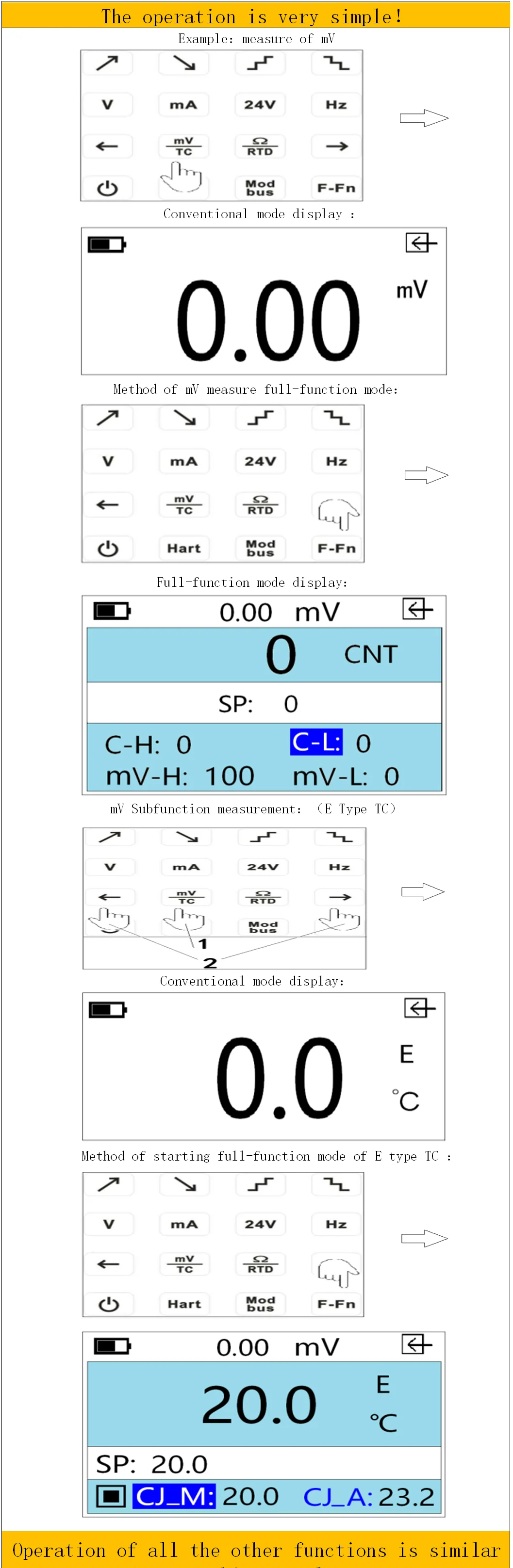

● Have description in V, mV, mA, RTD, TC, Step, Ω, Hz, MODBUS, Hart keys, it enables user to operate it easily.

● DC voltage, mV small signal, resistance signal, dc current, thermocouple, RTD thermal resistance signal output and measurement, it equals to a process calibrator and digital multimeter.

● AD, DA, reference voltage, OP circuits are used to ensure all high accuracy, high performance and high stability

● Using 4 units of PPTC and a quick-break fuse to protect the instrument from damaged by high voltage.

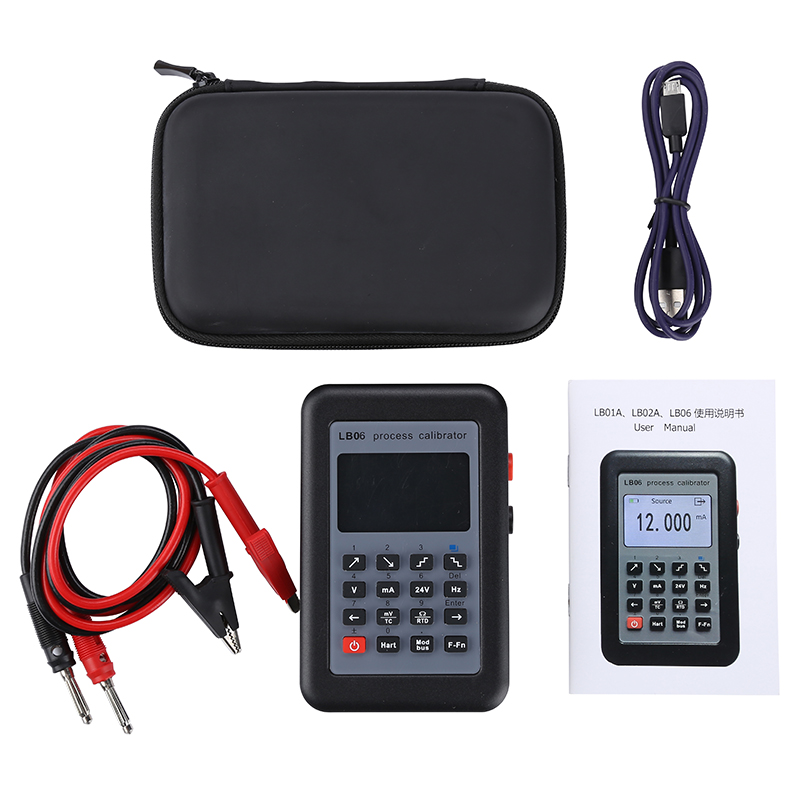

Packing contents:

1 Unit x Original LB06 Portable Precision Process Calibrator (Have Calibration Certificate)

1 Set x High safety standards testing Pen Probe, other essential accessories.

1 Unit x High quality 2A USB Cable for Battery Re-charge (for USA Plug)

1 Unit x High quality meter bag

1 Set x Professional Easy-to-understand User Manual

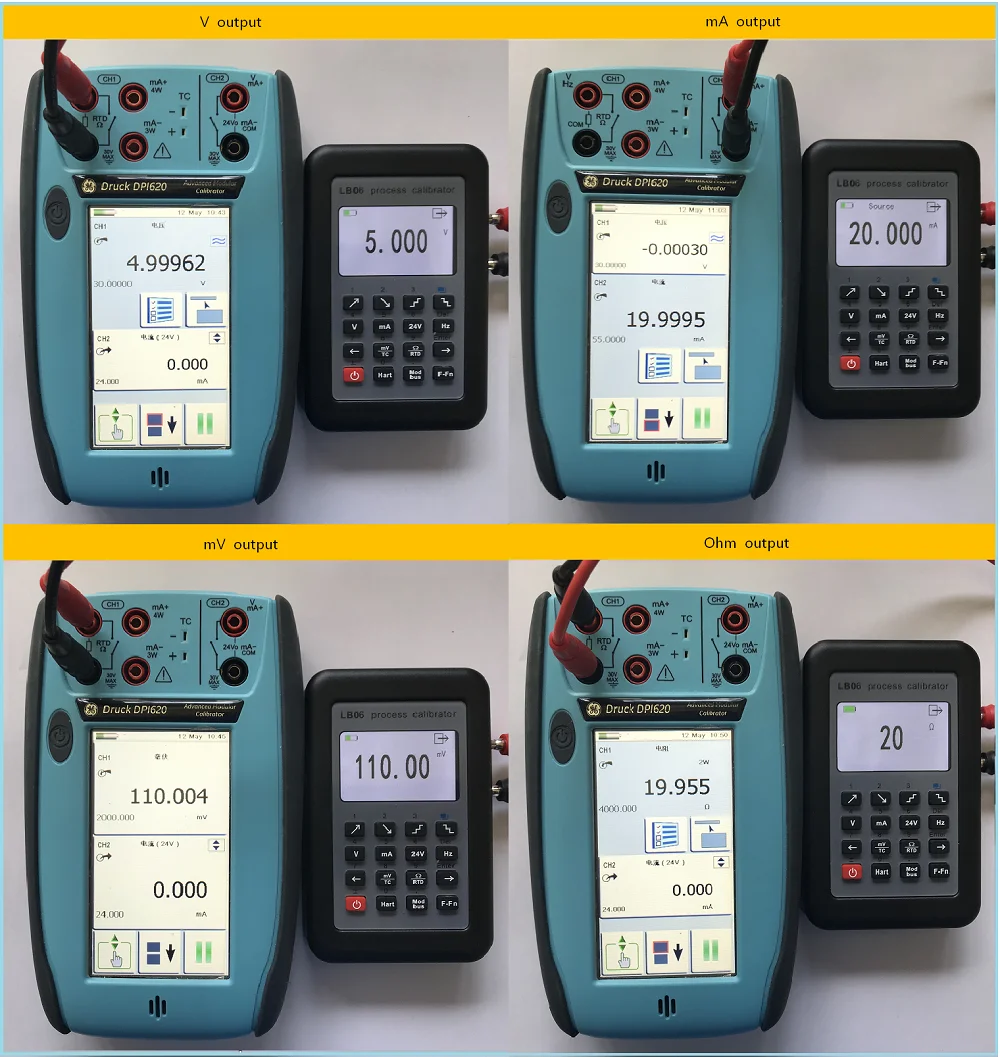

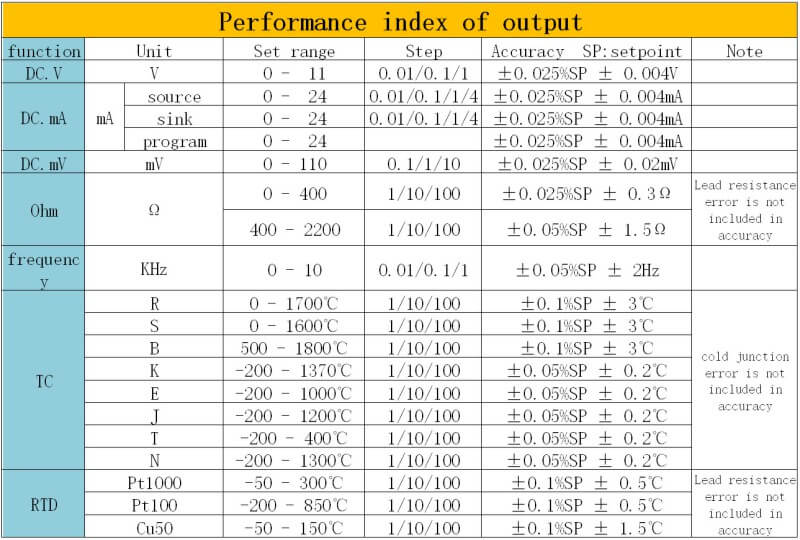

Output Function

FUNC	OUT UNIT	SET RANGE	SET STEP	ACCURACY
DC.V	V	0~11.00V	0.01/0.1/1	0.025%+1
DC. mV	mV	0~110.00mV	0.1/1/10	0.025%+2
Ω	Ω	20~400Ω	1/10/100	0.025%+0.3Ω (0.2-3mA excitation current, lead resistance is not included)
DC. mA	mA	0~24.00mA	0.01/0.1/1/4	0.025%+1 (active, passive, other programmable current signal output.)
TC	R	0~1700℃	1/10/100	0.1%+3
	S	0~1600℃		0.1%+3
	B	500~1800℃		0.1%+3
	K	-200~1370℃		0.1%+1
	E	-200~1000℃		0.1%+1
	J	-200~1200℃		0.1%+1
	T	-200~400℃		0.1%+1
	N	-200~1300℃		0.1%+1
RTD	Pt100	-200~850℃	1/10/100	0.025%+1 (0.2-3mA excitation current, lead resistance is not included)
RTD	Cu50	-50~150℃	1/10/100
24V	24V mA	24V: Cannot be set. Current measurement: 0~24.000 mA	NONE	24V: 0-20%, Current measurement: 0.025%+4

Other functions: Frequency output, wave signal output.

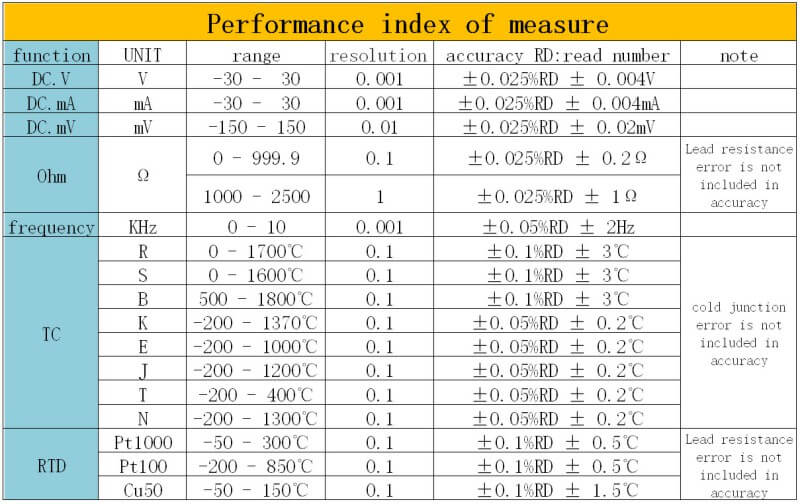

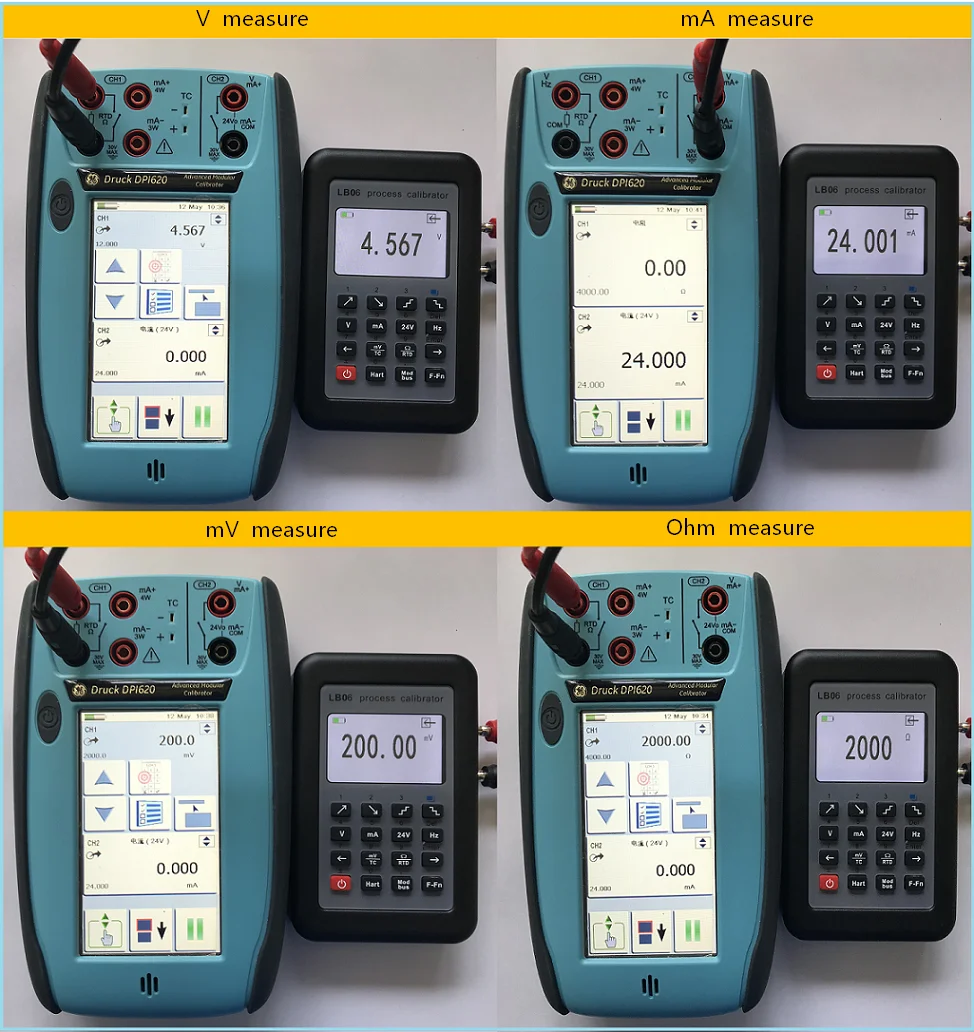

Measurement Function

FUNC	MEASURE UNITS	MEASURE RANGE	RESOLUTION	ACCURACY
DC.V	V	0~30.000V	0.001V	0.025%+4
DC. mV	mV	0~150.00mV	0.01mV	0.025%+2
Ω	Ω	0~999.9Ω	0.1Ω	0.025%+2
DC. mA	mA	0~30.000mA	0.001mA	0.025%+4
TC	R	0~1700℃	1℃	0.1%+3
	S	0~1600℃		0.1%+3
	B	500~1800℃		0.1%+3
	K	-200~1370℃		0.1%+1
	E	-200~1000℃		0.1%+1
	J	-200~1200℃		0.1%+1
	T	-200~400℃		0.1%+1
	N	-200~1300℃		0.1%+1
RTD	Pt100	-200~850℃	1℃	0.025%+1
RTD	Cu50	-50~150℃	1℃	0.025%+1
Range switch	mA	0~99900 Unit (Used for current measuring and current measurement of 24V output)	Max. 4, Min. 1 (related to engineering quantity)	0.025%+(1-10) (related to engineering quantity, max.: 99900)

Other functions: Frequency measurement, etc.
