Please note that not all motherboards are applicable. Please refer to the picture below.

1: LPC1 shared high-speed channel = connect to the motherboard 2.0 small pin LPC interface, 2.0 module

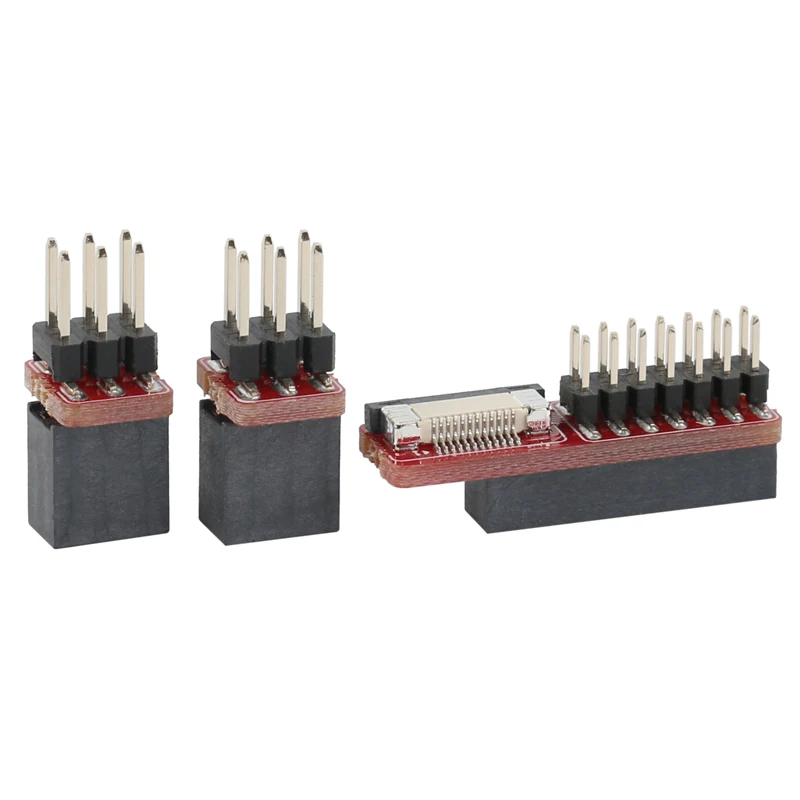

(Module expansion LPC3 interface can connect notebook MINI PCIE conversion card, A-DEBUG conversion card, ASUS notebook DEBUG-CON. EC-DEBUG).
2:PCI high-speed channel = support all PCI slots.

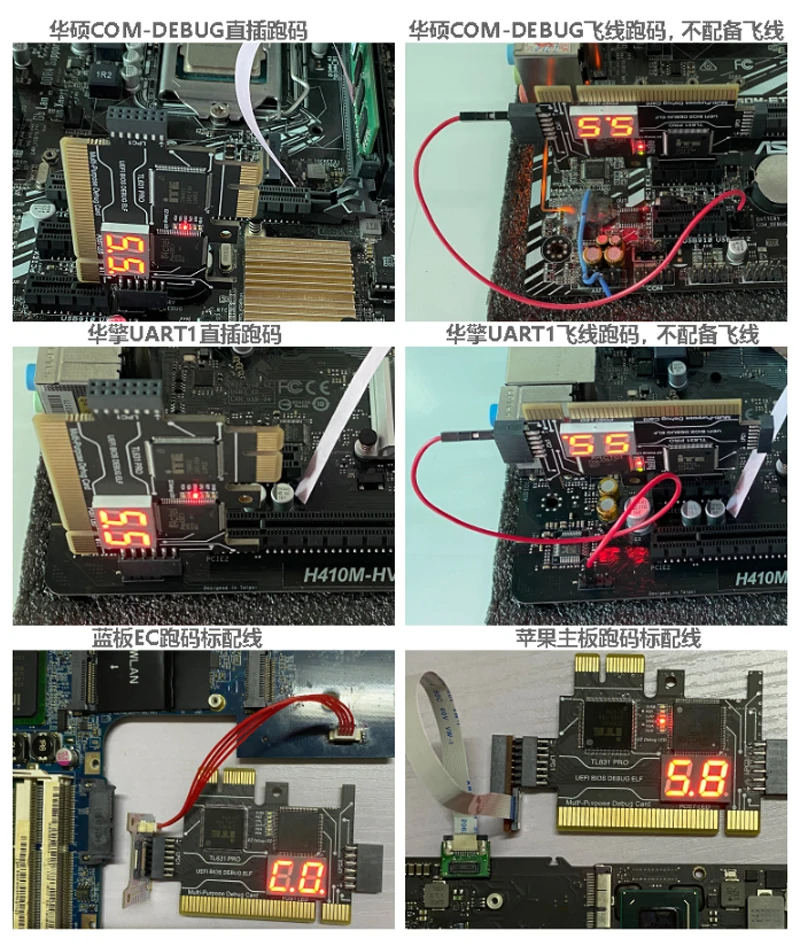

3:LPC2 shared high-speed channel = connect to the motherboard 2.54 large pin LPC interface, ASUS COM-DEBUG. ASRock UART1, MSI JDP, Supermicro SPl.
4:PCIE X1 high-speed channel = support Gigabyte without PCI motherboard (other brands do not support).
5:3VSB power indicator, to detect whether the power is normal.
6:RST reset indicator, to detect whether the motherboard reset is normal (only when PCI or PCIE is inserted)
7:CPU indicator light, to detect whether the CPU module is normal.
8:DRAM memory indicator, to detect whether the memory module is normal.
9:VGA graphics indicator light, to detect whether the graphics card module is normal.
10:PCH south bridge indicator light, to detect whether the south bridge module is normal.
11:DP decimal point, CLK signal display.
12:DP decimal point, FRAME frame signal display.
13:threading hole

TL611 PRO full view

01.LPC1 shared high-speed channel = connect motherboard 2.0 small row needles + notebook MINI PCIE.
02.PCI high-speed channel = support all PCl slots.
03.LPC2 Shared high speed channel = connected mainboard 2.54 large row pin + supermicro SPl
04.PCIEX1 high-speed channel = can test GIGABYTE no PCI motherboard.
05.LPC3 shared high-speed channel = connect notebook MINI PCIE, A-DEBUG conversion card, ASUS DEBUG-CON, EC-DEBUG.
06.3VSB power indicator, check if the power is normal.
07. MOBO motherboard indicator light, check if the motherboard is normal.
08.CPU indicator, check if the CPU module is normal.
09.DRAM memory indicator, check if the memory module is normal.
10.VGA graphics indicator, check if the graphics module is normal. the memory module is normal.
11.PCH south bridge indicator, check if the south bridge module is normal.
12. Bonding golden rope or with keychain.
13. DP decimal point, CLK signal is displayed.

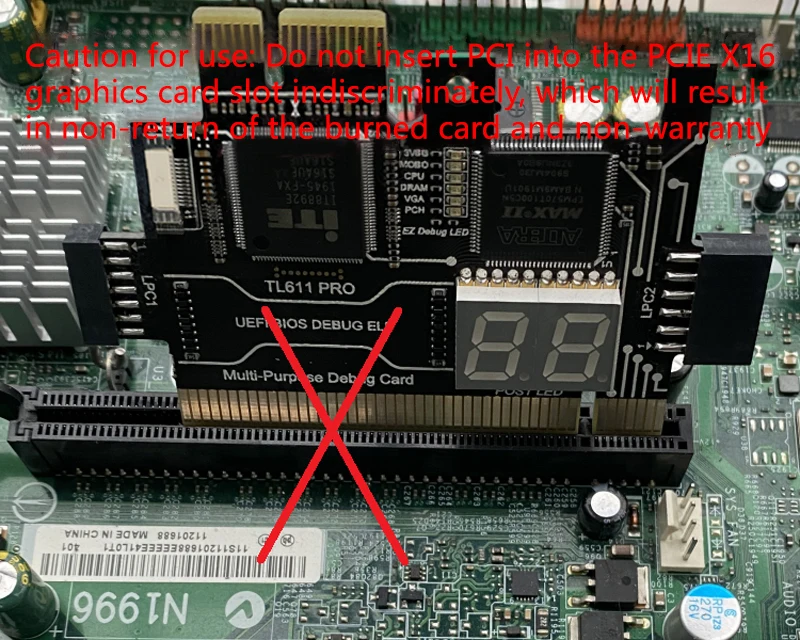

PCI-E interface only supports Gigabyte motherboards without PCI port
This product is a professional maintenance product. Do not use it if you don't understand it. Inserting the wrong port may cause the diagnostic card to burn.
In addition, there are many kinds of motherboards in the world. The diagnostic card is not compatible with all motherboards. If the diagnostic card is not compatible with the test motherboard, the diagnostic card will not run out of codes, the motherboard problem cannot be diagnosed. It is not that the diagnostic card cannot work.

Multifunction LPC-DEBUG Card PCI PCI-E LPC Motherboard Diagnostic Test LPC-Debug Post card diagnostic test kit

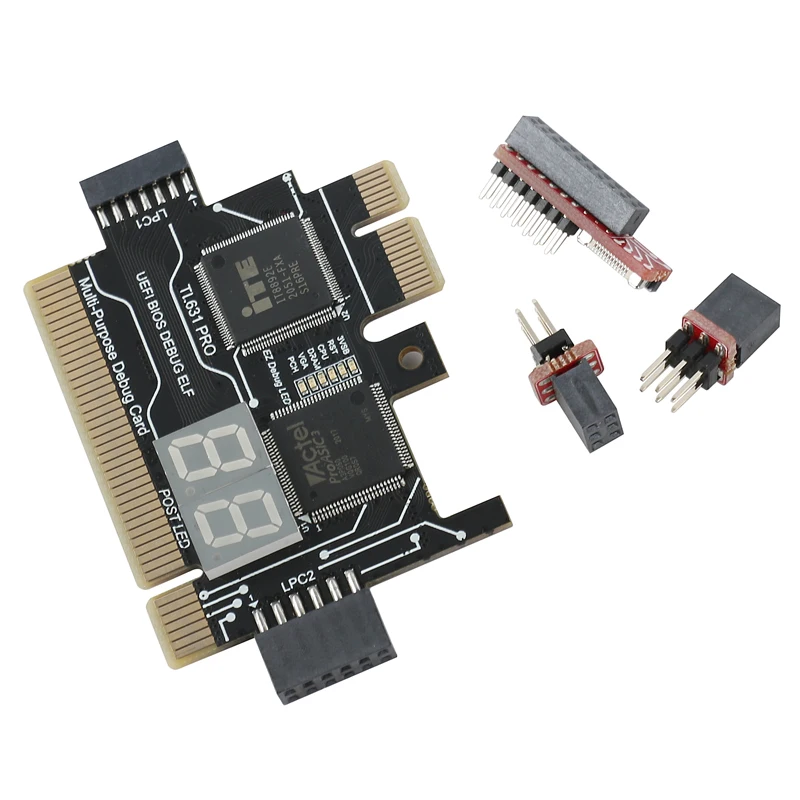

TL631 Pro Universal Laptop PC PCI PCI-E Mini PCI-E LPC Motherboard Diagnostic Analyzer Tester Debug Cards for ASUS COM Apple LPC
Product Introduction:
1.LPC1 shared high-speed channel = connect the motherboard 2.0 small pin LPC interface, 2.0 module (module expansion LPC3 interface can be connected to the notebook MINI PCIE conversion card A-DEBUG conversion card ASUS notebook DEBUG-CON. EC-DEBUG);
2.PCI high-speed channel = support all PCI insertion;.
3.LPC2 shared high-speed channel = connect to the motherboard 2.54 large pin LPC interface, ASUS COM-DEBUG. ASRock UART1. MSI JDP. Supermicro SPI;
4.PCIE X1 high-speed channel = support Gigabyte without PCI motherboard (other brands do not support);
5.3VSB power indicator, to detect whether the power is normal;
6.RST reset indicator, to detect whether the motherboard reset is normal (only when PCI or PCIE is inserted);
7.CPU indicator, check whether the CPU module is normal;
8.DRAM memory indicator, to detect whether the memory module is normal;
9.VGA graphics indicator light, to detect whether the graphics card module is normal;
10. PCH south bridge indicator light, to detect whether the south bridge module is normal;
11.DP decimal point, CLK signal display;
12.DP decimal point, FRAME frame signal display;
13.Banghoro gold cord or keychain.
