Description
1pcs DC12V 24V JGB37-555 Gearbox Speed Reduction Gear Motor Code Disk with Encode
Specification:
Note: For it is metal gearbox gear motor, some of them may have a little noise, and it is normal phenomenon. Different parameters have their different looks. The lower the speed is, the larger the torque is. Please read the parameter table for a reference before buying. Thanks!!!
Voltage: DC12V, 24V
No Load Speed: 10rpm, 12rpm, 16rpm, 20rpm, 29rpm, 38rpm, 47rpm, 61rpm, 88rpm, 114rpm, 142rpm, 226rpm, 425rpm, 800rpm, 1280rpm
Error: ±10%
Motor Diameter: 36.8mm
Motor Body Length: 57.5mm
Output Shaft Diameter: 6mm(D-type)
Output Shaft Length: about 15.5mm
Gearbox Diameter: about 37mm

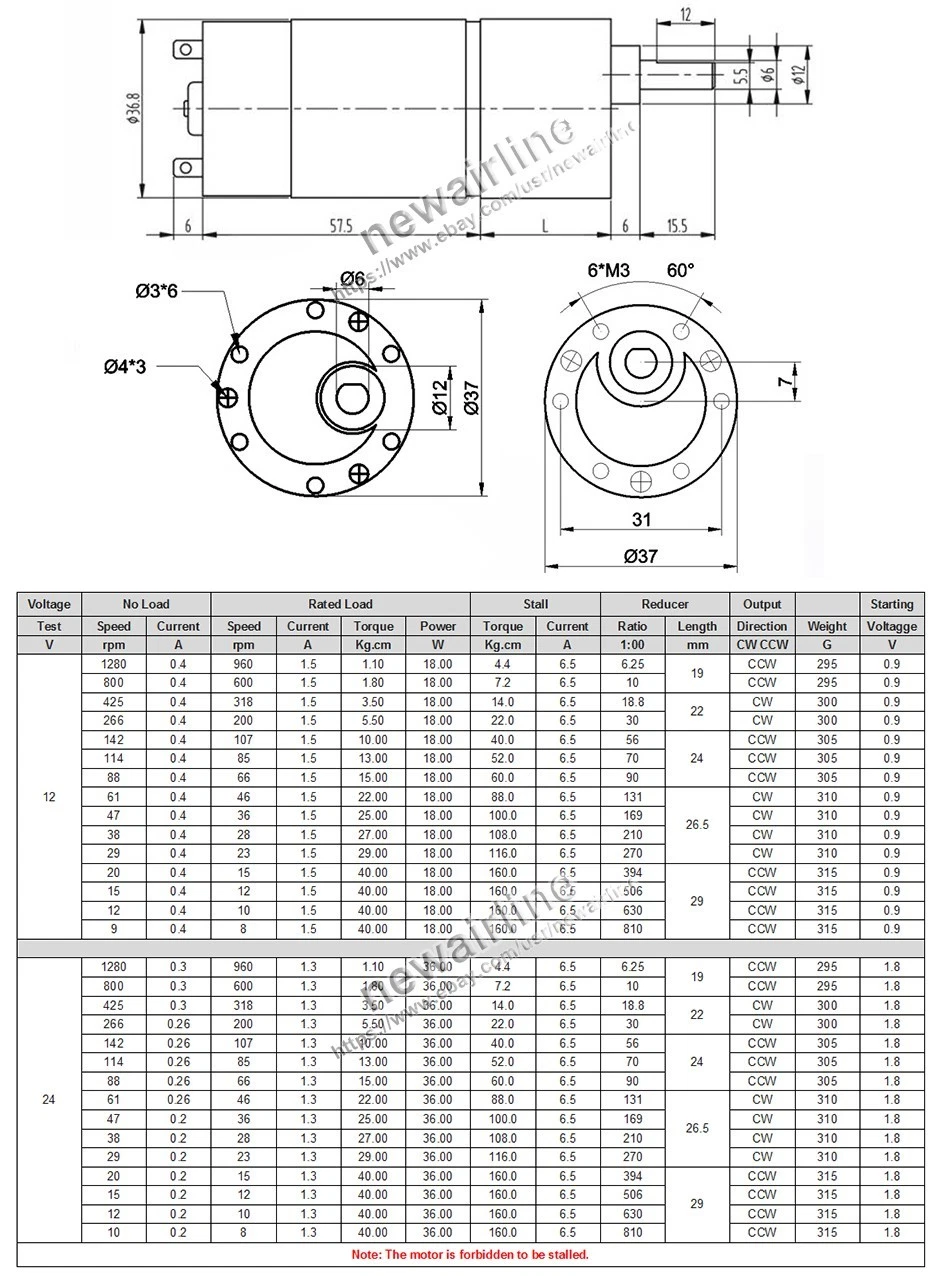

about the gearbox size detail, please see the picture

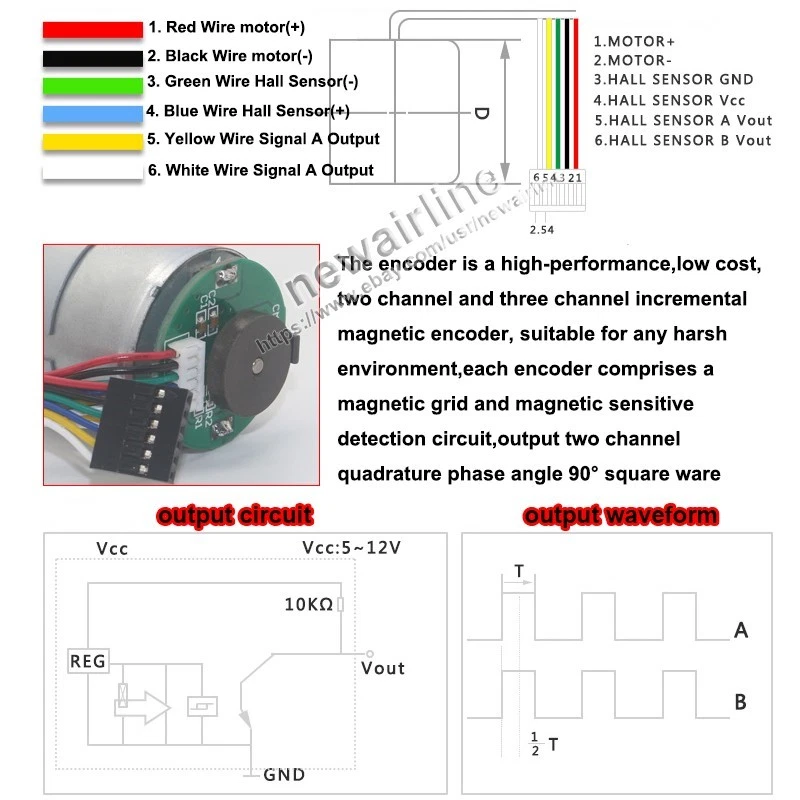

Wirings:
Notice:
1. The yellow and white wires are the speed signal output line, and they can't be connected any power supply, or it will be burnt.
2. Positive and negative power supply of encoder do not allow connect wrong;voltage is 3.3-5V.
3.
Control CW or CCW of motor by changing the positive and negative power
supply of motorr (change Red Wire and Black Wire connect)
Red Wire - positive power supply of motor(+)
Black Wire - negative power supply of motor(-)
Green Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrong;voltage is 5-12V)
Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrong;voltage is 5-12V)
Yellow Wire - Signal A Output (11 signals per motor turns a circle)
White Wire - Signal B Output (11 signals per motor turns a circle)
Package Included:
Motor x 1
