Description:
Brand New
Esd5500e Series Speed Governor
| Item Specifics: ●Esd5500e Series Speed Governor Is High Cost Effective,the Best Quality,Large Stock,Lower Price,Perfectly Electric Speed Governor. ●Widely Used to All Kinds of Generator Together with Adc120 12v or 24v ,High Performance and Perfectly Realize Electronic Speed Governor. Color: As Shown in Picture |

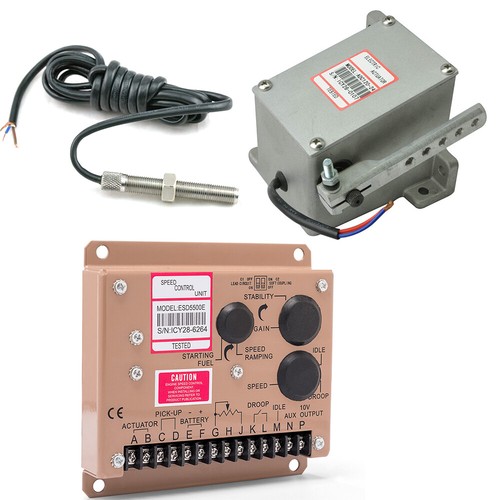

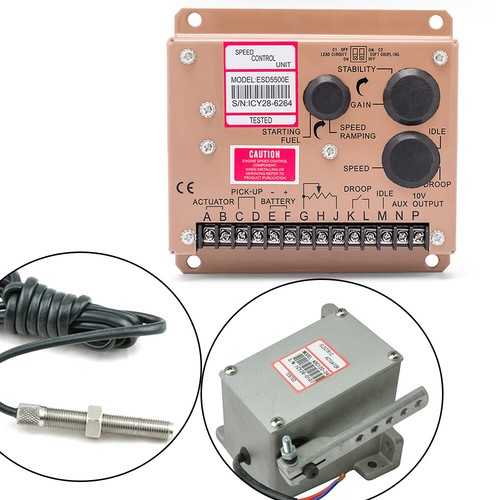

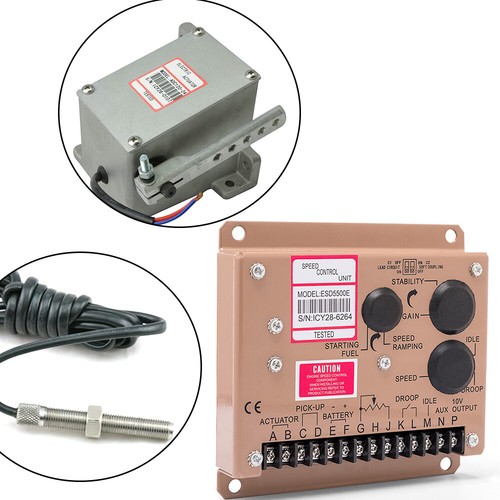

Package Included:
1x Esd5500e Speed Controller
1x Msp6729 Magnetic Speed Sensor
1x Adc120 Actuator
Speed Sensor Msp6729
Specifications:
Inductance：142mh+25%
Resistance：300 Ohms Maximum
Thread Size: 3/8-24unf-2a
Proximity to Gear Teeth：0.025-0.035in.(0.64-0.89mm.)
Temperature Range：-55℃ to 105℃
Idle Ouput：1.5 Volts Ac Minimum
Max Output：30 Volts Ac
Adc120-12\24 Actuator
Specifications
Performance:
Available Torque Max1.0lb-ft(1.4nm)
Maximum Operating Shaft Angular Travel 25+1degree Cw/Ccw
Power Input:
Operating Voltage 12v/24v Dcnormal Operating Current 2 a at 12v/24v Dc,1 a at 24vdc
Maximum Currentcontinuously Rated 6 a at 12v/24v Dc,3 a at 24vdc
Enviromental:
Temperature Range -54 to 95
Relative Humidity up to 100%
All Surface Finishes Fungus Proof and Corrosion Resistant
Phisical:
Weight 2.3 Kg
Mounting Any Position, Electrical Connector at the Top Preferred
Reliability:
Vibration up to 20g @50-500 Hz
Testing 100% Tested
Mating Hardware:
Connector Supplied with Actuator
Lever Le1500-2
Rod End Bearings(to Attach a 12#20 Hd Linkage Rod to Lever) Br100(Right Hand)
