Introduction

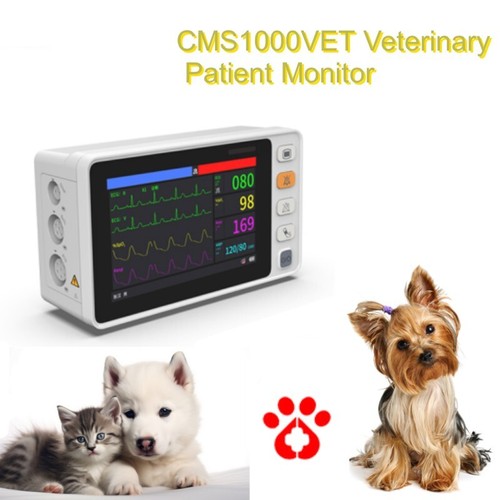

The monitor has abundant functions, which can be used for monitoring of cats, dogs and other animals. It is powered by 100 V-240 V ～ 50 Hz/60 Hz. Users may select different parameter configurations according to requirements. It displays real-time data and waveform by 5'' color TFT LCD. It can be connected to Central Monitoring System via wireless network (optional) to form a network monitoring system. It can monitor such parameters as ECG, RESP, SpO2, PR, NIBP, TEMP and CO2 (optional). It integrates parameter measurement module and display into one device to form a compact and portable monitor.
Features
1)5'' color TFT LCD, multi-language interface (simplified Chinese, English, Russian, Kazakh, Slovak, Czech, Spanish, etc.).2)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
3)With standard interface, OxyCRG, big character interface and full-lead interface, convenient to observe.
4)Waveform, parameter color and location can be set optionally.
5)All operations can be completed by the buttons and touch screen.
6)Adopt digital SpO2 technology, anti-ambient light interference, and measurement can be performed under the circumstance of low perfusion.
7)NIBP measurement mode: Manual / AUTO / STAT, storage for 2400-group NIBP data.
8)Connect to Central Monitoring System by WiFi (optional).
9)Built-in large-capacity battery, meets the requirements of long-term operation. AC/DC, achieves uninterrupted monitoring.
10)Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).
Physical characteristic
Dimension: 168 mm (L) × 56 mm (W) × 98 mm (H)
Weight: <1.0 Kg (excluding accessories)
