AEMC 275HVD Non-Contact AC Voltage Detector, 80V to 275kV

AEMC 275HVD Non-Contact AC Voltage Detector, 80V to 275kV

AEMC 275HVD Offers

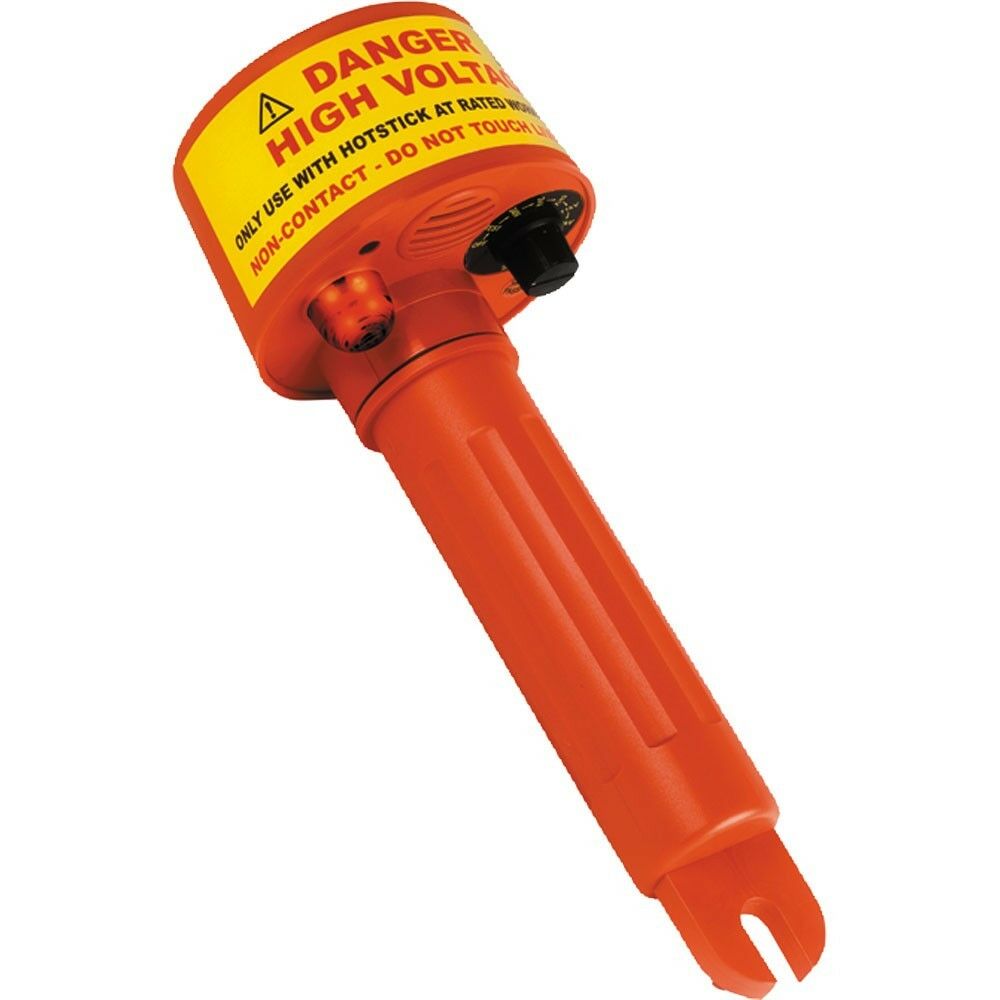

The AEMC 275HD Non-Contact High Voltage Detector is a high voltage detector by proximity. It is a product designed to warn the use of the presence of voltage in a particular work site.

An eight position rotary switch selects the detection range. The AEMC 275HVD uses an internal sensor designed to detect the radiated electrical field (V/m) present in energized conductors. The radiated electrical field increase with the line voltage but decrease with distance and/or shielding. When an electrical field is detected, a sound annunciator (high pitch-high powered buzzer) and visual indicators (bright LEDs) are triggered ON, warning the operator of live conductors.

The AEMC 275HVD is powered by three standard Alkaline C cell batteries and can be used both in- and out-of-doors. A universal spline on the back-end facilitates attachment to any standard hot stick. A self-test position ensures that all circuitry and annunciators are working properly before use.

Features

• Non-contact voltage detector
• Wide range of detection; finds 80V to 275kV; one instrument fits all applications
• Eight switch selectable voltage ranges
• Lightweight, minimizes sway at the end of long hot sticks
• Audible and visual indication of live voltage
• Self-test position ensures that all system functions and indicators are working properly by energizing the complete system
• Designed for use with hot sticks incorporating a shotgun adapter
• Powered by three standard Alkaline C cell batteries
• Shotgun adapter included

Applications

• Non-contact detection of live voltages
• Check and detect live high voltage cables
• Find faults in cables
• Check grounding equipment
• Service neon lighting
• Trace live wires
• Check high frequency radiation
• Detect residual or induced voltages

What's included with the AEMC 275HVD

• 275HVD Non-Contact AC Voltage Detector
• Shotgun adapter
• 3 x 1.5V C-cell batteries
• Carrying case
• Manual
