Product Features:
1. Supports app-based tuning for convenient and flexible operation.
2. Built-in multi-band EQ adjustment for customizable sound effects.
3. Features bass boost function for an immersive auditory experience.
4. Supports Bluetooth/AUX/USB input options.
5. Ideal for DIY audio modifications and in-car audio upgrades.
1. Supports app-based tuning for convenient and flexible operation.
2. Built-in multi-band EQ adjustment for customizable sound effects.
3. Features bass boost function for an immersive auditory experience.
4. Supports Bluetooth/AUX/USB input options.
5. Ideal for DIY audio modifications and in-car audio upgrades.
Product Specifications:

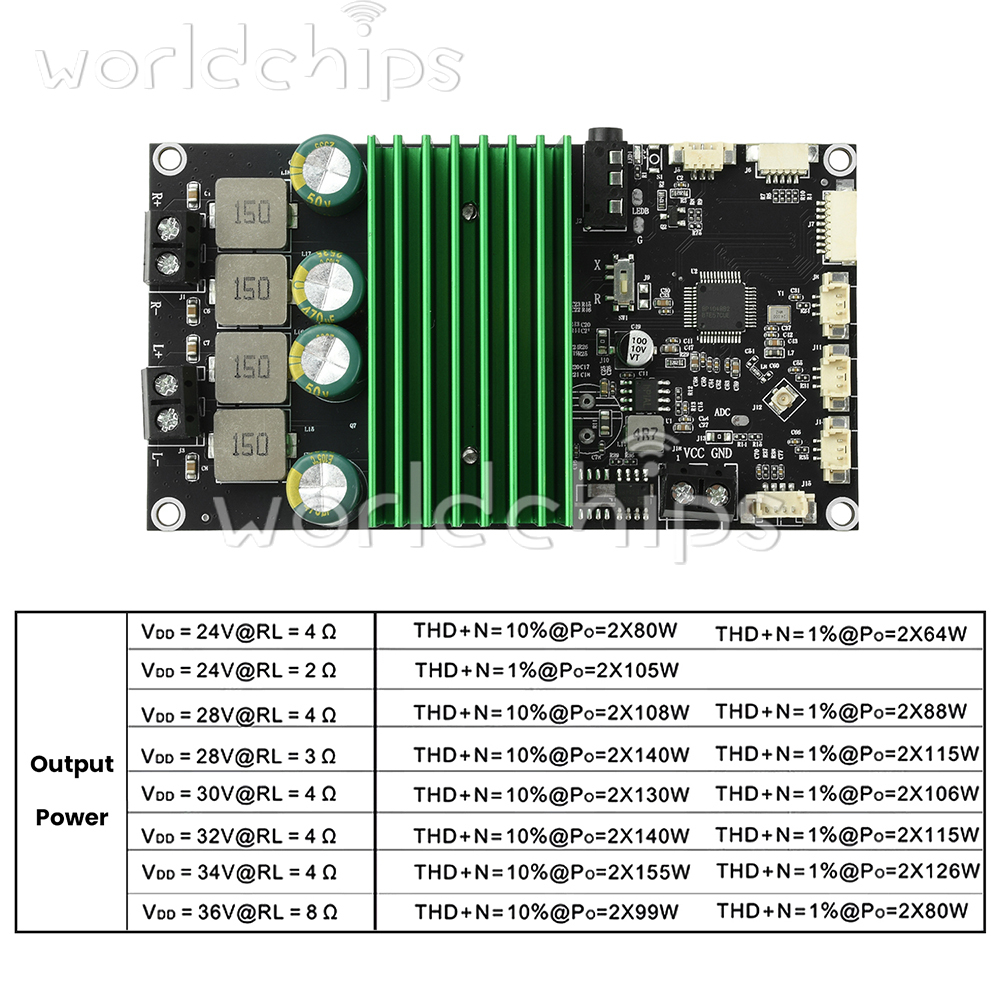

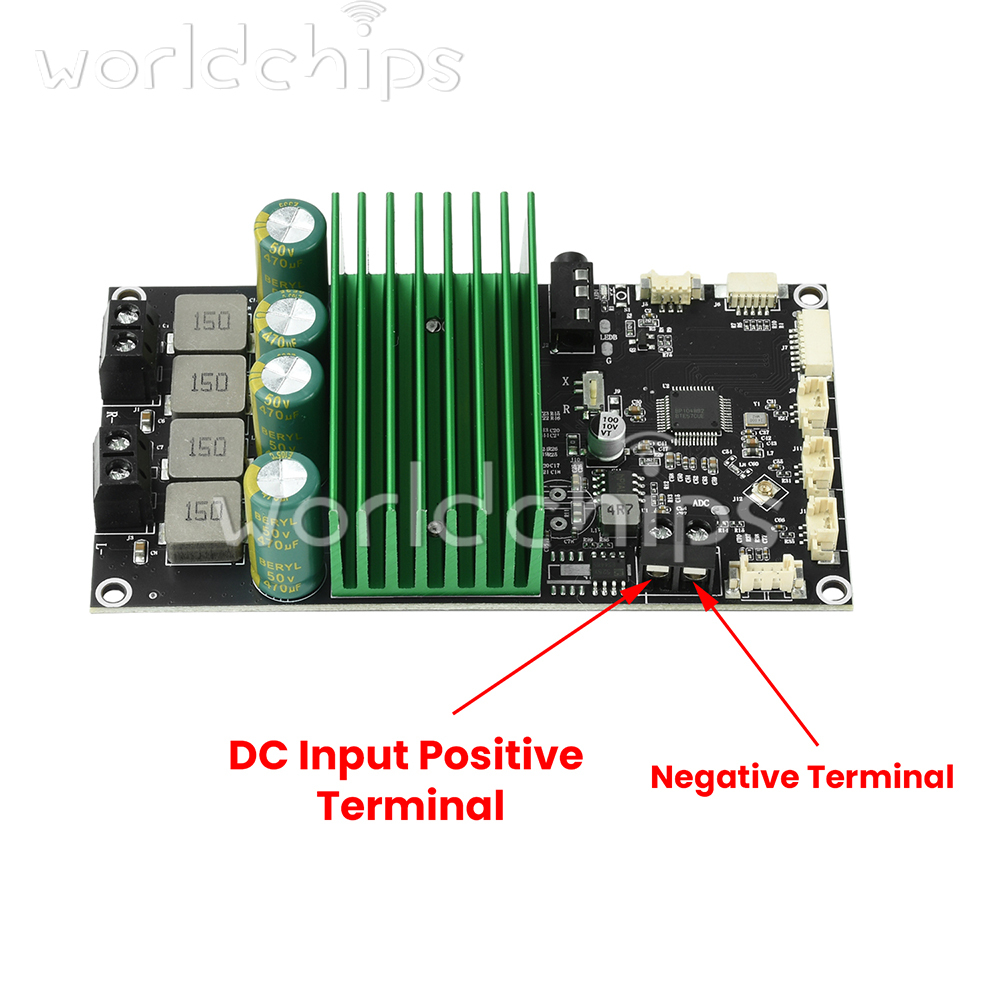

Voltage: DC 9-32V
Power: 2X150W
Inputs: Bluetooth, AUX, Sound Card, USB
Dimensions: 60x102x25mm
Voltage: DC 9-32V
Power: 2X150W
Inputs: Bluetooth, AUX, Sound Card, USB
Dimensions: 60x102x25mm

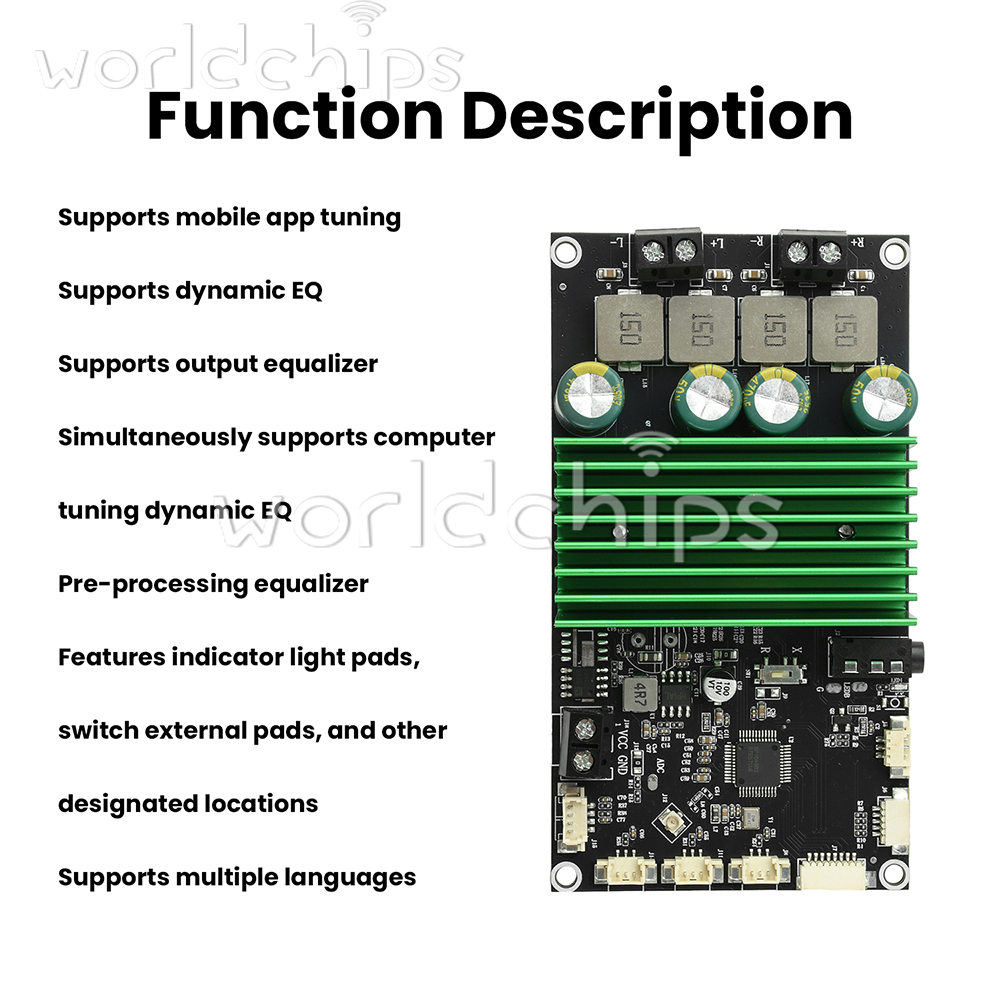

Functional Description:

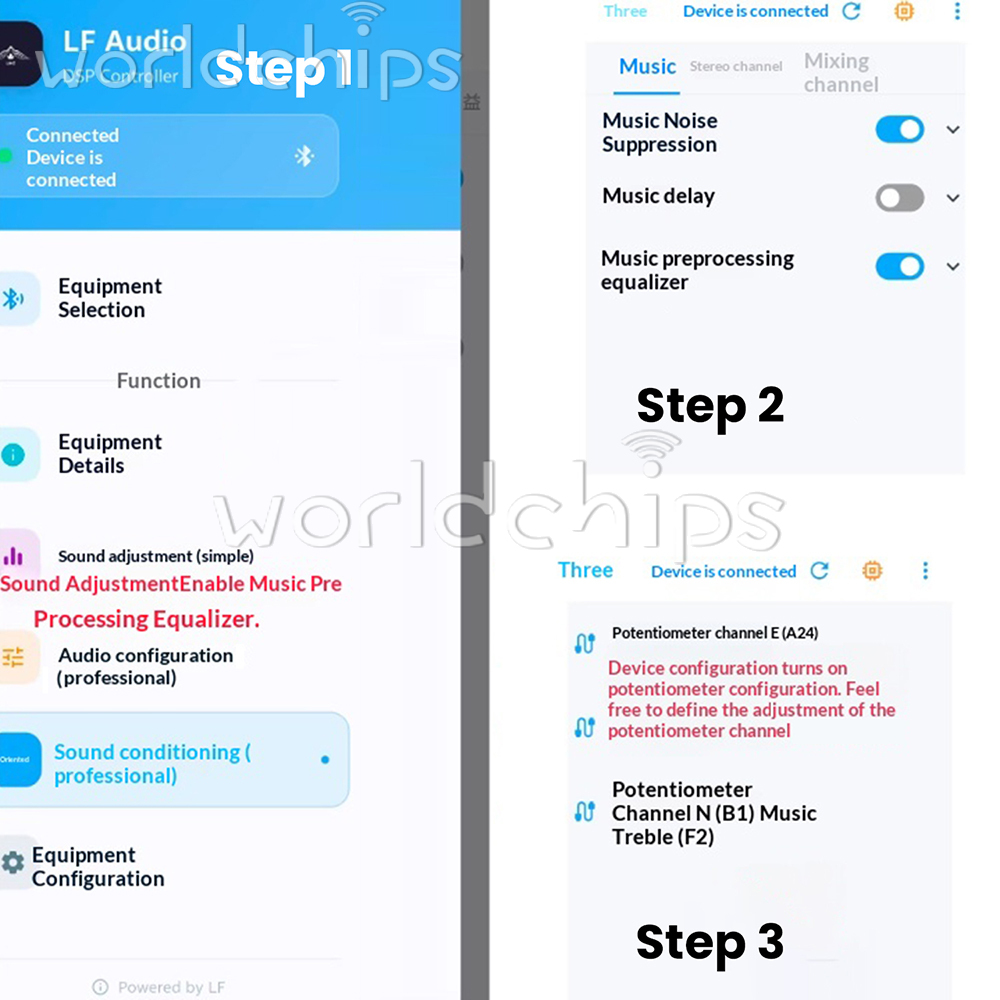

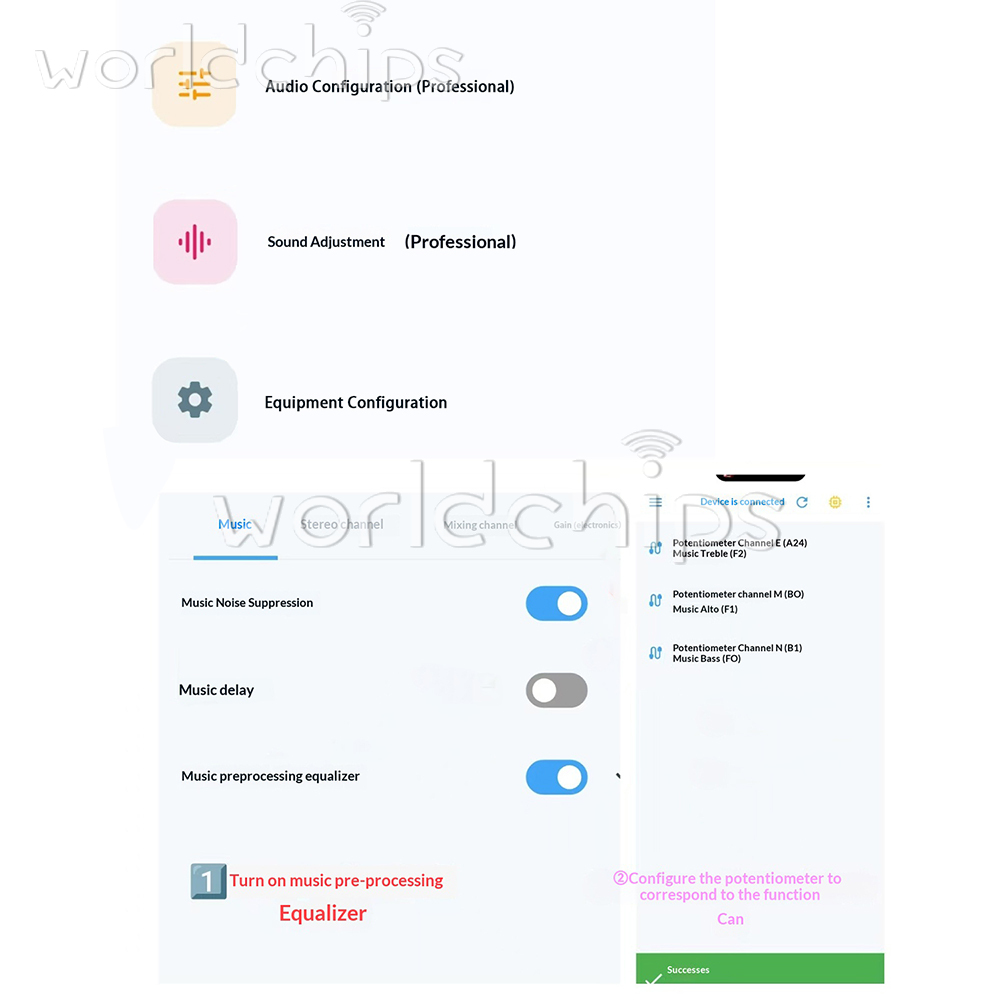

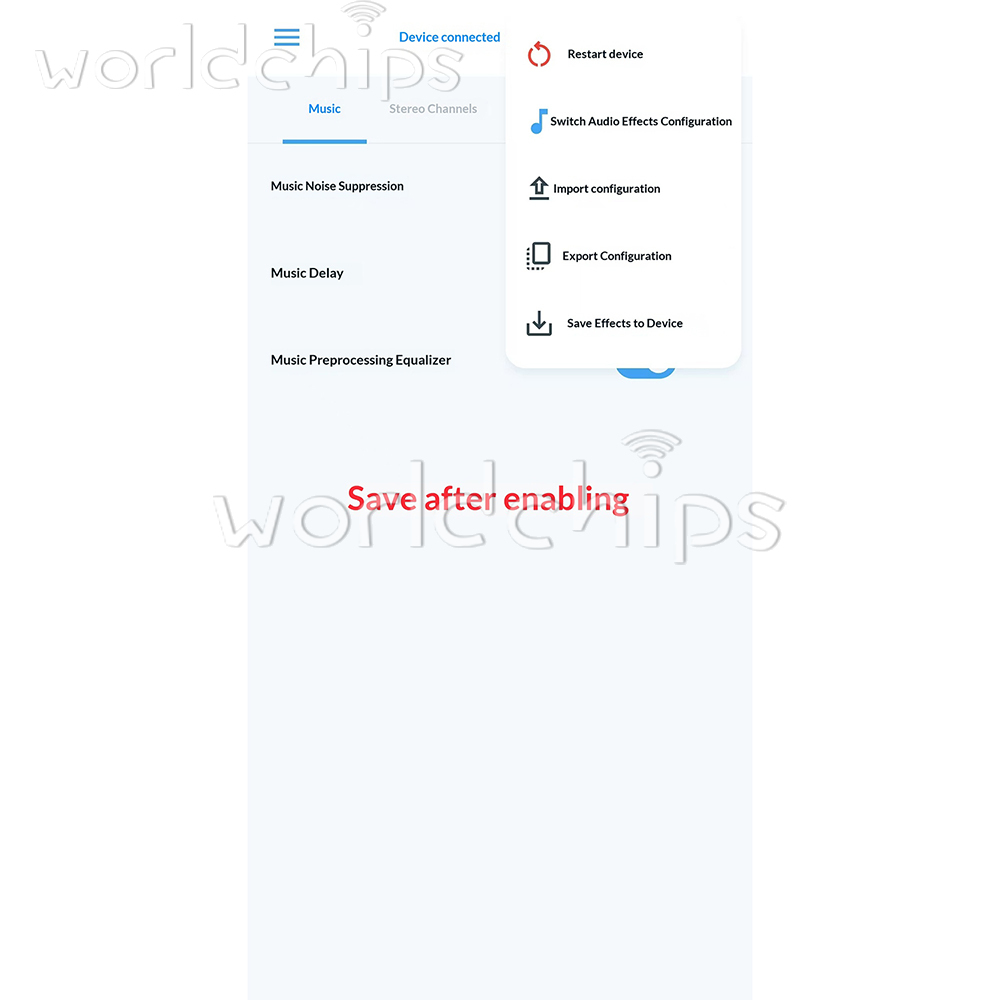

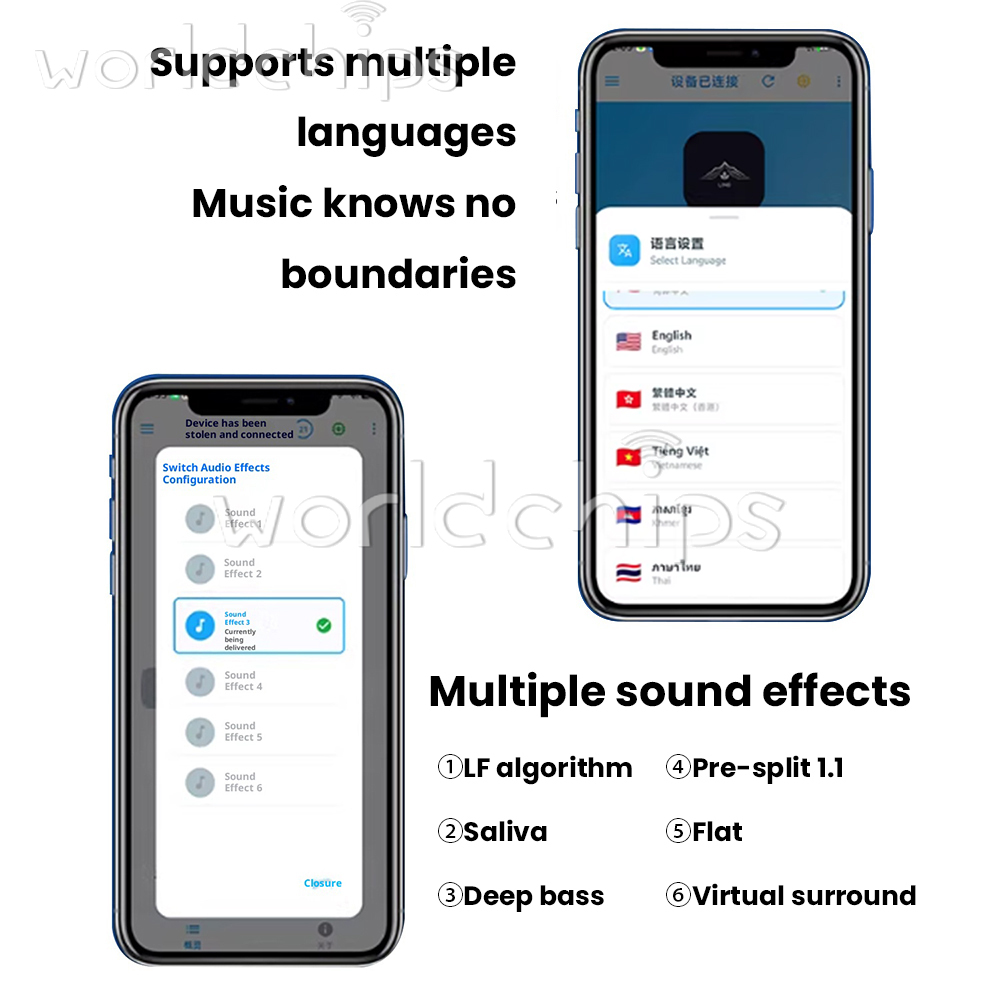

Supports mobile app tuning (Note: App currently supports Android only; unavailable for iOS)
Supports dynamic EQ
Supports output equalizer
Simultaneously supports computer tuning and dynamic EQ
Pre-processing equalizer

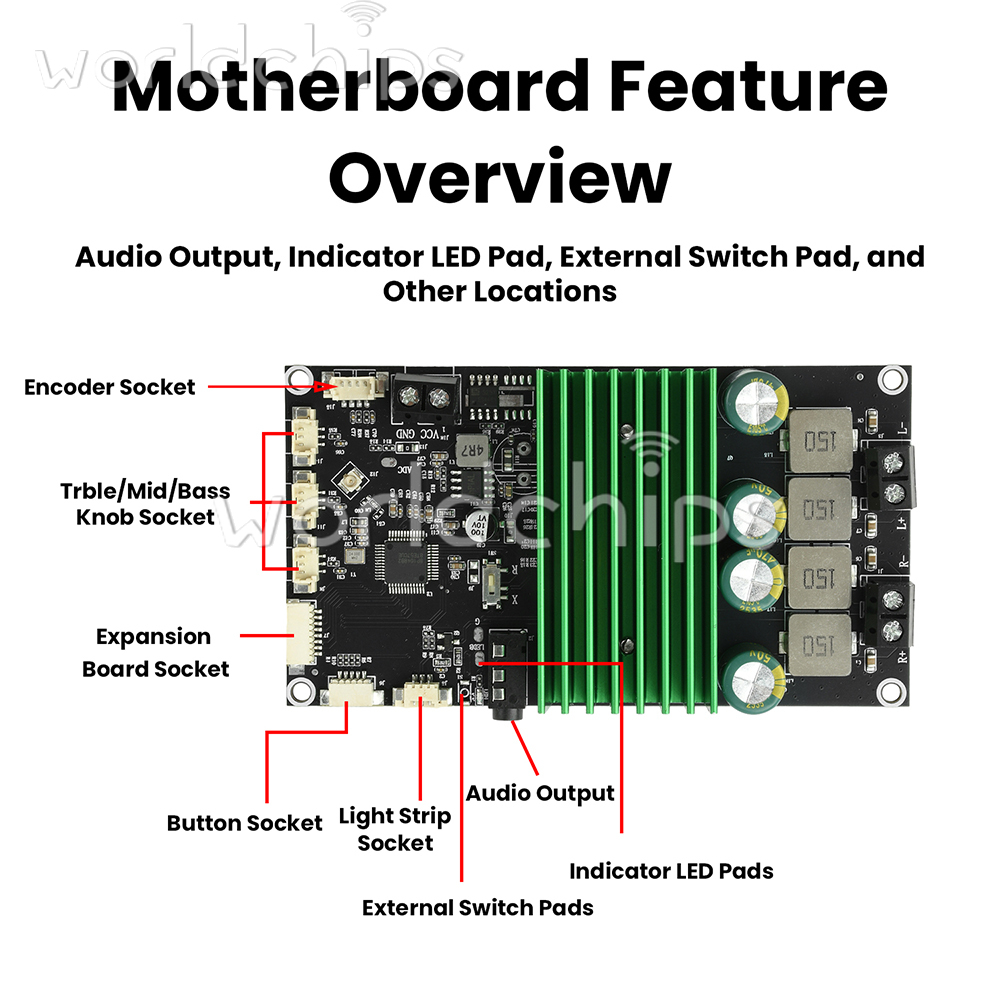

Features indicator pad, switch external pad, and other positioning points
Multi-language support
Supports mobile app tuning (Note: App currently supports Android only; unavailable for iOS)
Supports dynamic EQ
Supports output equalizer
Simultaneously supports computer tuning and dynamic EQ
Pre-processing equalizer
Features indicator pad, switch external pad, and other positioning points
Multi-language support
Product Listing:

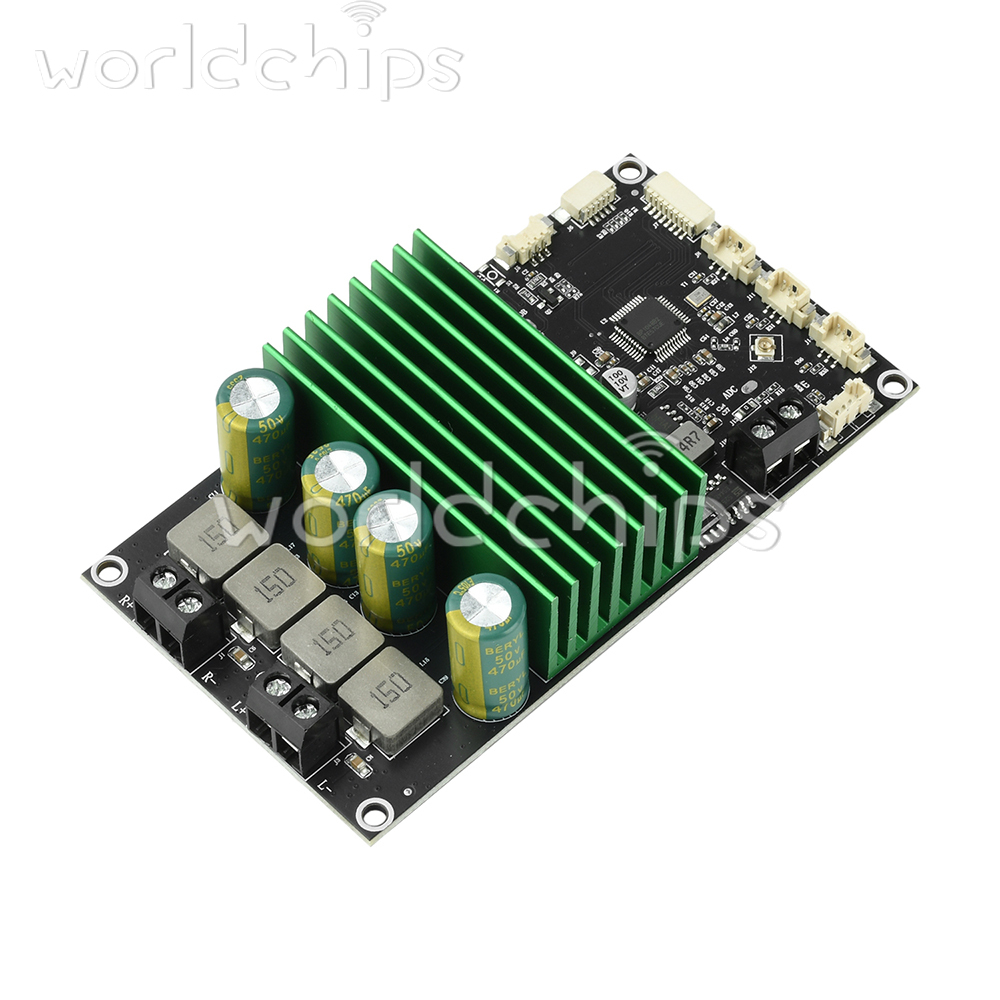

1X Amplifier Board
1X Amplifier Board

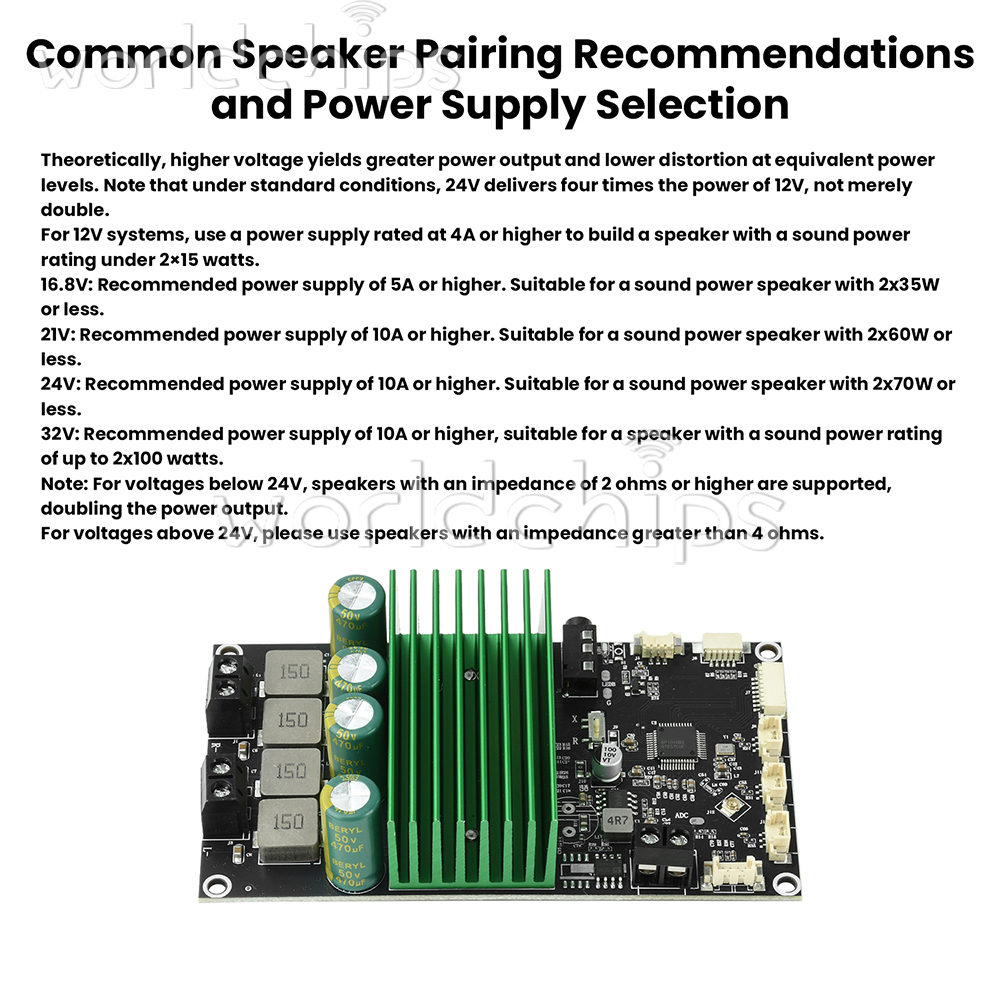

Common Speaker Pairing Recommendations & Power Supply Selection:
Theoretically, higher voltage yields greater power output and lower distortion at equivalent voltage levels. Under standard conditions, 24V delivers four times the power of 12V, not merely double.
12V: Recommended power supply ≥4A. Supports speakers with total acoustic power ≤2×15W.
16.8V: Recommended power supply ≥5A. Supports speakers with total acoustic power ≤2×35W.
21V: Recommended power supply ≥10A. Supports speakers with total acoustic power ≤2×60W.
For 24V, a power supply rated at 10A or higher is recommended, enabling a speaker with a sound power output of up to 2x70W.
For 32V, a power supply rated at 10A or higher is recommended, enabling a speaker with a sound power output of up to 2x100W.
Theoretically, higher voltage yields greater power output and lower distortion at equivalent voltage levels. Under standard conditions, 24V delivers four times the power of 12V, not merely double.
12V: Recommended power supply ≥4A. Supports speakers with total acoustic power ≤2×15W.
16.8V: Recommended power supply ≥5A. Supports speakers with total acoustic power ≤2×35W.
21V: Recommended power supply ≥10A. Supports speakers with total acoustic power ≤2×60W.
For 24V, a power supply rated at 10A or higher is recommended, enabling a speaker with a sound power output of up to 2x70W.
For 32V, a power supply rated at 10A or higher is recommended, enabling a speaker with a sound power output of up to 2x100W.
Note: For voltages below 24V, speakers with an impedance of 2 ohms or higher are supported, doubling the power output. For voltages above 24V, please use speakers with an impedance greater than 4 ohms.
-
