Parameters
Core device:Mitsubishi
Wavelength:648nm 650nm
Output Power:10mW/50mW/100mW/150mW/200mW/250mW
Power supply:DC5V
Spot mode:DOT/Line/Cross(optional)
Output wave band:The visible light
Material:Aerospace aluminum
Optical portion:Focus Lens
Lens Material:pvc Focus Lens
Operating temperature:-40℃~75℃
Best working distance:3 meters
Working life:10000 hours
Dimensions:∮16*68MM DC cable length 1.2 m (adjustable focus)
Structural features:Aluminum shell+ Imported laser diode+ K9 glass lenses+ Constant current driver board
Features

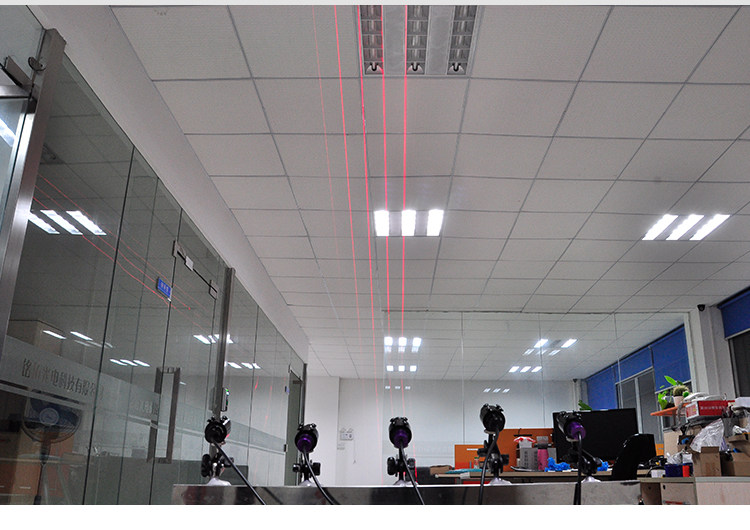

This laser locator/module has is widely used in clothes cutting, wood cutting, mechanical positioning. it comes with a 5V 1A AC Adapter for customers easy operation
Please keep the lens clean to make the laser beam clear and bright. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
Package
1pc 16x68mm 648nm 650nm Red Laser Module
