Description
1. Low power consumption: when TA = 25 ℃, ICC = 4 μ A（MAX）
2. Simple operation and convenient use
3. The output port is a controllable three state output terminal
4. High speed shift clock frequency Fmax > 25MHz
5. Standard serial (SPI) interface
Main parameters:
Input voltage range: dc3.3-5v
High speed shift clock frequency Fmax > 25MHz
Standard serial (SPI) interface
CMOS serial output, which can be used for cascading multiple devices
Low power consumption: when TA = 25 ℃, ICC = 4 μ A（MAX）
Product Description:

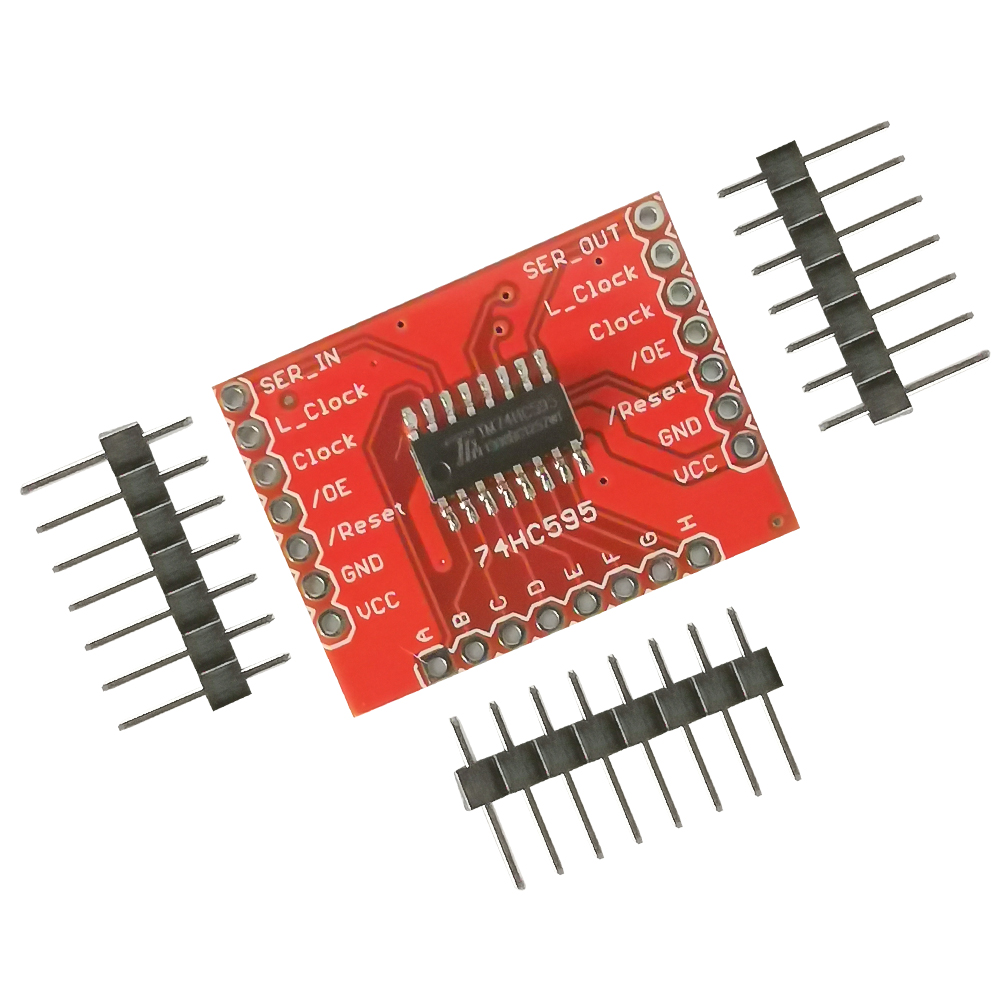

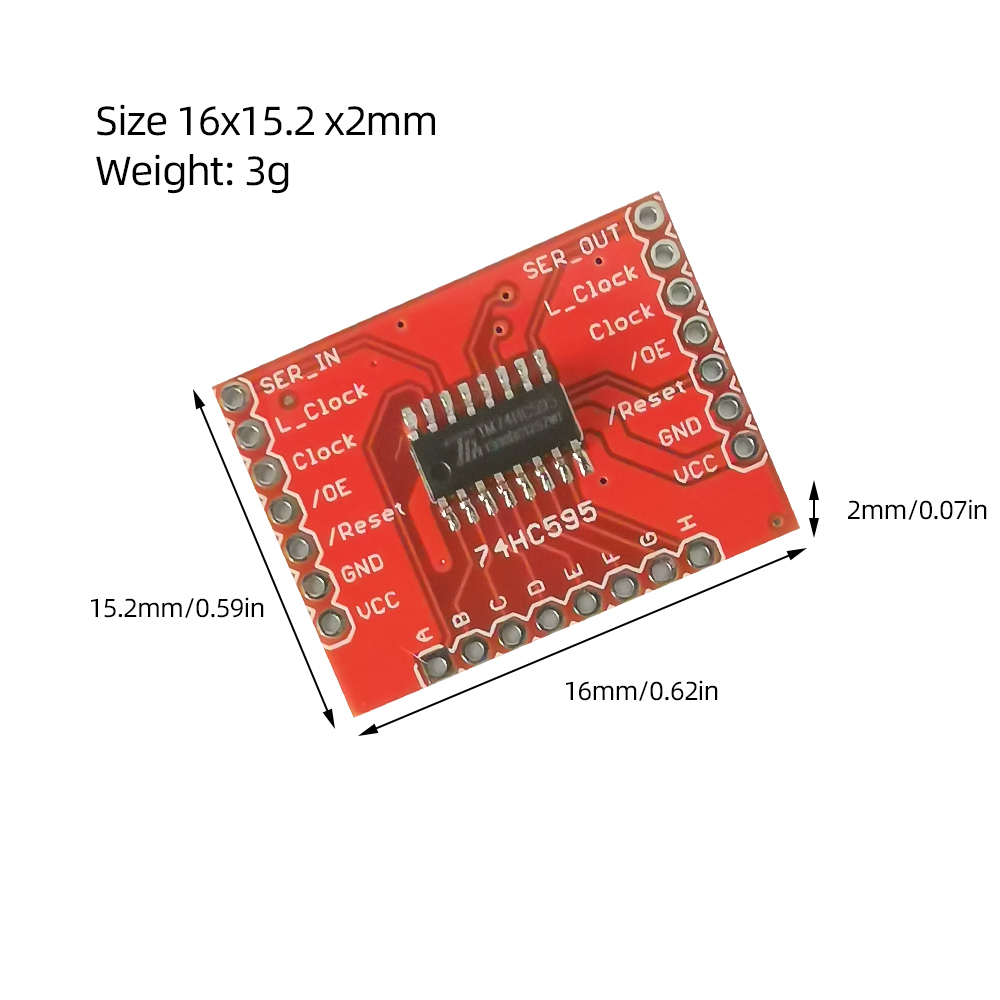

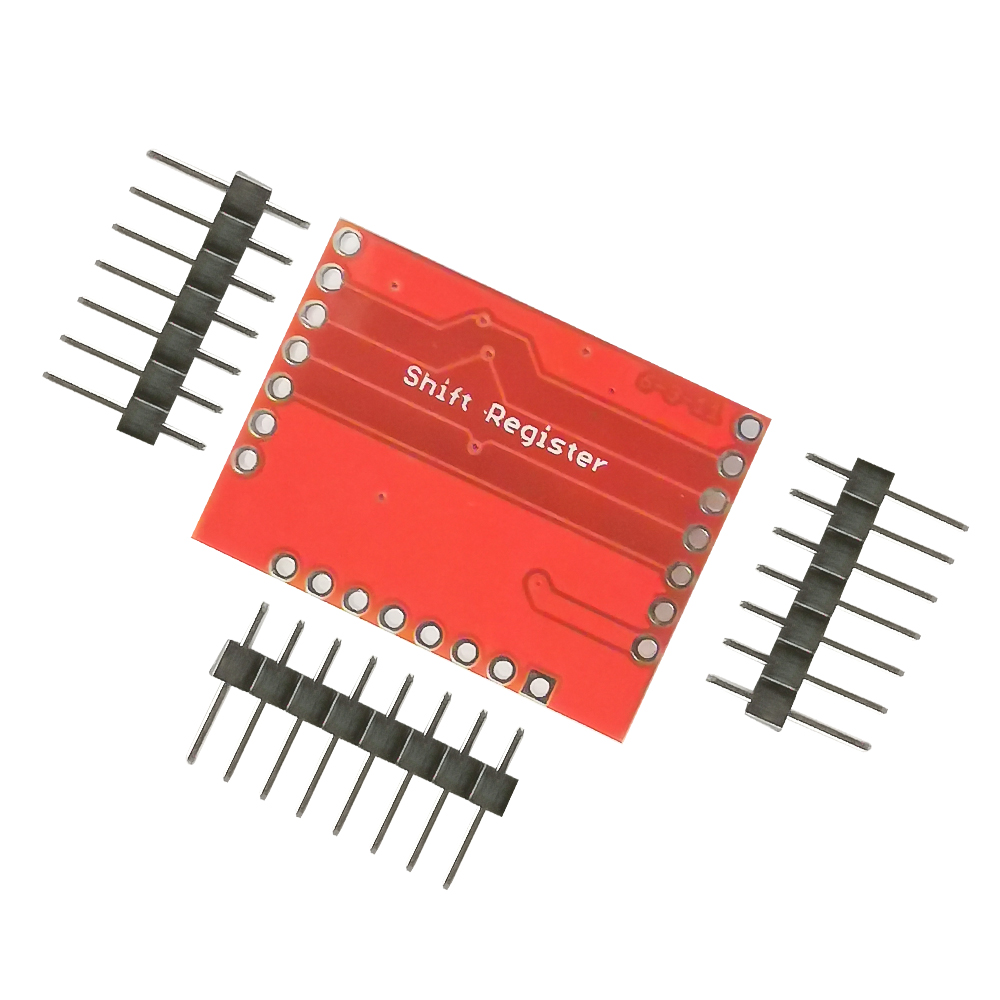

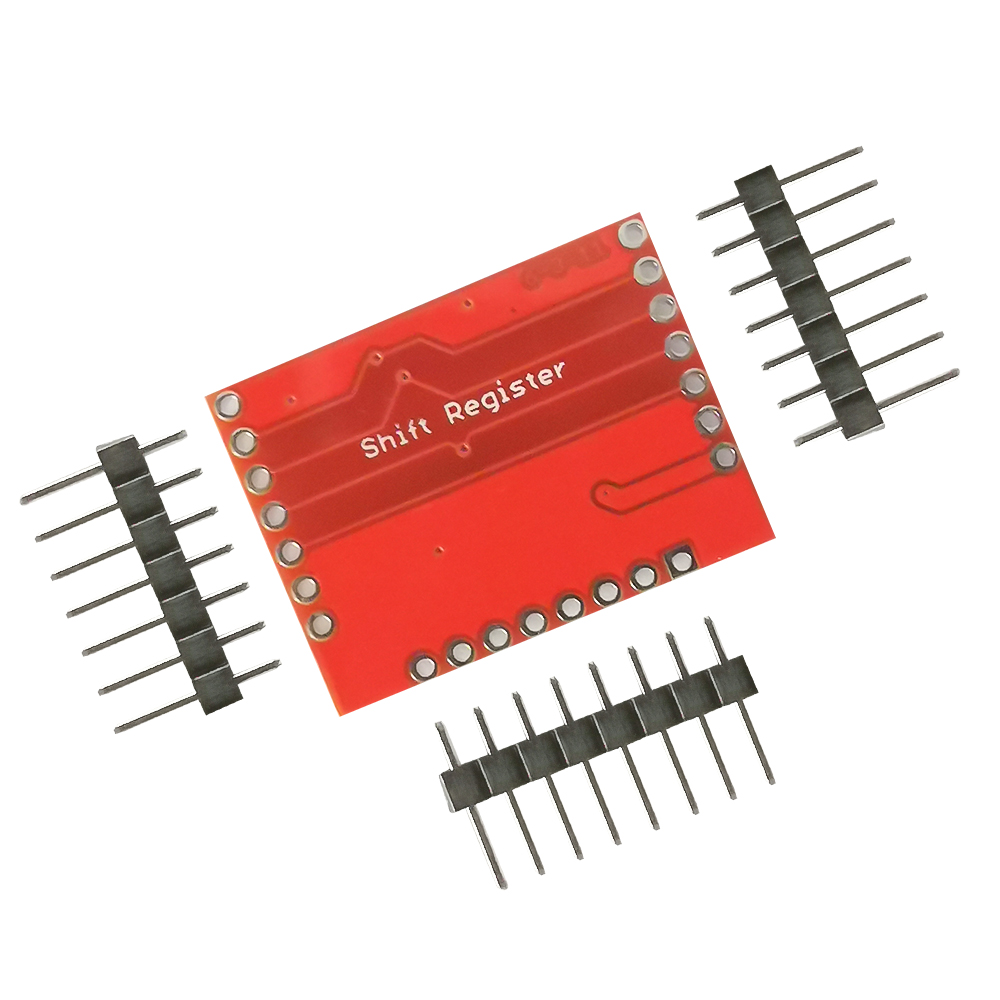

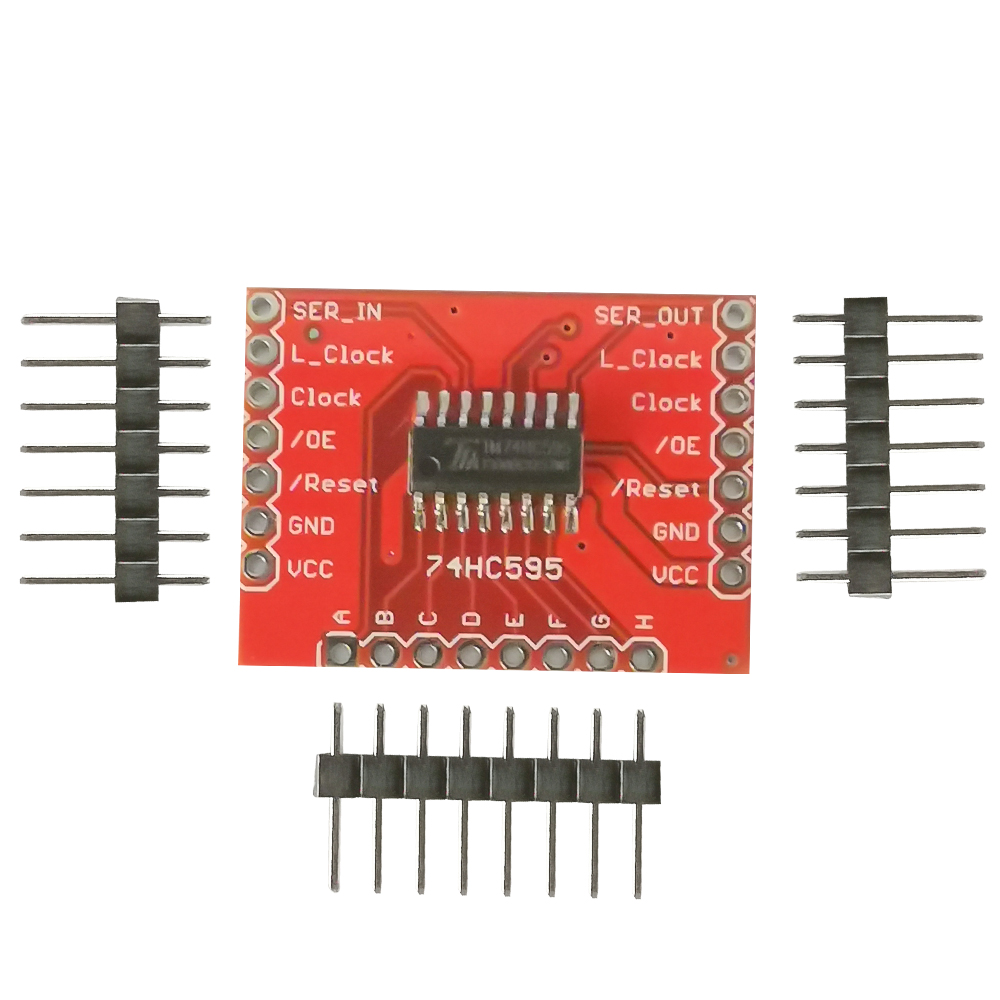

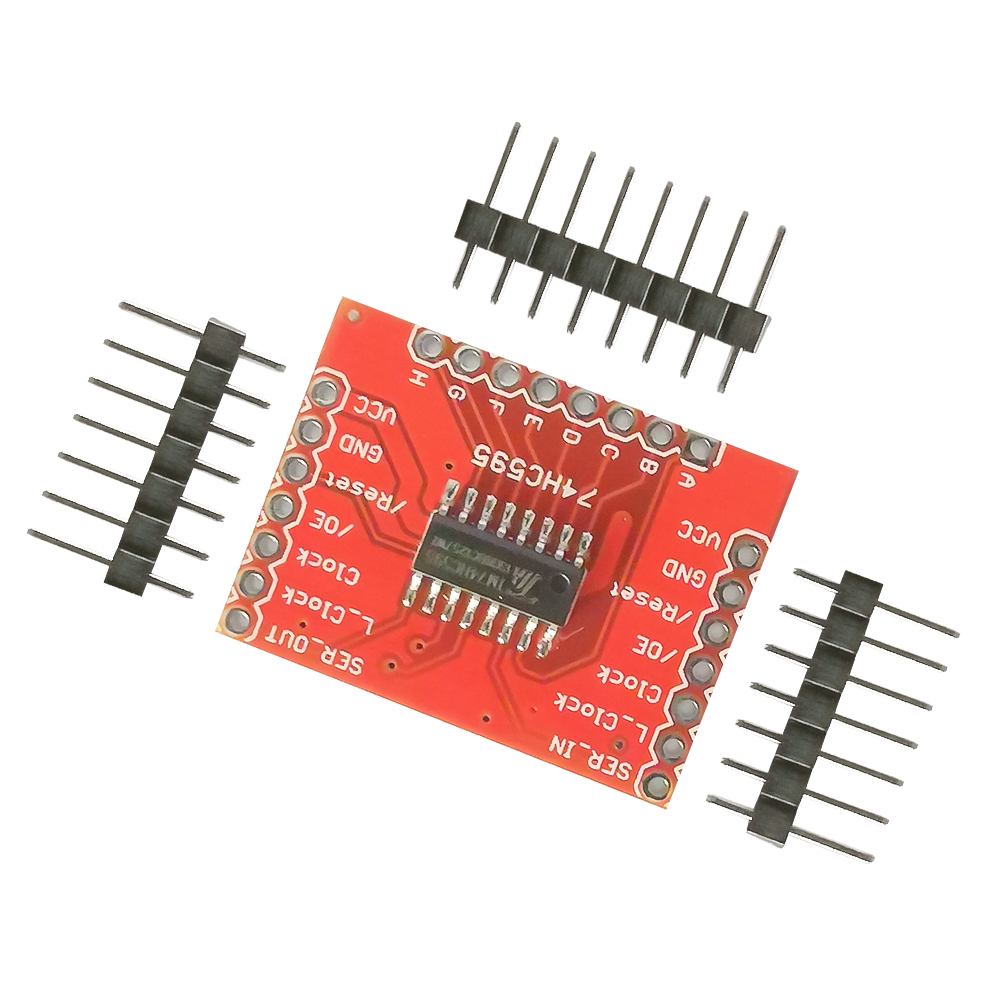

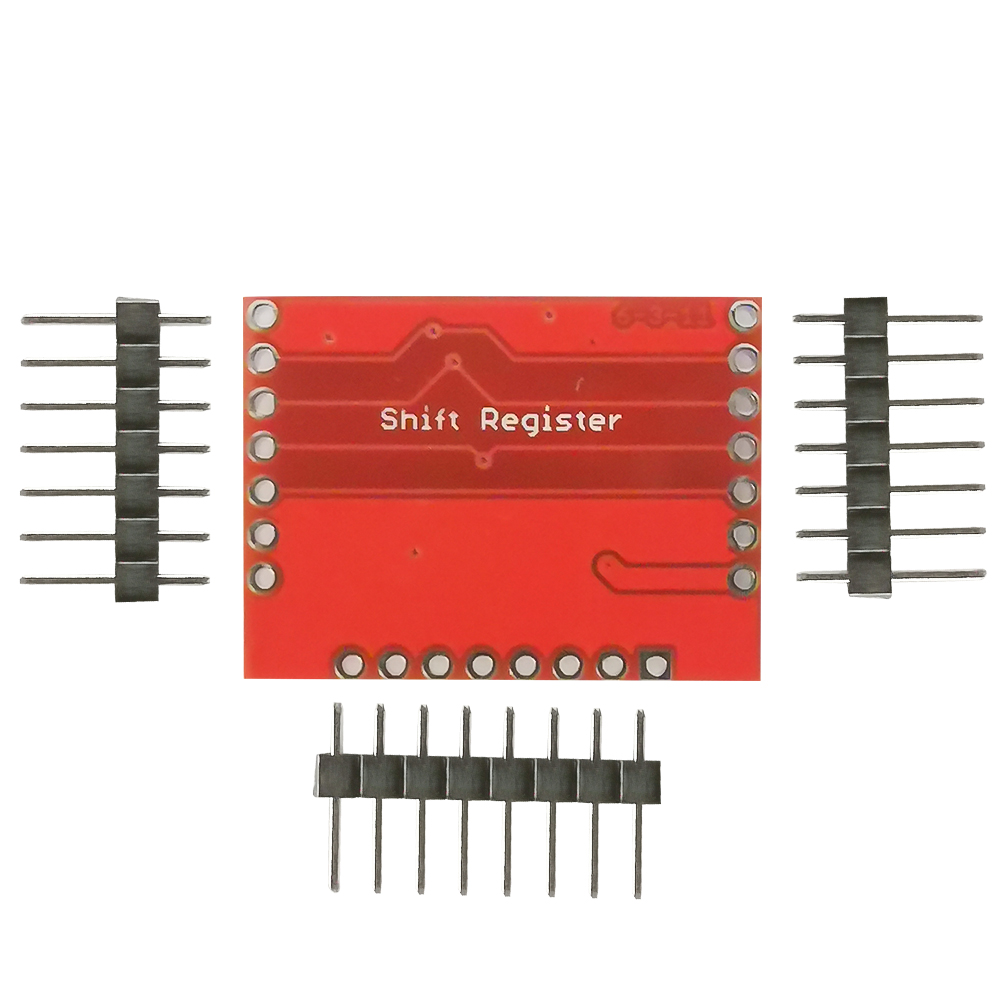

74HC595 shift register IC is a branch of SOIC version. Clock inputs data and locks it to release the IO pin on the micro. All pins on the IC are separated by a standard 0.1 inch spacer. The serial input and output pins are located on the opposite side of the circuit board, and the remaining pins are carried so that multiple shift register boards can be linked together. This is a CMOS shift register with open drain output. The output port is a controllable three-state output terminal. It can also serial output and control the next cascade chip（ The popular saying is that the module leads out all the pins inside the chip for easy use)

package:
Module * 1 + row Pin * 3
