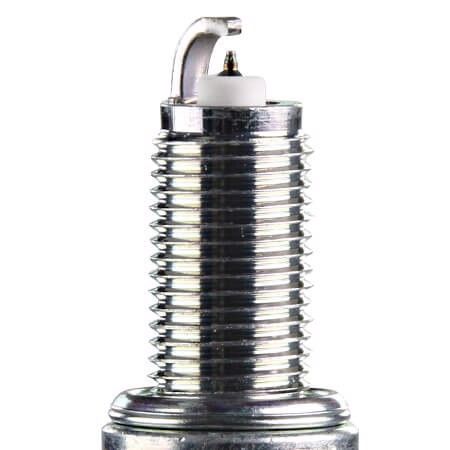

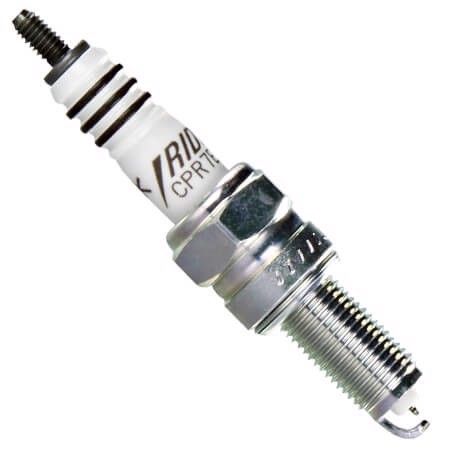

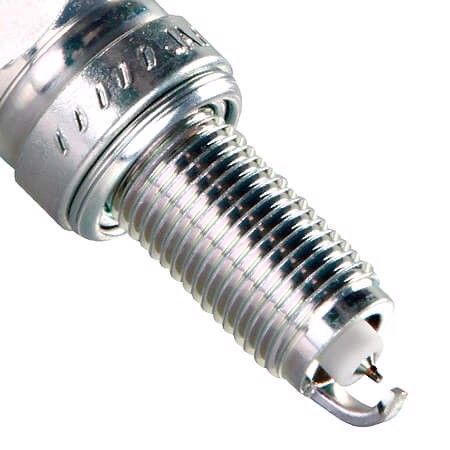

NGK Iridium IX Spark Plug 9198

SPECIFICATIONS
Product SKU: 9198 M-001
Brand: NGK
Condition: New

Stock image. Actual product may vary.

For additional product details or technical questions, please contact us.
Monday-Friday 9AM to 6PM Eastern Time.

Free Ground Shipping

Easy Returns

Secure Payments

Great Customer Service

Product Details

NGK Iridium IX Spark Plug 9198



NGK Iridium IX Spark Plug


NGK IX Iridium Series plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines.

  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage

Specs:

  • Center Electrode: Material - Iridium
  • Center Electrode: Projection - Projected
  • Center Electrode: Size - 0.6mm
  • Center Electrode: Type - Fine Wire
  • Ground Electrode: Material - Nickel
  • Ground Electrode: Quantity - 1
  • Ground Electrode: Shape - Taper Cut
  • Ground Electrode: Type - Standard
  • Shell: Gap - .035" (0.9mm)
  • Shell: Hex Size - 5/8" (16mm)
  • Shell: Overall Height - ISO
  • Shell: Reach - 19mm (3/4")
  • Shell: Seat Type - Gasket
  • Shell: Terminal Type - Threaded Stud
  • Shell: Thread Diameter - 10mm
  • Shell: Thread Pitch - 1.0mm
  • Specifications: Heat Range - 7
  • Specifications: Resistor - Yes
  • Specifications: Resistor Value - 5k Ohm
  • Specifications: Torque Specs - Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.

Brand: NGK
Part Number: 9198

Fitment:

  • Honda PCX125 Base 2011
  • Honda PCX150 Base 2013
  • Honda PCX150 Base 2016
  • Honda Super Cub 125 C125A Base 2020-2024
  • Honda Super Cub 125 CA125A ABS Base 2019
  • Kawasaki Brute Force 750 EPS LE Base 2024
  • Kawasaki Brute Force 750 KVF750 4x4i Base 2024
  • Kawasaki Brute Force 750 KVF750 4x4i Base 2015-2021
  • Kawasaki Brute Force 750 KVF750 4x4i IRS 2015-2016
  • Kawasaki Brute Force 750 KVF750 4x4i EPS Base 2015-2024
  • Kawasaki Brute Force 750 KVF750 4x4i EPS IRS 2015-2016
  • Kawasaki Brute Force 750 KVF750 4x4i EPS Camo Base 2016-2023
  • Kawasaki Brute Force 750 KVF750 4x4i EPS Camo LE Base 2024
  • Kawasaki Teryx 800 KRF800 Base 2015-2024
  • Kawasaki Teryx 800 KRF800 2014-2016
  • Kawasaki Teryx 800 KRF800 Camo Base 2015-2021
  • Kawasaki Teryx 800 KRF800 LE Base 2015-2021
  • Kawasaki Teryx 800 KRF800 S LE Base 2021-2024
  • Kawasaki Teryx4 750 KRT750A 4x4 Base 2012
  • Kawasaki Teryx4 750 KRT750B 4x4 EPS Base 2012-2013
  • Kawasaki Teryx4 750 KRT750B 4x4 EPS Camo Base 2013
  • Kawasaki Teryx4 750 KRT750C 4x4 LE EPS Base 2012-2013
  • Kawasaki Teryx4 750 KRT750C 4x4 LE EPS Camo Base 2012
  • Kawasaki Teryx4 750 KRT750D 4x4 EPS Base 2012-2013
  • Kawasaki Teryx4 800 KRT800 Base 2014-2024
  • Kawasaki Teryx4 800 KRT800 2014-2016
  • Kawasaki Teryx4 800 KRT800 Camo Base 2014-2021
  • Kawasaki Teryx4 800 KRT800 LE Base 2014-2021
  • Kawasaki Teryx4 800 KRT800 LE 2014-2016
  • Kawasaki Teryx4 800 KRT800 S Camo Base 2021
  • Kawasaki Teryx4 800 KRT800 S Camo Base 2024
  • Kawasaki Teryx4 800 KRT800 S LE Base 2021-2024
  • Kawasaki Teryx4 800 KRT800 S Special Edition Base 2023-2024
  • Kawasaki Vulcan 900 VN900B Classic Base 2006-2024
  • Kawasaki Vulcan 900 VN900B Classic 2006-2017
  • Kawasaki Vulcan 900 VN900C Custom Base 2007-2024
  • Kawasaki Vulcan 900 VN900C Custom 2007-2017
  • Kawasaki Vulcan 900 VN900D Classic LT Base 2006-2024
  • Kawasaki Vulcan 900 VN900D Classic LT 2006-2017
  • Suzuki GSX250R Base 2018-2019
  • Suzuki GSX250R ABS Base 2019
  • Yamaha Bolt XVS950 Base 2014-2019
  • Yamaha Bolt XVS950 C Spec Base 2015-2016
  • Yamaha Bolt XVS950 C Spec 2015-2017
  • Yamaha Bolt XVS950 R-Spec Base 2014-2019
  • Yamaha Bolt XVS950 R-Spec 2015-2017
  • Yamaha Grizzly 700 YFM700D 4x4 FI Base 2007-2008
  • Yamaha Grizzly 700 YFM700D 4x4 FI Base 2014-2016
  • Yamaha Grizzly 700 YFM700FG 4x4 FI IRS 2007-2008
  • Yamaha Grizzly 700 YFM700FG 4x4 FI IRS 2015-2016
  • Yamaha Grizzly 700 YFM700FGP 4x4 FI EPS IRS 2007-2008
  • Yamaha Grizzly 700 YFM700FGP 4x4 FI EPS IRS 2014-2016
  • Yamaha Grizzly 700 YFM700FGPSE 4x4 Special Edition FI EPS IRS 2014-2017
  • Yamaha Grizzly 700 YFM700P 4x4 FI EPS Base 2007-2008
  • Yamaha Grizzly 700 YFM700P 4x4 FI EPS Base 2014-2015
  • Yamaha Grizzly 700 YFM700P 4x4 FI EPS Base 2018-2020
  • Yamaha Grizzly 700 YFM700PLE 4x4 Limited Edition FI EPS Base 2016-2018
  • Yamaha Grizzly 700 YFM700PSE 4x4 Special Edition FI EPS Base 2014-2020
  • Yamaha Kodiak 700 YFM700K 4x4 FI Base 2016-2020
  • Yamaha Kodiak 700 YFM700K 4x4 FI IRS 2016-2017
  • Yamaha Kodiak 700 YFM700KP 4x4 FI EPS Base 2016-2020
  • Yamaha Kodiak 700 YFM700KP 4x4 FI EPS IRS 2016-2017
  • Yamaha Kodiak 700 YFM700KPSE 4x4 Special Edition FI EPS Base 2016-2020
  • Yamaha Kodiak 700 YFM700KPSE 4x4 Special Edition FI EPS IRS 2016-2017
  • Yamaha Morphous 250 CP250 Base 2006-2008
  • Yamaha Rhino 700 YXR700F 4x4 FI Base 2008-2009
  • Yamaha Rhino 700 YXR700F 4x4 FI Base 2011-2013
  • Yamaha Rhino 700 YXR700F 4x4 FI 2008-2009
  • Yamaha Rhino 700 YXR700F 4x4 FI 2011-2013
  • Yamaha Rhino 700 YXR700FDU 4x4 Ducks Unlimited Edition FI Base 2008-2009
  • Yamaha Rhino 700 YXR700FSE 4x4 Special Edition FI Base 2013
  • Yamaha Rhino 700 YXR700FSE 4x4 Special Edition FI Base 2008-2009
  • Yamaha Rhino 700 YXR700FSP 4x4 Sport Edition FI Base 2008-2009
  • Yamaha Rhino 700 YXR700FSP 4x4 Sport Edition FI Base 2011-2013
  • Yamaha SCR950 Base 2017
  • Yamaha SCR950 2017
  • Yamaha V Star 950 XVS950 Base 2009-2015
  • Yamaha V Star 950 XVS950 2009-2015
  • Yamaha V Star 950 XVS950CT Tourer Base 2009-2017
  • Yamaha V Star 950 XVS950CT Tourer 2009-2016
  • Yamaha Viking 700 YXM700DH 4x4 FI Base 2014-2015
  • Yamaha Viking 700 YXM700DH 4x4 FI 2014-2015
  • Yamaha Viking 700 YXM700P 4x4 FI EPS Base 2014-2015
  • Yamaha Viking 700 YXM700P 4x4 FI EPS 2014-2015
  • Yamaha Viking 700 YXM700P 4x4 FI EPS SE Base 2015
  • Yamaha Viking 700 YXM700P 4x4 FI EPS SE Base 2017
  • Yamaha Viking 700 YXM700P 4x4 FI Ranch Edition EPS Base 2018-2019
  • Yamaha Viking VI YXM700 Ranch Edition EPS Base 2016
  • Yamaha Viking VI YXM700 Ranch Edition EPS Base 2018-2019
  • Yamaha Viking VI YXM700DH 4x4 FI Base 2015-2016
  • Yamaha Viking VI YXM700DH 4x4 FI 2015
  • Yamaha Viking VI YXM700P 4x4 FI EPS Base 2015-2019
  • Yamaha Viking VI YXM700P 4x4 FI EPS 2015
  • Yamaha Viking VI YXM700P 4x4 FI EPS SE Base 2015-2016
  • Yamaha Wolverine YXE70 4x4 FI Base 2016-2018
  • Yamaha Wolverine R-Spec YXE70 4x4 FI Base 2016-2017
  • Yamaha Wolverine R-Spec YXE70 4x4 FI EPS Base 2017-2018
  • Yamaha Wolverine R-Spec YXE70 4x4 FI EPS SE Base 2016-2017
